Included: the controller or flow switch listed under the order number shown; the SubDrive SolarPAK and Fhoton packages include a 30 ft (10 m) flow switch cable where a flow switch is used.
Matching motor required. Each controller runs the Franklin motor named for it in the table; Fhoton and SubDrive Solar outputs are low-voltage three-phase and are not interchangeable between horsepower ratings.
Solar array and DC disconnect: sized to the controller and ordered separately.

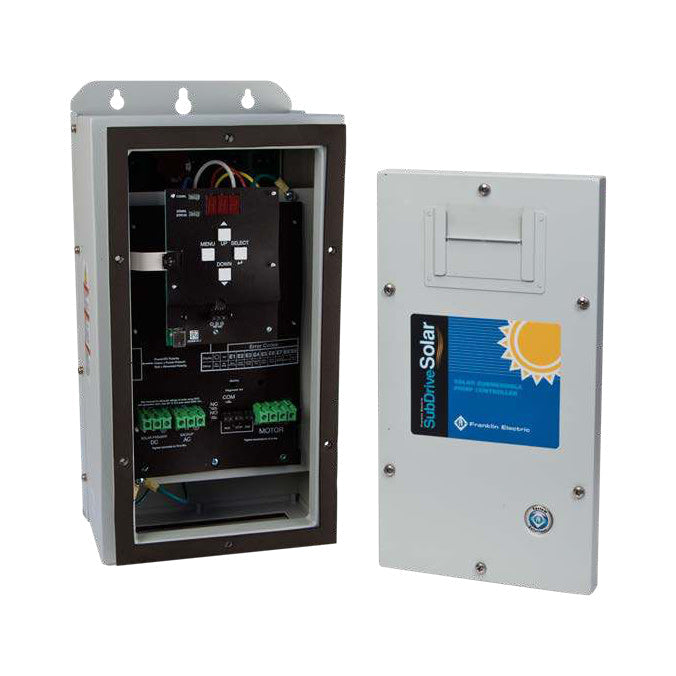

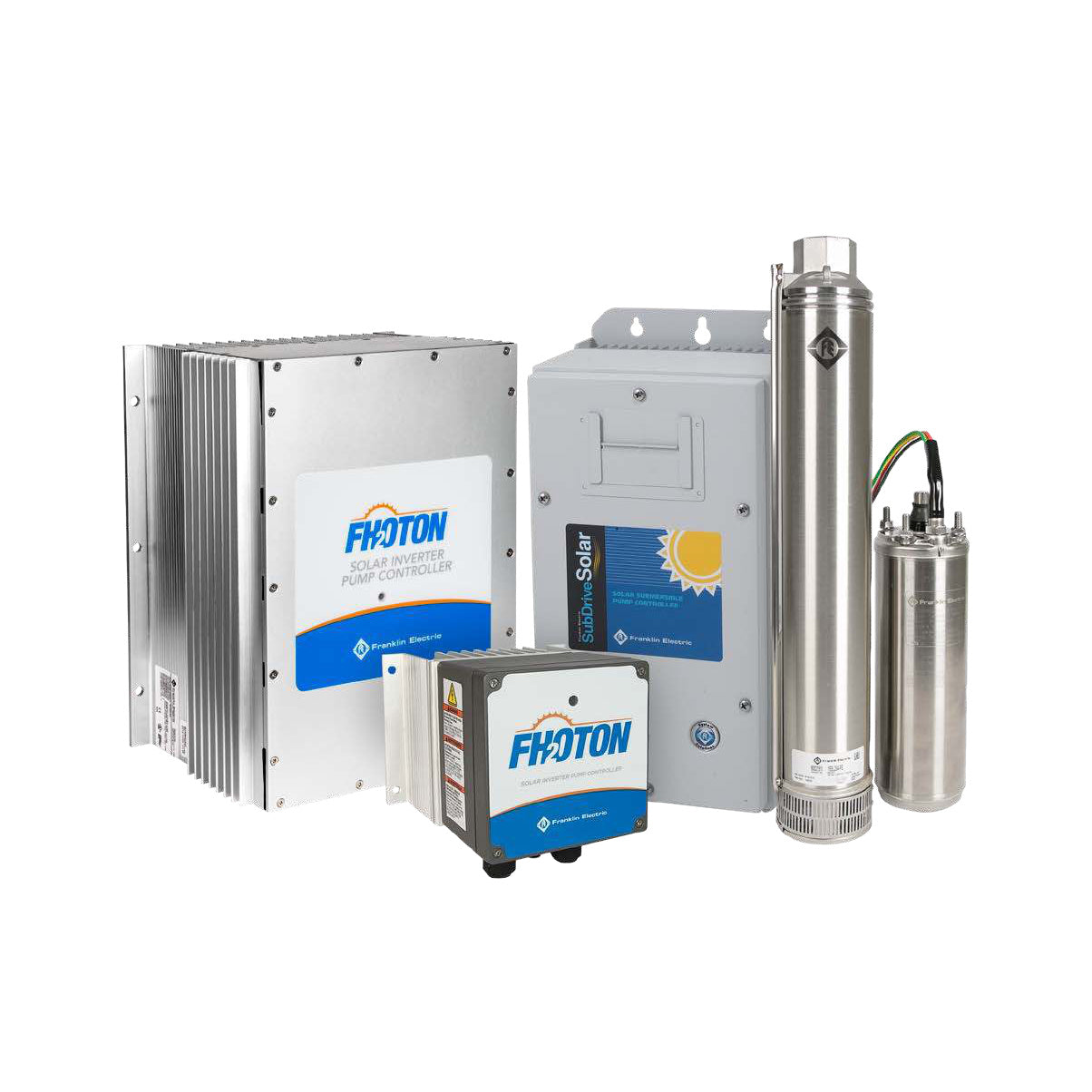

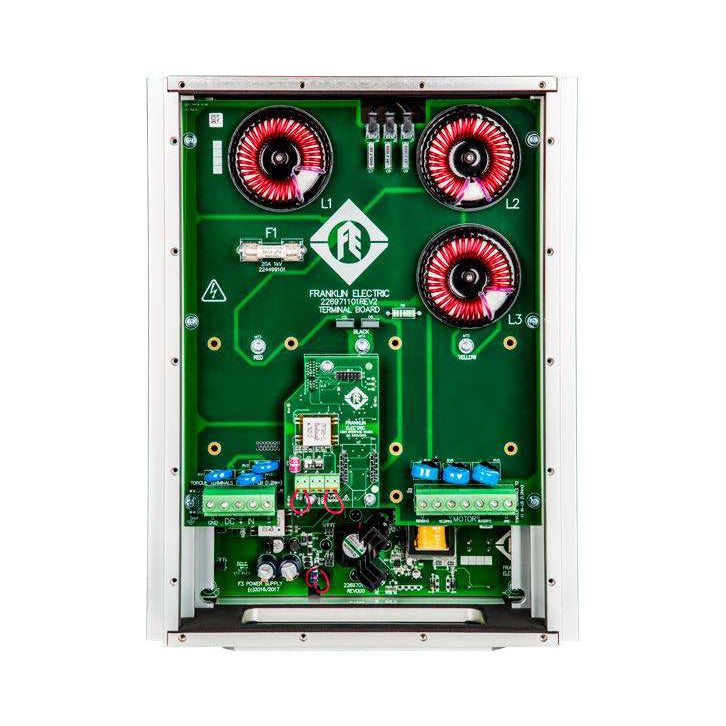

These are the controllers and flow switches Franklin builds into its SolarPAK systems, sold separately to replace a controller or flow switch in an existing installation. SubDrive Solar controllers (IP55, NEMA 3) take DC from the array with automatic switching to a 230 V AC generator, show real-time input watts on a seven-segment display and offer RS-485 telemetry. Fhoton controllers (NEMA 4 to 1.5 hp; Type 4 / IP56 for 5-10 hp) are compact MPPT drives with a multi-color status LED; the F3 5-10 hp controllers accept up to 850 VDC.
Every option ends with the Franklin order number, so you can match the number on your existing controller.
Franklin warrants its products for 12 months from the date of installation, but no more than 24 months from the date of manufacture.
Source: Franklin Electric limited warranty, Submersible Pumps AG/Industrial/Municipal Product Catalog.
| Controller | 0.5 hp (581011100984-SP050HP) | 0.75 hp (581013000864-SP075HP) | 1.5 hp (581014200864-SP150HP) |
|---|---|---|---|
| Max output voltage | 48 VAC three-phase | 100 VAC three-phase | 200 VAC three-phase |
| Max amps (RMS) | 9.8 A each phase | 8.6 A each phase | 6.8 A each phase |
| Output frequency | 20-60 Hz | 20-60 Hz | 20-60 Hz |
| PV input voltage | 40-110 VDC | 45-300 VDC | 115-420 VDC |
| Absolute max open-circuit voltage | — | 300 VOC | 420 VOC |
| Max PV input amps | 7.2 A DC continuous | 7.2 A DC continuous | 6.2 A DC continuous |
| Power at MPP | Up to 0.38 kW | Up to 1,200 W | Up to 2,000 W |
| Franklin motor | 2349049204G | 234902 series | 234504 series |
| Size (L x W x D) | 6.28 x 6.28 x 7.32 in | 6.28 x 6.28 x 7.32 in | 6.28 x 6.28 x 7.32 in |
| Weight | 10 lb | 10 lb | 10 lb |
| Efficiency at max power | Approx. 98% | Approx. 98% | Approx. 98% |
| Enclosure | NEMA 4 | NEMA 4 | NEMA 4 |
| Controller | Fhoton F3, 581038501994 series |
| PV input | 200-850 VDC; 850 VDC open circuit |
| Max PV input amps | 19.3 A DC continuous |
| Max input power | Up to 11.7 kW |
| Output | Up to 460 VAC three-phase, up to 19.9 A each phase, 30-60 Hz |
| Efficiency at max power | Approx. 98% |
| Size (L x W x D) | 15.75 x 12.76 x 9.17 in (400 x 324 x 233 mm) |
| Enclosure | Type 4 / IP56 |
| Operating temperature | -13 to 122 °F (-25 to 50 °C), 0-100% RH condensing |
Source: Franklin Electric Solar Products Catalog (M1782 01-25), pp. 49 and 97. SubDrive Solar ratings are in the table above (p. 25); absolute maximum open-circuit input for SubDrive Solar controllers is 410 VOC.
| Order No. | Item | Used in | PV input | Output to motor | Max PV power | Size |
|---|---|---|---|---|---|---|
| 226019102 | F21 flow switch, NPT | SubDrive SolarPAK 25-90 GPM; Fhoton 25-90 GPM at 1.5 HP; all Fhoton 5-10 HP (included); Fhoton Surface 1-1.5 HP | Dry-run and deadhead detection input | — | — | — |
| 226014102 | C25 inline flow switch, NPT | SubDrive SolarPAK 5-15 GPM; Fhoton 5-15 GPM at 0.75 and 1.5 HP; Fhoton Surface FDSP-0.5HP-7BT4 | Dry-run and deadhead detection input | — | — | — |
| 581011100984-SP050HP | Fhoton solar controller, 0.5 hp (0.37 kW), NEMA 4 | Fhoton 5, 7, 15 and 20 GPM 0.5 HP SolarPAKs; motor 2349049204G | 40-110 VDC | 48 VAC three-phase, 9.8 A | Up to 0.38 kW | 6.28 x 6.28 x 7.32 in |
| 581013000864-SPIP000 | Fhoton HR solar controller, 0.75 hp, 3 GPM | 3FDSP-0.75HP-HR | 45-300 VDC | 100 VAC three-phase, 60 Hz | — | 6.28 x 6.28 x 7.32 in |
| 581013000864-SPIP001 | Fhoton HR solar controller, 0.75 hp, 7 GPM | 7FDSP-0.75HP-HR | 45-300 VDC | 100 VAC three-phase, 60 Hz | — | 6.28 x 6.28 x 7.32 in |
| 581013000864-SP075HP | Fhoton solar controller, 0.75 hp (0.55 kW), NEMA 4 | Fhoton 5-15 GPM 0.75 HP SolarPAKs; 234902-series motors | 45-300 VDC (300 VOC max) | 100 VAC three-phase, 8.6 A | Up to 1,200 W | 6.28 x 6.28 x 7.32 in |
| 581014200864-14IA000 | Fhoton solar controller, 1.1 kW, Surface SolarPAK | Fhoton Surface SolarPAK FDSP-1.5HP-TB (self-priming, 1.5 hp 208-230 V three-phase) | 115-420 VDC | 208-230 VAC three-phase | — | 6.28 x 6.28 x 7.32 in |
| 581014200864-SP150HP | Fhoton solar controller, 1.5 hp (1.1 kW), NEMA 4 | Fhoton 5-90 GPM 1.5 HP SolarPAKs; 234504-series motors | 115-420 VDC (420 VOC max) | 200 VAC three-phase, 6.8 A | Up to 2,000 W | 6.28 x 6.28 x 7.32 in |
| 581038501994-SPIS004 | Fhoton F3 controller, 7.5 hp, 380 VAC, 60 Hz, 6 in | Fhoton 100-375 GPM 7.5 HP SolarPAKs; motor 2366618120 | 200-850 VDC | 380 VAC three-phase | Up to 11.7 kW (series) | 15.75 x 12.76 x 9.17 in |
| 581038501994-SPIS005 | Fhoton F3 controller, 10 hp, 380 VAC, 60 Hz, 6 in | Fhoton 100-375 GPM 10 HP SolarPAKs; motor 2366628120 | 200-850 VDC | 380 VAC three-phase | Up to 11.7 kW (series) | 15.75 x 12.76 x 9.17 in |
| 581038501994-SPIS006 | Fhoton F3 controller, 5 hp, 230 VAC, 60 Hz, 6 in | Fhoton 100-375 GPM 5 HP SolarPAKs; motor 2366008120 | 200-850 VDC | 230 VAC three-phase | Up to 11.7 kW (series) | 15.75 x 12.76 x 9.17 in |
| 581038501994-SPIS009 | Fhoton F3 controller, 7.5 hp, 380 VAC, 60 Hz, 4 in | Fhoton 20-90 GPM 7.5 HP SolarPAKs; motor 2347488602G | 200-850 VDC | 380 VAC three-phase | Up to 11.7 kW (series) | 15.75 x 12.76 x 9.17 in |
| 581038501994-87IS004 | Fhoton F3 controller, 10 hp, 380 VAC, 60 Hz, 4 in | Fhoton 20-90 GPM 10 HP SolarPAKs; motor 2347498602G | 200-850 VDC | 380 VAC three-phase | Up to 11.7 kW (series) | 15.75 x 12.76 x 9.17 in |
| 581038501994-SPIS000 | Fhoton F3 controller, 5 hp, 230 VAC, 60 Hz, 4 in | Fhoton 10-90 GPM 5 HP SolarPAKs; motor 2347178602G | 200-850 VDC | 230 VAC three-phase | Up to 11.7 kW (series) | 15.75 x 12.76 x 9.17 in |
| 5870300553 | SubDrive Solar controller, 0.75 hp (0.55 kW), NEMA 3 | SubDrive SolarPAK 5SDSP-0.75HP, 7SDSP-0.75HP, 10SDSP-0.75HP, 15SDSP-0.75HP; 234902-series motors | 95-330 VDC at MPP; 230 VAC generator backup | 100 VAC three-phase, 8.6 A, 30-60 Hz | Up to 1,400 W | 21.00 x 10.19 x 8.61 in, 41 lb |
| 5870301113 | SubDrive Solar controller, 1.5 hp (1.1 kW), NEMA 3 | SubDrive SolarPAK 5SDSP-1.5HP, 7SDSP-1.5HP, 10SDSP-1.5HP, 15SDSP-1.5HP, 25SDSP-1.5HP, 35SDSP-1.5HP, 45SDSP-1.5HP, 90SDSP-1.5HP; 234504-series motors | 190-330 VDC at MPP; 230 VAC generator backup | 200 VAC three-phase, 6.8 A, 30-58 Hz | Up to 2,000 W | 21.00 x 10.19 x 8.61 in, 41 lb |
| 5870301223 | SubDrive Solar controller, 3.0 hp (2.2 kW), NEMA 3 | SubDrive SolarPAK 7SDSP-3.0HP, 10SDSP-3.0HP, 15SDSP-3.0HP, 25SDSP-3.0HP, 35SDSP-3.0HP, 45SDSP-3.0HP, 90SDSP-3.0HP; 234306-series motors | 190-330 VDC at MPP; 230 VAC generator backup | 200 VAC three-phase, 12.5 A, 30-68 Hz | Up to 3,500 W | 21.00 x 10.19 x 10.36 in, 47 lb |
Source: Franklin Electric Solar Products Catalog (M1782 01-25), pp. 4, 25, 29, 48-49, 52, 97-98, 103. The 581014200864-14IA000 controller is the Fhoton Surface SolarPAK controller for the FDSP-1.5HP-TB self-priming system. Order numbers are Franklin’s; the order number ends every option on this page.
