Included: the submersible motor.
Controller required: runs only from the SolarPAK controller named for it in the table; it is not a line-voltage motor.
Splice kit: ordered separately.

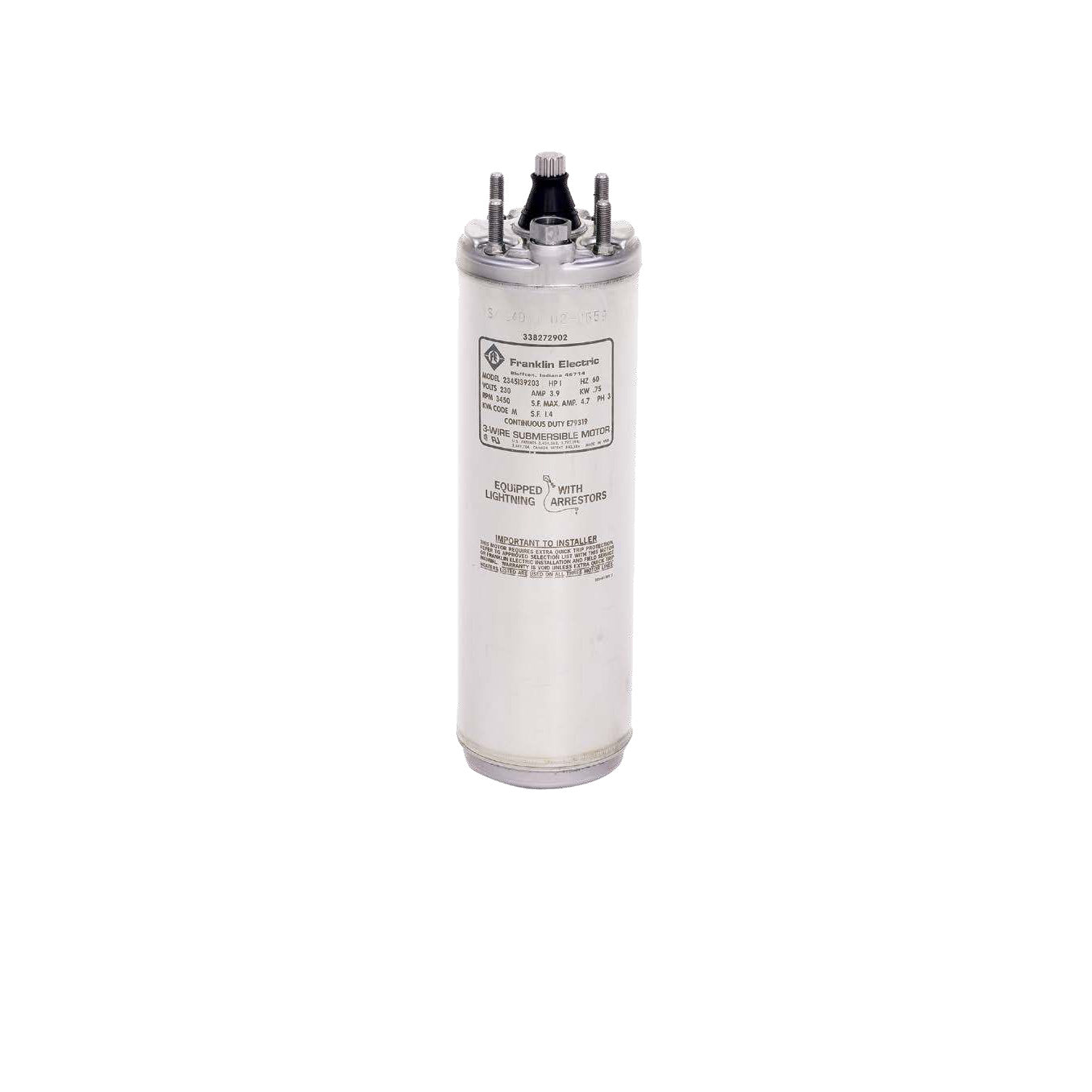

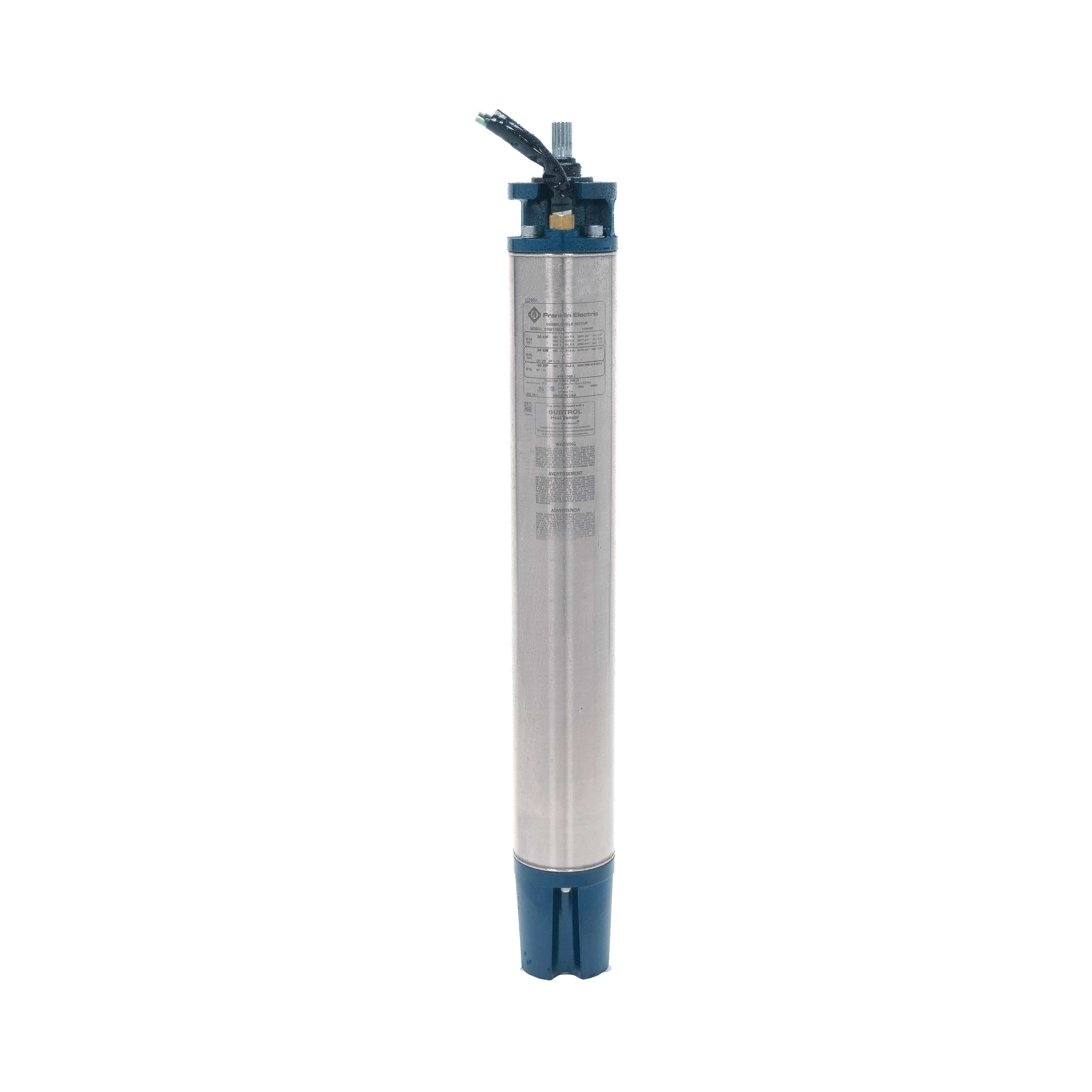

Replacement Franklin submersible motors for SubDrive, Fhoton and Fhoton HR SolarPAKs. The 1/2 and 3/4 HP 4 in motors run at 48 V and 100 V three-phase from their solar controllers; the 7-1/2 and 10 HP 6 in motors are 380 V three-phase for the Fhoton F3 6 in controllers.
Covered for 12 months from the date of purchase. Franklin notes the motor warranty is void if Franklin-supplied leads are not used.
Source: Franklin Electric Motors and Control Boxes Catalog; Solar Products Catalog (M1782 01-25).
| Order No. | HP | Voltage | Diameter | Used in |
|---|---|---|---|---|
| 2349049204GS | 1/2 | 48 V three-phase, 60 Hz | 4 in | Fhoton 0.5 HP SolarPAKs: 5FDSP-0.5HP, 7FDSP-0.5HP, 15FDSP-0.5HP, 20FDSP-0.5HP; controller 581011100984-SP050HP |
| 2349029204GS | 3/4 | 100 V three-phase, 60 Hz | 4 in | SubDrive SolarPAK 0.75 HP (5-15 GPM), Fhoton 0.75 HP (5-15 GPM) and Fhoton HR (3 and 7 GPM) |
| 2366618120 | 7-1/2 | 380 V three-phase, 60 Hz | 6 in | Fhoton 100-375 GPM 7.5 HP SolarPAKs; controller 581038501994-SPIS004 |
| 2366628120 | 10 | 380 V three-phase, 60 Hz | 6 in | Fhoton 100-375 GPM 10 HP SolarPAKs; controller 581038501994-SPIS005 |
Source: Franklin Electric Solar Products Catalog (M1782 01-25), pp. 4, 29, 52; service factor from the Franklin SolarPAK Price List (M1702). Order numbers are Franklin’s; the order number ends every option on this page.
