Franklin Electric · Solar Pumping System
SubDrive SolarPAK Solar Well Pump Package
19 Franklin builds, 5-90 GPM, 3/4 to 3 HP.
5-90 GPM · Heads to 1017 ft
3/4 to 3 HP 4 in Motor
Solar DC with AC Generator Backup
MPPT Controller
IP55, NEMA 3 Controller
Flow Switch Dry-Run Protection
cULus
What Ships and What It Needs to Run

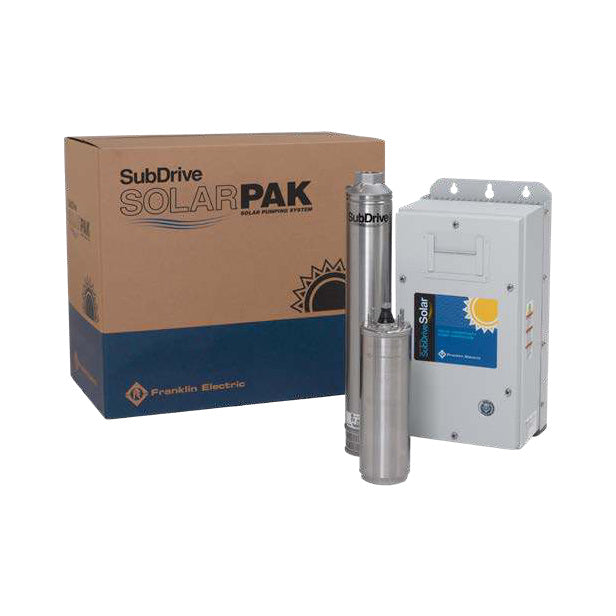

Included: Franklin 4 in submersible motor, Franklin 4 in submersible pump, SubDrive solar controller, and flow switch with 30 ft (10 m) cable.
Solar array: panels and pole-mount racking are listed separately on our solar panels, racking and accessories listing; the array is sized to the package, your site and your duty.
Drop cable, splice kit, pipe and tank level switches: sized to your installation and ordered separately.
Check valve on 35 GPM and larger builds: Franklin supplies high capacity pumps in SolarPAKs without an internal check valve.
Overview
The SubDrive SolarPAK is Franklin’s system solution for solar pumping: Franklin motor and pump technology and a SubDrive solar controller in one package, built as a rugged, high-output system for remote and harsh sites. Maximum Power Point Tracking gets the most water from the array, soft start prevents water hammer, and the controller switches automatically to an AC generator backup when the array cannot supply DC.

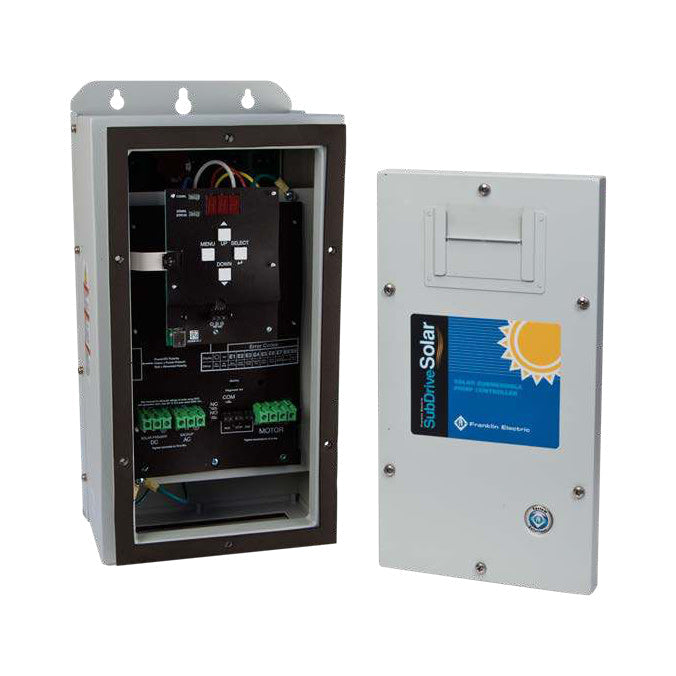

The controller has a seven-segment display of real-time input watts and system status, an RS-485 port for remote telemetry, contacts for up to two level-control switches, and a flow switch input that detects dry run and protects the motor.
- High flow system for faster tank fill and significant water output
- Proven Franklin motor and pump technology for long-term reliability
- IP55, NEMA 3 controller enclosure minimizes the impact of wildlife, insects, dust and weather
- DC and AC power inputs with automatic switching between the solar array and an AC backup source
- Seven-segment display shows real-time input watts and system status
Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Franklin Electric Warranty
Franklin warrants its products for 12 months from the date of installation, but no more than 24 months from the date of manufacture.
Source: Franklin Electric limited warranty, Submersible Pumps AG/Industrial/Municipal Product Catalog.
Specifications
| Flow builds |
5, 7, 10, 15, 25, 35, 45 and 90 GPM |
| Motor and drive ratings |
0.75, 1.5 and 3.0 HP (0.55, 1.1 and 2.2 kW) |
| Power input |
DC from the solar array, with automatic switching to a 230 VAC single-phase generator backup |
| Maximum open-circuit voltage |
410 VOC, all controller models |
| Controller enclosure |
IP55, NEMA 3; 14 and 16 gauge zinc-plated, powder-coated steel; sliding door over the display; removable bottom gland plate |
| Operating temperature |
-13 to 122 °F (-25 to 50 °C); 104 °F (40 °C) max on generator |
| Humidity |
0-100% condensing |
| Protection |
Surge, underload/dry run, overvoltage, locked pump, open circuit, short circuit, overheated controller, reverse polarity, dead head |
| Approvals |
C-tick and cULus |
| Pump diameter with cable guard |
3.75 in for 5 and 7 GPM pumps; 3.90 in for all others |
| 0.75 hp (5870300553) |
1.5 hp (5870301113) |
3.0 hp (5870301223) |
| 100 VAC three-phase |
200 VAC three-phase |
200 VAC three-phase |
| 8.6 A each phase |
6.8 A each phase |
12.5 A each phase |
| 30-60 Hz |
30-58 Hz |
30-68 Hz |
| 95-330 VDC |
190-330 VDC |
190-330 VDC |
| 8.7 A DC continuous |
7 A DC continuous |
12 A DC continuous |
| Up to 1,400 W |
Up to 2,000 W |
Up to 3,500 W |
| 230 VAC single-phase, 9.6 A |
230 VAC single-phase, 16 A |
230 VAC single-phase, 25 A |
| 234902 series |
234504 series |
234306 series |
| 21.00 x 10.19 x 8.61 in |
21.00 x 10.19 x 8.61 in |
21.00 x 10.19 x 10.36 in |
| 41 lb |
41 lb |
47 lb |
| 96% |
96% |
96% |
Source: Franklin Electric Solar Products Catalog (M1782 01-25), pp. 2-3, 24-25.
Models & Performance — Will It Do What You Need?
19 builds, grouped by GPM. Open a group to see its rows.
5 GPM · 2 builds
| Model |
Motor HP |
Pump end |
Motor |
| 5SDSP-0.75HP |
3/4 |
5SL07S4-PE |
2349029204GS |
| 5SDSP-1.5HP |
1-1/2 |
5SL2S4-PE |
2345049203GS |
7 GPM · 3 builds
| Model |
Motor HP |
Pump end |
Motor |
| 7SDSP-0.75HP |
3/4 |
7SL07S4-PE |
2349029204GS |
| 7SDSP-1.5HP |
1-1/2 |
7SL2S4-PE |
2345049203GS |
| 7SDSP-3.0HP |
3 |
7SL3S4-PE |
2343062604G |
10 GPM · 3 builds
| Model |
Motor HP |
Pump end |
Motor |
| 10SDSP-0.75HP |
3/4 |
10SL07S4-PE |
2349029204GS |
| 10SDSP-1.5HP |
1-1/2 |
10SL2S4-PE |
2345049203GS |
| 10SDSP-3.0HP |
3 |
10SL3S4-PE |
2343062604G |
15 GPM · 3 builds
| Model |
Motor HP |
Pump end |
Motor |
| 15SDSP-0.75HP |
3/4 |
15SL07S4-PE |
2349029204GS |
| 15SDSP-1.5HP |
1-1/2 |
15SL2S4-PE |
2345049203GS |
| 15SDSP-3.0HP |
3 |
15SL3S4-PE |
2343062604G |
25 GPM · 2 builds
| Model |
Motor HP |
Pump end |
Motor |
| 25SDSP-1.5HP |
1-1/2 |
25SL2S4-PE |
2345049203GS |
| 25SDSP-3.0HP |
3 |
25SL3S4-PE |
2343062604G |
35 GPM · 2 builds
| Model |
Motor HP |
Pump end |
Motor |
| 35SDSP-1.5HP |
1-1/2 |
35FH2S4-PE |
2345049203GS |
| 35SDSP-3.0HP |
3 |
35FH3S4-PE |
2343062604G |
45 GPM · 2 builds
| Model |
Motor HP |
Pump end |
Motor |
| 45SDSP-1.5HP |
1-1/2 |
45FH2S4-PE |
2345049203GS |
| 45SDSP-3.0HP |
3 |
45FH3S4-PE |
2343062604G |
90 GPM · 2 builds
| Model |
Motor HP |
Pump end |
Motor |
| 90SDSP-1.5HP |
1-1/2 |
90FH2S4-PE |
2345049203GS |
| 90SDSP-3.0HP |
3 |
90FH3S4-PE |
2343062604G |
Source: Franklin Electric Solar Products Catalog (M1782 01-25), p. 4 (ordering information); weights from the Franklin SolarPAK Price List (M1702). Order numbers are Franklin’s; the model ends every option on this page.

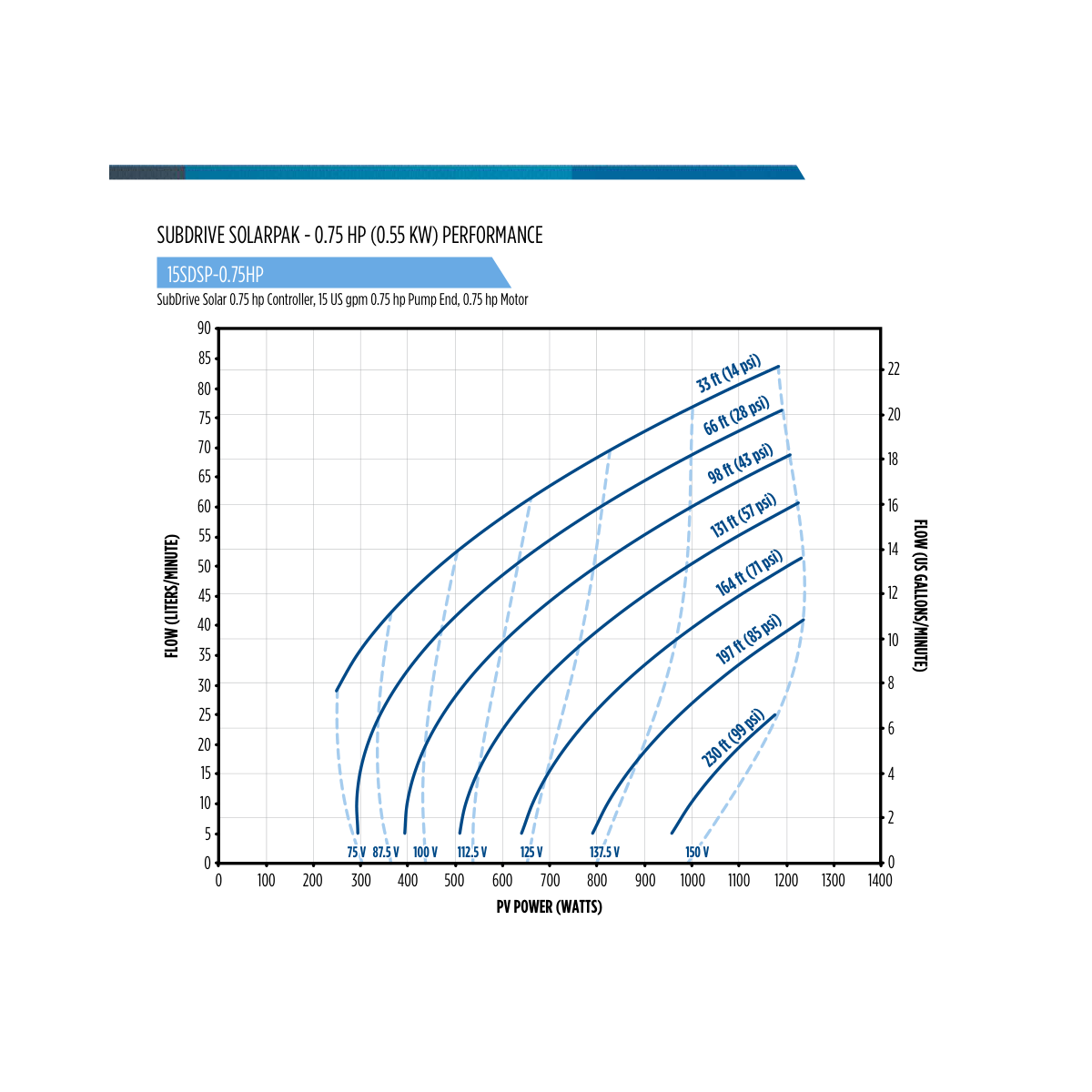

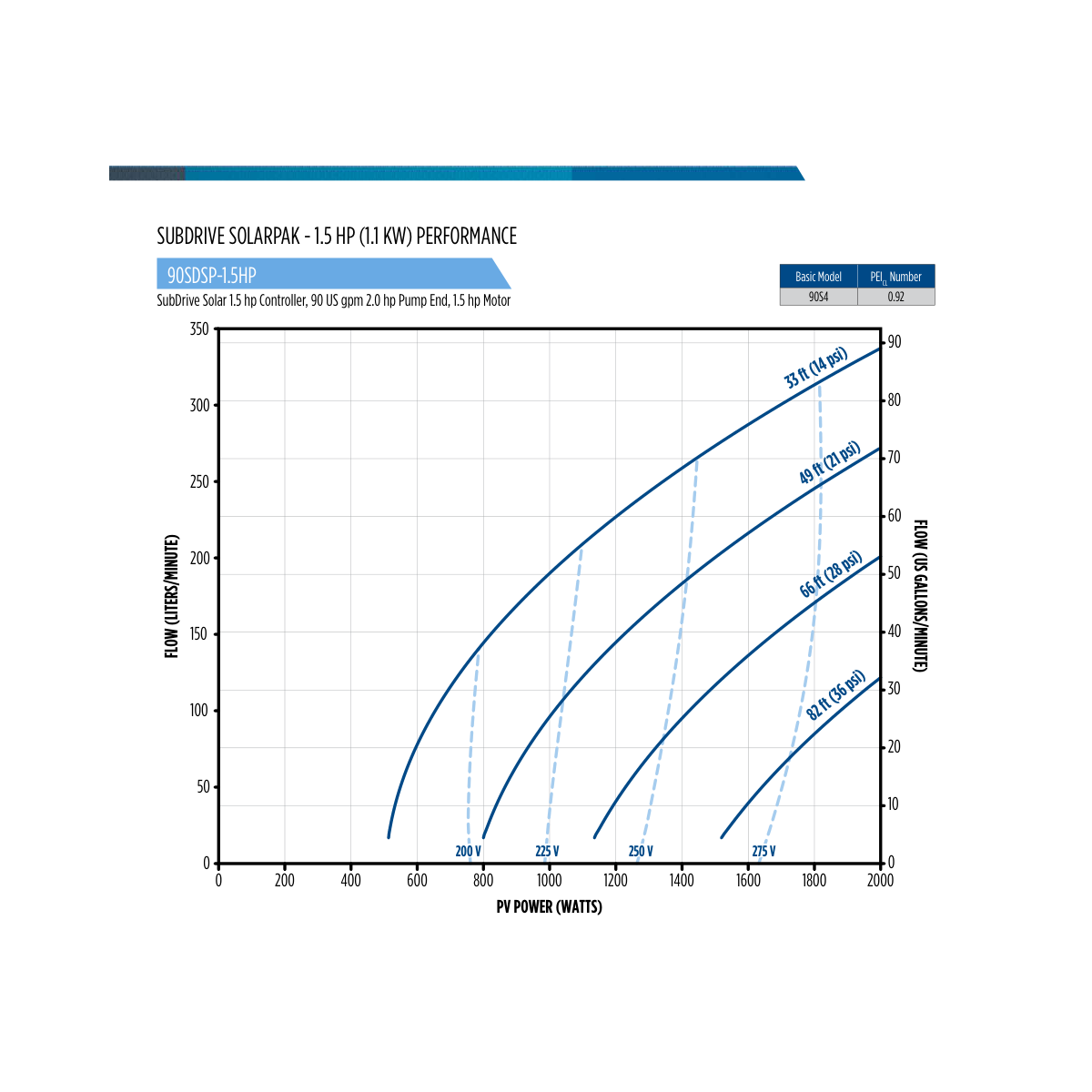

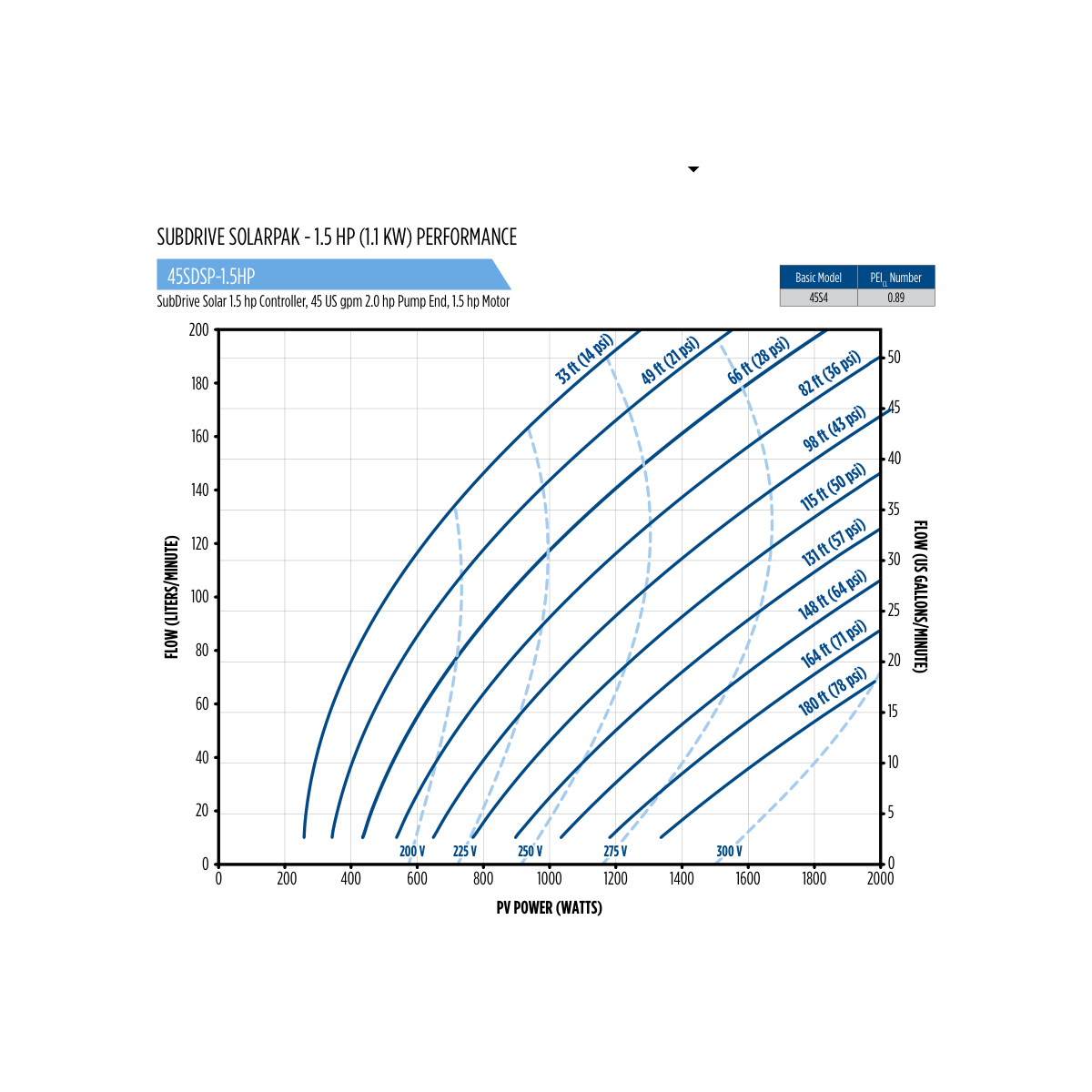

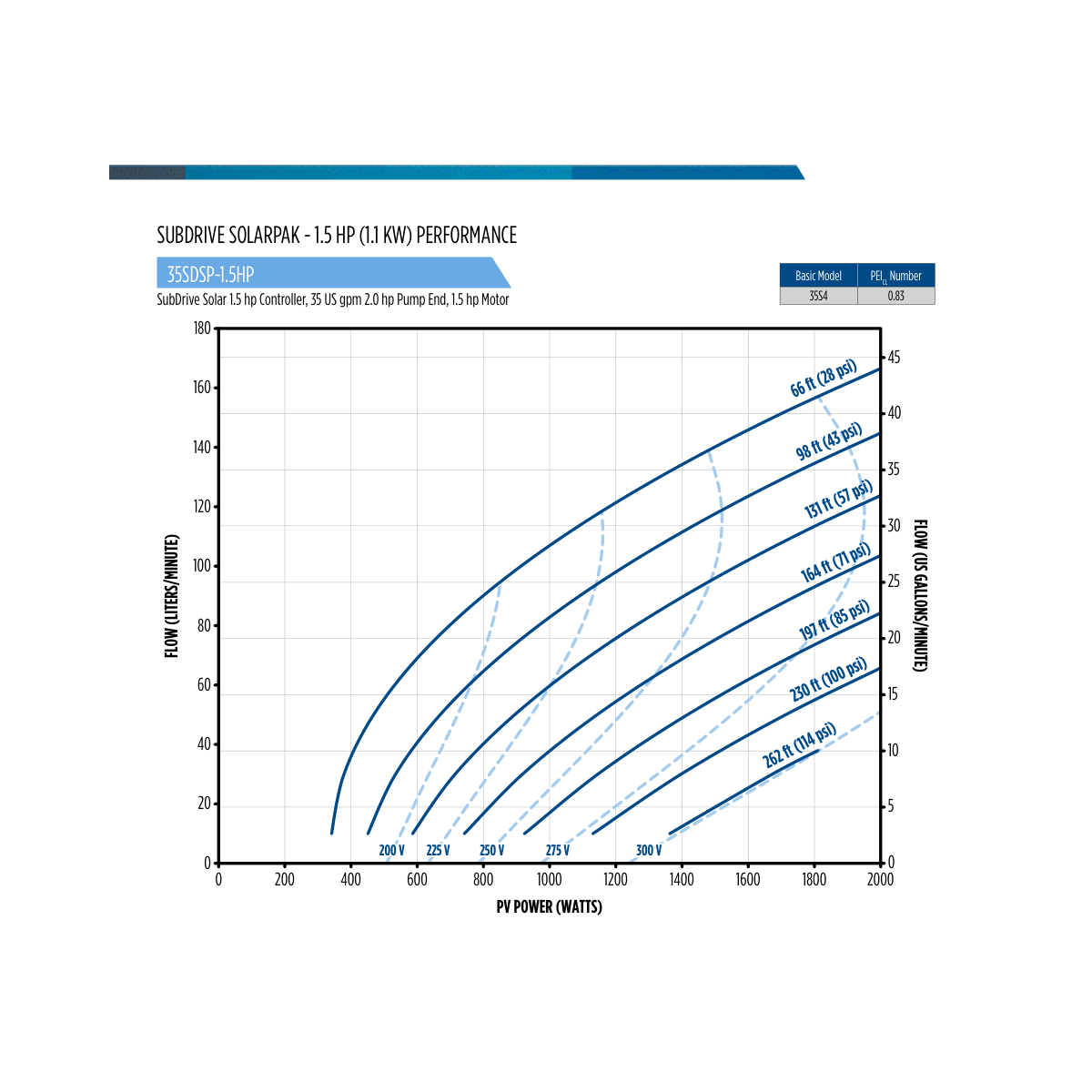

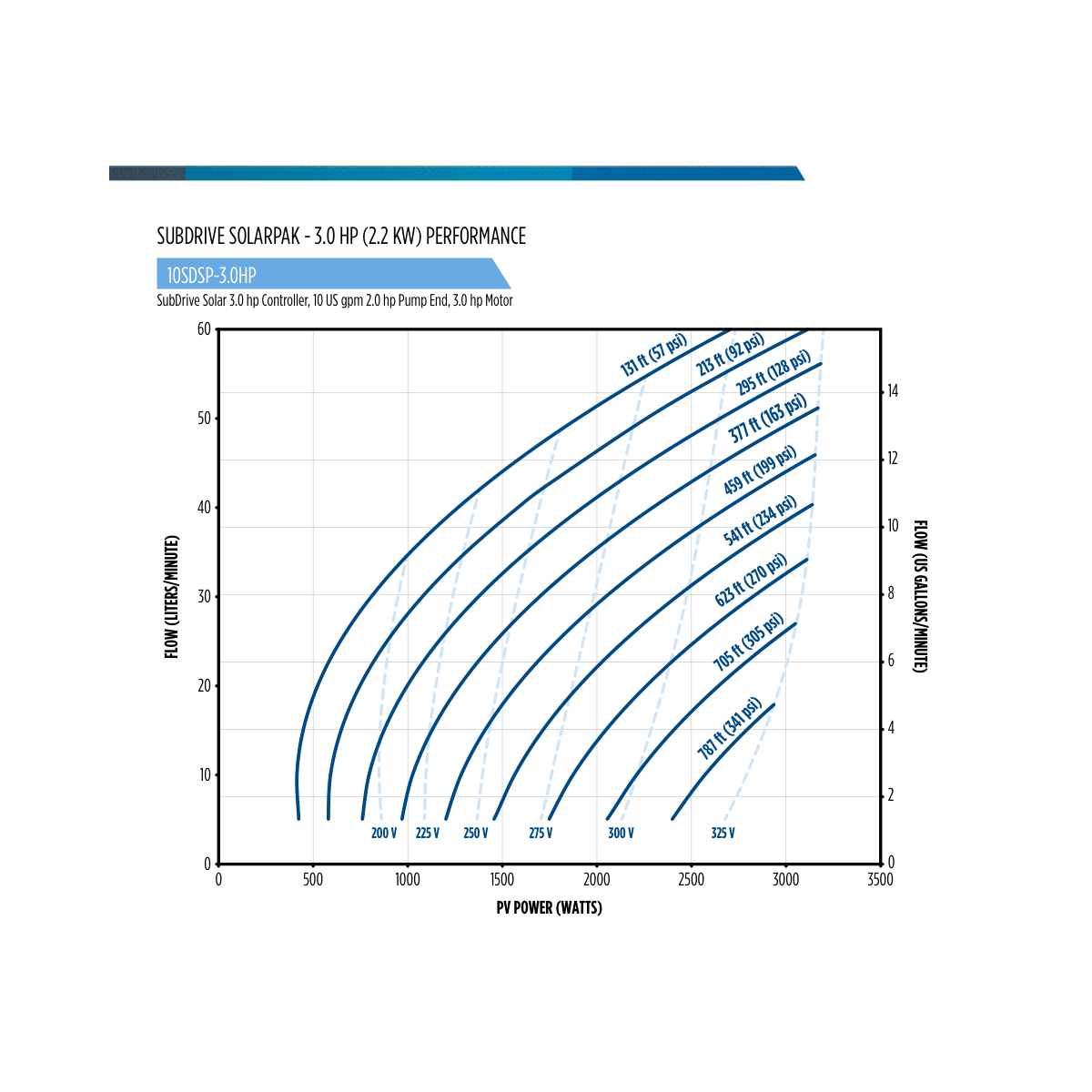

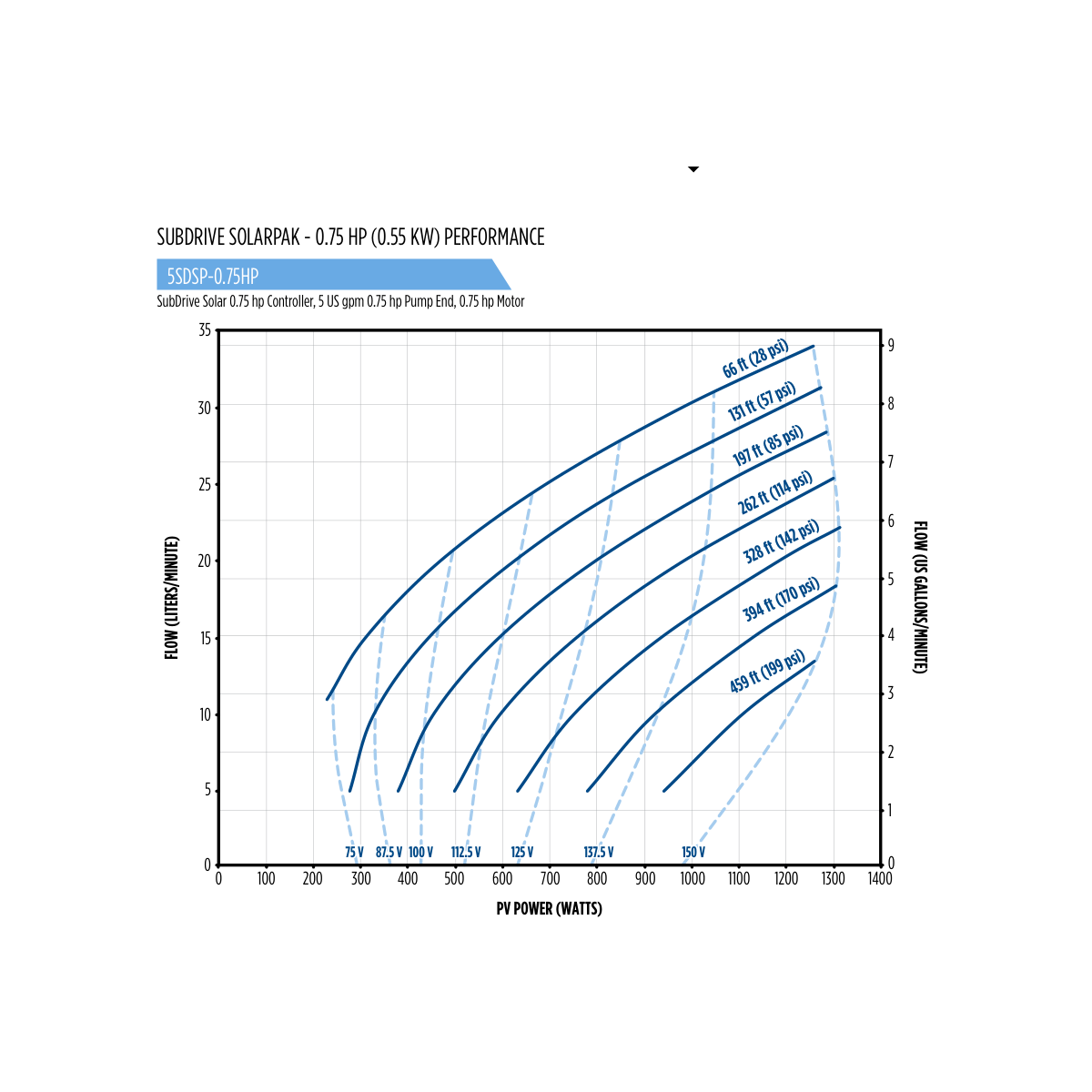

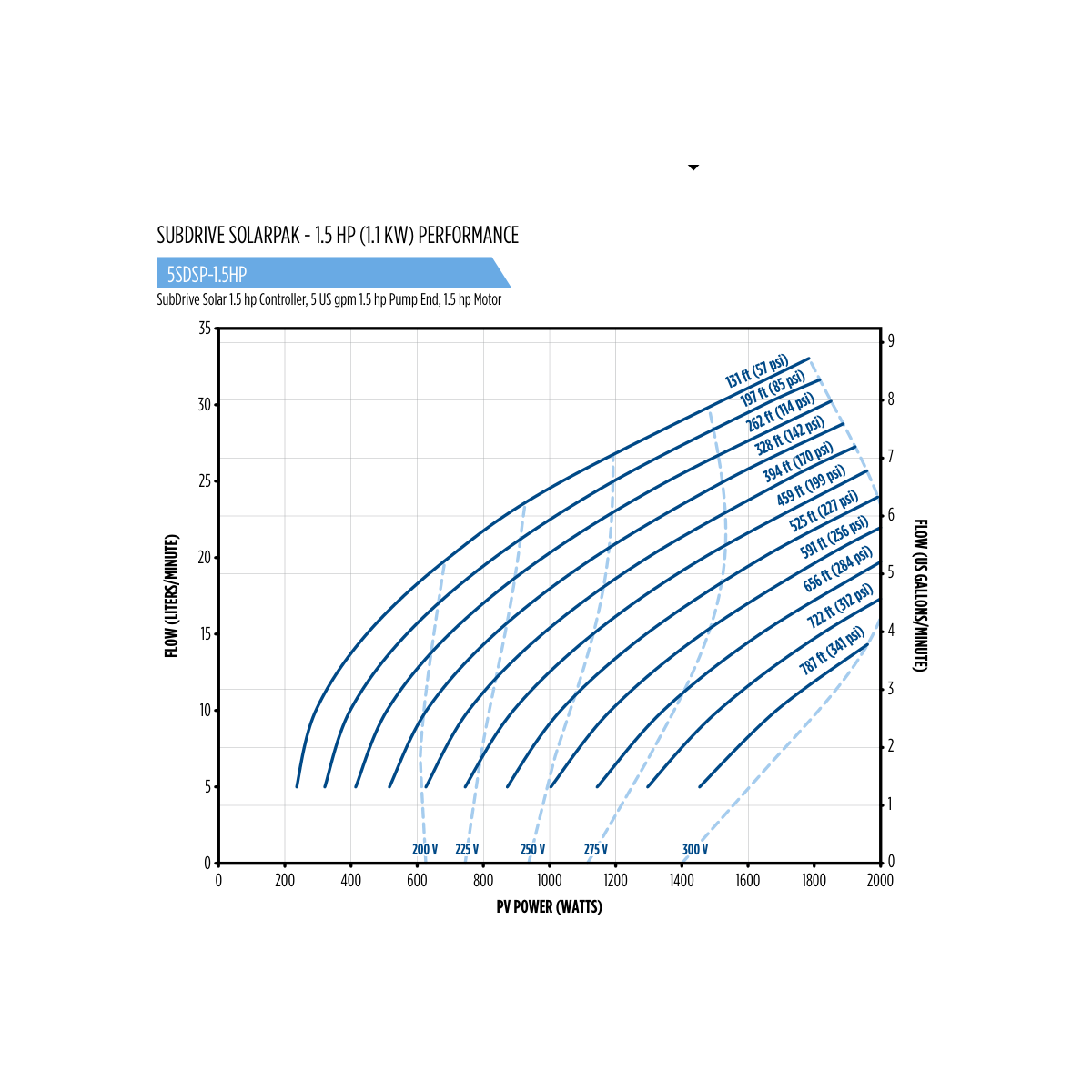

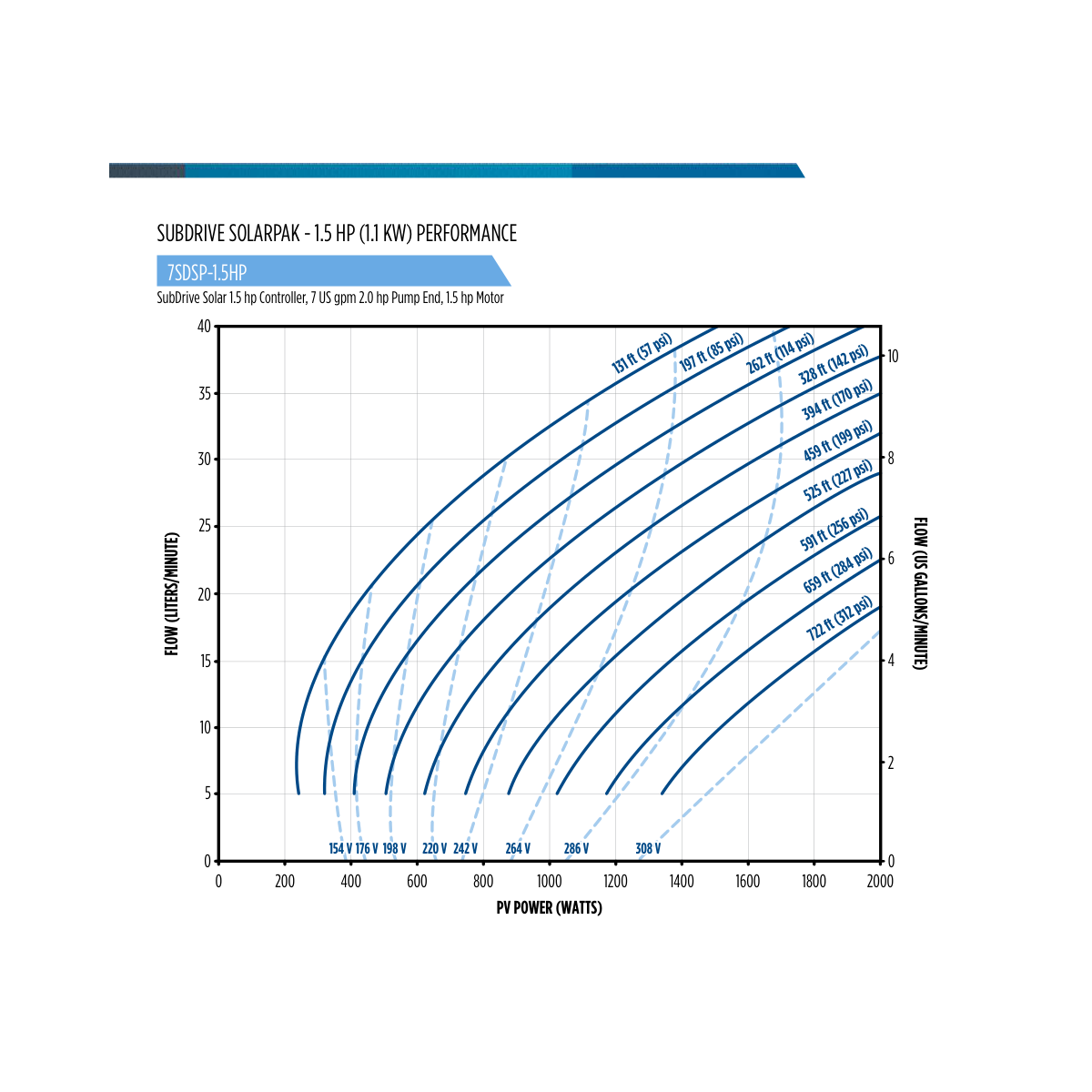

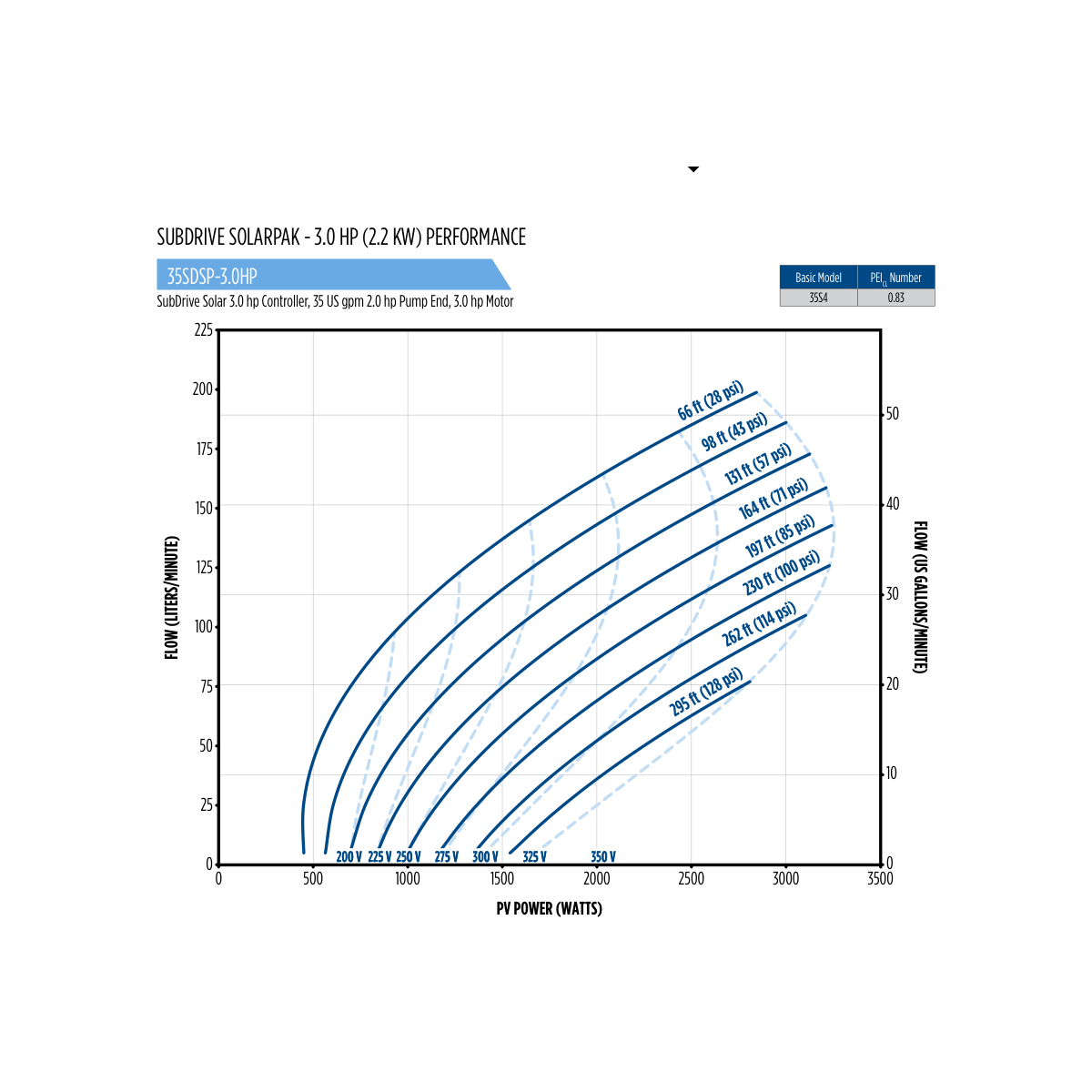

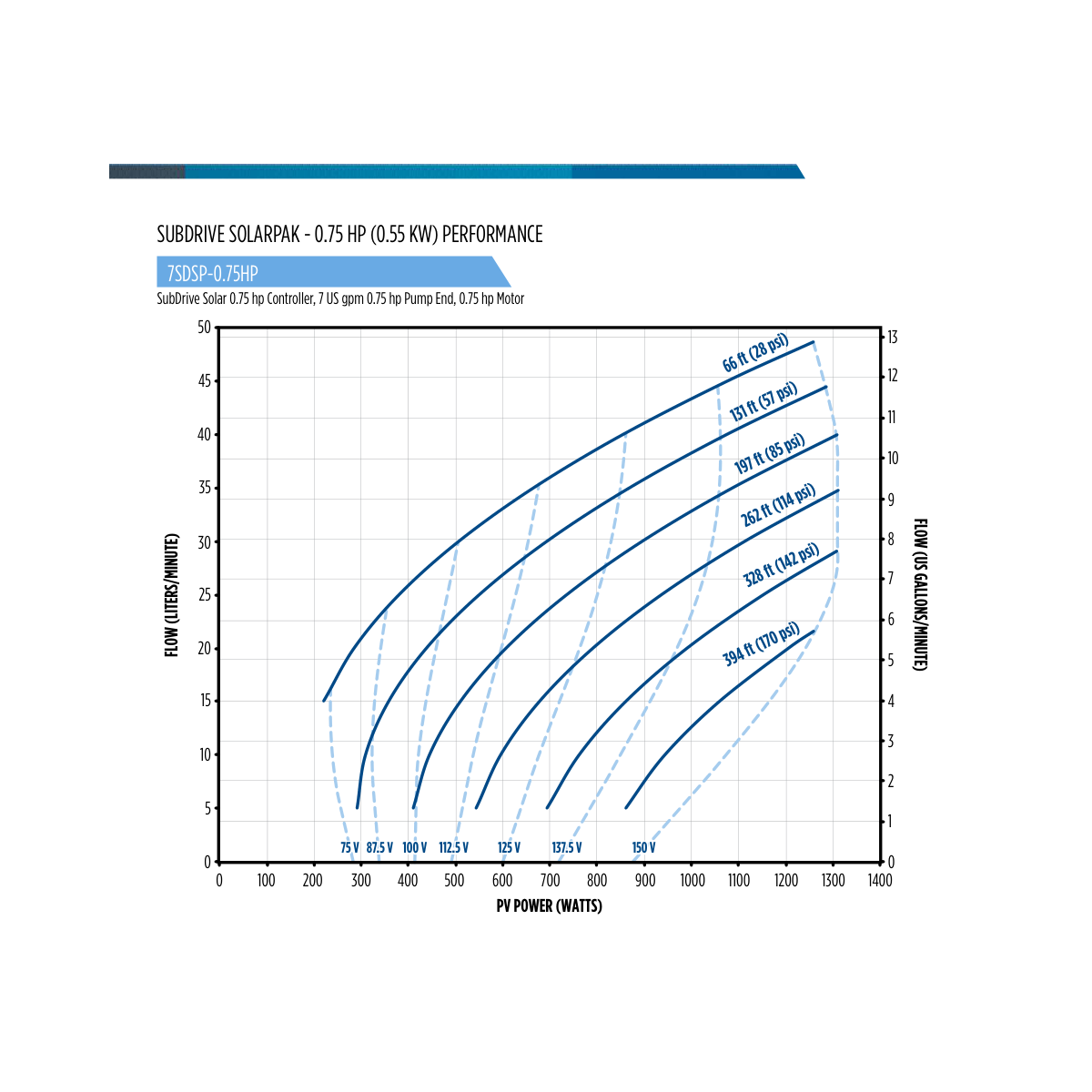

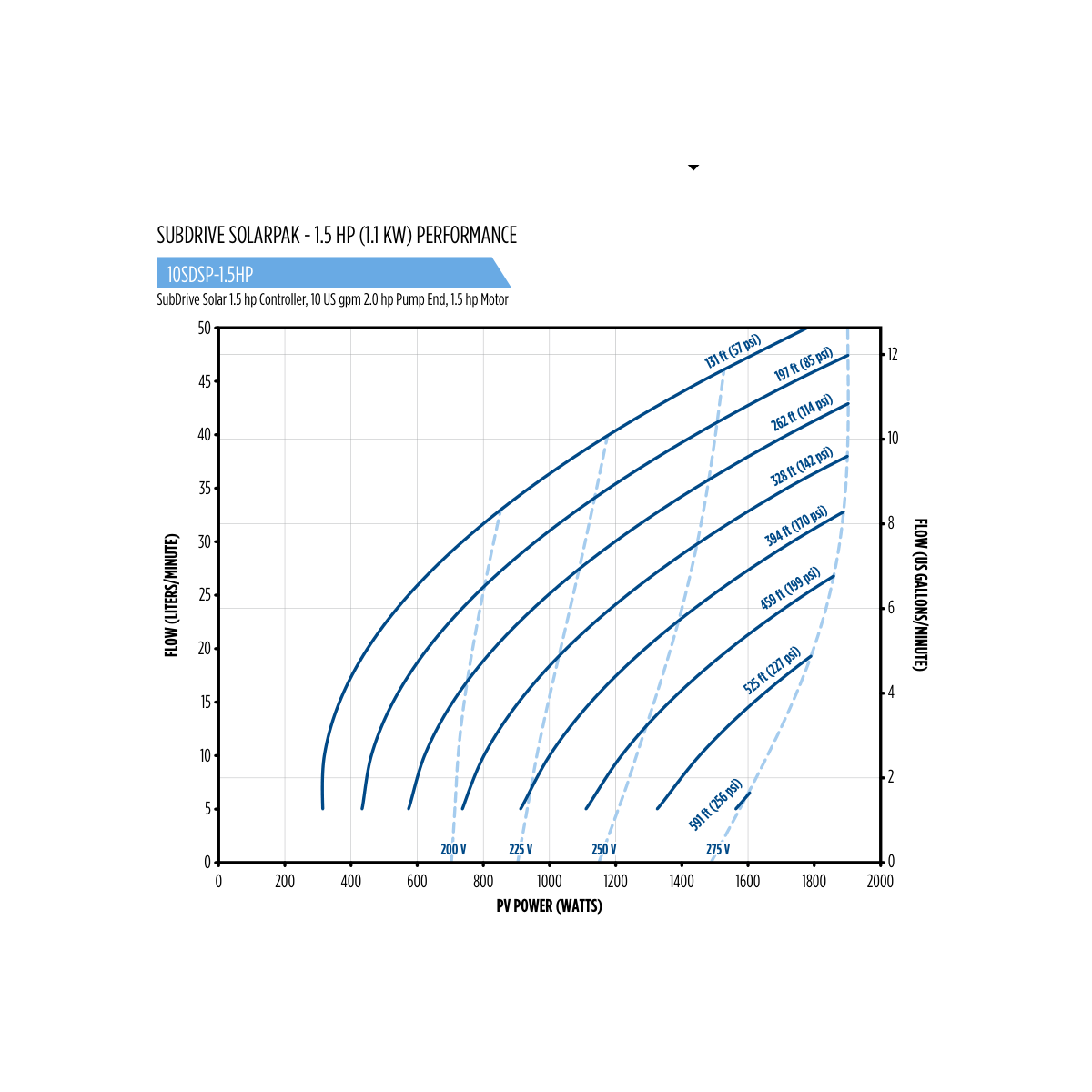

Performance
Each row is one build at full array power, read at 20%, 50% and 75% of the highest total head Franklin lists for it: the flow in GPM it delivers at that head.
3/4 HP builds
| Model |
PV power at full flow, W |
At 20% of max head |
At 50% |
At 75% |
| 5SDSP-0.75HP |
1310 |
8.9 GPM at 66 ft |
7.5 GPM at 197 ft |
5.8 GPM at 328 ft |
| 7SDSP-0.75HP |
1310 |
12.8 GPM at 66 ft |
10.5 GPM at 197 ft |
7.6 GPM at 328 ft |

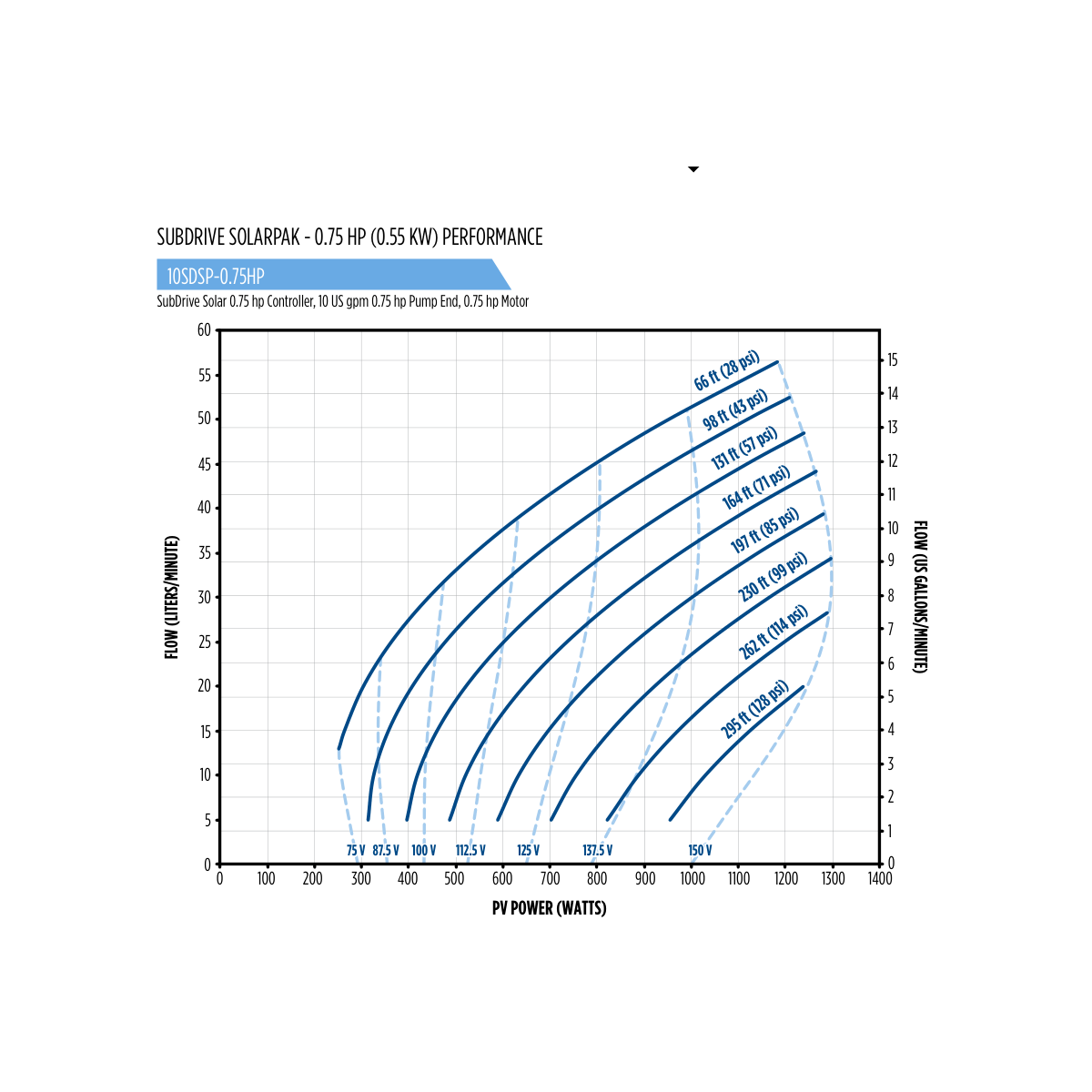

| 10SDSP-0.75HP |
1290 |
14.9 GPM at 66 ft |
12.7 GPM at 131 ft |
9.0 GPM at 230 ft |
| 15SDSP-0.75HP |
1230 |
22.1 GPM at 33 ft |
16.0 GPM at 131 ft |
13.5 GPM at 164 ft |
1-1/2 HP builds
| Model |
PV power at full flow, W |
At 20% of max head |
At 50% |
At 75% |
| 5SDSP-1.5HP |
2000 |
8.6 GPM at 131 ft |
7.1 GPM at 394 ft |
5.7 GPM at 591 ft |
| 7SDSP-1.5HP |
2000 |
10.5 GPM at 131 ft |
9.9 GPM at 328 ft |
7.6 GPM at 525 ft |
| 10SDSP-1.5HP |
1900 |
12.6 GPM at 131 ft |
10.8 GPM at 262 ft |
8.2 GPM at 394 ft |

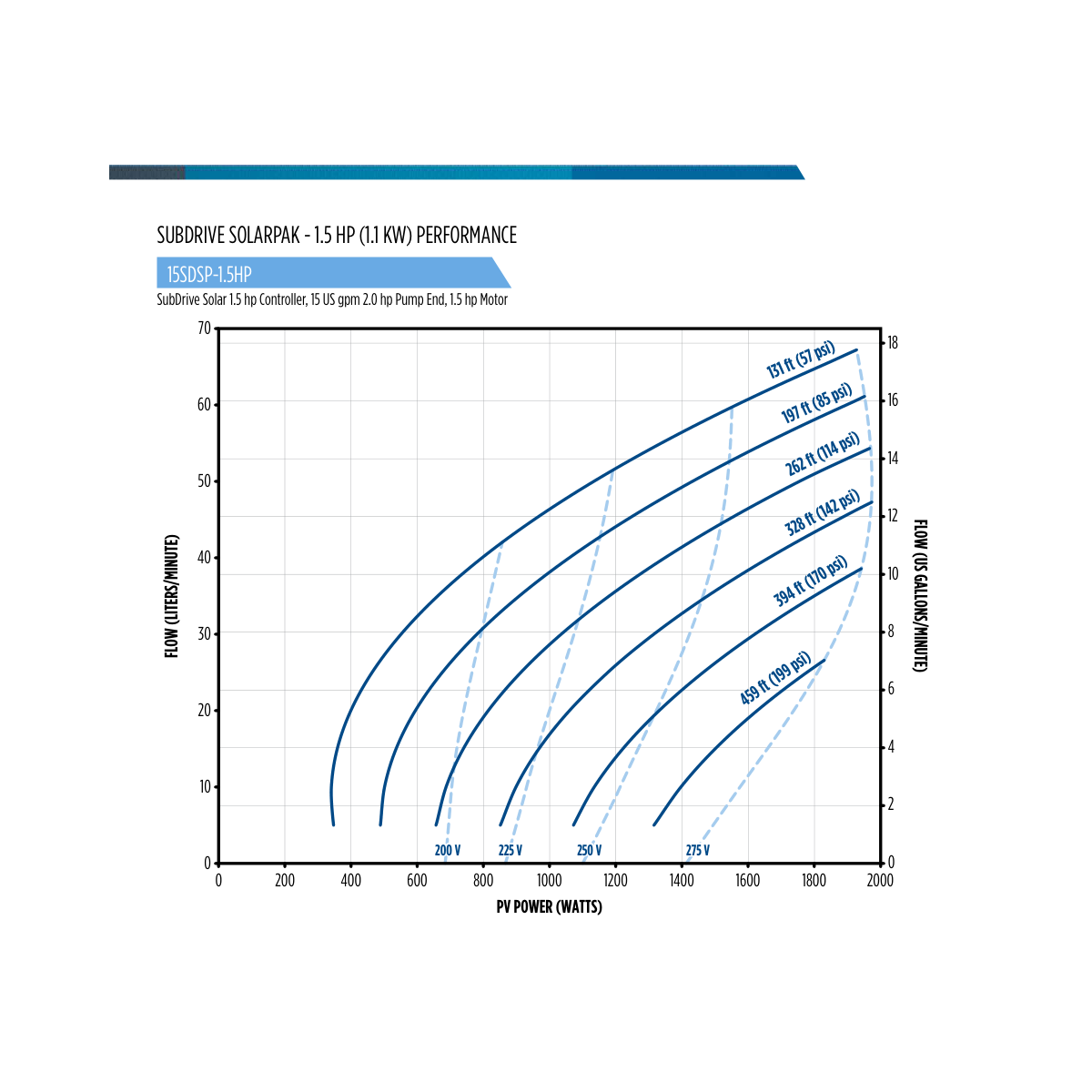

| 15SDSP-1.5HP |
1970 |
17.7 GPM at 131 ft |
16.1 GPM at 197 ft |
12.4 GPM at 328 ft |

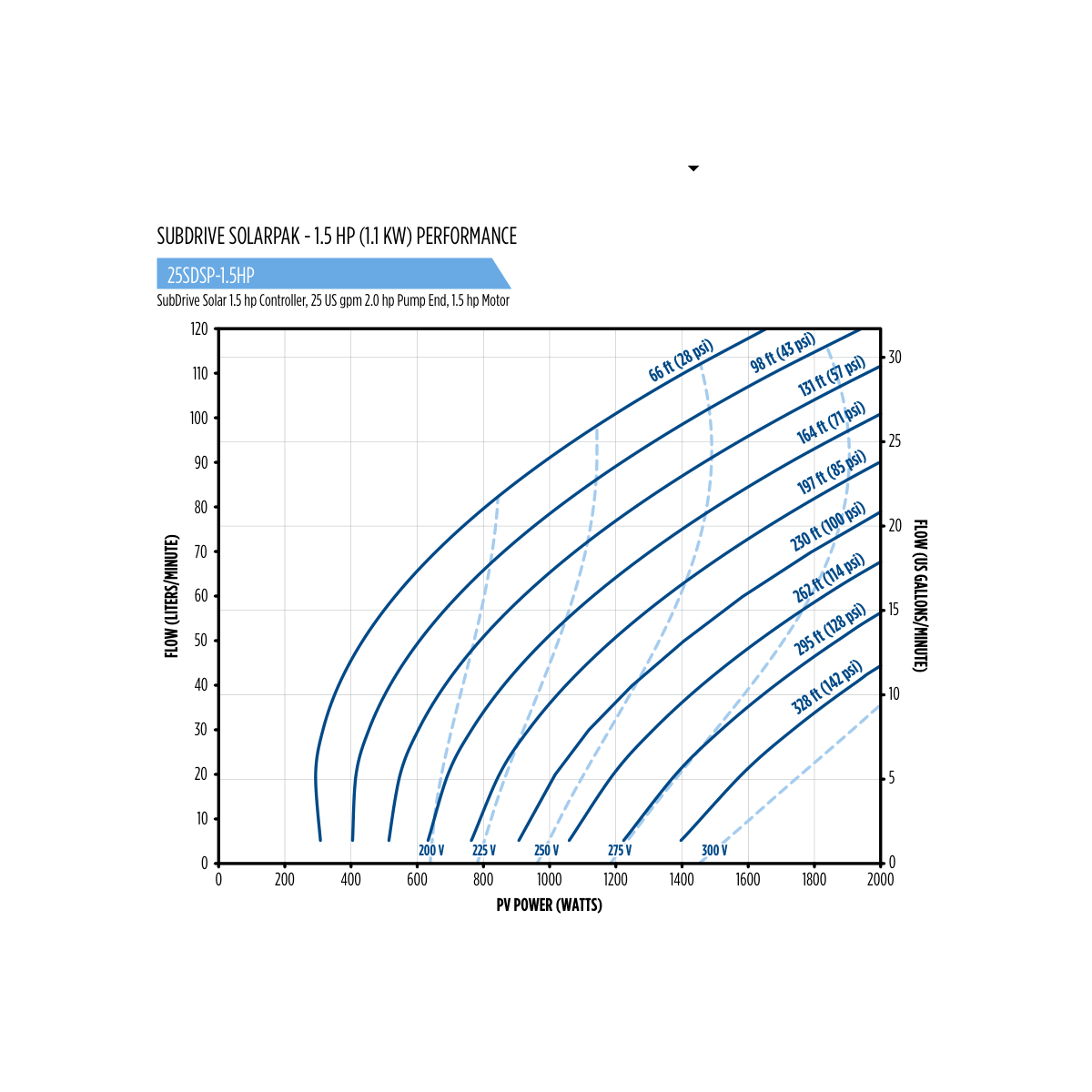

| 25SDSP-1.5HP |
2000 |
31.6 GPM at 66 ft |
26.6 GPM at 164 ft |
20.8 GPM at 230 ft |
| 35SDSP-1.5HP |
2000 |
44.0 GPM at 66 ft |
32.7 GPM at 131 ft |
22.2 GPM at 197 ft |
| 45SDSP-1.5HP |
2000 |
52.6 GPM at 49 ft |
52.6 GPM at 82 ft |
33.1 GPM at 131 ft |
| 90SDSP-1.5HP |
2000 |
88.7 GPM at 33 ft |
71.5 GPM at 49 ft |
53.0 GPM at 66 ft |
3 HP builds
| Model |
PV power at full flow, W |
At 20% of max head |
At 50% |
At 75% |

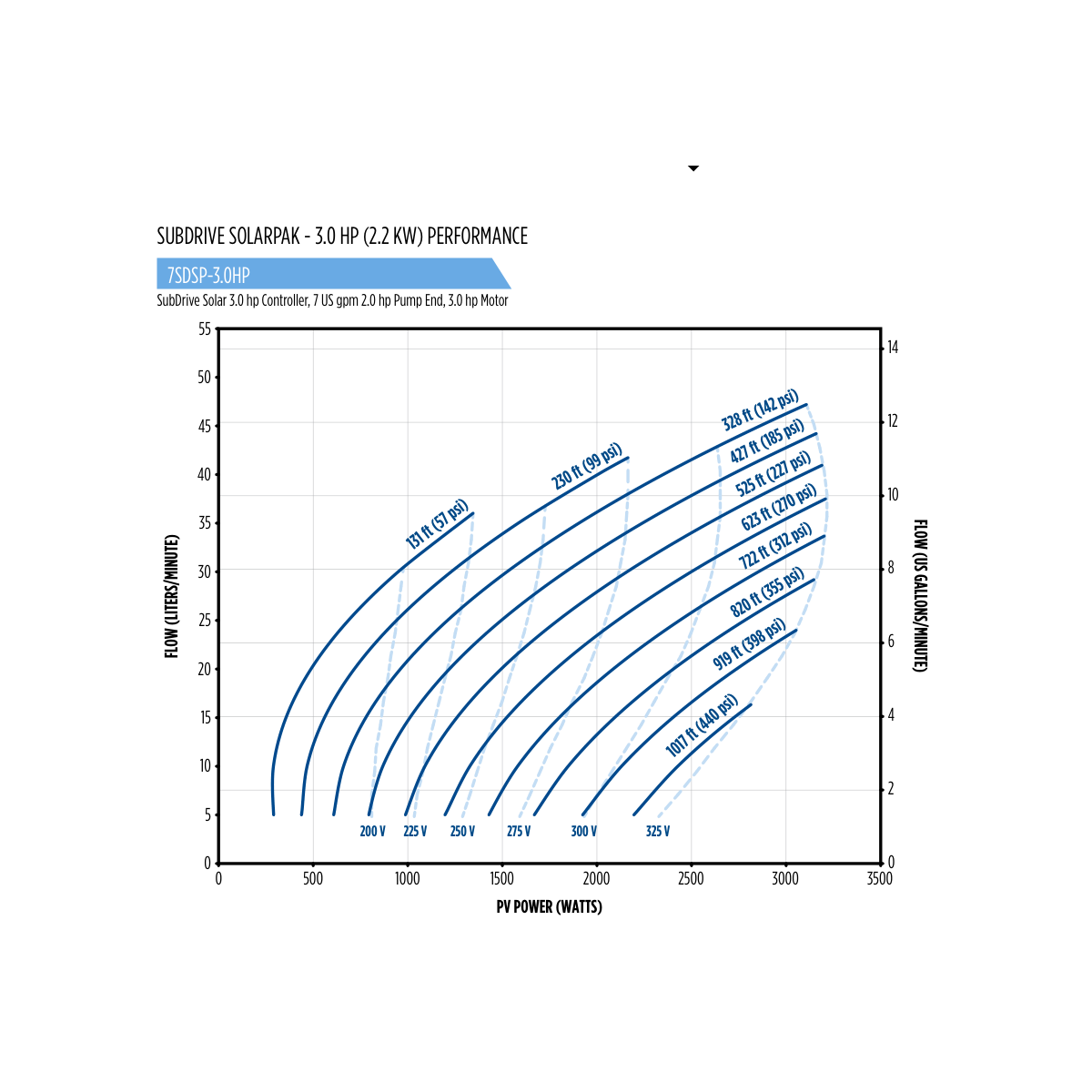

| 7SDSP-3.0HP |
3210 |
10.9 GPM at 230 ft |
10.7 GPM at 525 ft |
8.8 GPM at 722 ft |
| 10SDSP-3.0HP |
3180 |
15.8 GPM at 131 ft |
13.4 GPM at 377 ft |
9.0 GPM at 623 ft |

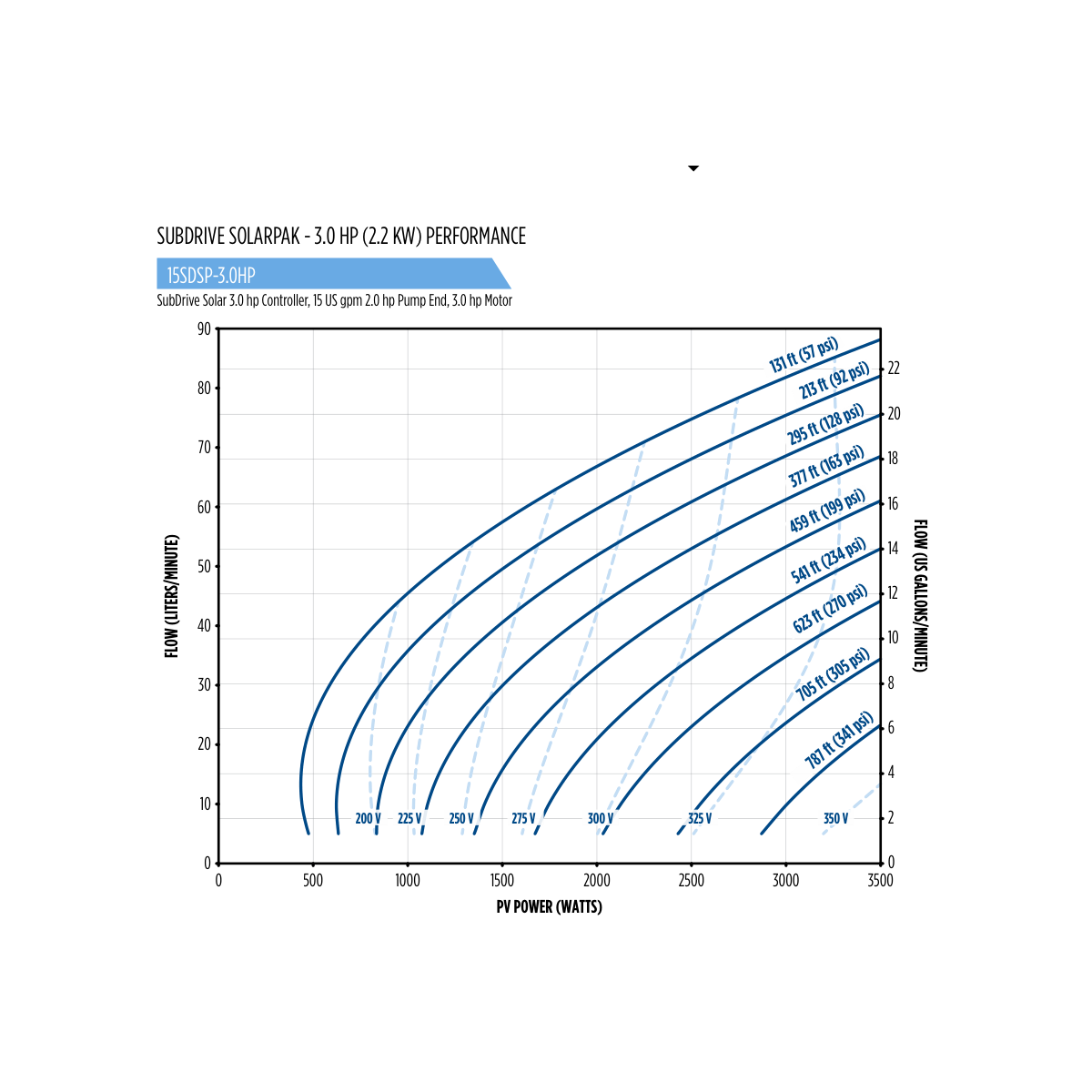

| 15SDSP-3.0HP |
3500 |
23.2 GPM at 131 ft |
18.0 GPM at 377 ft |
11.6 GPM at 623 ft |

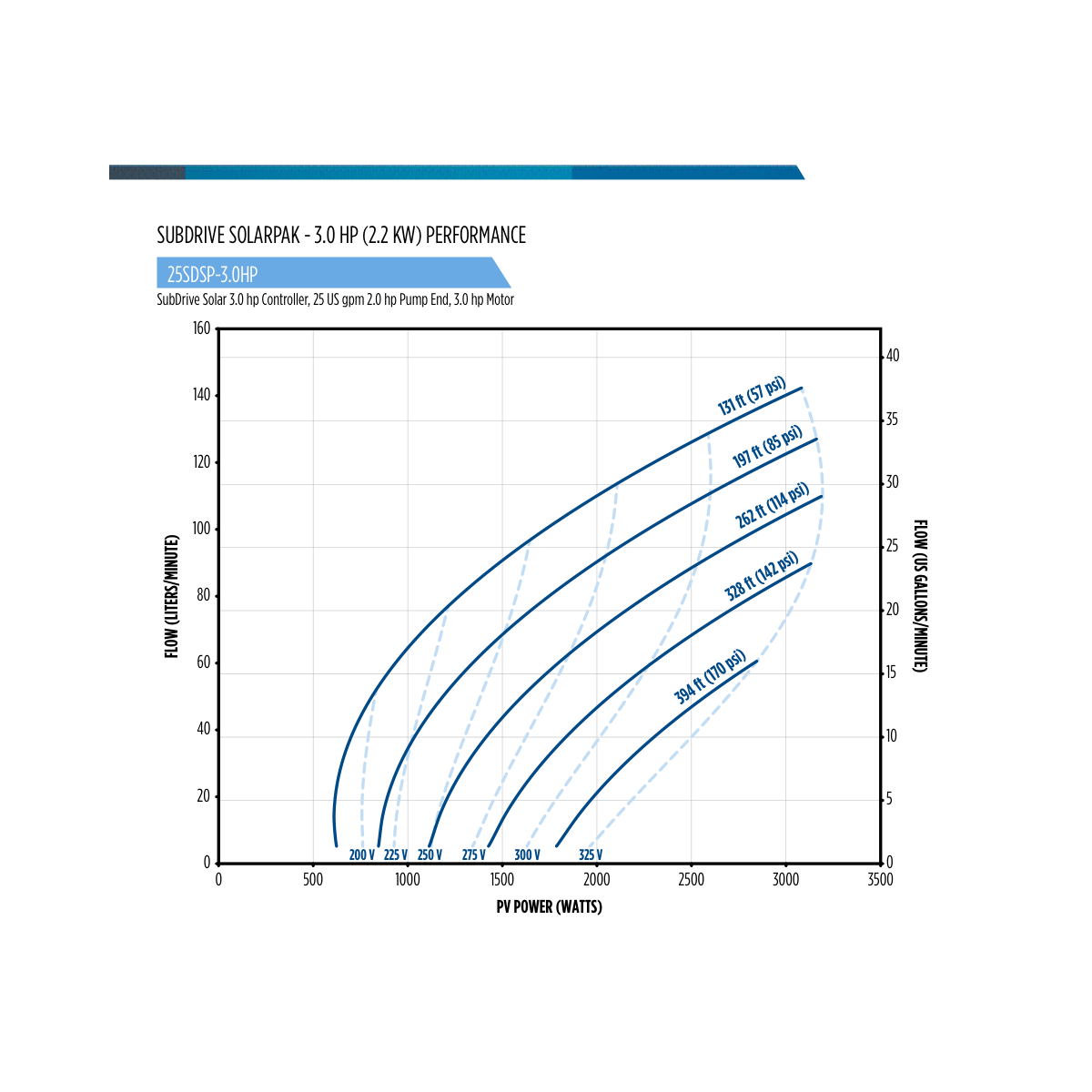

| 25SDSP-3.0HP |
3180 |
37.4 GPM at 131 ft |
33.4 GPM at 197 ft |
23.5 GPM at 328 ft |
| 35SDSP-3.0HP |
3240 |
48.9 GPM at 98 ft |
45.5 GPM at 131 ft |
33.0 GPM at 230 ft |

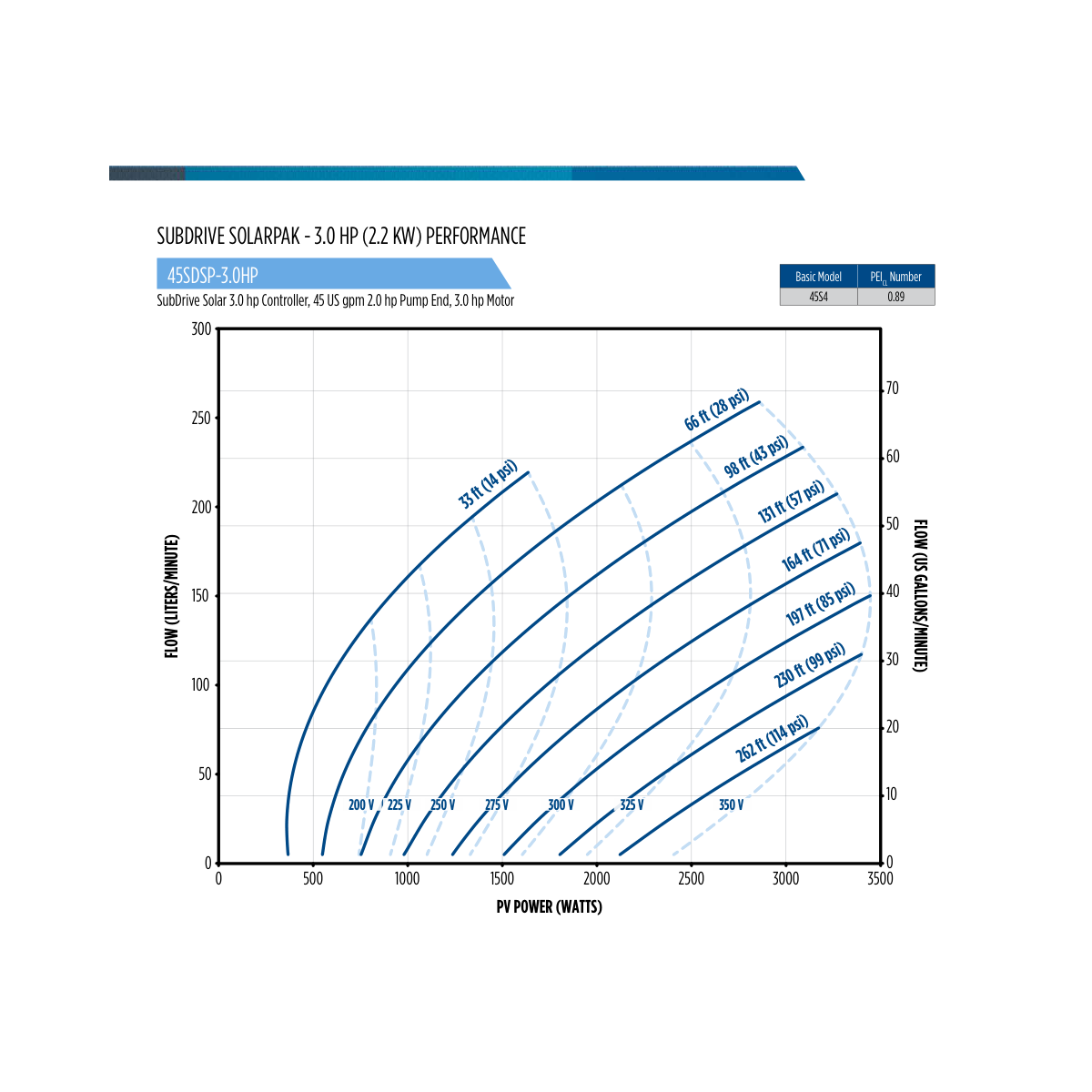

| 45SDSP-3.0HP |
3440 |
67.9 GPM at 66 ft |
54.3 GPM at 131 ft |
39.3 GPM at 197 ft |

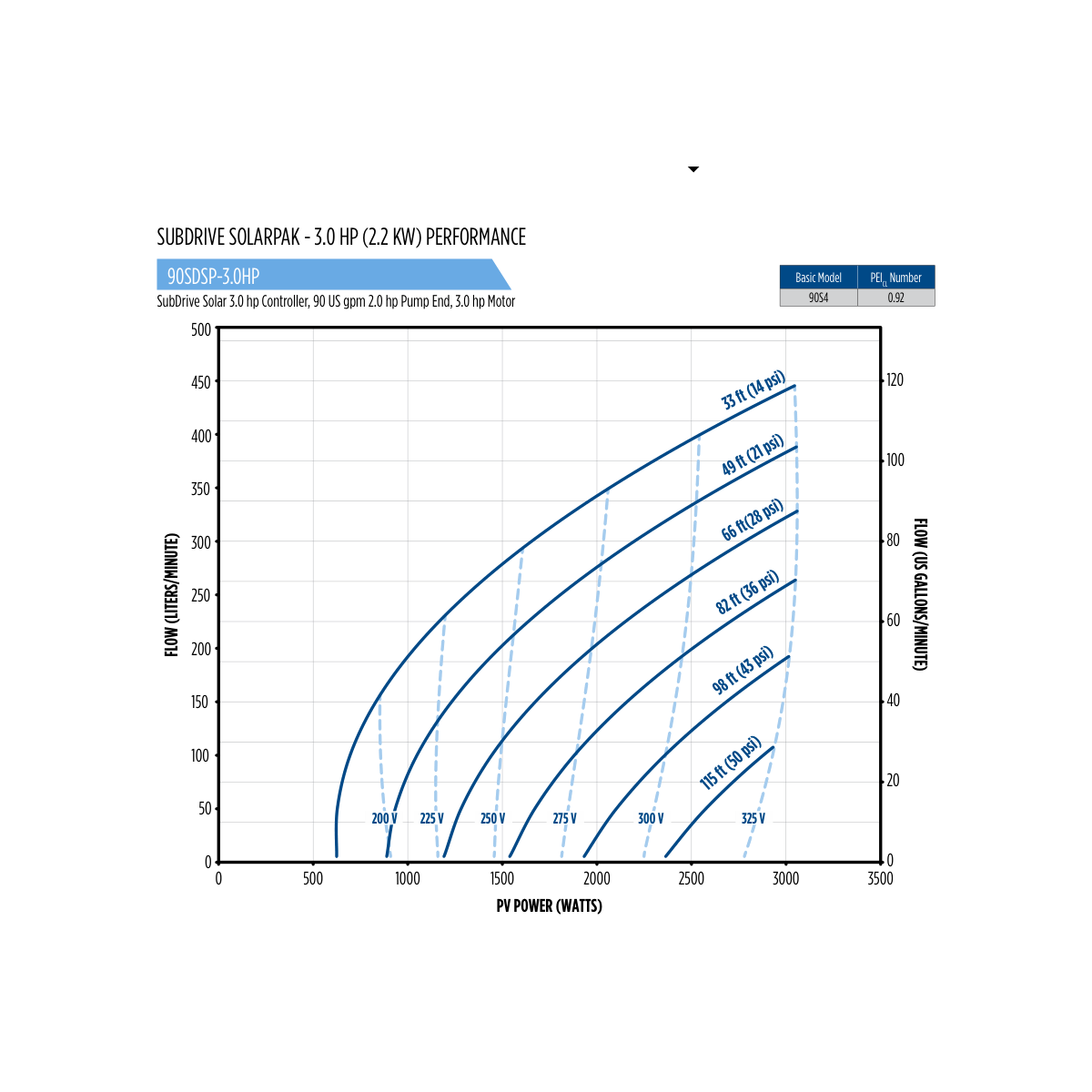

| 90SDSP-3.0HP |
3050 |
118 GPM at 33 ft |
103 GPM at 49 ft |
70.1 GPM at 82 ft |
Source: Franklin Electric Solar Products Catalog (M1782 01-25), pp. 5-23, flow vs. PV power curves for each SolarPAK, digitized and rounded down to 0.1 GPM (whole GPM above 100). Each figure is the highest flow on that head line, reached at the right-hand end of the line; PV power is the highest power plotted for the build. Head is total dynamic head as Franklin labels each line. Actual output follows the sun, the array and the temperature; at lower array power the flow is lower. One head line on the 10SDSP-1.5HP, 45SDSP-1.5HP, 35SDSP-3.0HP charts carries no label and is left out.
Before You Buy — The Limits That Decide the Fit
- The array decides the flow: size it with Franklin’s SolarPAK Selector or send us your site, head and daily water need
- Array open-circuit voltage must never exceed 410 VOC at the controller
- The 0.75 hp drive starts at 95 VDC and runs down to 75 VDC; the 1.5 and 3.0 hp drives start at 190 VDC and run down to 150 VDC. Franklin notes these limits are not an adequate array voltage for useful pumping
- Generator backup: 230 VAC single-phase, sized per the instruction manual; 104 °F max ambient on generator
Applications
Livestock watering, Tank and cistern filling, Wildlife refuges and game farms, Rural water supply for villages and homesteads, Irrigation systems and vineyards and Fountains, effluent pumping and rain harvesting.
