Included: the pump end only, as Franklin ships it under the order number shown.
Motor and controller: reuse the SolarPAK motor and controller; the pump end is matched to them.
Splice kit and fittings: as needed, ordered separately.

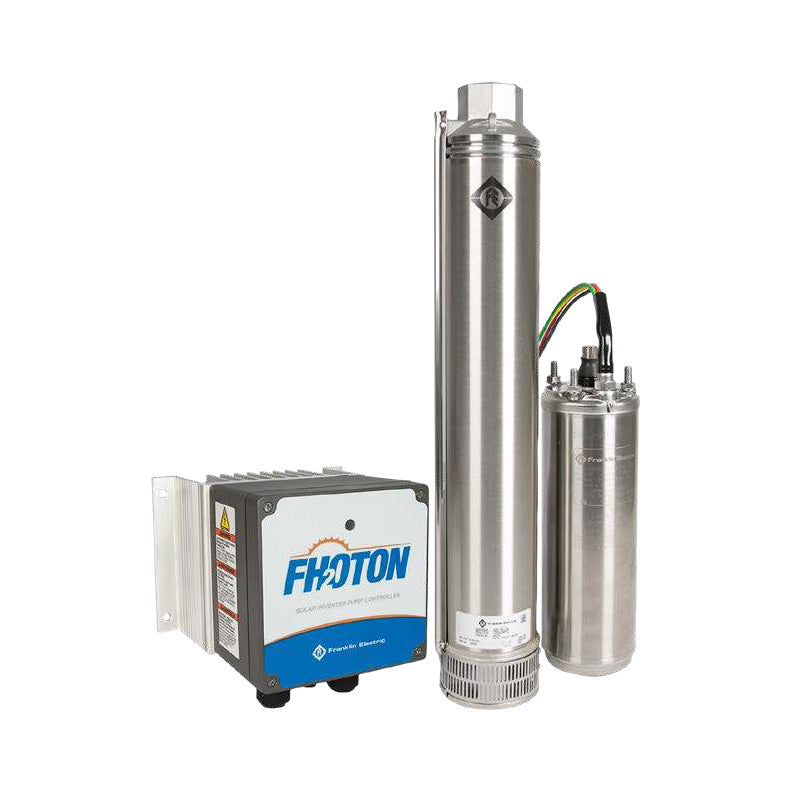

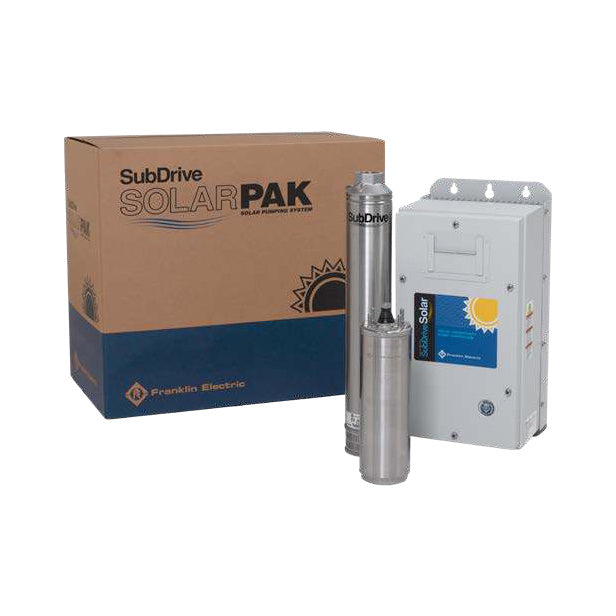

These are the 4 in pump ends Franklin builds into SubDrive and Fhoton SolarPAKs, sold separately to rebuild an existing package. The SolarPAK pairs each pump end with its motor and controller — the 1.5 HP packages, for example, run a 2 HP pump end — so order by the SolarPAK model on your controller.
Franklin warrants its products for 12 months from the date of installation, but no more than 24 months from the date of manufacture.
Source: Franklin Electric limited warranty, Submersible Pumps AG/Industrial/Municipal Product Catalog.
| Model | Order No. | GPM | HP | Used in |
|---|---|---|---|---|
| 5SL07S4-PE | 90020503 | 5 | 3/4 HP | 5SDSP-0.75HP, 5FDSP-0.75HP |
| 5SL15S4-PE | 90020507 | 5 | 1-1/2 HP | Not in M1782 ordering tables |
| 7SL07S4-PE | 90020703 | 7 | 3/4 HP | 7SDSP-0.75HP, 7FDSP-0.75HP |
| 7SL2S4-PE | 90020710 | 7 | 2 HP | 7SDSP-1.5HP, 7FDSP-1.5HP |
| 10SL07S4-PE | 90021003 | 10 | 3/4 HP | 10SDSP-0.75HP, 10FDSP-0.75HP |
| 10SL2S4-PE | 90021010 | 10 | 2 HP | 10SDSP-1.5HP, 10FDSP-1.5HP |
| 15SL07S4-PE | 90021503 | 15 | 3/4 HP | 15SDSP-0.75HP, 15FDSP-0.75HP |
| 15SL2S4-PE | 90021510 | 15 | 2 HP | 15SDSP-1.5HP, 15FDSP-1.5HP |
| 25SL2S4-PE | 90022510 | 25 | 2 HP | 25SDSP-1.5HP, 25FDSP-1.5HP |
Source: Franklin Electric Solar Products Catalog (M1782 01-25), pp. 4 and 29 (ordering information). 5SL15S4-PE is not in M1782; Franklin pairs the 5 GPM 1.5 HP SolarPAKs with 5SL2S4-PE (90020510). We confirm the match before it ships. The model ends every option on this page.
Performance
Each row is one build at full array power, read at 20%, 50% and 75% of the highest total head Franklin lists for it: the flow in GPM it delivers at that head.
| Pump end, in package | PV power at full flow, W | At 20% of max head | At 50% | At 75% |
|---|---|---|---|---|
| 5SL07S4-PE in 5SDSP-0.75HP | 1310 | 8.9 GPM at 66 ft | 7.5 GPM at 197 ft | 5.8 GPM at 328 ft |
| 7SL07S4-PE in 7SDSP-0.75HP | 1310 | 12.8 GPM at 66 ft | 10.5 GPM at 197 ft | 7.6 GPM at 328 ft |
| 7SL2S4-PE in 7SDSP-1.5HP | 2000 | 10.5 GPM at 131 ft | 9.9 GPM at 328 ft | 7.6 GPM at 525 ft |
| 10SL07S4-PE in 10SDSP-0.75HP | 1290 | 14.9 GPM at 66 ft | 12.7 GPM at 131 ft | 9.0 GPM at 230 ft |
| 10SL2S4-PE in 10SDSP-1.5HP | 1900 | 12.6 GPM at 131 ft | 10.8 GPM at 262 ft | 8.2 GPM at 394 ft |
| 15SL07S4-PE in 15SDSP-0.75HP | 1230 | 22.1 GPM at 33 ft | 16.0 GPM at 131 ft | 13.5 GPM at 164 ft |
| 15SL2S4-PE in 15SDSP-1.5HP | 1970 | 17.7 GPM at 131 ft | 16.1 GPM at 197 ft | 12.4 GPM at 328 ft |
| 25SL2S4-PE in 25SDSP-1.5HP | 2000 | 31.6 GPM at 66 ft | 26.6 GPM at 164 ft | 20.8 GPM at 230 ft |
Source: Franklin Electric Solar Products Catalog (M1782 01-25), pp. 5-13, SolarPAK flow vs. PV power curves, digitized and rounded down to 0.1 GPM. The SubDrive SolarPAK is shown where a pump end is used in both families.
