Included: the panel, rack or accessory listed under the order number shown.

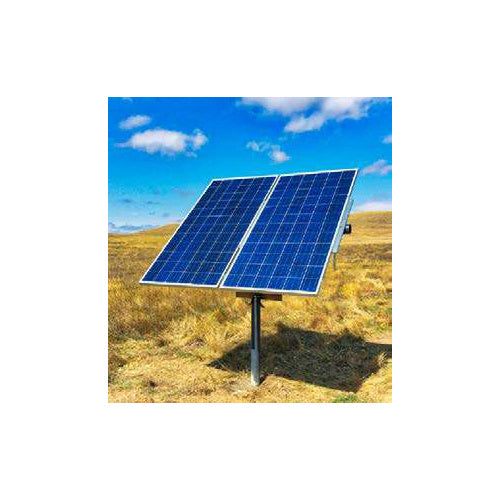

Mounting racks need steel pipe, supplied locally: one or two 4 in SCH40 steel vertical poles, plus one 4 in SCH40 steel pipe as the horizontal cross support beam, cut to length for the number of panels (see the table).

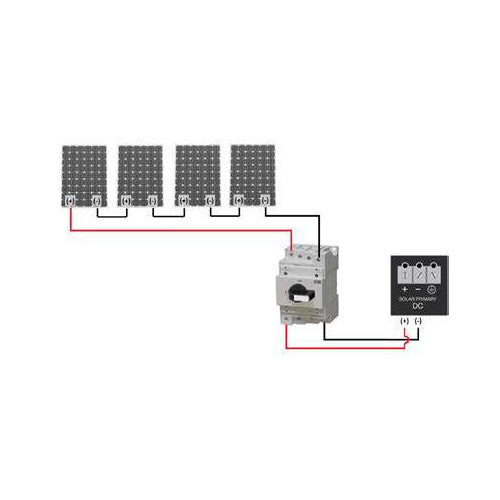

Array wiring: PV wire, connectors and the DC disconnect are sized to the array; Franklin’s installation quick reference shows typical 600 V and 800 V single-string and two-string disconnect wiring.
Panels, pole-mount racks and accessories Franklin lists for its SolarPAK systems. The 72-cell panels are rated 320 W or greater — Franklin notes panel manufacturer and wattage vary with availability. Pole-mount racks carry 2 to 6 panels on 4 in SCH40 steel pipe; the DC disconnect, mounting bracket, Wi-Fi module and AC/DC power converter complete a Fhoton or SubDrive Solar installation.
Every option ends with the Franklin order number. Size the array to the SolarPAK with Franklin’s SolarPAK Selector, or send us your package and site and we size it.
Franklin warrants its products for 12 months from the date of installation, but no more than 24 months from the date of manufacture.
Source: Franklin Electric limited warranty, Submersible Pumps AG/Industrial/Municipal Product Catalog.
| Order No. | Item | Description |
|---|---|---|
| 305709035 | DC disconnect | Safety switch, IP66, 600 VDC, 25 A, 2-pole |

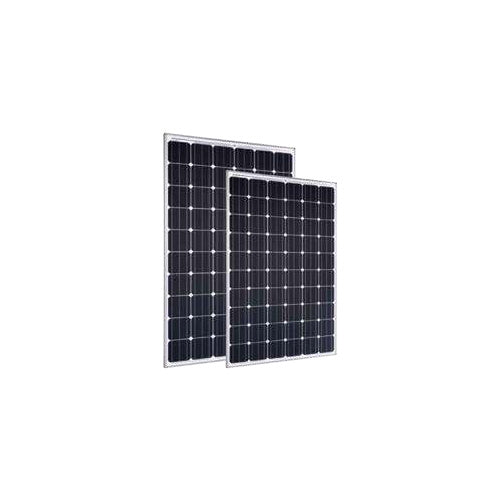

| 305709030 | Solar PV panel, 1 panel | 72-cell, 320 W or greater; Vmpp 37 V, Voc 46 V (STC); 77 x 39 x 1.6 in |
| 305709017 | Solar PV panels (price-list item 2-SW-265P) | Not in Franklin’s current solar catalog; we confirm the panel make, wattage and count before it ships |
| 305709052 | Solar PV panels, 25 panels | 25 x 72-cell, 320 W or greater each; Vmpp 37 V, Voc 46 V (STC); each 77 x 39 x 1.6 in |

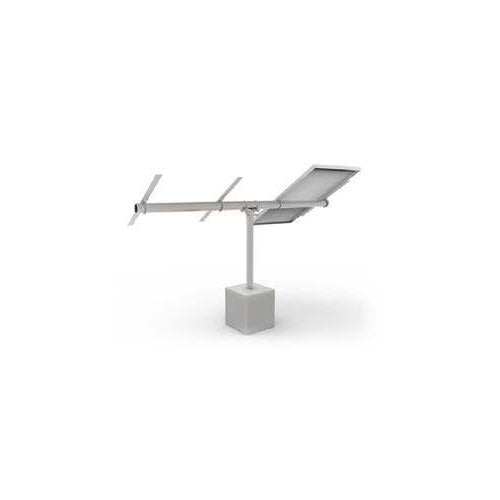

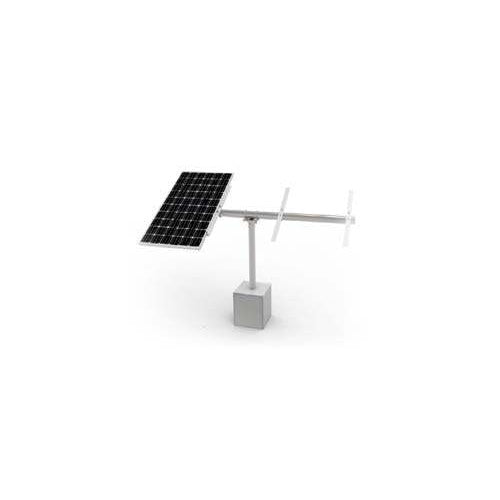

| 305709045 | Pole-mount rack, 2 panels | One 4 in SCH40 vertical pole; cross pipe 7.5 ft |
| 305709046 | Pole-mount rack, 3 panels | One 4 in SCH40 vertical pole; cross pipe 11 ft |
| 305709047 | Pole-mount rack, 4 panels | Two 4 in SCH40 vertical poles 10 ft apart; cross pipe 15 ft |
| 305709048 | Pole-mount rack, 5 panels | Two 4 in SCH40 vertical poles 12 ft apart; cross pipe 18.5 ft |
| 305709049 | Pole-mount rack, 6 panels | Two 4 in SCH40 vertical poles 10 ft apart; cross pipe 22 ft |

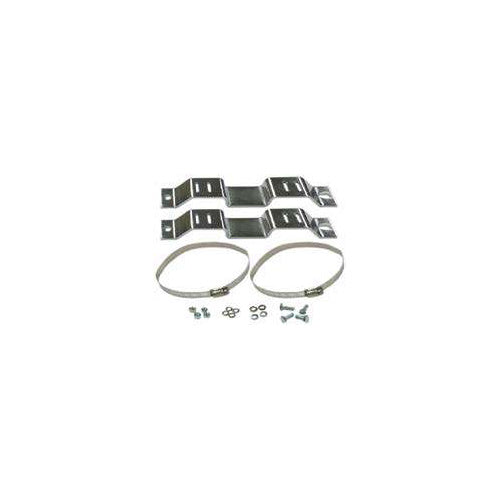

| 226944901 | Mounting bracket | For a Fhoton VFD or the AC/DC power converter |
| 581COMM-APP | Wi-Fi communication module | For Fhoton VFDs |

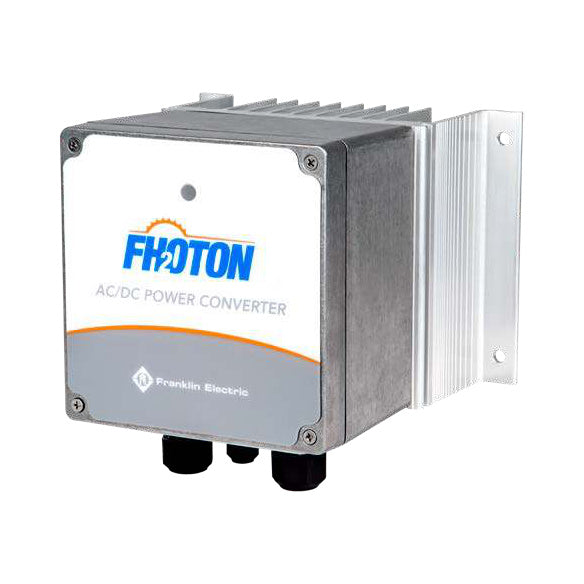

| 581114204 | AC/DC power converter, solar drive | For Fhoton drives up to 1.5 hp; single-phase AC or DC source in: 115 VAC for 100 V motors, 230 VAC for 200 V motors; output short-circuit protection; Type 4 enclosure; UL and CE |
Source: Franklin Electric Solar Products Catalog (M1782 01-25), pp. 104-106. Electrical data is at solar industry standard test conditions (STC). Order numbers are Franklin’s; the order number ends every option on this page.
