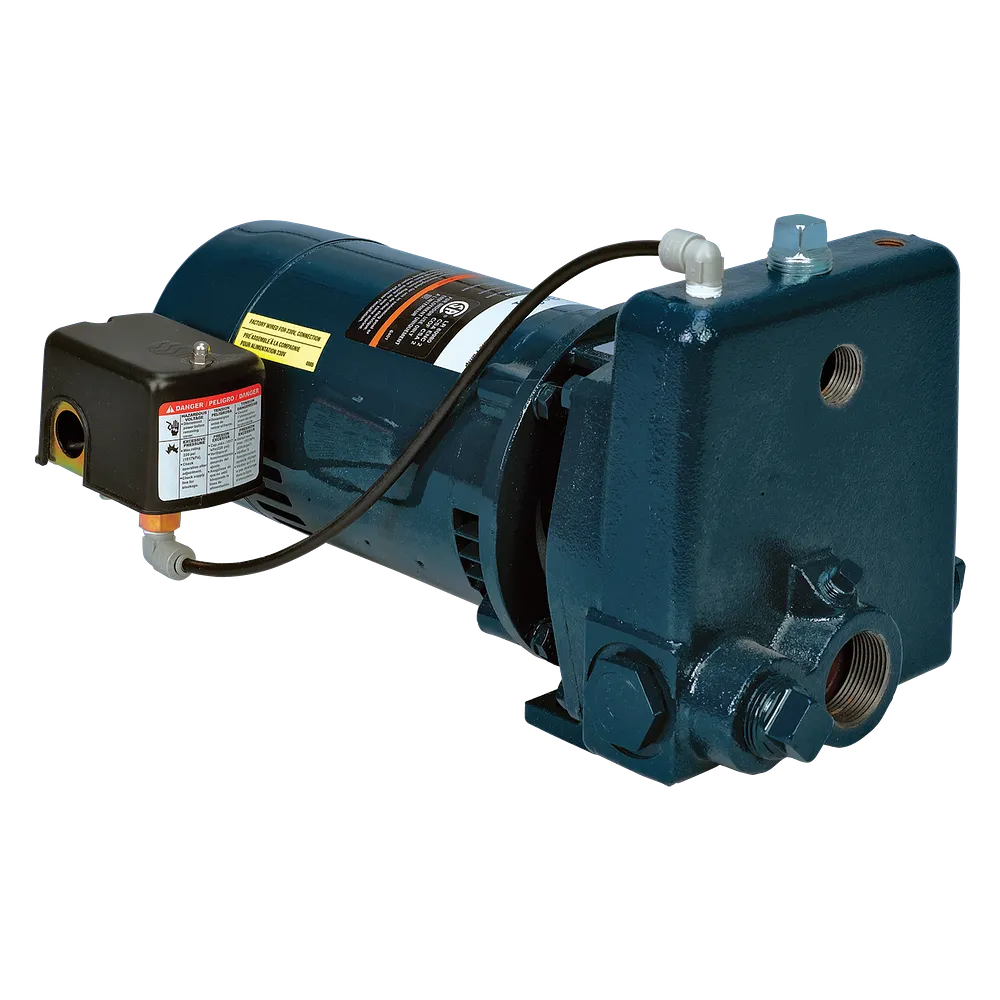

Franklin Electric C Series convertible jet pump

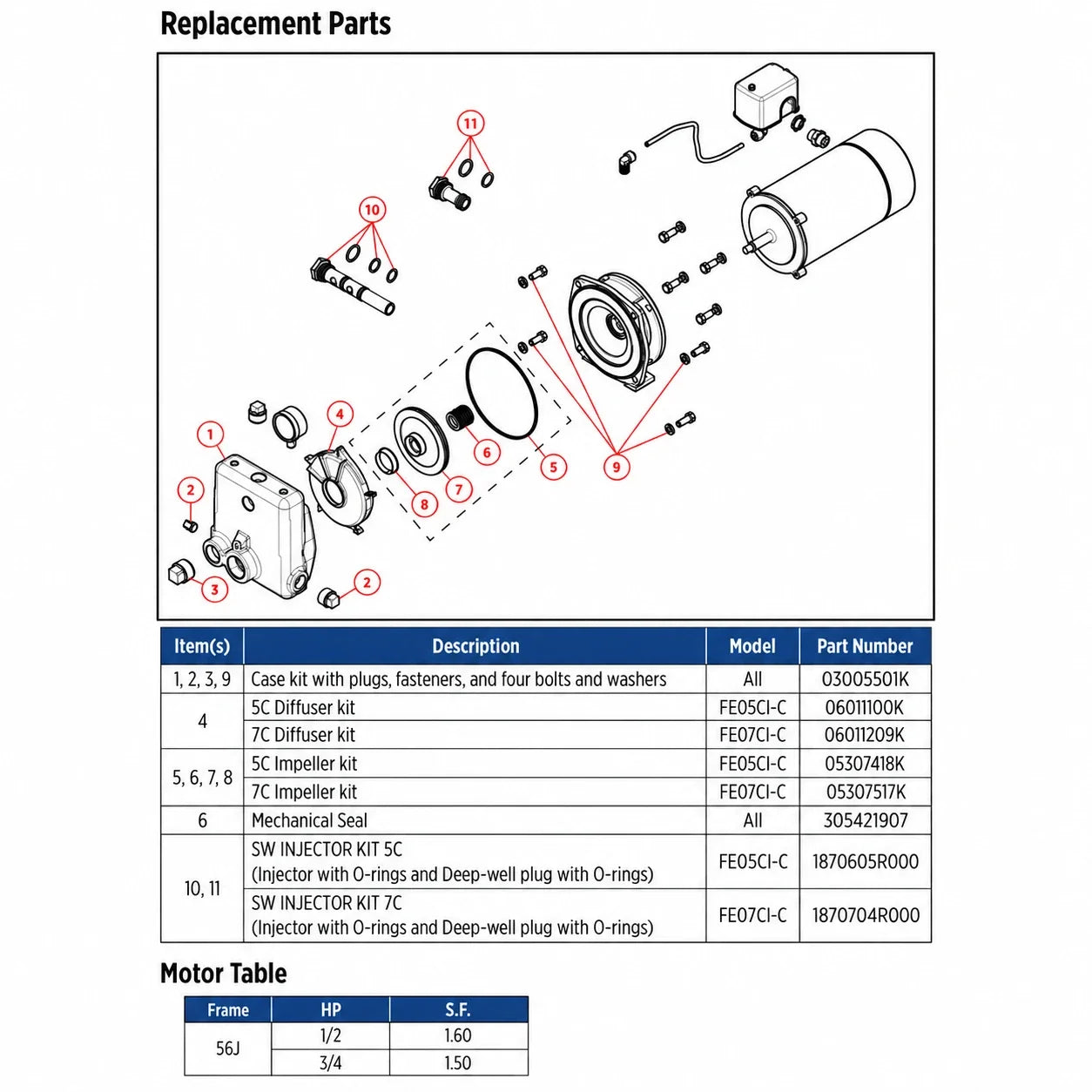

Franklin Electric C Series convertible jet pump exploded view with part callouts

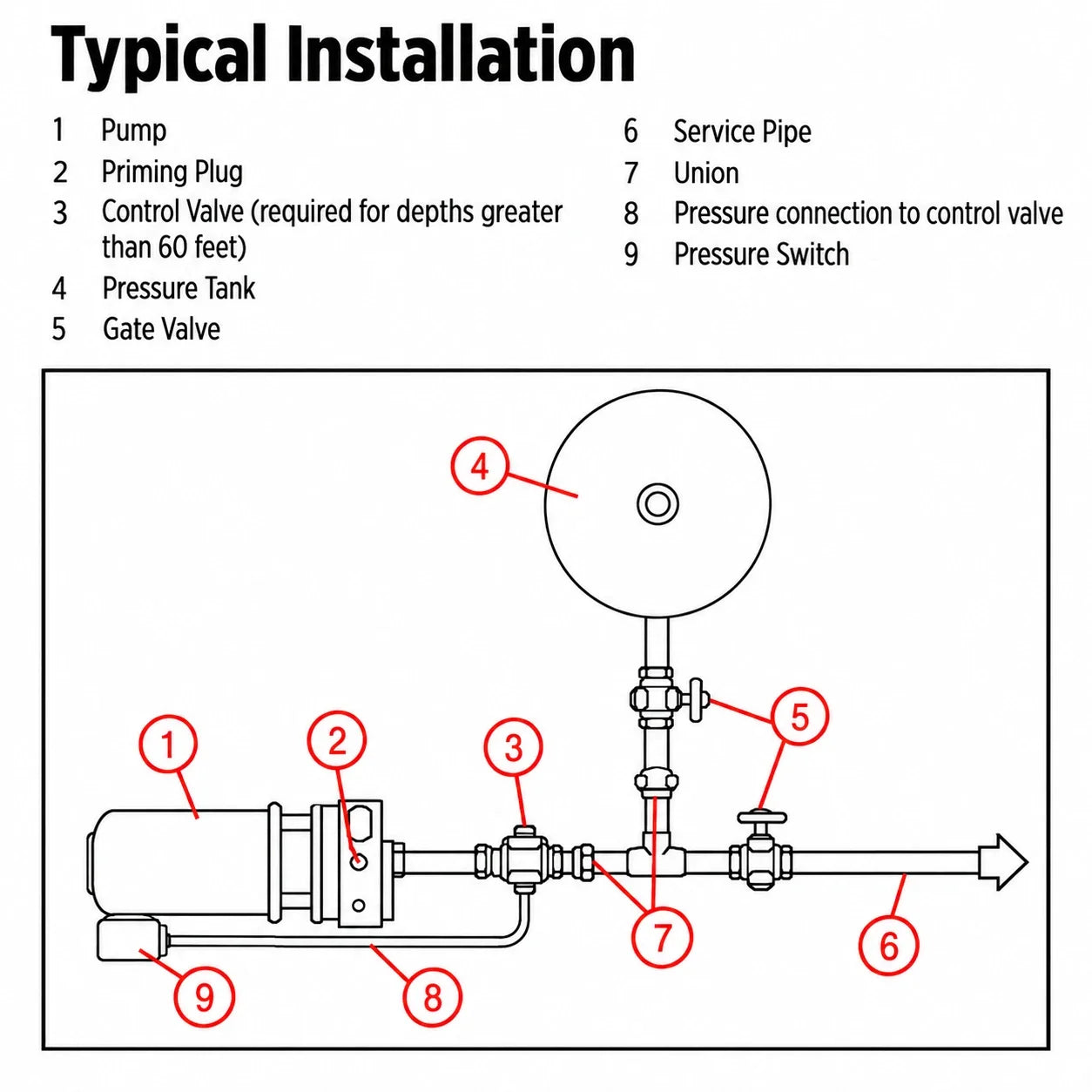

Franklin Electric C Series convertible jet pump typical installation

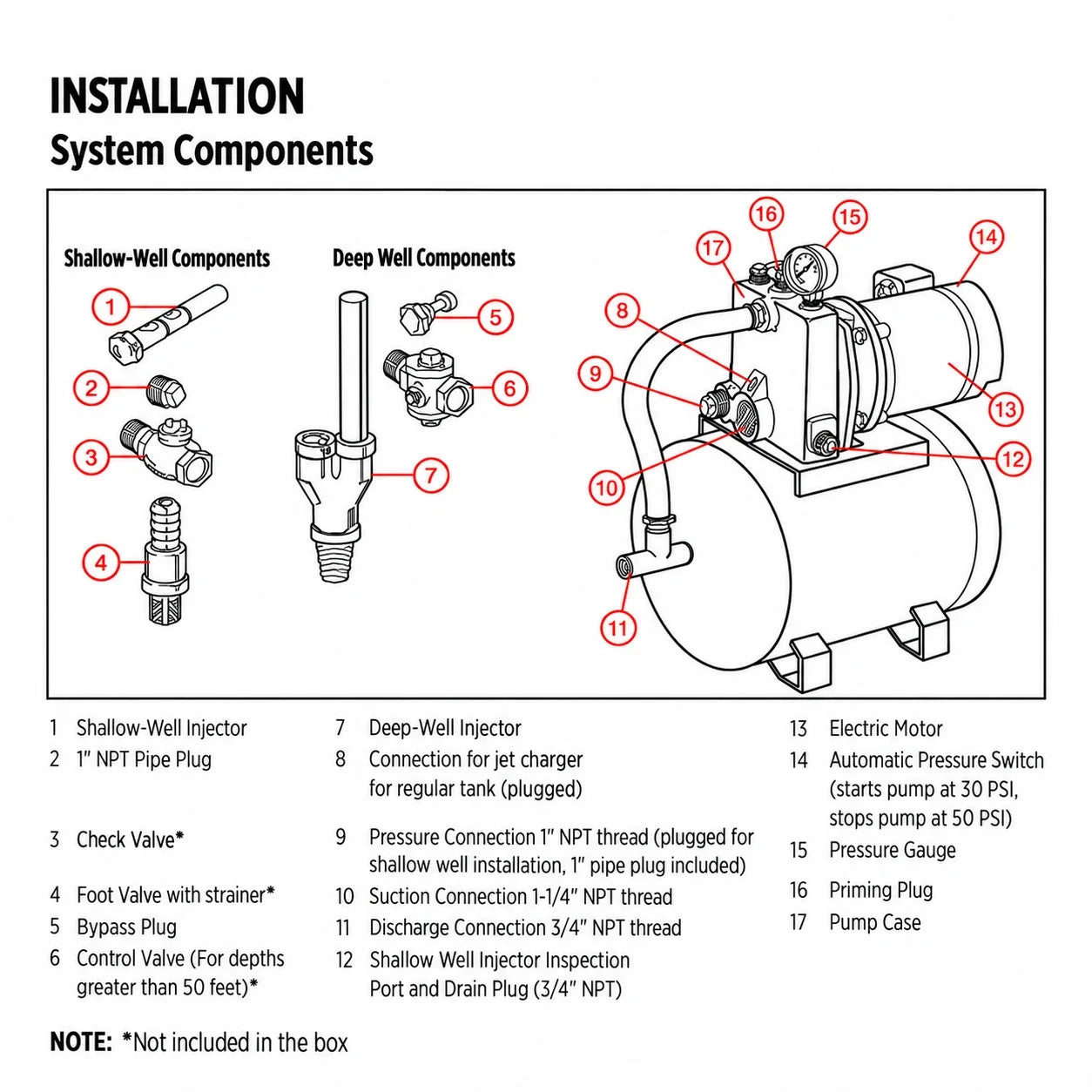

Franklin Electric C Series deep well injector setup
Franklin Electric C Series convertible jet pump
Franklin Electric C Series convertible jet pump exploded view with part callouts
Franklin Electric C Series convertible jet pump typical installation
Franklin Electric C Series deep well injector setup

Franklin Electric C Series Repair Parts

Part: Bracket Kit - 5C

Product variant with selected options does not exist!
$123.08
SKU: 02105203K
Weight : 5.0 lb
Free Shipping $499 or more
Need it fast? Call for same-day shipping options: 281.664.8000
Description
Franklin Electric · Genuine Repair Parts
C Series Repair Parts
Genuine Franklin Electric replacement parts and service kits for C Series convertible jet pumps, listed by factory order number.
13 Part Numbers
Genuine Franklin Electric
Order by Factory Number
Overview

Factory replacement parts and service kits for Franklin Electric C Series convertible jet pumps. Every item below is listed under Franklin Electric’s own order number, with the pump models it fits as Franklin publishes them.

Match the part to the model on your pump nameplate. The complete pumps are here: C Series pumps. The owner’s manual on the Data Sheet tab shows the exploded view and where each part sits.

Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Parts and Fitment
Order No. Part Fits
02105203K 5C Bracket Kit 5C
03005501K Case kit with plugs, fasteners, and four bolts and washers 5-7C
05307418K 5C Impeller kit 5C
05307517K 7C Impeller kit 7C
06011100K 5C Diffuser kit 5C
06011209K 7C Diffuser kit 7C
18170605R000 5C SW Injector kit (Injector with O-rings and Deep-well plug with O-rings) 5C
18170704R000 7C SW Injector kit (Injector with O-rings and Deep-well plug with O-rings) 7C
305465902 Mechanical seal, grommets & O-ring Kit CVJ, all models
305465912 Impeller, diffuser & wear ring kit, 3/4 HP Low SF, 1/2 HP High SF CVJ, 3/4 HP Low SF, 1/2 HP High SF
305465913 Impeller, diffuser & wear ring kit, 1 HP Low SF, 3/4 HP High SF CVJ, 1 HP Low SF, 3/4 HP High SF
05307319K 3C Impeller Kit 3C
305453005 Water Slinger Kit C Series
Confirm Before OrderingOrder by the model number on the pump nameplate, not by horsepower alone — the same horsepower is built on more than one hydraulic. Send us the nameplate and we will confirm the part before it ships.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
© Watermain Supply — A division of E4 Industrial LLC
Data Sheet
C Series Manual C Series Spec Sheet
