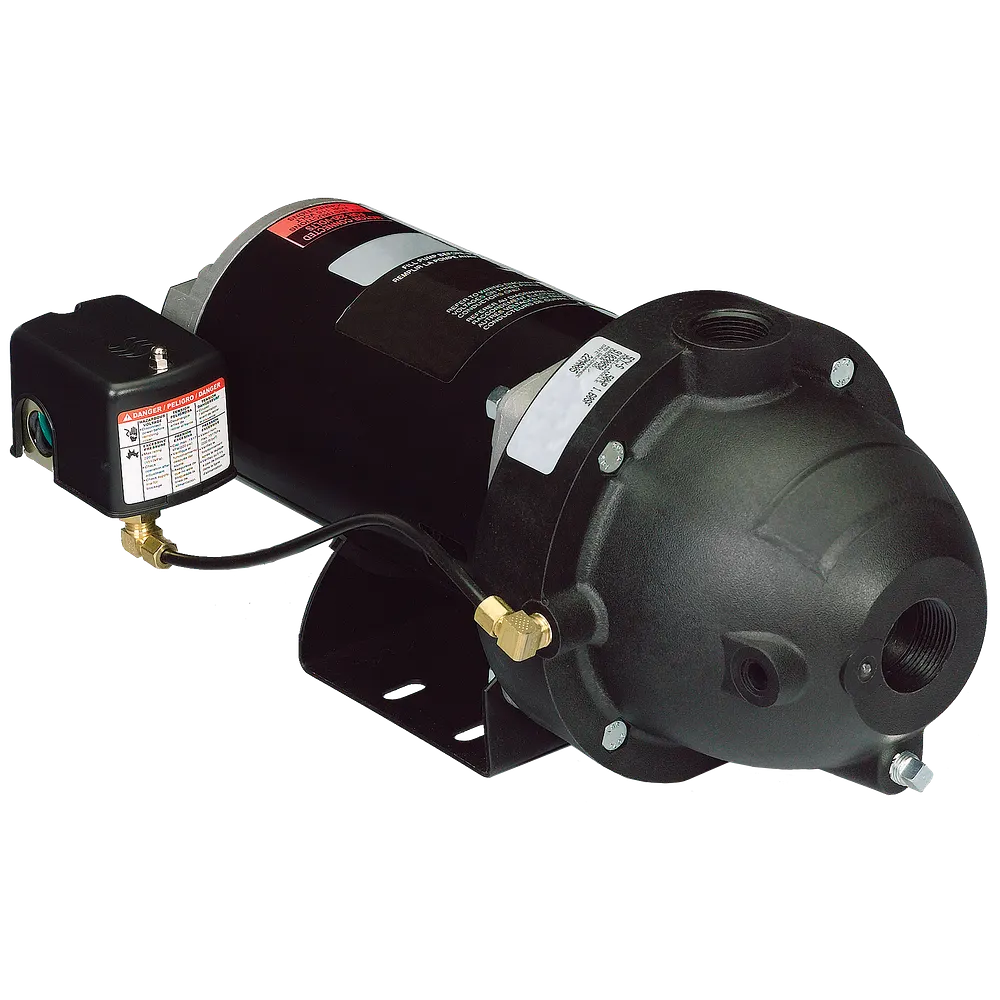

Franklin Electric SWJ (Cyclone) Series Non-Corrosive Shallow Well Jet Pump - NSF 372, Thermoplastic, 1/2-1 HP
Franklin Electric SWJ (Cyclone) Series Non-Corrosive Shallow Well Jet Pump - NSF 372, Thermoplastic, 1/2-1 HP

Franklin Electric SWJ (Cyclone) Series Non-Corrosive Shallow Well Jet Pump - NSF 372, Thermoplastic, 1/2-1 HP

Horse Power: 1/2 HP
Phase: Single-Phase
Voltage: 115/230 VAC

Product variant with selected options does not exist!
$728.12
SKU: FSWJ05P
Weight : 23.0 lb
Need it fast? Call for same-day shipping options: 281.664.8000
Description
Franklin Electric Jet Pump

SWJ (Cyclone) Series Jet Pump
Non-Corrosive Shallow Well

Thermoplastic shallow well jet pump for clean water installations. Self-cleaning injector screen and replaceable in-line nozzle/venturi.

1/2 – 1 HP
Single-Phase
NSF 372 Certified
120 °F Max Fluid Temp
Dual Voltage 115/230 V
Overview

Non-corrosive thermoplastic construction allows the SWJ shallow well jet pump to be used in clean water installations without the fear of corrosion. A self-cleaning injector screen provides an additional level of anti-clogging protection.

Designed for shallow well applications with a replaceable in-line nozzle/venturi design for maximum hydraulic efficiency and ease of service.

Key Advantages
Non-corrosive thermoplastic construction
Non-corrosive thermoplastic construction.
Replaceable in-line nozzle/venturi design
Replaceable in-line nozzle/venturi design for maximum hydraulic efficiency and ease of service.
Self cleaning
Self cleaning, anti-clogging injector screen.
Thermoplastic impeller and diffuser ensure increased
Thermoplastic impeller and diffuser ensure increased hydraulic performance.
Floating stainless steel eye seal
Floating stainless steel eye seal for maximum performance and efficiency.
Square-flange mounting
Square-flange mounting provides easy serviceability without disturbing the plumbing.
Built-in drain plug
Built-in drain plug for easy winterizing and servicing.
Mechanical shaft seal
Mechanical shaft seal allows positive protection against leaking.
Order pressure gauge separately
Order pressure gauge separately.
Pressure switch
Pressure switch is installed and set at 30/50 psi.
Handles water temperatures up to 120 °F/49
Handles water temperatures up to 120 °F/49 °C and working pressure up to 75 psi.
1-1/4" inlet and 1" outlet
1-1/4" inlet and 1" outlet - all models
NSF/ANSI/CAN 372 Certified
NSF/ANSI/CAN 372 Certified
Order Information
Item Model Horse Power Phase Voltage
91090005 FSWJ05P 1/2 HP Single-Phase 115/230 VAC
91090007 FSWJ07P 3/4 HP Single-Phase 115/230 VAC
91093010 FSWJ1P 1 HP Single-Phase 115/230 VAC
Documentation & Spec Sheets
SWJ Series Spec Sheet
Spec Sheet — Franklin Electric published document (PDF).
Download PDF
SWJ Series Manual
Owner’s Manual — Franklin Electric published document (PDF).
Download PDF
Specification Source

Specifications, model numbers and Franklin item numbers on this page are taken from Franklin Electric published product data. Engineering-led pump sizing available — call 281.664.8000 or email sales@watermainsupply.com.

Ready to Order?
Confirm horsepower, phase, voltage and flow requirements before placing your order. Engineering-led pump sizing available.
Shop Watermainsupply.com

281.664.8000

sales@watermainsupply.com
