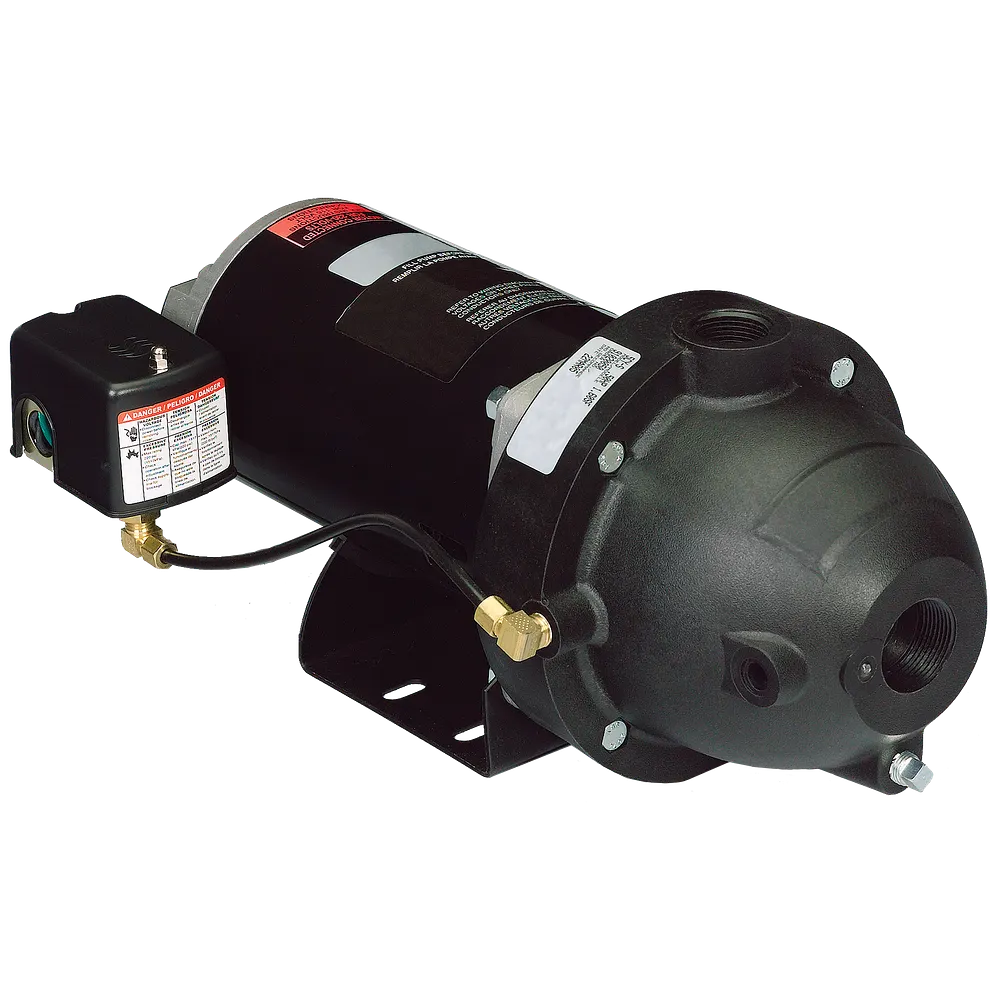

Franklin Electric Cyclone shallow well jet pump

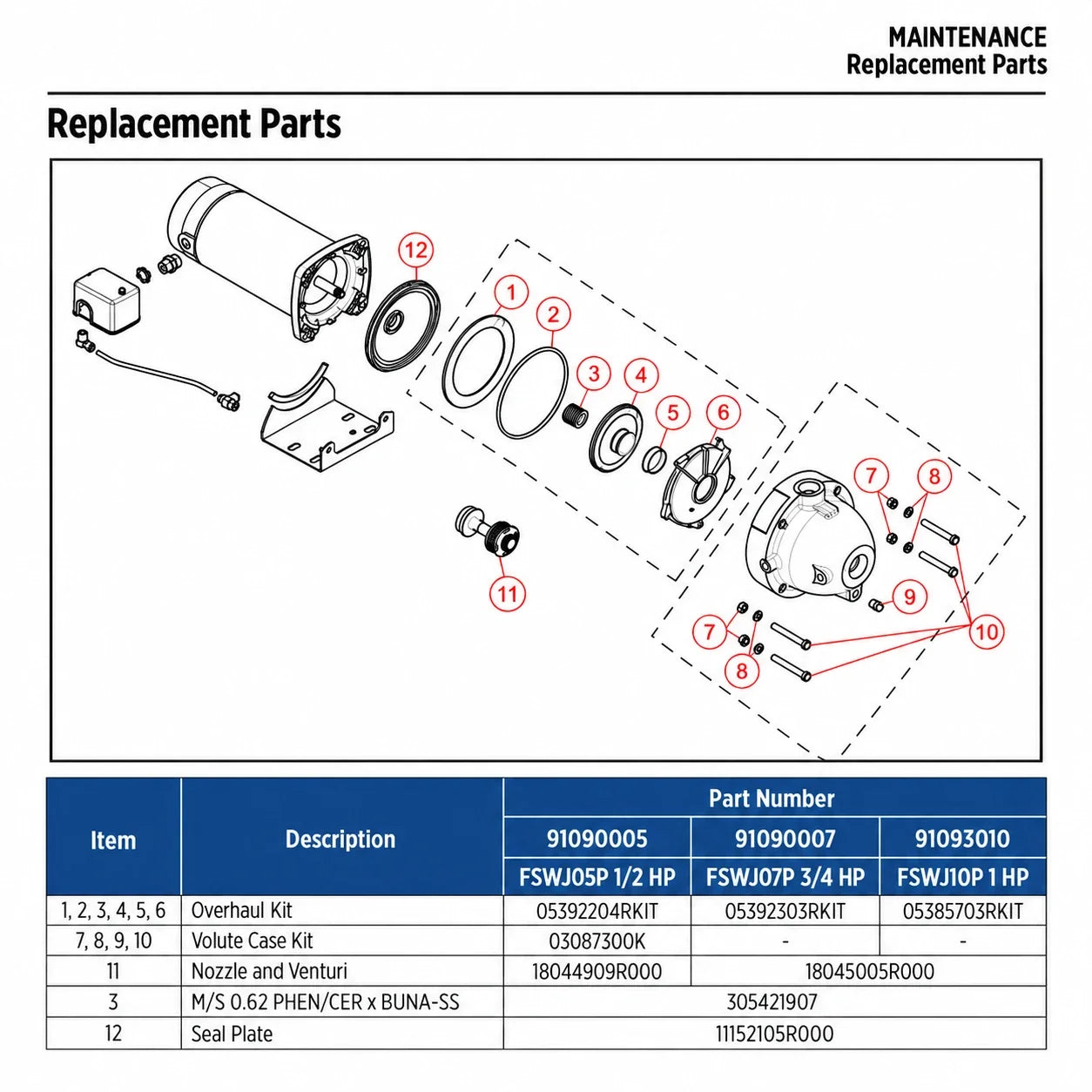

Franklin Electric Cyclone shallow well jet pump exploded view with part callouts

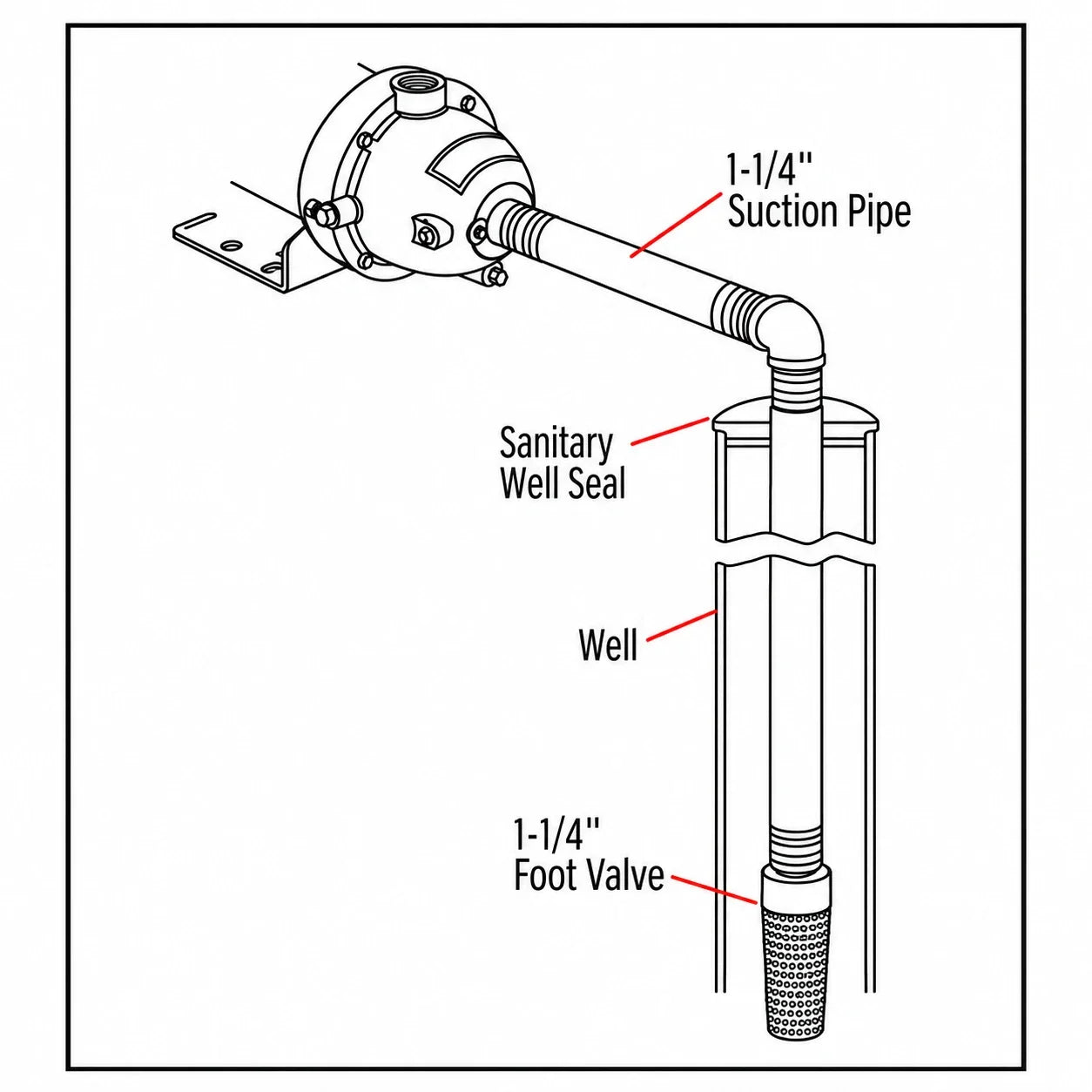

Franklin Electric Cyclone shallow well jet pump typical installation
Franklin Electric Cyclone shallow well jet pump
Franklin Electric Cyclone shallow well jet pump exploded view with part callouts
Franklin Electric Cyclone shallow well jet pump typical installation

Franklin Electric Cyclone Repair Parts

Part: Seal Plate - Cyclone and SRP3

Product variant with selected options does not exist!
$114.17
SKU: 11152105R000
Weight : 5.0 lb
Free Shipping $499 or more
Need it fast? Call for same-day shipping options: 281.664.8000
Description
Franklin Electric · Genuine Repair Parts
Cyclone Series Repair Parts
Genuine Franklin Electric replacement parts and service kits for Cyclone shallow well jet pumps, listed by factory order number.
7 Part Numbers
Genuine Franklin Electric
Order by Factory Number
Overview

Factory replacement parts and service kits for Franklin Electric Cyclone shallow well jet pumps. Every item below is listed under Franklin Electric’s own order number, with the pump models it fits as Franklin publishes them.

Match the part to the model on your pump nameplate. The complete pumps are here: Cyclone Series pumps. The owner’s manual on the Data Sheet tab shows the exploded view and where each part sits.

Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Parts and Fitment
Order No. Part Fits
11152105R000 Seal Plate Cyclone and SRP3
03087300K Volute Case Kit FSWJ05-10P
05385703RKIT Overhaul Kit FSWJ10P
05392204RKIT Overhaul Kit FSWJ05P
05392303RKIT Overhaul Kit FSWJ07P
18044909R000 Nozzle and Venturi FSWJ05P
18045005R000 Nozzle and Venturi FSWJ07-10P
Confirm Before OrderingOrder by the model number on the pump nameplate, not by horsepower alone — the same horsepower is built on more than one hydraulic. Send us the nameplate and we will confirm the part before it ships.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
