Smith-Blair Style 461 Quantum Coupling - Stainless Steel, 1-1/2-12 in

Nominal Size - OD: 1-1/2 in - 1.81-2.28 in OD
Sleeve Length: 4 in Sleeve
Part No.: 461-01810228-031

Product variant with selected options does not exist!

Price
$192.55
Coupon 5% off applied automatically in your cart. No code needed.
SKU: 461-01810228-031
Weight : 8.2 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Smith-Blair · Wide-Range Cast Coupling
Style 461 Quantum Wide-Range Coupling
Cast Ductile Iron, 304 Stainless Bolts
250 PSI Max Working Pressure
-20°F to +180°F Temperature
Nitrile (Buna-N) Gasket
Epoxy-Coated Ductile Iron Sleeve and Followers
304 Stainless Bolts, Coated Nuts
NSF/ANSI 61 and 372
AWWA C219
1.81-14.40 in Pipe OD
8.2-89 lb Weight
Description

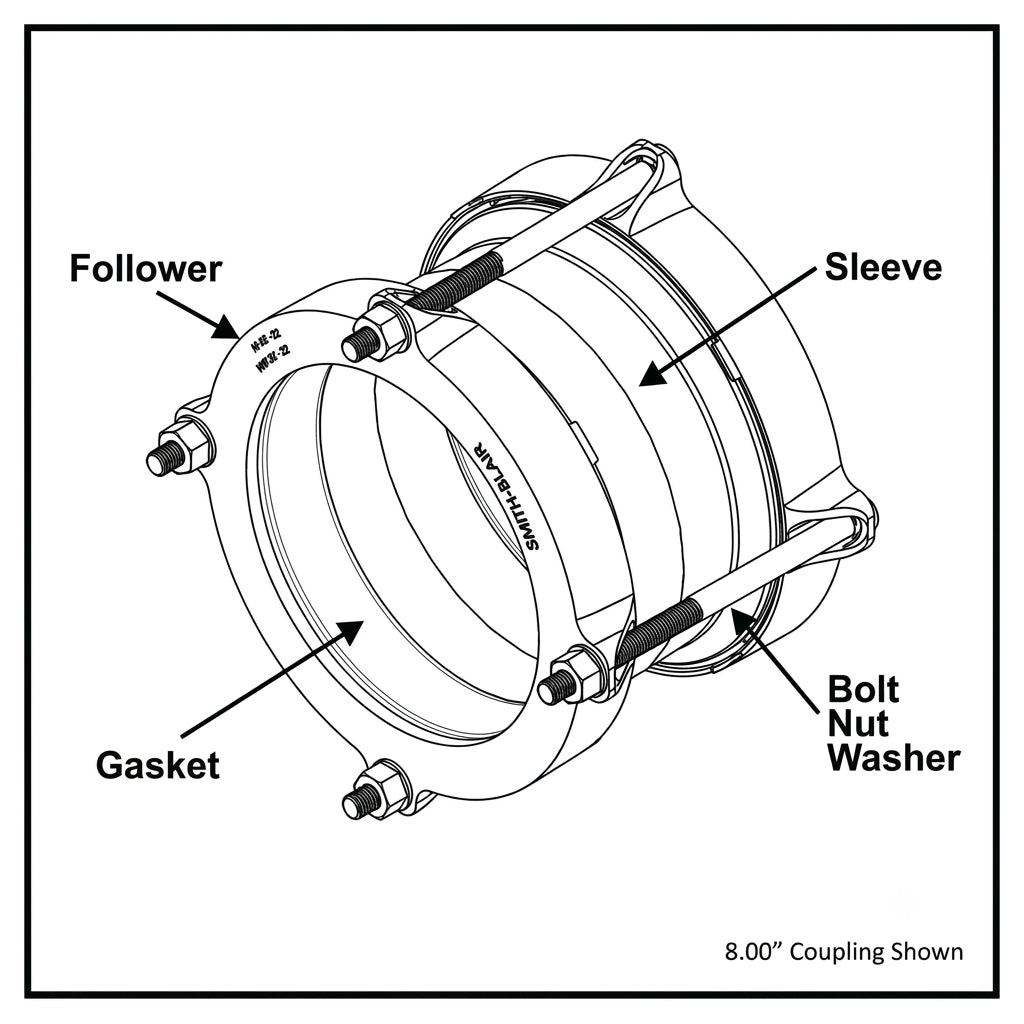

The Smith-Blair Style 461 Quantum is a wide-range cast coupling that joins plain-end pipe of any outside diameter within its range — up to 1.65 in of OD range on a single gasket and follower, so one coupling covers each nominal size. It stab-fits with no disassembly, and its heavy cast ductile iron sleeve and followers carry a Flexi-Coat fusion-bonded epoxy finish.

This build carries Type 304 stainless steel bolts with coated nuts to prevent galling, for corrosive soils and wet vaults. Sleeve length is set by pipe size (4 to 7.5 in) and shows in Option 2.

Application: joining plain-end pipe of different outside diameters within the same nominal size, and replacing split or excessively damaged pipe.

Key Features

  • Working pressure up to 250 PSI
  • One coupling per nominal size: up to 1.65 in of OD range with a single gasket and follower
  • Stab fit — installs with no disassembly
  • Followers marked with part number and pipe range, with an integral bolt-head pocket for one-wrench installation
  • Certified to NSF/ANSI 61 and NSF/ANSI 372
What Ships and What It Needs to Run

Included: the coupling with its sleeve, two followers, Nitrile gaskets and Type 304 stainless bolts and nuts, ready for stab fit.

Pipe stiffeners on HDPE, ordered separately. Smith-Blair requires pipe stiffeners when the 461 is used on HDPE pipe; ask us to include them.

Genuine Smith-Blair equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Smith-Blair Warranty

Smith-Blair warrants its products to be free of defects in materials and workmanship for one year from the date of shipment by Smith-Blair. Dated proof of purchase, such as a bill of sale, is required to establish eligibility. Smith-Blair will repair or, at its option, replace a defective product; the product is returned to the factory or warehouse Smith-Blair designates.

Working Pressure

Up to 250 PSI across every size, 1-1/2 through 12 in, per the Smith-Blair datasheet and spec. The coupling seals but does not restrain, so the line must be anchored to hold that pressure.

Materials Specifications
Sleeve Cast ductile iron, ASTM A536 Gr 65-45-12 or 80-55-06
Followers (flanges) Cast ductile iron, ASTM A536 Gr 65-45-12, marked with part number and pipe range
Gasket Nitrile (Buna-N) per ASTM D2000, NSF 61 approved; resists water, oil, natural gas, acids, alkalies and most (aliphatic) hydrocarbons; ribbed leading edge
Finish Flexi-Coat fusion-bonded epoxy, meets AWWA C213
Bolts Type 304 stainless steel, coated (catalog suffix -031)
Nuts Type 304 stainless steel, coated to prevent galling

Materials subject to change by the manufacturer.

Pipe Applications

Carbon steel, stainless steel, ductile iron, cast iron, asbestos cement and PVC. On HDPE, Smith-Blair requires pipe stiffeners; for other pipe materials, ask us to confirm with Smith-Blair Engineering.

Sizes
Pipe size and OD Sleeve Length
1-1/2 in - 1.81-2.28 in OD 4 in Sleeve
2 in - 2.34-2.85 in OD 4 in Sleeve
2-1/2 in - 2.84-3.35 in OD 4 in Sleeve
3 in - 3.46-4.21 in OD 5 in Sleeve
4 in - 4.46-5.60 in OD 5-1/2 in Sleeve
6 in - 6.54-7.65 in OD 6 in Sleeve
8 in - 8.54-9.85 in OD 6 in Sleeve
10 in - 10.65-12.20 in OD 7-1/2 in Sleeve
12 in - 12.75-14.40 in OD 7-1/2 in Sleeve

Choose the size in the first option; the part number shows in the last option.

Sleeve and Bolts
Nominal size Sleeve length 5/8 in bolts
1-1/2 to 2-1/2 in 4 in 2
3 in 5 in 4
4 in 5.5 in 4
6 and 8 in 6 in 4
10 and 12 in 7.5 in 8

Bolts 10.50 in long through 8 in and 13.50 in long at 10 and 12 in; laying length 10.5 in and 13.5 in.

Pipe Gap by Sleeve Length
Sleeve length Straight run Deflected Max gap
4 in 1/2 in 3/4 in 1-1/2 in
5 to 6 in 1/2 in 1 in 2 in
7-1/2 in 1 in 1-1/2 in 3 in

Center the pipe gap in the sleeve. Max deflection 3° pipe to pipe, 1-1/2° pipe to sleeve; total axial movement 1/8 in at 1-1/2 to 2 in, 1/4 in at 2-1/2 to 10 in, 3/8 in at 12 in.

Installation Notes
  • Stab fit: the 461 goes on without disassembly.
  • Clean the pipe ends where the gaskets will seat.
  • Lubricate the pipe and gaskets with a soap-and-water solution (anti-freeze may be required) that meets the water and pipe supplier's requirements; the beveled gasket edge faces the pipe end.
  • Center the sleeve over the pipe gap, keeping the gap within the table above.
  • Tighten the nuts gradually, alternating between opposite sides so the followers stay parallel, to the torque in the instructions; recheck the torque after the line is pressurized.
  • Anchor the pipe: the coupling seals around it, and Smith-Blair requires proper anchoring to restrain pipe movement and prevent pull-out.

From Smith-Blair Installation Instructions TI-017 (Rev 08/26/21), in the Data Sheet tab.

Before You OrderAll Smith-Blair products are Made to Order and Non-Returnable.
Items typically shipped in 5 - 10 business days.
Alloy or 316 stainless hardware, other gaskets (Viton, EPDM), protected gaskets, anode connectors and insulating boots are built to order — email sales@watermainsupply.com with the pipe OD and material.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
