Smith-Blair · Collar Leak Clamp
Style 229 Full Circle Collar Leak Clamp
Cast Lugs, Single Band
150 PSI Max Working Pressure
-20°F to +180°F Temperature
Nitrile (Buna-N) Gasket
304 Stainless Band
Epoxy-Coated Ductile Iron Lugs
Low-Alloy Steel Bolts
NSF/ANSI 61 and 372
2.38-12.75 in Pipe OD
9-27 lb Weight
Description

The Smith-Blair Style 229 Full Circle collar leak clamp fixes a leaking solvent-weld bell on PVC pipe by assembling outside the collar — without cutting or draining the pipe. A 304 stainless band and 360° Nitrile gasket seal the joint, with removable epoxy-coated ductile iron lugs.

Application: leaking plastic solvent-weld belled-end pipe joints and threaded steel couplings.

Key Features

  • Working pressure up to 150 PSI
  • Installs without cutting or draining the pipe
  • Widths 7.5 and 12.5 in
  • Removable lugs for installation in tight spaces
  • Certified to NSF/ANSI 61 and NSF/ANSI 372
What Ships and What It Needs to Run

Included: the clamp with its Nitrile gasket, lugs, bolts and nuts, ready to install.

Spring washers on HDPE pipe, ordered separately. Smith-Blair requires spring washers on HDPE applications; ask us to include them with the clamp.

Genuine Smith-Blair equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Smith-Blair Warranty

Smith-Blair warrants its products to be free of defects in materials and workmanship for one year from the date of shipment by Smith-Blair. Dated proof of purchase, such as a bill of sale, is required to establish eligibility. Smith-Blair will repair or, at its option, replace a defective product; the product is returned to the factory or warehouse Smith-Blair designates.

Working Pressure

Up to 150 PSI. Smith-Blair rates the allowable working pressure of a repair clamp to fall as pipe diameter rises; for a particular installation it is set by pipe size and type, the type and extent of the damage, service conditions and installation workmanship.

Materials Specifications
Band Type 304 stainless steel
Lugs Ductile iron (ASTM A536 Gr 80-55-06) with Flexi-Coat fusion-bonded epoxy finish
Gasket Nitrile (Buna-N), compounded to resist water, acids, alkalies, most (aliphatic) hydrocarbons and many other chemicals
Bridge plate Type 304 stainless steel, recessed flush and bonded into the gasket
Bolts and nuts High-strength low-alloy steel bolts with heavy semi-finished hex nuts (ANSI B18.2.2)
Finish Flexi-Coat fusion-bonded epoxy

Materials subject to change by the manufacturer.

Pipe Applications

PVC solvent-weld joints and threaded steel couplings.

Sizes

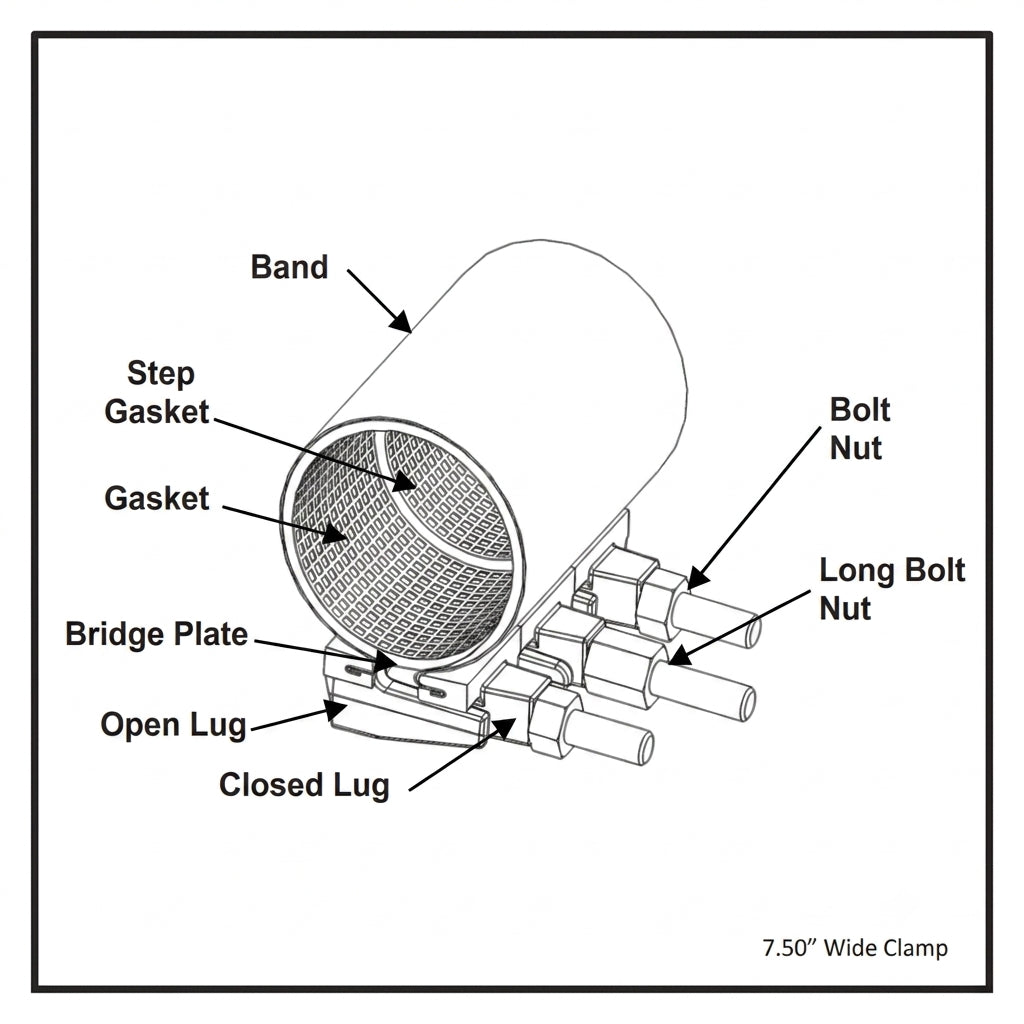

Pipe size and OD Widths
2 in - 2.38 in 7.5, 12.5 in
2-1/2 in - 2.88 in 7.5, 12.5 in
3 in - 3.50 in 7.5, 12.5 in
3-1/2 in - 4.00 in 7.5, 12.5 in
4 in - 4.50 in 7.5, 12.5 in
5 in - 5.56 in 7.5, 12.5 in
6 in - 6.63 in 7.5, 12.5 in
8 in - 8.63 in 7.5, 12.5 in
10 in - 10.75 in 7.5, 12.5 in
12 in - 12.75 in 7.5, 12.5 in

Choose the pipe OD in the first row above; the part number shows in the second row.

Bolt Numbers
Band width Bolts
7.5 in 3
12.5 in 5

Bolts 5/8 x 6 in, with 5/8 x 6-7/8 in starter bolts on 4 in nominal and smaller.

Installation Notes
  • Clean the pipe where the clamp will sit, removing scale, dirt and debris that could spoil the gasket seal.
  • Lubricate the pipe and gasket with a soap-and-water solution that meets the water and pipe supplier’s requirements.
  • Where the pipe ends gap 1 in or more, bridge the gap with a short section of pipe or a thin strip of sheet metal to support the gasket.
  • Where 40% or more of the circumference is broken away, cover the opening with sheet metal and use a clamp that extends 3 in past it on both sides.
  • Engage the centermost bolts first and tighten from the center outward, keeping the clamp centered on the break; finish with a calibrated torque wrench to the torque in the instructions.
  • Anchor the pipe: the clamp seals around it, and Smith-Blair requires proper anchoring to restrain pipe movement and prevent pull-out.

From Smith-Blair Installation Instructions TI-002 (Rev 08/26/21), in the Data Sheet tab.

Before You OrderAll Smith-Blair products are Made to Order and Non-Returnable.
Items typically shipped in 5 - 10 business days.
Odd pipe ODs, other widths and other materials are built to order — email sales@watermainsupply.com with the pipe OD and material.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
