Smith-Blair Style 262 Repair Clamp - Stainless, Double Band, 3.49-14.8 in OD
Smith-Blair Style 262 Repair Clamp - Stainless, Double Band, 3.49-14.8 in OD
Smith-Blair Style 262 Repair Clamp - Stainless, Double Band, 3.49-14.8 in OD
Smith-Blair Style 262 Repair Clamp - Stainless, Double Band, 3.49-14.8 in OD

Smith-Blair Style 262 Repair Clamp - Stainless, Double Band, 3.49-14.8 in OD

Pipe OD Range: 3.49-4.29 in OD
Width - Part No.: 7.5 in - 262-00035007-000

Product variant with selected options does not exist!
$329.14
SKU: 262-00035007-000
Weight : 8.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Smith-Blair · Repair Clamp
Style 262 Full Circle Repair Clamp
All Stainless Steel, Fabricated Lugs, Double Band
150 PSI Max Working Pressure
-20°F to +180°F Temperature
Nitrile (Buna-N) Gasket
All 304 Stainless Steel
Fabricated Stainless Lugs
NSF/ANSI 61 and 372
3.49-14.80 in Pipe OD
8-50 lb Weight
Description

The Smith-Blair Style 262 is a double-band, all-stainless Full Circle repair clamp that gives 360° pressure and complete leak repair. Fabricated stainless lugs and a keeper bar pull the clamp around the pipe and close it during installation; larger clamps cover a wider OD range.

Application: cast iron, ductile iron, steel, asbestos cement, copper, aluminum, PVC, HDPE and fiberglass.

Key Features

  • Working pressure up to 150 PSI
  • All 304 stainless construction, designed with hot soils in mind
  • Standard widths 7.5 through 30 in
  • Repairs pipe or joins pipe ends; can be made to odd pipe ODs
  • Certified to NSF/ANSI 61 and NSF/ANSI 372
What Ships and What It Needs to Run

Included: the clamp with its 360° Nitrile gasket, fabricated lugs, keeper bar, studs, nuts and washers.

Belleville spring washers on HDPE pipe, ordered separately. Smith-Blair p/n 150115-000 washers are required on HDPE pipe DR17 or thicker; Smith-Blair does not recommend the clamp on thinner-wall HDPE (not for gas service); ask us to include them with the clamp.

Genuine Smith-Blair equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Smith-Blair Warranty

Smith-Blair warrants its products to be free of defects in materials and workmanship for one year from the date of shipment by Smith-Blair. Dated proof of purchase, such as a bill of sale, is required to establish eligibility. Smith-Blair will repair or, at its option, replace a defective product; the product is returned to the factory or warehouse Smith-Blair designates.

Working Pressure

Up to 150 PSI. Smith-Blair rates the allowable working pressure of a repair clamp to fall as pipe diameter rises; for a particular installation it is set by pipe size and type, the type and extent of the damage, service conditions and installation workmanship.

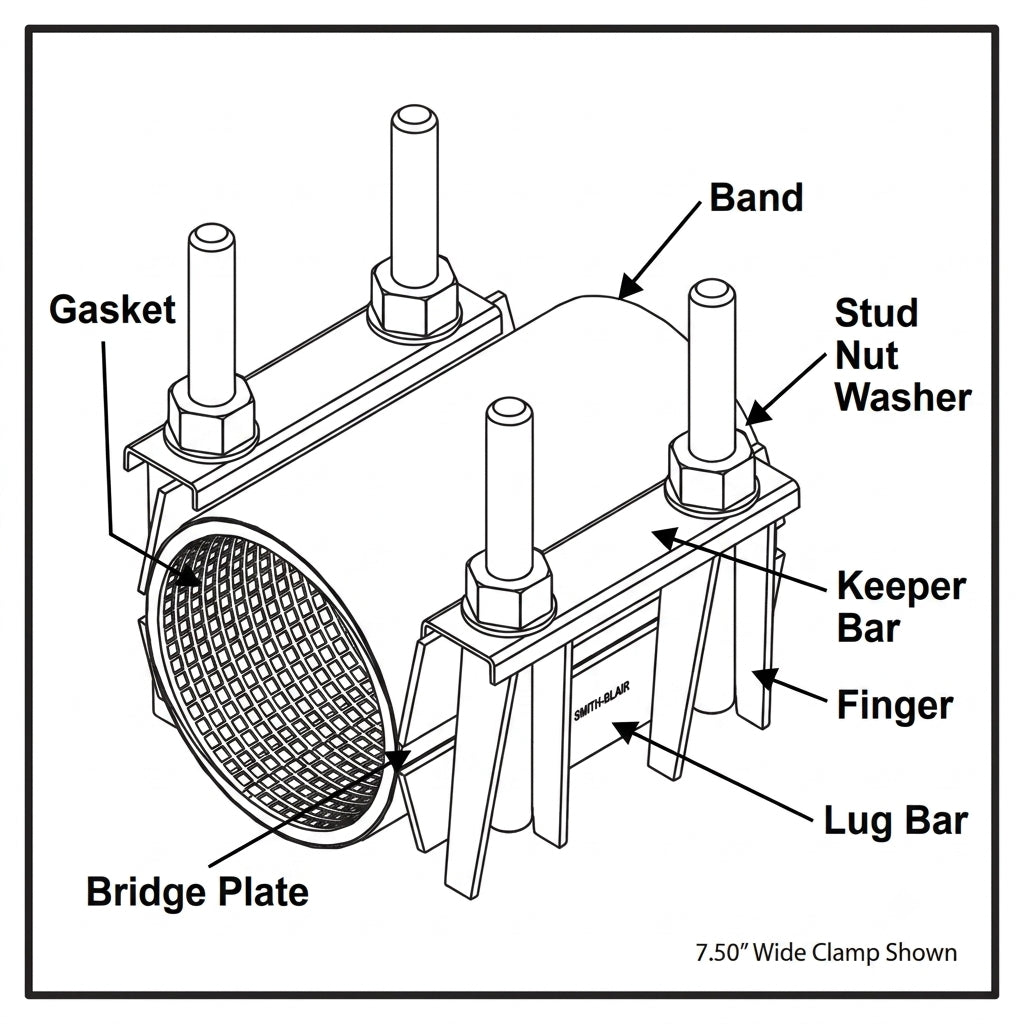

Materials Specifications
Band Type 304 stainless steel
Lugs Type 304 stainless steel, fabricated
Keeper bar Type 304 stainless steel
Gasket Nitrile (Buna-N), resists water, acids, alkalies, most aliphatic hydrocarbons and other chemicals
Bridge plate Type 304 stainless steel, recessed flush and bonded to the gasket
Stud bolts Type 304 stainless steel, epoxy coated
Nuts Fluoropolymer coated to prevent galling
Temperature range -20°F to +180°F

Materials subject to change by the manufacturer.

Pipe Applications

Cast iron, asbestos cement, PVC, HDPE DR17 or thicker (with spring washers), steel, copper, fiberglass and other pipe types.

Sizes
14 pipe sizes from 3.49 to 14.80 in OD — open for the full list
Pipe size and OD Widths
3.49-4.29 in 7.5, 10, 12.5, 15, 20 in
4.44-5.24 in 7.5, 10, 12.5, 15, 20 in
4.74-5.57 in 7.5, 10, 12.5, 15, 20 in
6.62-7.42 in 7.5, 10, 12.5, 15, 20 in
6.84-7.64 in 7.5, 10, 12.5, 15, 20 in
8.62-9.42 in 7.5, 10, 12.5, 15, 20 in
8.99-9.79 in 7.5, 10, 12.5, 15, 20 in
10.75-11.55 in 10, 15, 20 in
11.10-11.90 in 10, 15, 20 in
11.60-12.40 in 10, 15, 20 in
12.75-13.55 in 10, 15, 20 in
13.20-14.00 in 10, 15, 20 in
13.65-14.45 in 10, 15, 20 in
14.00-14.80 in 10, 15, 20 in

Choose the pipe OD in the first row above; the part number shows in the second row.

Bolt Numbers
Band width Studs
7.5 in 4
10 in 6
12.5 in 6
15 in 8
20 in 10

Studs 5/8 x 7 in.

Installation Notes
  • Clean the pipe where the clamp will sit, removing scale, dirt and debris that could spoil the gasket seal.
  • Lubricate the pipe and gasket with a soap-and-water solution that meets the water and pipe supplier’s requirements.
  • Where the pipe ends gap 1 in or more, bridge the gap with a short section of pipe or a thin strip of sheet metal to support the gasket.
  • Where 40% or more of the circumference is broken away, cover the opening with sheet metal and use a clamp that extends 3 in past it on both sides.
  • Tighten from the center nut outward, keeping the clamp centered on the break; finish with a calibrated torque wrench to the torque in the instructions.
  • Anchor the pipe: the clamp seals around it, and Smith-Blair requires proper anchoring to restrain pipe movement and prevent pull-out.

From Smith-Blair Installation Instructions TI-008 (Rev 08/26/21), in the Data Sheet tab.

Before You OrderAll Smith-Blair products are Made to Order and Non-Returnable.
Items typically shipped in 5 - 10 business days.
Odd pipe ODs, other widths and other materials are built to order — email sales@watermainsupply.com with the pipe OD and material.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
© Watermain Supply — A division of E4 Industrial LLC
Data Sheet
Installation Instructions Style 262 Spec Sheet Style 262 Datasheet
