Smith-Blair Style 263 Repair Clamp - Stainless, Multi Band, 11.04-26.9 in OD
Smith-Blair Style 263 Repair Clamp - Stainless, Multi Band, 11.04-26.9 in OD
Smith-Blair Style 263 Repair Clamp - Stainless, Multi Band, 11.04-26.9 in OD
Smith-Blair Style 263 Repair Clamp - Stainless, Multi Band, 11.04-26.9 in OD

Smith-Blair Style 263 Repair Clamp - Stainless, Multi Band, 11.04-26.9 in OD

Pipe OD Range: 11.04-12.24 in OD
Width - Part No.: 10 in - 263-00111010-000

Product variant with selected options does not exist!
$1,372.58
SKU: 263-00111010-000
Weight : 21.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Smith-Blair · Repair Clamp
Style 263 Full Circle Repair Clamp
All Stainless Steel, Fabricated Lugs, Multi Band
150 PSI Max Working Pressure
-20°F to +180°F Temperature
Nitrile (Buna-N) Gasket
All 304 Stainless Steel
Fabricated Stainless Lugs
NSF/ANSI 61 and 372
11.04-26.90 in Pipe OD
21-106 lb Weight
Description

The Smith-Blair Style 263 is a multi-band, all-stainless Full Circle repair clamp for large-diameter pipe, 11.04 to 26.90 in OD. It gives a 360° seal and complete leak repair; fabricated stainless lugs and keeper bars pull the clamp around the pipe and close it during installation.

Application: cast and ductile iron, steel, asbestos cement, copper, aluminum, plastic and fiberglass.

Key Features

  • Working pressure up to 150 PSI
  • All 304 stainless construction for corrosive soil applications
  • Widths 10, 15, 20 and 30 in
  • Repairs pipe or joins pipe ends; can be made to odd pipe ODs
  • Certified to NSF/ANSI 61 and NSF/ANSI 372
What Ships and What It Needs to Run

Included: the clamp with its 360° Nitrile gasket, fabricated lugs, keeper bar, studs, nuts and washers.

Genuine Smith-Blair equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Smith-Blair Warranty

Smith-Blair warrants its products to be free of defects in materials and workmanship for one year from the date of shipment by Smith-Blair. Dated proof of purchase, such as a bill of sale, is required to establish eligibility. Smith-Blair will repair or, at its option, replace a defective product; the product is returned to the factory or warehouse Smith-Blair designates.

Working Pressure

Up to 150 PSI. Smith-Blair rates the allowable working pressure of a repair clamp to fall as pipe diameter rises; for a particular installation it is set by pipe size and type, the type and extent of the damage, service conditions and installation workmanship.

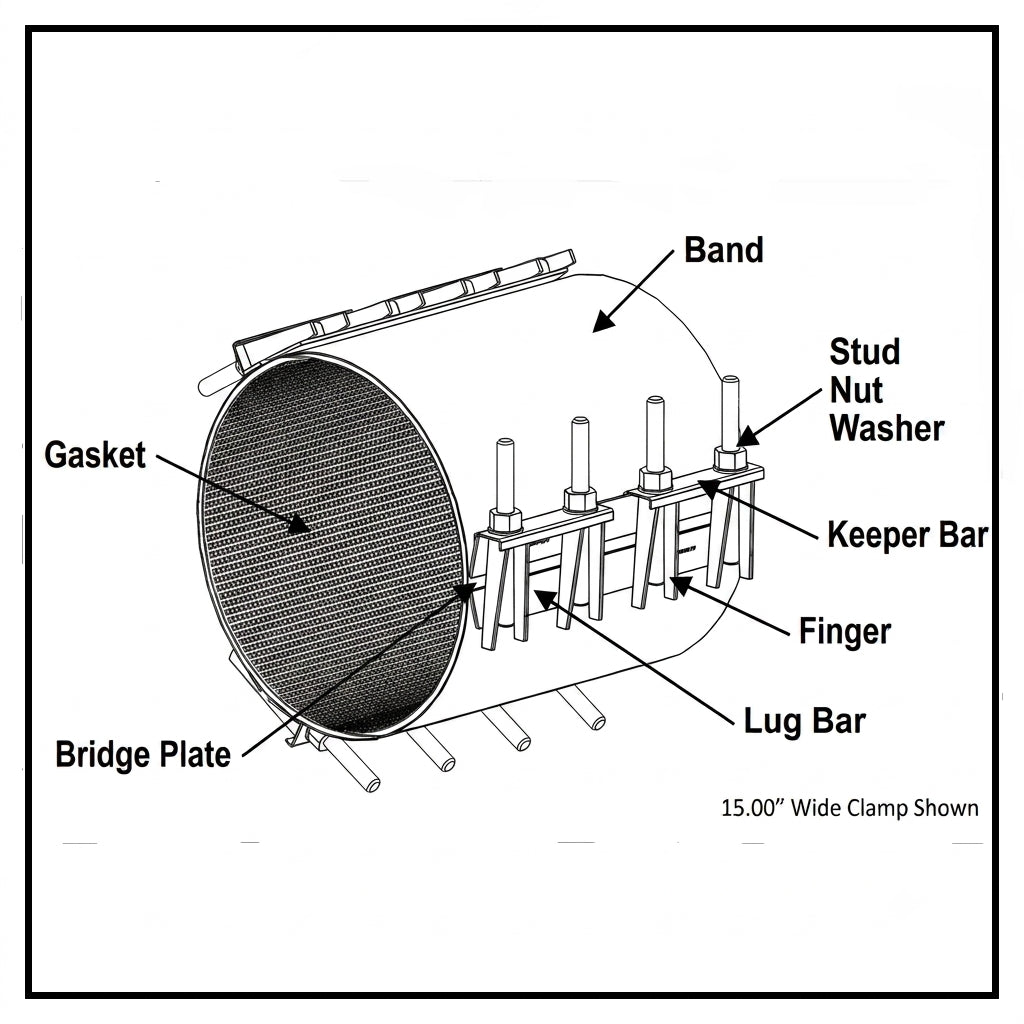

Materials Specifications
Band Type 304 stainless steel
Lugs Type 304 stainless steel, fabricated
Keeper bar Type 304 stainless steel
Gasket Nitrile (Buna-N), resists water, acids, alkalies, most aliphatic hydrocarbons and other chemicals
Bridge plate Type 304 stainless steel, recessed flush and bonded to the gasket
Stud bolts Type 304 stainless steel, epoxy coated
Nuts Fluoropolymer coated to prevent galling
Temperature range -20°F to +180°F

Materials subject to change by the manufacturer.

Pipe Applications

Cast and ductile iron, asbestos cement, PVC, steel, copper, fiberglass, aluminum and other pipe types.

Sizes
Pipe size and OD Widths
11.04-12.24 in 10, 15, 20, 30 in
13.14-14.34 in 10, 15, 20, 30 in
13.65-14.85 in 10, 15, 20, 30 in
14.85-16.05 in 10, 15, 20, 30 in
15.92-17.12 in 10, 15, 20, 30 in
17.15-18.35 in 10, 15, 20, 30 in
18.46-19.66 in 10, 15, 20, 30 in
19.45-20.65 in 10, 15, 20, 30 in
21.52-22.72 in 10, 15, 20, 30 in
22.80-24.00 in 10, 15, 20, 30 in
24.38-25.58 in 10, 15, 20, 30 in
25.70-26.90 in 10, 15, 20, 30 in

Choose the pipe OD in the first row above; the part number shows in the second row.

Bolt Numbers
Band width Studs
10 in 9
15 in 12
20 in 15
30 in 30

Studs 5/8 x 7 in.

Installation Notes
  • Clean the pipe where the clamp will sit, removing scale, dirt and debris that could spoil the gasket seal.
  • Lubricate the pipe and gasket with a soap-and-water solution that meets the water and pipe supplier’s requirements.
  • Where the pipe ends gap 1 in or more, bridge the gap with a short section of pipe or a thin strip of sheet metal to support the gasket.
  • Where 40% or more of the circumference is broken away, cover the opening with sheet metal and use a clamp that extends 3 in past it on both sides.
  • Tighten from the center nut outward, keeping the clamp centered on the break; finish with a calibrated torque wrench to the torque in the instructions.
  • Anchor the pipe: the clamp seals around it, and Smith-Blair requires proper anchoring to restrain pipe movement and prevent pull-out.

From Smith-Blair Installation Instructions TI-008 (Rev 08/26/21), in the Data Sheet tab.

Before You OrderAll Smith-Blair products are Made to Order and Non-Returnable.
Items typically shipped in 5 - 10 business days.
Odd pipe ODs, other widths and other materials are built to order — email sales@watermainsupply.com with the pipe OD and material.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
