Dresser Quick-Cam Extended Range Repair Clamp - All Stainless

Nominal Size - OD Range: 3 in - 3.46-4.25 in OD
Width - Part No.: 7-1/2 in Wide - QCRS-07-0425-001EX

Product variant with selected options does not exist!
$436.40
SKU: QCRS-07-0425-001EX
Weight : 2.8 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Dresser · Repair Clamp
Quick-Cam Extended Range Repair Clamp
Extended Range full-circle repair clamp for water mains.
200 PSI Water, 125 PSI Gas to 12 in
180°F Max Continuous
NSF/ANSI 61 NBR Gasket
Up to 0.9 in OD Range per Clamp
2.8-78.4 lb Weight
Overview

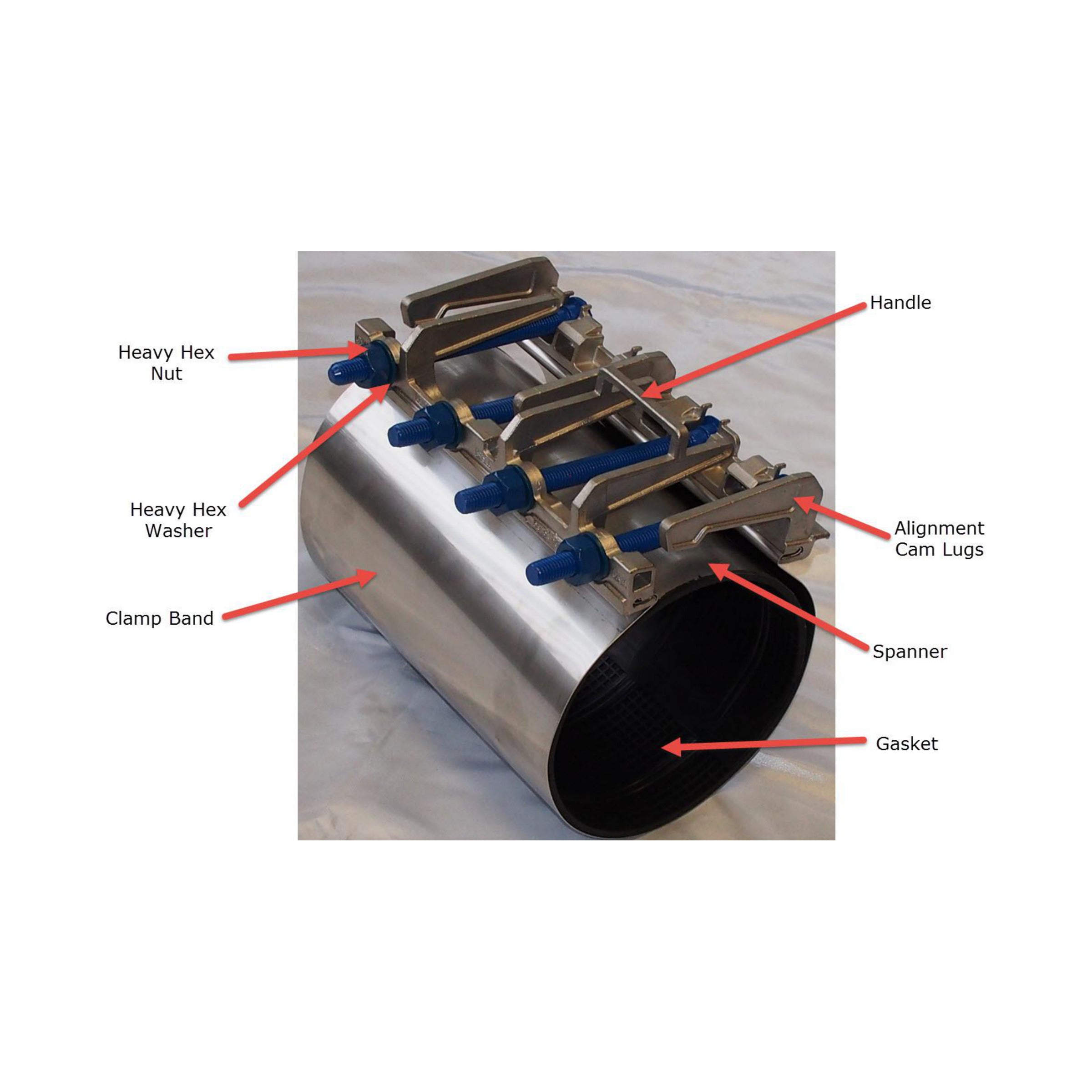

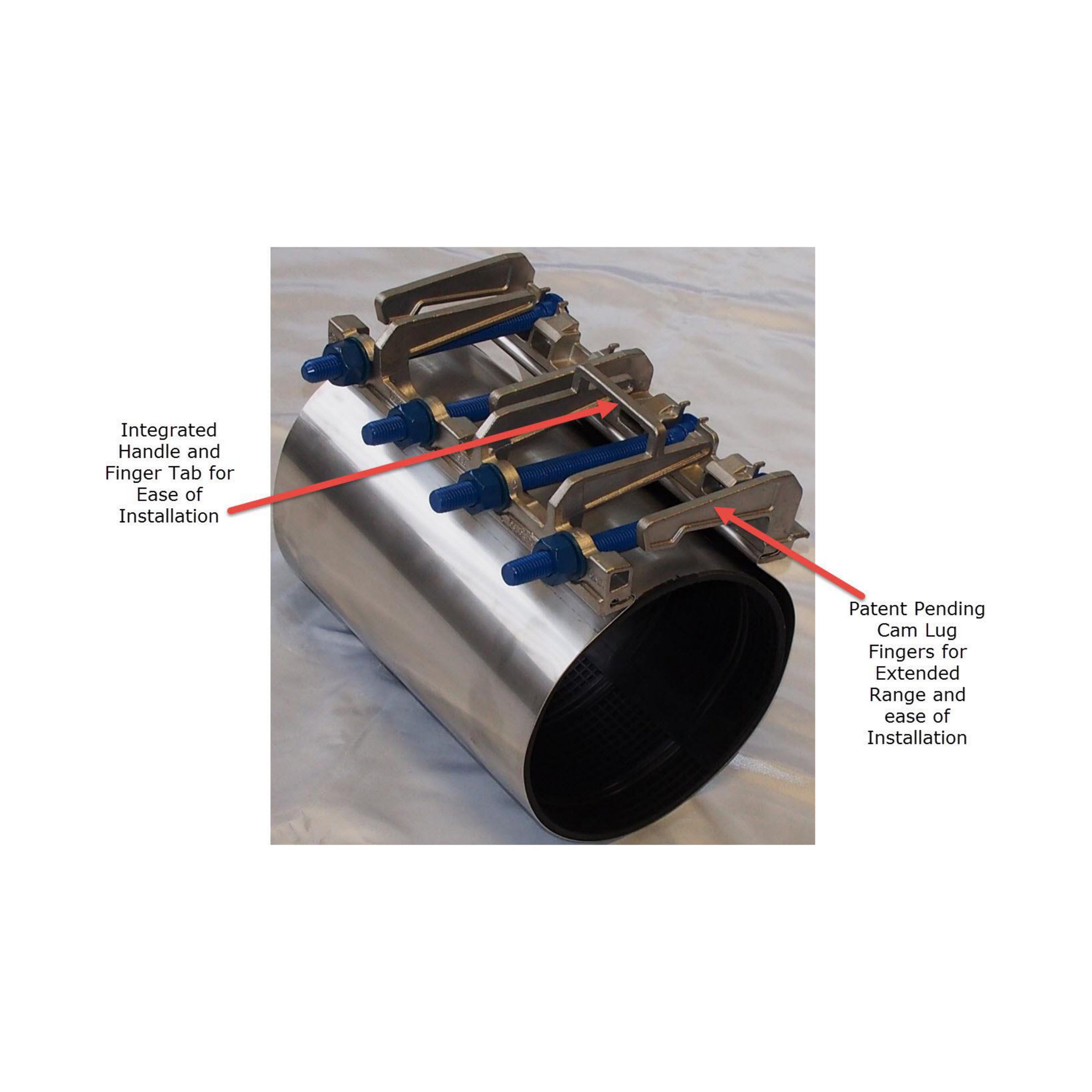

The Quick-Cam wraps the pipe and closes with cam lugs that carry a built-in handle, sealing leaks, holes and breaks with a waffled mat gasket and multi O-ring seal beads.

Application: Leak and break repair on ductile iron, cast iron, steel, PVC and asbestos cement water mains.

  • Removable lug system for tight spaces
  • Widths 7-1/2 in to 36 in
What Ships and What It Needs to Run

Included: clamp with gasket, lugs, bolts and nuts, assembled.

Genuine Dresser equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Dresser Warranty

Covered for 12 months from the date of purchase under Dresser’s published warranty terms.

Working Pressure

Up to 200 PSI working pressure on water and sewer, tested to 300 PSI, on every size. On natural gas the rating is 125 PSI on pipe up to 12 in diameter, tested to 190 PSI; for gas service on larger pipe, ask us for the factory rating before you order.

Source: TPS Quick-Cam Repair Clamp Technical Specification (Rev B, 2017). The rating on the product label is the actual rating of each part.

Materials Specifications
Band 18-8 stainless steel
Gasket NBR, NSF/ANSI 61, multi O-ring seal bead with waffled mat
Alignment lugs ASTM A351 CF8 18-8 stainless steel, cam lug with handle
Bolts Track head, 18-8 Type 304 stainless, ASTM A193 B8, fluoroelastomer coated

Source: TPS Quick-Cam Repair Clamp Technical Specification (Rev B, 2017).

Pipe Applications

Steel, cast iron, ductile iron, PVC, asbestos cement and HDPE (SDR 17 or thicker, buried service only).

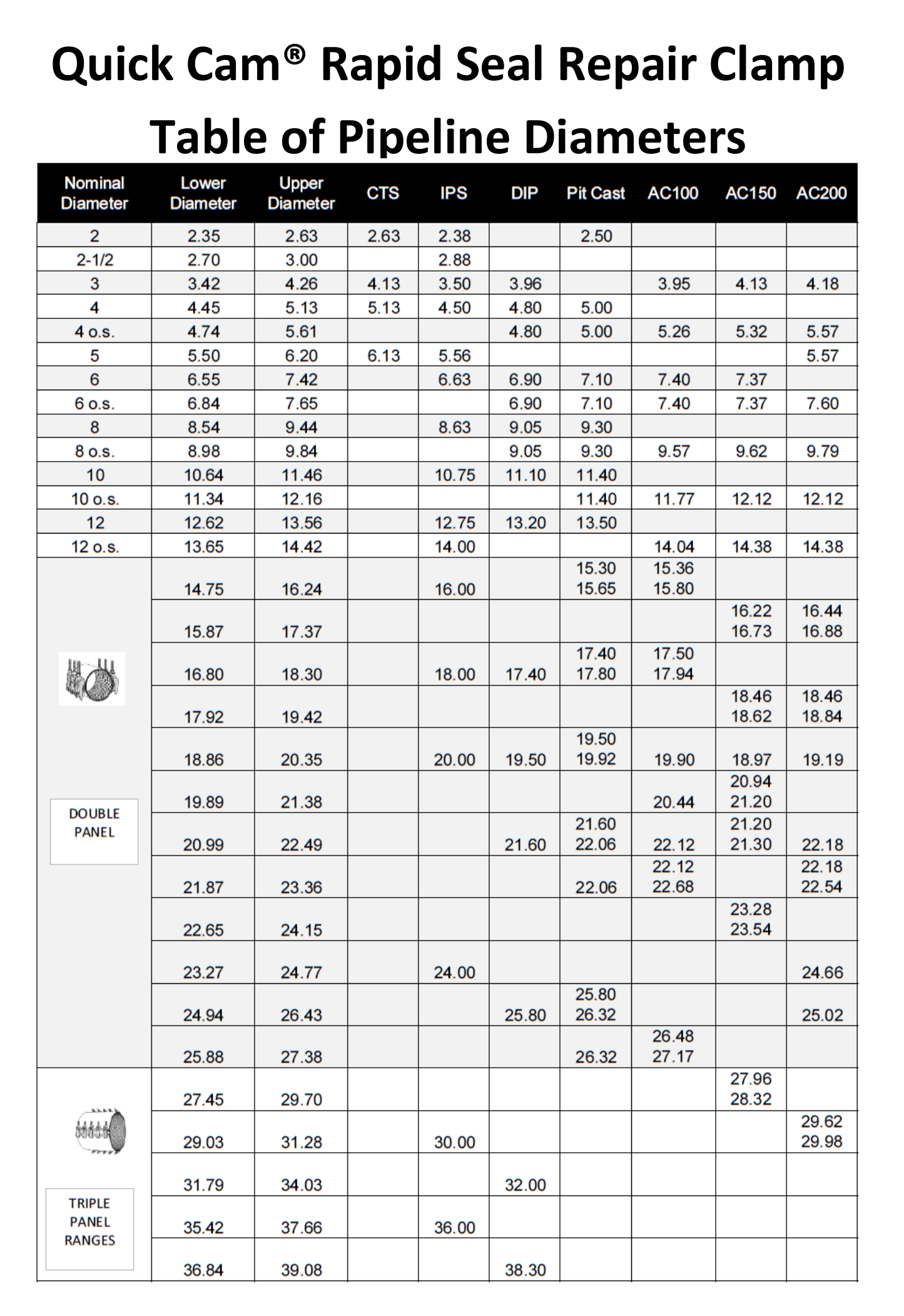

Sizes
All sizes (35 rows)
Nominal Size - OD Range Width
3 in - 3.46-4.25 in OD 7-1/2 in Wide, 10 in Wide, 12 in Wide, 15 in Wide, 20 in Wide, 24 in Wide, 30 in Wide, 36 in Wide
4 in Sewer - 4.10-4.90 in OD 7-1/2 in Wide, 10 in Wide, 12 in Wide, 15 in Wide, 20 in Wide, 24 in Wide, 30 in Wide, 36 in Wide
4 in - 4.45-5.13 in OD 7-1/2 in Wide, 10 in Wide, 12 in Wide, 15 in Wide, 20 in Wide, 24 in Wide, 30 in Wide, 36 in Wide
4 in OS - 4.92-5.61 in OD 7-1/2 in Wide, 10 in Wide, 12 in Wide, 15 in Wide, 20 in Wide, 24 in Wide, 30 in Wide, 36 in Wide
5 in - 5.50-6.20 in OD 7-1/2 in Wide, 10 in Wide, 12 in Wide, 15 in Wide, 20 in Wide, 24 in Wide, 30 in Wide, 36 in Wide
6 in Sewer - 6.20-7.00 in OD 7-1/2 in Wide, 10 in Wide, 12 in Wide, 15 in Wide, 20 in Wide, 24 in Wide, 30 in Wide, 36 in Wide
6 in - 6.55-7.42 in OD 7-1/2 in Wide, 10 in Wide, 12 in Wide, 15 in Wide, 20 in Wide, 24 in Wide, 30 in Wide, 36 in Wide
6 in OS - 6.84-7.65 in OD 7-1/2 in Wide, 10 in Wide, 12 in Wide, 15 in Wide, 20 in Wide, 24 in Wide, 30 in Wide, 36 in Wide
8 in Sewer - 8.35-9.15 in OD 7-1/2 in Wide, 10 in Wide, 12 in Wide, 15 in Wide, 20 in Wide, 24 in Wide, 30 in Wide, 36 in Wide
8 in - 8.54-9.44 in OD 7-1/2 in Wide, 10 in Wide, 12 in Wide, 15 in Wide, 20 in Wide, 24 in Wide, 30 in Wide, 36 in Wide
8 in OS - 8.98-9.84 in OD 7-1/2 in Wide, 10 in Wide, 12 in Wide, 15 in Wide, 20 in Wide, 24 in Wide, 30 in Wide, 36 in Wide
10 in Sewer - 10.35-11.18 in OD 10 in Wide, 12 in Wide, 15 in Wide, 20 in Wide, 24 in Wide, 30 in Wide, 36 in Wide
10 in - 10.64-11.46 in OD 10 in Wide, 12 in Wide, 15 in Wide, 20 in Wide, 24 in Wide, 30 in Wide, 36 in Wide
10 in OS - 11.34-12.16 in OD 10 in Wide, 12 in Wide, 15 in Wide, 20 in Wide, 24 in Wide, 30 in Wide, 36 in Wide
12 in Sewer - 12.40-13.28 in OD 10 in Wide, 12 in Wide, 15 in Wide, 20 in Wide, 24 in Wide, 30 in Wide, 36 in Wide
12 in - 12.62-13.56 in OD 10 in Wide, 12 in Wide, 15 in Wide, 20 in Wide, 24 in Wide, 30 in Wide, 36 in Wide
12 in OS - 13.65-14.42 in OD 10 in Wide, 12 in Wide, 15 in Wide, 20 in Wide, 24 in Wide, 30 in Wide, 36 in Wide
12 in - 13.09-14.90 in OD 12 in Wide, 15 in Wide, 20 in Wide, 24 in Wide, 30 in Wide, 36 in Wide
14 in - 14.75-16.24 in OD 12 in Wide, 15 in Wide, 20 in Wide, 24 in Wide, 30 in Wide, 36 in Wide
14 in OS - 15.87-17.37 in OD 12 in Wide, 15 in Wide, 20 in Wide, 24 in Wide, 30 in Wide, 36 in Wide
16 in - 16.80-18.30 in OD 12 in Wide, 15 in Wide, 20 in Wide, 24 in Wide, 30 in Wide, 36 in Wide
16 in OS - 17.92-19.42 in OD 12 in Wide, 15 in Wide, 20 in Wide, 24 in Wide, 30 in Wide, 36 in Wide
18 in US - 18.86-20.35 in OD 12 in Wide, 15 in Wide, 20 in Wide, 24 in Wide, 30 in Wide, 36 in Wide
18 in - 19.89-21.38 in OD 12 in Wide, 15 in Wide, 20 in Wide, 24 in Wide, 30 in Wide, 36 in Wide
18 in OS - 20.99-22.49 in OD 12 in Wide, 15 in Wide, 20 in Wide, 24 in Wide, 30 in Wide, 36 in Wide
20 in - 21.87-23.36 in OD 12 in Wide, 15 in Wide, 20 in Wide, 24 in Wide, 30 in Wide, 36 in Wide
20 in OS - 22.65-24.15 in OD 12 in Wide, 15 in Wide, 20 in Wide, 24 in Wide, 30 in Wide, 36 in Wide
24 in US - 23.27-24.77 in OD 12 in Wide, 15 in Wide, 20 in Wide, 24 in Wide, 30 in Wide, 36 in Wide
24 in - 24.94-26.43 in OD 12 in Wide, 15 in Wide, 20 in Wide, 24 in Wide, 30 in Wide, 36 in Wide
24 in OS - 25.88-27.38 in OD 12 in Wide, 15 in Wide, 20 in Wide, 24 in Wide, 30 in Wide, 36 in Wide
30 in US - 27.45-29.70 in OD 12 in Wide, 15 in Wide, 20 in Wide, 24 in Wide, 30 in Wide, 36 in Wide
30 in - 29.03-31.28 in OD 12 in Wide, 15 in Wide, 20 in Wide, 24 in Wide, 30 in Wide, 36 in Wide
30 in OS - 31.79-34.03 in OD 12 in Wide, 15 in Wide, 20 in Wide, 24 in Wide, 30 in Wide, 36 in Wide
36 in - 35.42-37.66 in OD 12 in Wide, 15 in Wide, 20 in Wide, 24 in Wide, 30 in Wide, 36 in Wide
36 in OS - 36.84-39.08 in OD 12 in Wide, 15 in Wide, 20 in Wide, 24 in Wide, 30 in Wide, 36 in Wide

Sizes as listed in Dresser’s 2026 price lists; the picker shows the part number for each build.

Installation Notes
  • Clean the pipe of rust, scale and debris, and confirm the OD with a pi tape before mounting.
  • Lubricate the pipe, gasket and spanner surfaces with soapy water; do not use pipe lubricant.
  • Center the clamp over the leak; the bolt-head lug can be removed in tight spaces.

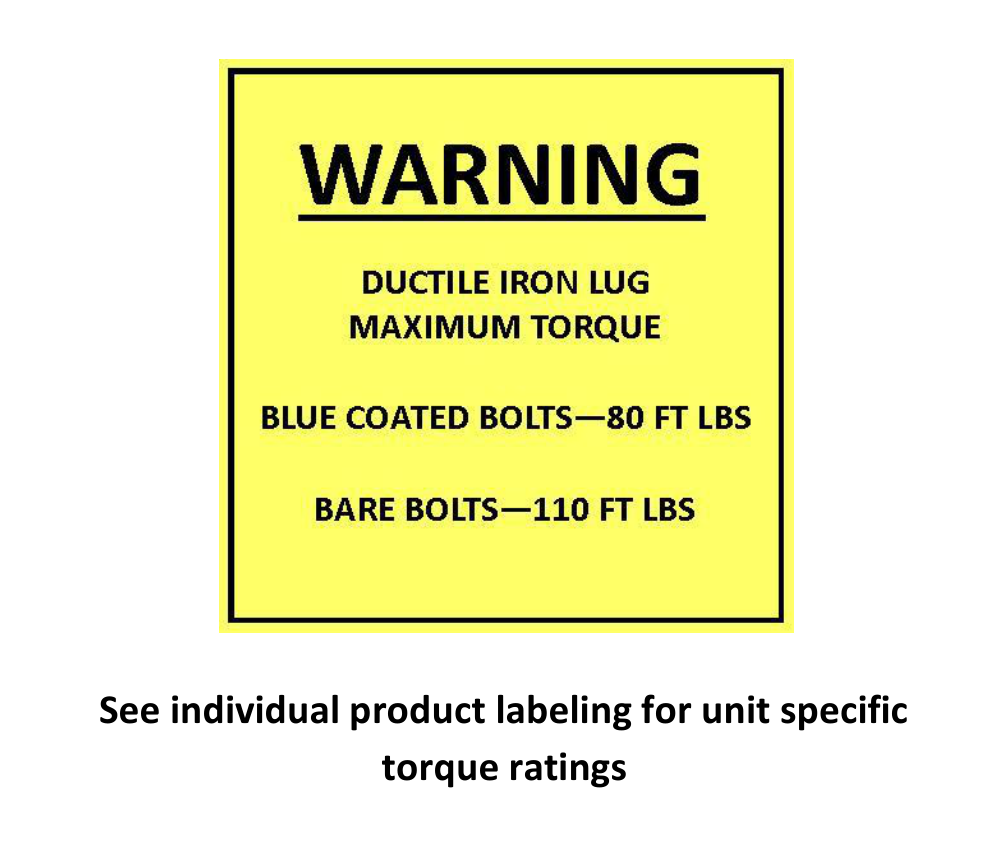

  • Tighten the nuts evenly from the center bolts outward to the torque on the product label, using a calibrated torque wrench.
  • Check for leaks, re-tighten if needed, then backfill carefully to give the clamp earth support.
  • On HDPE, use SDR 17 or thicker pipe and buried service only.

Source: Dresser TPS Quick-Cam Repair Clamp Installation Instructions (INST 1004, Rev E).

Before You Order. Measure the pipe OD with a pi tape: every option is an OD range. Do not reuse a clamp until it is refurbished at the factory. Anchor the pipe: this product seals but does not restrain, and Dresser requires the pipe joint to be anchored wherever pull-out can occur. Non-stock Dresser parts are not returnable without Dresser’s authorization, and ship time is confirmed when you order. Custom builds (other sizes, widths, gaskets or materials) are available: email sales@watermainsupply.com with the pipe OD, material and line content.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
