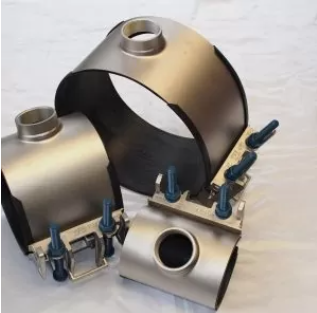

Dresser T3 Wide Range Service Saddle product photo
Dresser T3 Wide Range Service Saddle product photo
Dresser T3 Wide Range Service Saddle product photo
Dresser T3 Wide Range Service Saddle dimension drawing
Dresser T3 Wide Range Service Saddle dimension drawing
Dresser T3 Wide Range Service Saddle specification table
Dresser T3 Wide Range Service Saddle specification table
Dresser T3 Wide Range Service Saddle specification table
Dresser T3 Wide Range Service Saddle specification table
Dresser T3 Wide Range Service Saddle - 2 in to 48 in
Dresser T3 Wide Range Service Saddle product photo
Dresser T3 Wide Range Service Saddle product photo
Dresser T3 Wide Range Service Saddle product photo
Dresser T3 Wide Range Service Saddle dimension drawing
Dresser T3 Wide Range Service Saddle dimension drawing
Dresser T3 Wide Range Service Saddle specification table
Dresser T3 Wide Range Service Saddle specification table
Dresser T3 Wide Range Service Saddle specification table
Dresser T3 Wide Range Service Saddle specification table

Dresser T3 Wide Range Service Saddle - 304 Stainless

Nominal Size - OD Range: 2 in - 2.10-2.40 in OD
Outlet Thread: CC Outlet
Outlet Size - Part No.: 1/2 in - T3SS-0240-5011EX

Product variant with selected options does not exist!
$394.77
SKU: T3SS-0240-5011EX
Weight : 3.6 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Dresser · Service Saddle
T3 Wide Range Service Saddle
Wide range 304 stainless service saddle, 2 in to 48 in, NPT or CC outlet.
Up to 250 PSI
180°F Max Continuous
NSF/ANSI 61 NBR Gasket
Up to 0.9 in OD Range per Saddle
1/2 in to 2 in NPT or CC
3.6-20.3 lb Weight
Overview

The T3 service saddle fits ductile iron, cast iron, PVC, asbestos cement, steel and HDPE with one part, cutting saddle inventory. Its patented cam lug system with built-in handle covers up to 0.9 in of OD on single panel saddles, and the spin-extruded branch resists valve installation torque.

Application: Service taps on water mains.

  • Seals at the outlet aperture
  • Isolation boot on 10 in and larger keeps the band off ferrous pipe
  • 7-1/2 in band on 4 in to 16 in, 10 in band on 18 in to 48 in
What Ships and What It Needs to Run

Included: saddle with gasket, isolation boot, lugs, bolts and nuts.

Also needed: corporation stop or tapping valve.

Genuine Dresser equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Dresser Warranty

Covered for 12 months from the date of purchase under Dresser’s published warranty terms.

Working Pressure

Working pressure depends on diameter and panel count.

Panels Nominal sizes Working pressure
Single 2 in to 16 in 250 PSI
Double 18 in to 24 in 200 PSI
Double 30 in to 36 in 150 PSI
Triple 42 in to 48 in 125 PSI

Source: TPS T3 Service Saddle Technical Specification and Brochure. The rating on the product label is the actual rating of each part.

Materials Specifications
Band Type 304 18-8 stainless steel, passivated
Outlet Type 304 18-8 stainless steel, passivated
Gasket NBR, NSF-61, water service; EPDM on request
Isolation boot EPDM
Bolts and nuts Type 304 stainless, 5/8 in rolled threads, fluoropolymer coated

Source: TPS T3 Service Saddle Technical Specification and Brochure.

Pipe Applications

Ductile iron, cast iron, PVC, asbestos cement, steel, CTS and IPS, and HDPE (DR 17 or thicker, buried service only).

Sizes
All sizes (31 rows)
Nominal Size - OD Range Outlet Thread
2 in - 2.10-2.40 in OD CC Outlet, NPT Outlet
3 in CTS - 3.10-3.30 in OD CC Outlet, NPT Outlet
3 in IPS - 3.30-3.60 in OD CC Outlet, NPT Outlet
3 in - 3.46-4.00 in OD CC Outlet, NPT Outlet
4 in CTS - 3.79-4.13 in OD CC Outlet, NPT Outlet
4 in - 4.45-5.13 in OD CC Outlet, NPT Outlet
4 in OS - 4.74-5.61 in OD CC Outlet, NPT Outlet
5 in - 5.50-6.20 in OD CC Outlet, NPT Outlet
6 in - 6.55-7.42 in OD CC Outlet, NPT Outlet
6 in OS - 6.84-7.65 in OD CC Outlet, NPT Outlet
8 in - 8.54-9.44 in OD CC Outlet, NPT Outlet
8 in OS - 8.98-9.84 in OD CC Outlet, NPT Outlet
10 in - 10.64-11.46 in OD CC Outlet, NPT Outlet
10 in OS - 11.34-12.16 in OD CC Outlet, NPT Outlet
12 in - 12.62-13.56 in OD CC Outlet, NPT Outlet
12 in OS - 13.65-14.42 in OD CC Outlet, NPT Outlet
14 in - 15.22-16.16 in OD CC Outlet, NPT Outlet
14 in OS - 16.18-16.92 in OD CC Outlet, NPT Outlet
16 in - 17.25-18.18 in OD CC Outlet, NPT Outlet
16 in OS - 18.42-19.23 in OD CC Outlet, NPT Outlet
18 in - 19.32-21.04 in OD CC Outlet, NPT Outlet
18 in OS - 21.10-22.80 in OD CC Outlet, NPT Outlet
20 in - 23.20-25.10 in OD CC Outlet, NPT Outlet
24 in - 25.60-27.30 in OD CC Outlet, NPT Outlet
24 in OS - 27.80-29.70 in OD CC Outlet, NPT Outlet
30 in - 29.70-30.30 in OD CC Outlet, NPT Outlet
30 in OS - 31.96-32.46 in OD CC Outlet, NPT Outlet
36 in - 35.80-36.20 in OD CC Outlet, NPT Outlet
36 in OS - 38.10-38.50 in OD CC Outlet, NPT Outlet
42 in - 44.30-44.70 in OD CC Outlet, NPT Outlet
48 in - 50.60-51.00 in OD CC Outlet, NPT Outlet

Sizes as listed in Dresser’s 2026 price lists; the picker shows the part number for each build.

Installation Notes
  • Clean and descale the pipe, confirm the OD with a pi tape, and never mount the saddle on a gouged, pitted or cracked surface.
  • Lubricate the pipe and gasket surfaces with soapy water; no grease or pipe lubricant.
  • Tighten the nuts evenly to the label torque, keeping the lug gaps even (both sides on double-panel saddles); wait 10 minutes and re-torque.
  • Hydrostatically test the seals before tapping; never test with compressed gas.
  • Use a cutter smaller than the outlet, typically 1/2 in smaller.
  • The saddle seals at the outlet aperture only. Water service only, not gas; on PE/HDPE the maximum install and operating temperature is 85°F.

Source: Dresser TPS T3 Service Saddle Installation Instructions (INST 1002, Rev J).

Before You Order. Measure the pipe OD and choose NPT or CC threads to match your corporation stop. Anchor the pipe: this product seals but does not restrain, and Dresser requires the pipe joint to be anchored wherever pull-out can occur. Non-stock Dresser parts are not returnable without Dresser’s authorization, and ship time is confirmed when you order. Custom builds (other sizes, widths, gaskets or materials) are available: email sales@watermainsupply.com with the pipe OD, material and line content.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
