Dresser Triple Tap Mechanical Joint Tapping Sleeve

Run Size - OD Range: 4 in - 4.45-5.13 in OD
Outlet Size: 4 in Outlet
Outlet Type - Part No.: Carbon Steel MJ Outlet - MJCF-0513-0400-12

Product variant with selected options does not exist!
$1,853.70
SKU: MJCF-0513-0400-12
Weight : 45.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Dresser · Tapping Sleeve

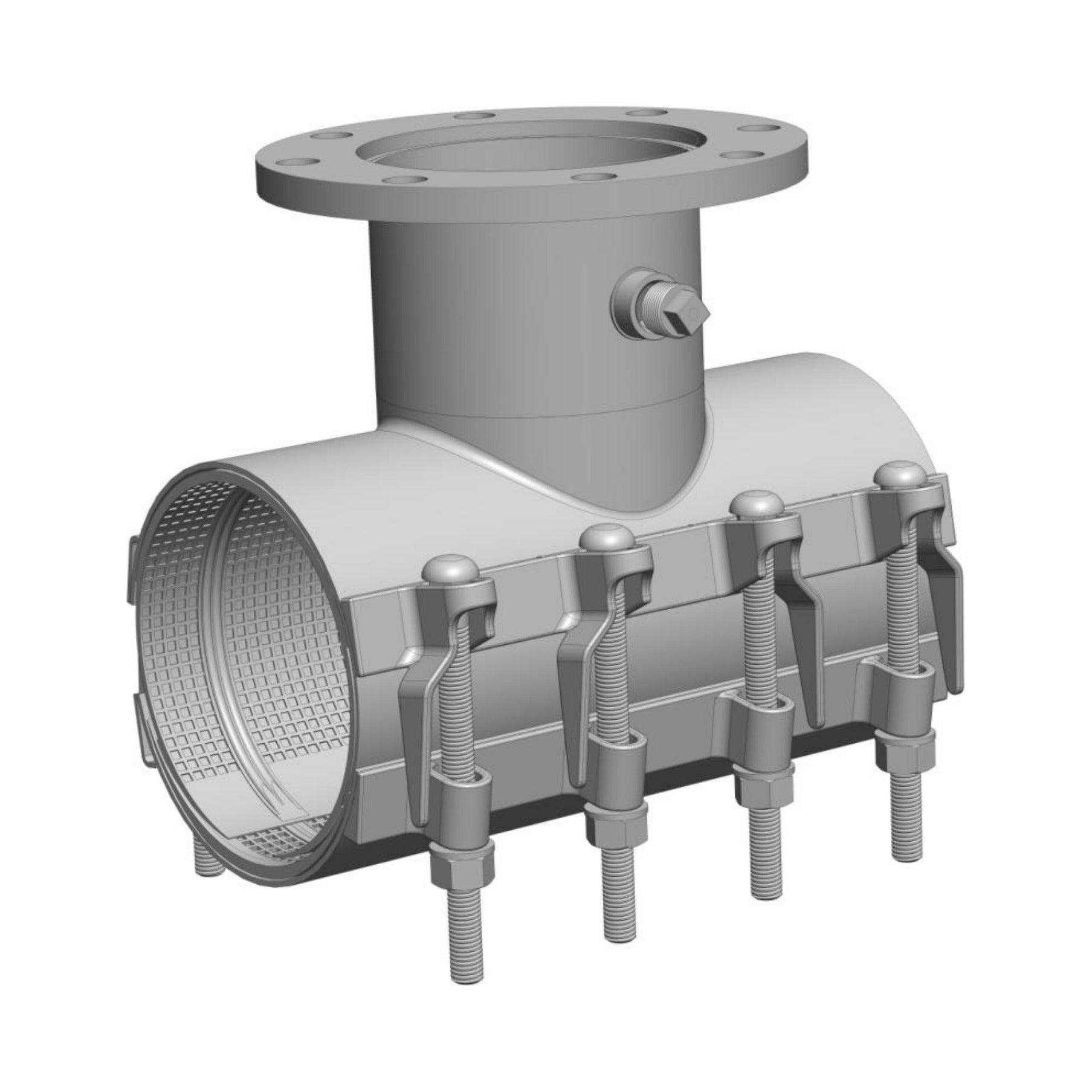

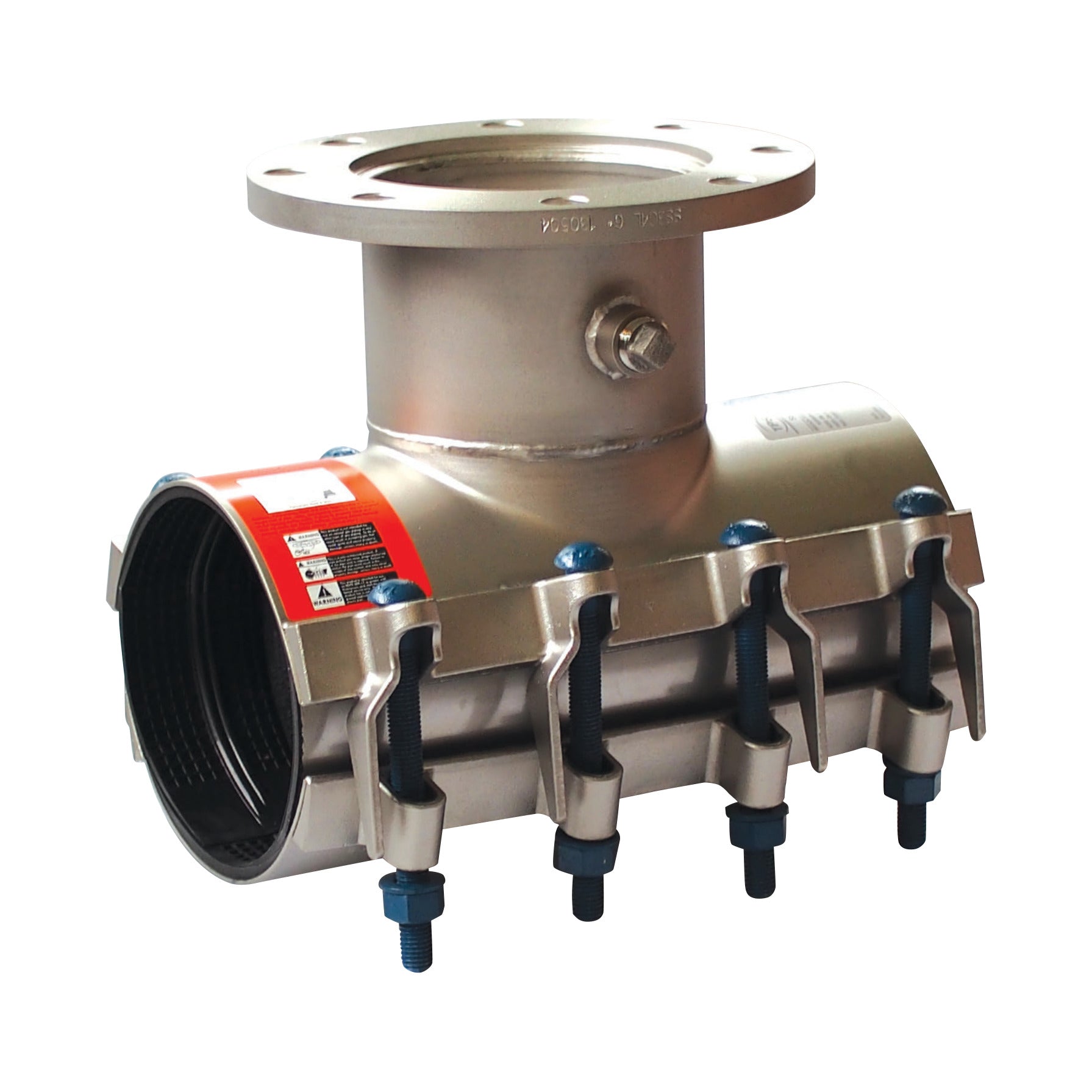

Triple Tap Mechanical Joint Tapping Sleeve
Extended range stainless steel tapping sleeve with mechanical joint outlet.
200 PSI with MJ Outlet, 250 PSI Max
180°F Max Continuous
NSF-61 NBR Gasket
AWWA C111 MJ Outlet
Up to 0.9 in OD Range
45-144 lb Weight
Overview

The Triple Tap MJ tapping sleeve pairs the extended range stainless shell with an AWWA C111 mechanical joint outlet for an MJ tapping valve.

Application: Hot taps on water mains where an MJ valve is specified.

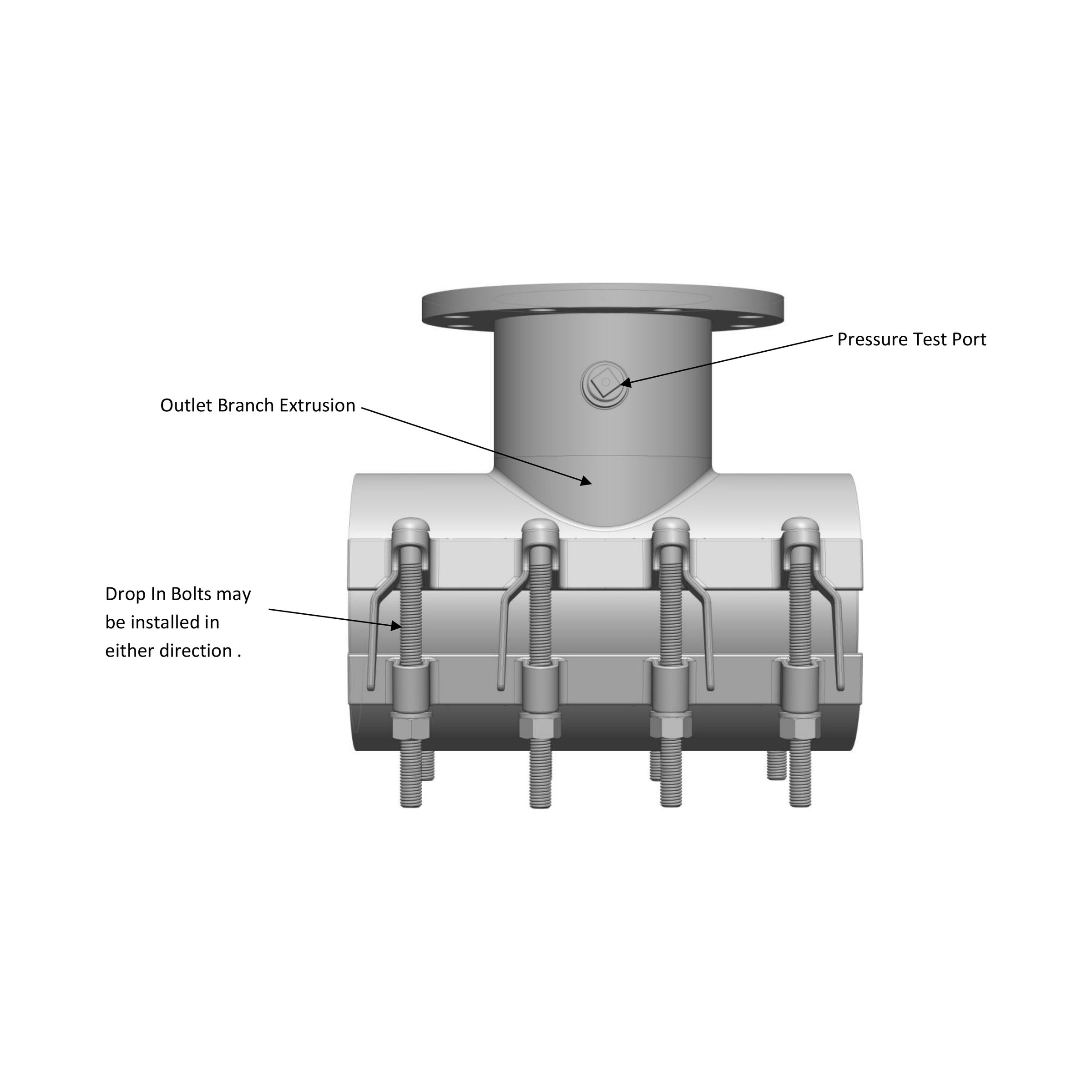

  • 3/4 in NPT test outlet for a hydro test before tapping
What Ships and What It Needs to Run

Included: sleeve with gaskets, bolts and nuts.

Also needed: tapping valve and tapping machine.

Genuine Dresser equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Dresser Warranty

Covered for 12 months from the date of purchase under Dresser’s published warranty terms.

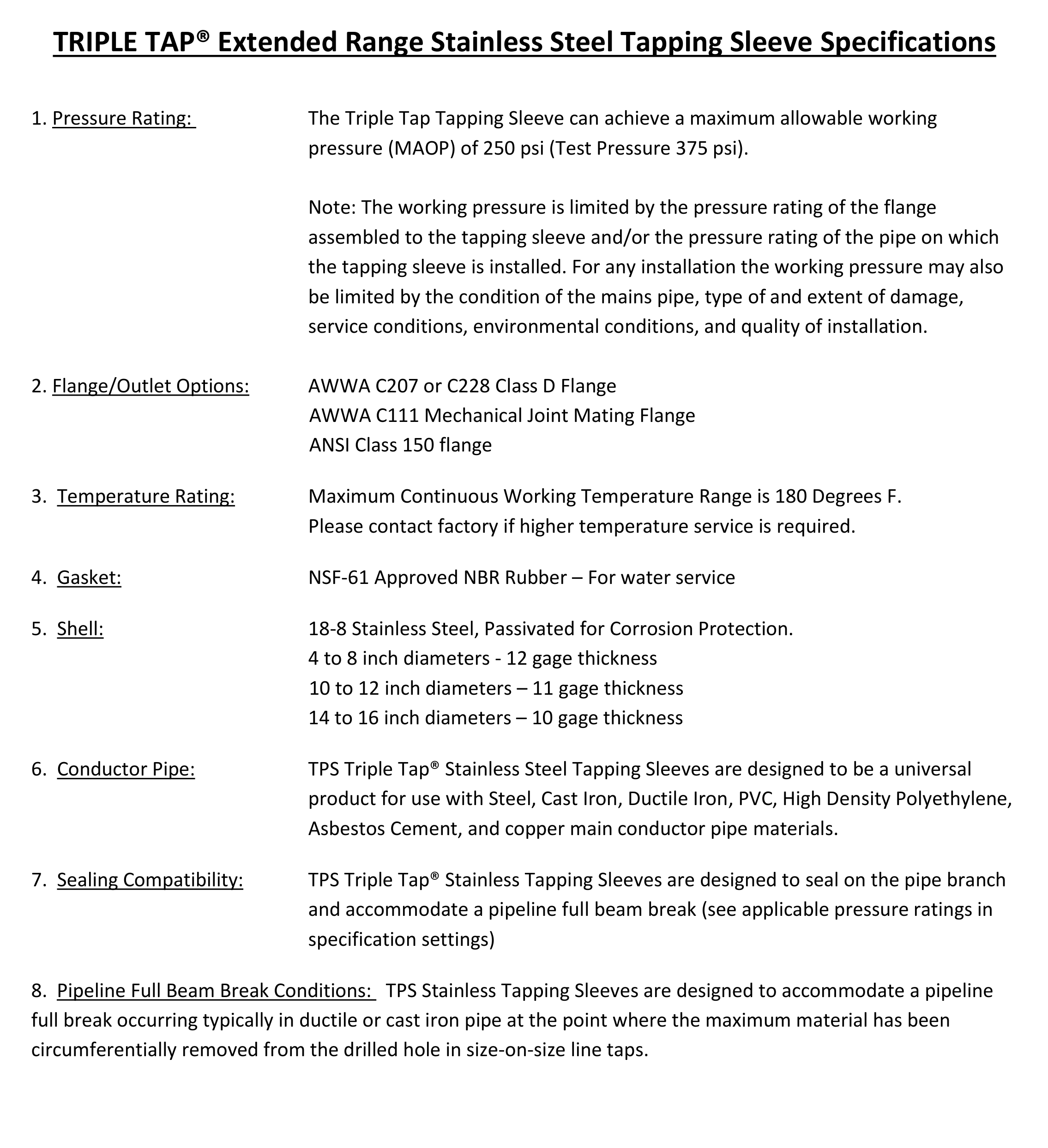

Working Pressure

Dresser rates the Triple Tap sleeve to 250 PSI maximum allowable working pressure, tested to 375 PSI. Installed with an MJ outlet, the rating is 200 PSI, or the rating of the pipe if that is lower.

Source: TPS Triple Tap Tapping Sleeve Technical Specification (ENGTS-01, Rev 15). The rating on the product label is the actual rating of each part.

Materials Specifications
Shell 18-8 stainless steel, passivated
Gasket NBR, NSF-61, water service
Test outlet 3/4 in NPT
Outlet AWWA C111 mechanical joint, stainless or carbon steel

Source: TPS Triple Tap Tapping Sleeve Technical Specification (ENGTS-01, Rev 15).

Pipe Applications

Steel, ductile iron, cast iron, PVC, asbestos cement, CTS and IPS, and HDPE (SDR 17 or thicker, buried service only).

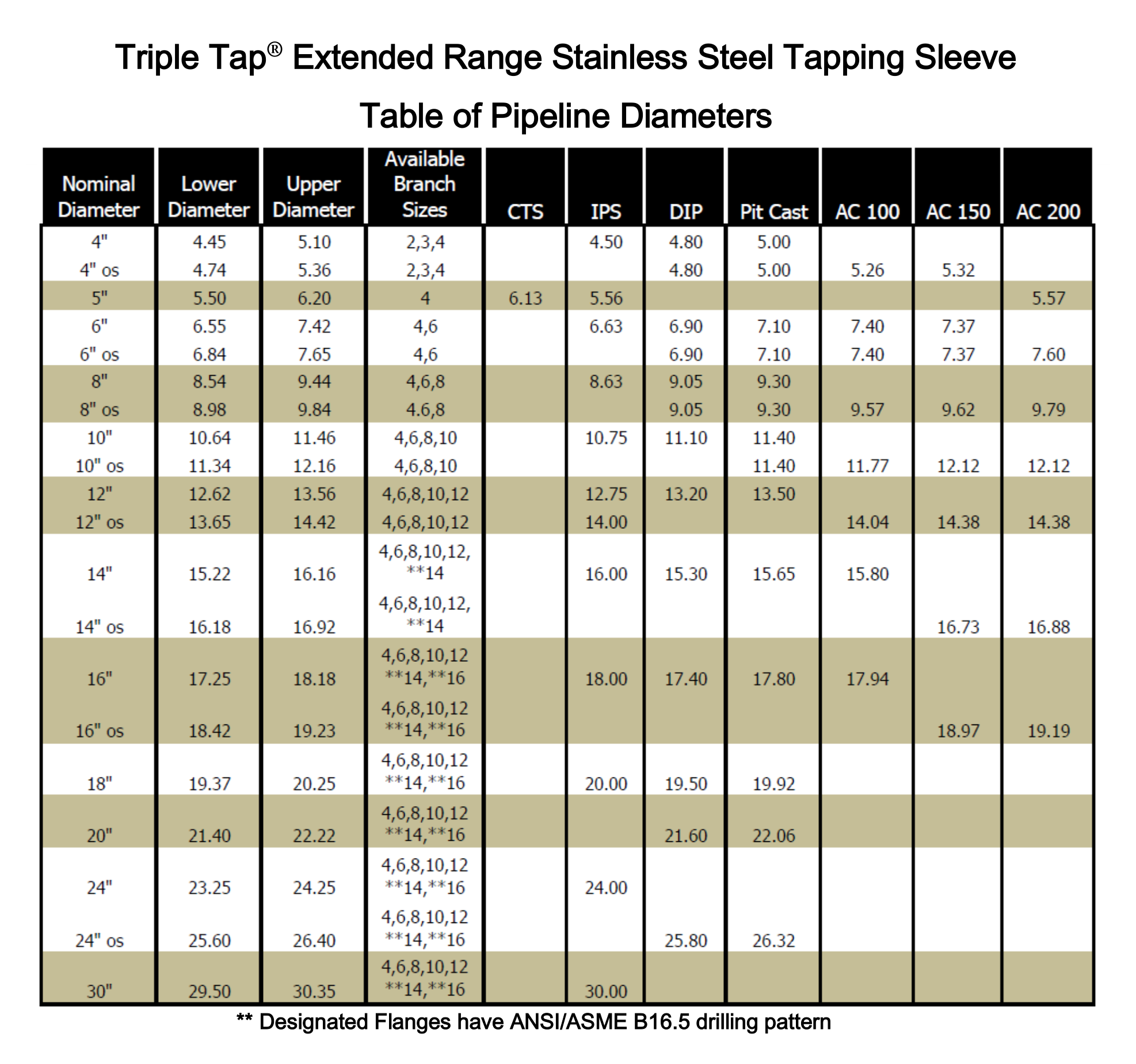

Sizes
All sizes (19 rows)
Run Size - OD Range Outlet Size
4 in - 4.45-5.13 in OD 4 in Outlet
4 in OS - 4.74-5.36 in OD 4 in Outlet
6 in - 6.55-7.42 in OD 4 in Outlet, 6 in Outlet
6 in OS - 6.84-7.65 in OD 4 in Outlet, 6 in Outlet
8 in - 8.54-9.44 in OD 4 in Outlet, 6 in Outlet, 8 in Outlet
8 in OS - 8.98-9.84 in OD 4 in Outlet, 6 in Outlet, 8 in Outlet
10 in - 10.64-11.46 in OD 4 in Outlet, 6 in Outlet, 8 in Outlet, 10 in Outlet
10 in OS - 11.34-12.16 in OD 4 in Outlet, 6 in Outlet, 8 in Outlet, 10 in Outlet
12 in - 12.62-13.56 in OD 4 in Outlet, 6 in Outlet, 8 in Outlet, 10 in Outlet, 12 in Outlet
12 in OS - 13.65-14.42 in OD 4 in Outlet, 6 in Outlet, 8 in Outlet, 10 in Outlet, 12 in Outlet
14 in - 15.22-16.16 in OD 4 in Outlet, 6 in Outlet, 8 in Outlet, 10 in Outlet, 12 in Outlet
14 in OS - 16.18-16.92 in OD 4 in Outlet, 6 in Outlet, 8 in Outlet, 10 in Outlet, 12 in Outlet
16 in - 17.25-18.18 in OD 4 in Outlet, 6 in Outlet, 8 in Outlet, 10 in Outlet, 12 in Outlet, 16 in Outlet
16 in OS - 18.42-19.23 in OD 4 in Outlet, 6 in Outlet, 8 in Outlet, 10 in Outlet, 12 in Outlet, 16 in Outlet
18 in - 19.37-20.25 in OD 4 in Outlet, 6 in Outlet, 8 in Outlet, 10 in Outlet, 12 in Outlet, 16 in Outlet
20 in - 21.40-22.22 in OD 4 in Outlet, 6 in Outlet, 8 in Outlet, 10 in Outlet, 12 in Outlet, 16 in Outlet
24 in US - 23.38-24.25 in OD 4 in Outlet, 6 in Outlet, 8 in Outlet, 10 in Outlet, 12 in Outlet, 16 in Outlet
24 in - 25.60-26.40 in OD 4 in Outlet, 6 in Outlet, 8 in Outlet, 10 in Outlet, 12 in Outlet, 16 in Outlet
30 in - 29.50-30.35 in OD 4 in Outlet, 6 in Outlet, 8 in Outlet, 10 in Outlet, 12 in Outlet, 16 in Outlet

Sizes as listed in Dresser’s 2026 price lists; the picker shows the part number for each build.

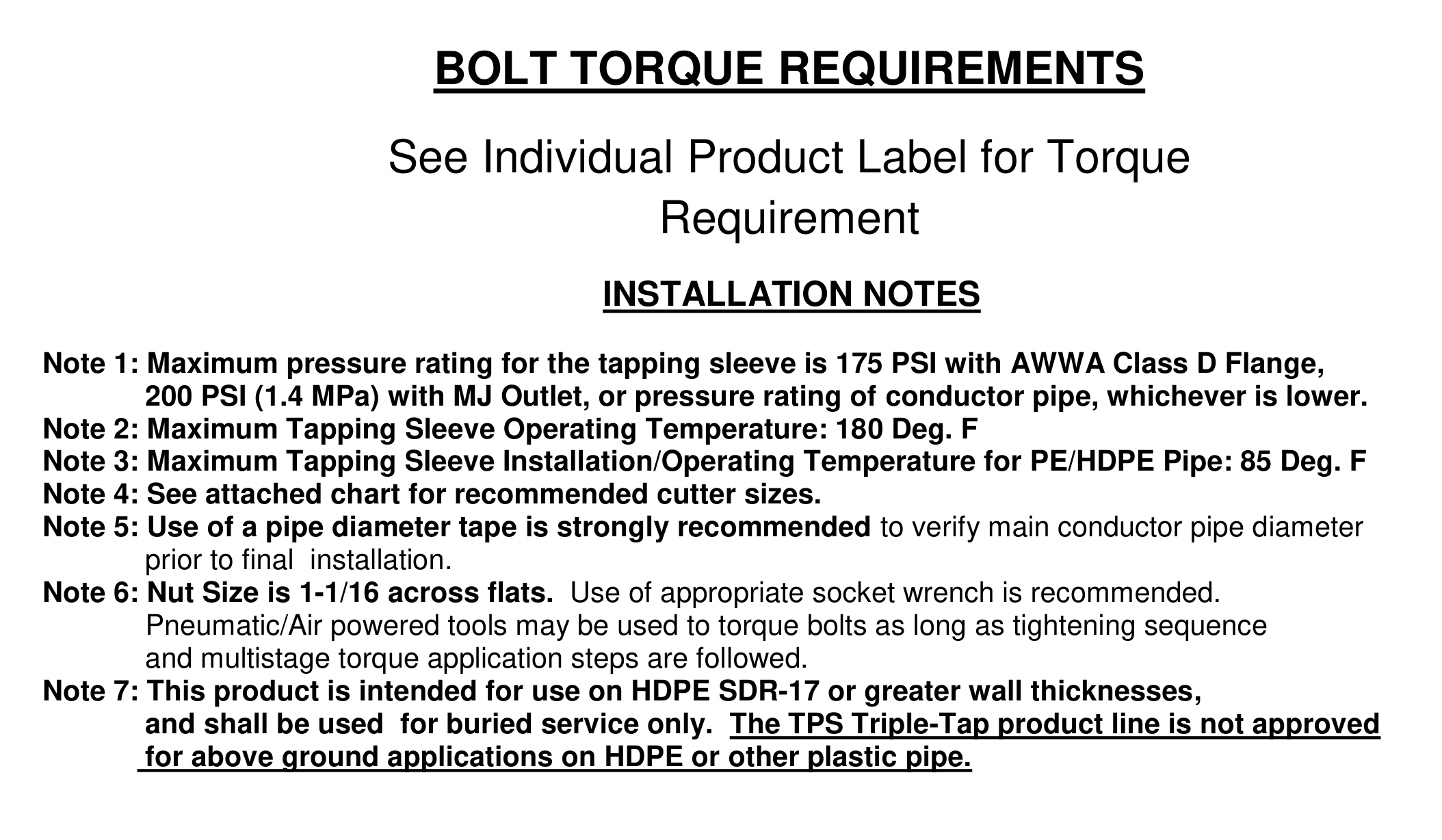

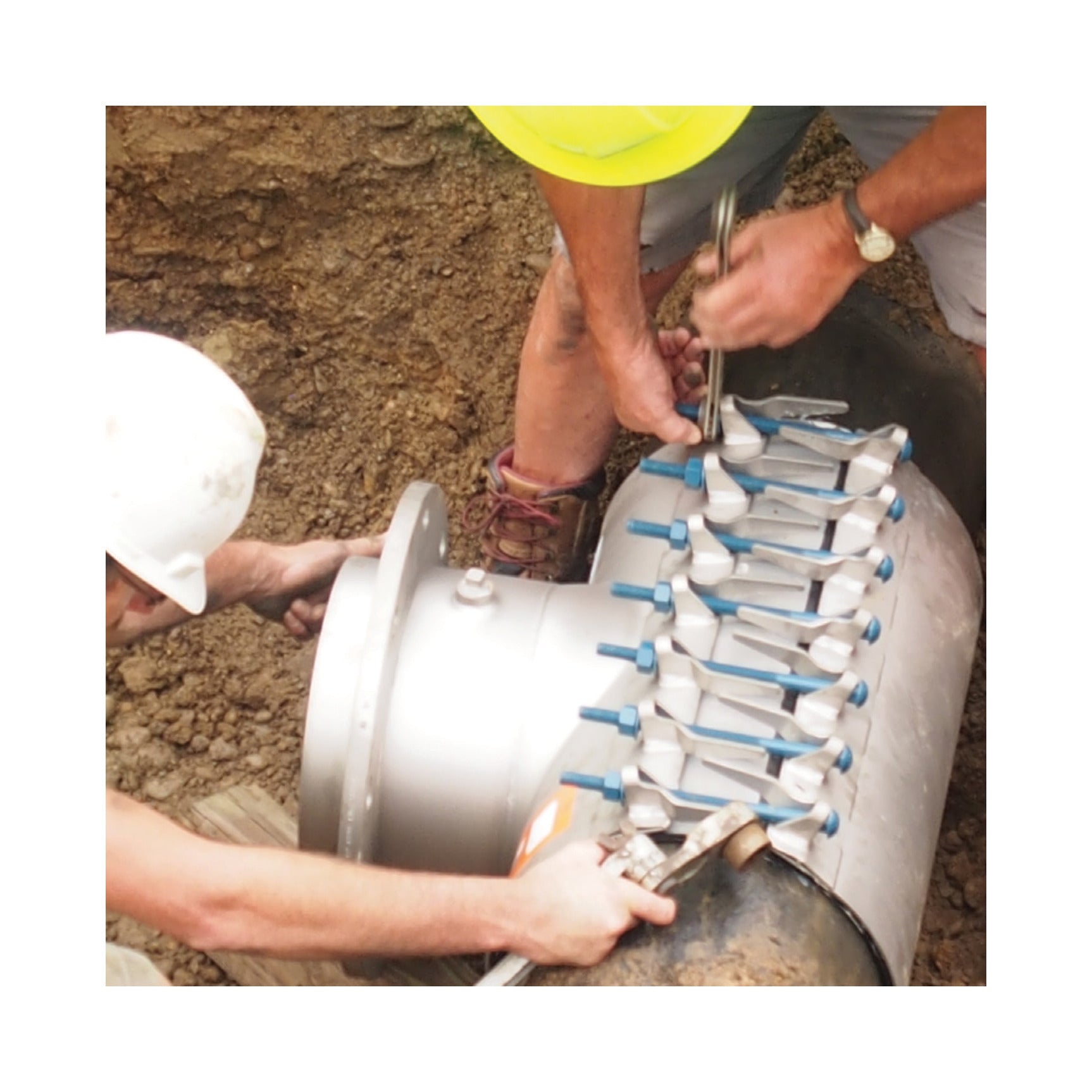

Installation Notes
  • Clean the pipe and confirm it falls in the sleeve range with a pi tape.
  • Lubricate the pipe, gasket and spanner surfaces with soapy water; no grease or pipe lubricant.
  • Tighten the nuts in a criss-cross pattern to the label torque, keeping the spanner gap uniform on both sides.
  • Block and shim the tapping valve so the valve and machine weight never loads the outlet; the outlet must not rotate on the pipe.
  • Hydrostatically test through the 3/4 in test port before tapping; never test with compressed gas.
  • Water service only, not gas; on PE/HDPE the maximum install and operating temperature is 85°F.

Source: Dresser TPS Tapping Sleeve Installation Instructions (INST 1001).

Before You Order. Measure the pipe OD with a pi tape and confirm the outlet and flange type. Anchor the pipe: this product seals but does not restrain, and Dresser requires the pipe joint to be anchored wherever pull-out can occur. Non-stock Dresser parts are not returnable without Dresser’s authorization, and ship time is confirmed when you order. Custom builds (other sizes, widths, gaskets or materials) are available: email sales@watermainsupply.com with the pipe OD, material and line content.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
