Dresser Triple Tap Line Stop Fitting - 4 in to 24 in

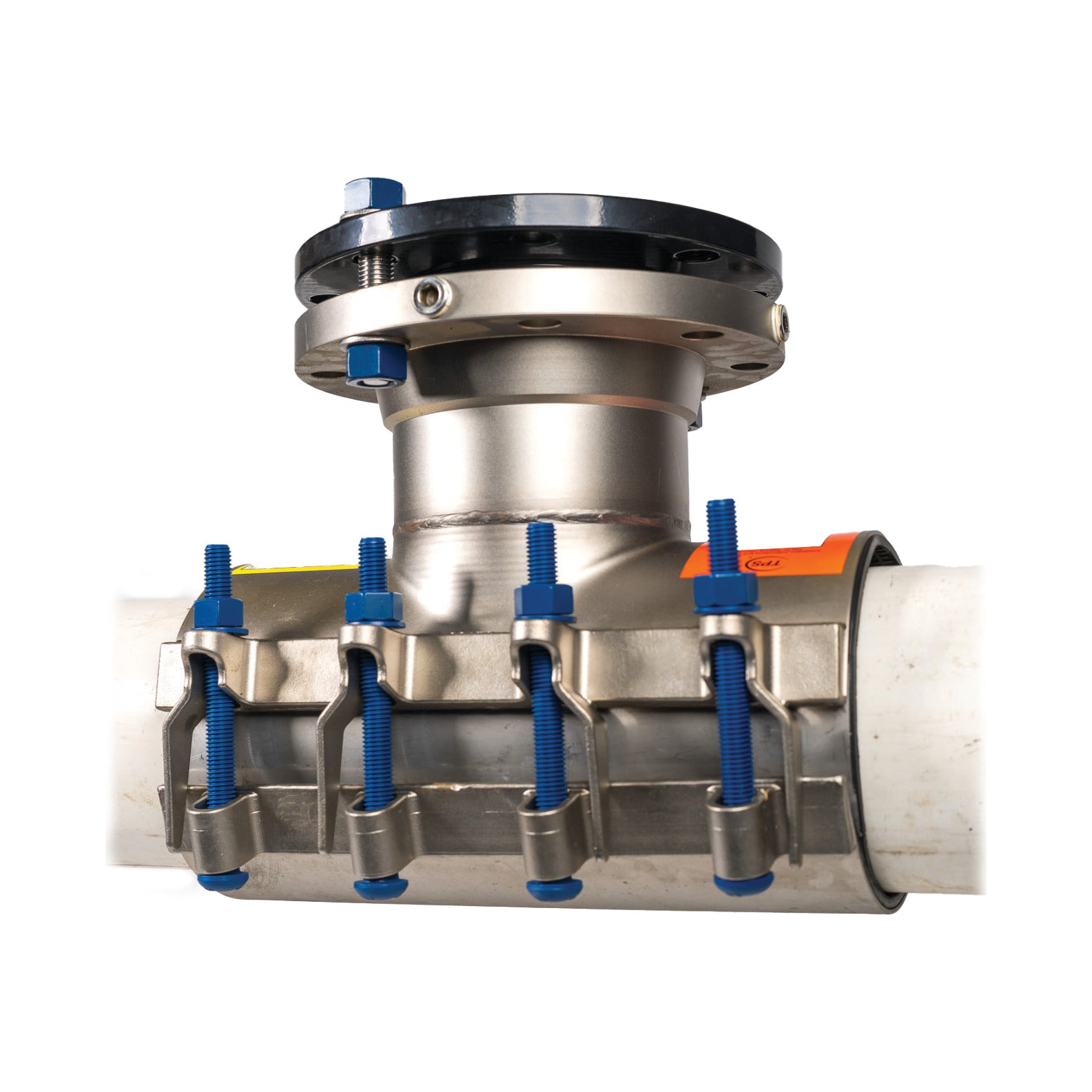

Dresser Triple Tap Line Stop Fitting product photo

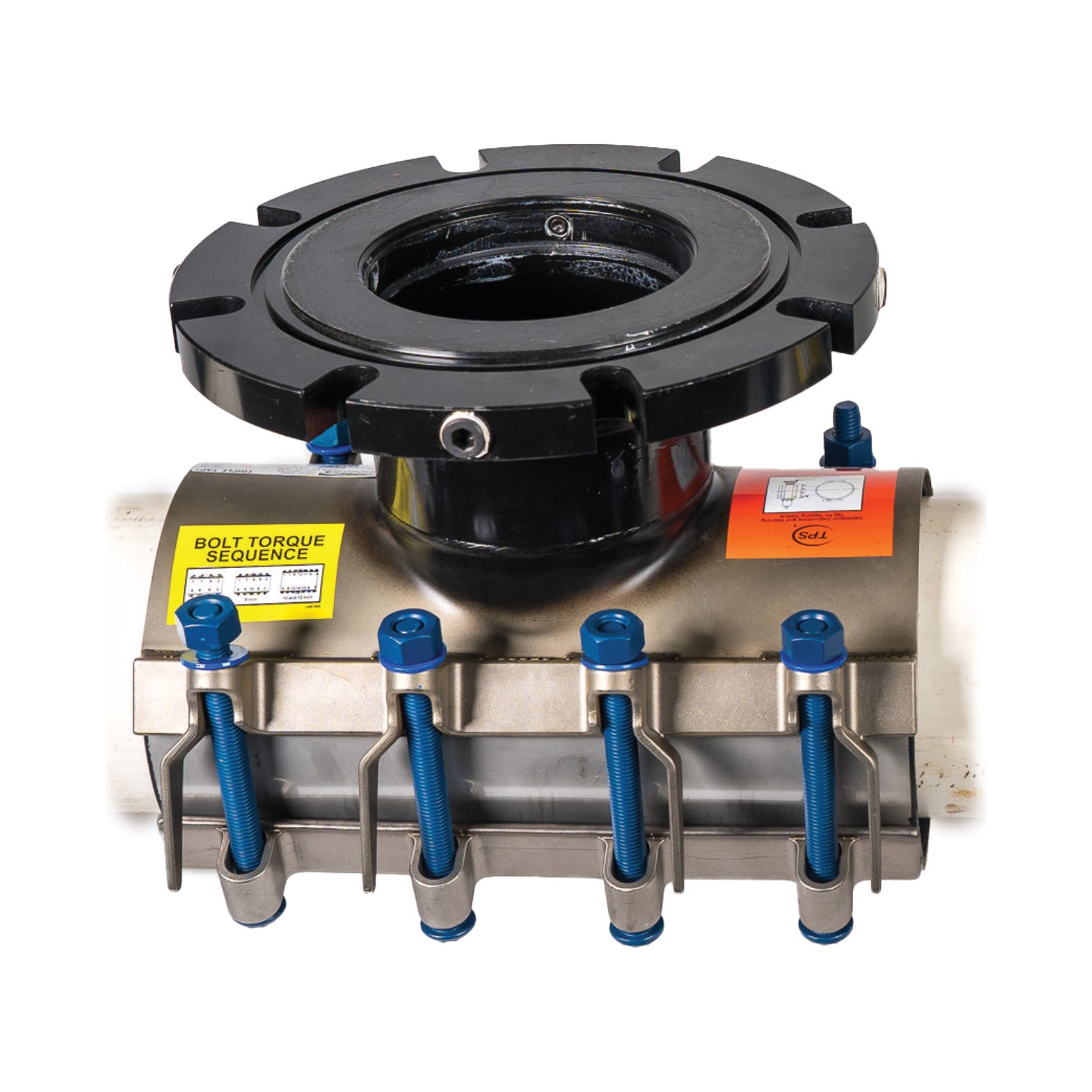

Dresser Triple Tap Line Stop Fitting product photo
Dresser Triple Tap Line Stop Fitting - 4 in to 24 in
Dresser Triple Tap Line Stop Fitting product photo
Dresser Triple Tap Line Stop Fitting product photo

Dresser Triple Tap Line Stop Fitting - Stainless Sleeve

Run Size - OD Range: 4 in CTS - 3.79-4.13 in OD
Branch: 4 in Branch
Plug - Part No.: Threaded, Stainless - LSSF0413040012

Product variant with selected options does not exist!
$3,187.56
SKU: LSSF0413040012
Weight : 47.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Dresser · Tapping Sleeve
Triple Tap Line Stop Fitting
Triple Tap line stop fitting with threaded or push completion plug.
175 PSI with Class D Flange, 250 PSI Max
180°F Max Continuous
NSF-61 NBR Gasket
Threaded or Push Plug
Up to 0.9 in OD Range
47-127 lb Weight
Overview

The Triple Tap line stop fitting uses the extended range stainless shell with a line stop outlet and completion plug, so a live main can be stopped and later closed off.

Application: Line stops on water mains.

  • 3/4 in NPT test outlet for a hydro test before tapping
What Ships and What It Needs to Run

Included: sleeve with gaskets, bolts and nuts.

Also needed: line stop machine and valve.

Genuine Dresser equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Dresser Warranty

Covered for 12 months from the date of purchase under Dresser’s published warranty terms.

Working Pressure

Dresser rates the Triple Tap sleeve to 250 PSI maximum allowable working pressure, tested to 375 PSI. Installed with an AWWA Class D flange, the rating is 175 PSI, or the rating of the pipe if that is lower.

Source: TPS Triple Tap Tapping Sleeve Technical Specification (ENGTS-01, Rev 15). The rating on the product label is the actual rating of each part.

Materials Specifications
Shell 18-8 stainless steel, passivated
Gasket NBR, NSF-61, water service
Test outlet 3/4 in NPT
Outlet Line stop outlet with completion plug, stainless or carbon steel

Source: TPS Triple Tap Tapping Sleeve Technical Specification (ENGTS-01, Rev 15).

Pipe Applications

Steel, ductile iron, cast iron, PVC, asbestos cement, CTS and IPS, and HDPE (SDR 17 or thicker, buried service only).

Sizes
All sizes (23 rows)
Run Size - OD Range Branch
4 in CTS - 3.79-4.13 in OD 4 in Branch
4 in - 4.45-5.13 in OD 4 in Branch, 4 x 4 in Branch, 8 x 4 in Branch
4 in OS - 4.74-5.36 in OD 4 in Branch, 4 x 4 in Branch, 8 x 4 in Branch
5 in - 5.50-6.00 in OD 4 in Branch
5 in CTS - 6.13-6.13 in OD 4 in Branch
5 in - 5.50-6.20 in OD 4 in Branch
6 in - 6.55-7.42 in OD 4 in Branch, 6 in Branch, 8 x 6 in Branch
6 in OS - 6.84-7.65 in OD 4 in Branch, 6 in Branch, 8 x 6 in Branch
Up to 8.13 in OD 6 in Branch
8 in - 8.54-9.44 in OD 6 in Branch, 8 in Branch, 8 x 8 in Branch
8 in OS - 8.98-9.84 in OD 6 in Branch, 8 in Branch, 8 x 8 in Branch
10 in - 10.64-11.46 in OD 8 in Branch, 12 x 10 in Branch
10 in OS - 11.34-12.16 in OD 8 in Branch, 12 x 10 in Branch
12 in - 12.62-13.56 in OD 8 in Branch, 12 in Branch
12 in OS - 13.65-14.42 in OD 8 in Branch, 12 in Branch
14 in - 15.22-16.16 in OD 12 in Branch
14 in OS - 16.18-16.92 in OD 12 in Branch
16 in - 17.25-18.18 in OD 12 in Branch
16 in OS - 18.42-19.23 in OD 12 in Branch
18 in - 19.37-20.25 in OD 12 in Branch
20 in - 21.40-22.22 in OD 12 in Branch
24 in US - 23.38-24.25 in OD 12 in Branch
24 in - 25.60-26.40 in OD 12 in Branch

Sizes as listed in Dresser’s 2026 price lists; the picker shows the part number for each build.

Installation Notes
  • Clean the pipe and confirm it falls in the sleeve range with a pi tape.
  • Lubricate the pipe, gasket and spanner surfaces with soapy water; no grease or pipe lubricant.
  • Tighten the nuts in a criss-cross pattern to the label torque, keeping the spanner gap uniform on both sides.
  • Block and shim the tapping valve so the valve and machine weight never loads the outlet; the outlet must not rotate on the pipe.
  • Hydrostatically test through the 3/4 in test port before tapping; never test with compressed gas.
  • Water service only, not gas; on PE/HDPE the maximum install and operating temperature is 85°F.

Source: Dresser TPS Tapping Sleeve Installation Instructions (INST 1001).

Before You Order. Measure the pipe OD with a pi tape and confirm the outlet and flange type. Anchor the pipe: this product seals but does not restrain, and Dresser requires the pipe joint to be anchored wherever pull-out can occur. Non-stock Dresser parts are not returnable without Dresser’s authorization, and ship time is confirmed when you order. Custom builds (other sizes, widths, gaskets or materials) are available: email sales@watermainsupply.com with the pipe OD, material and line content.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
