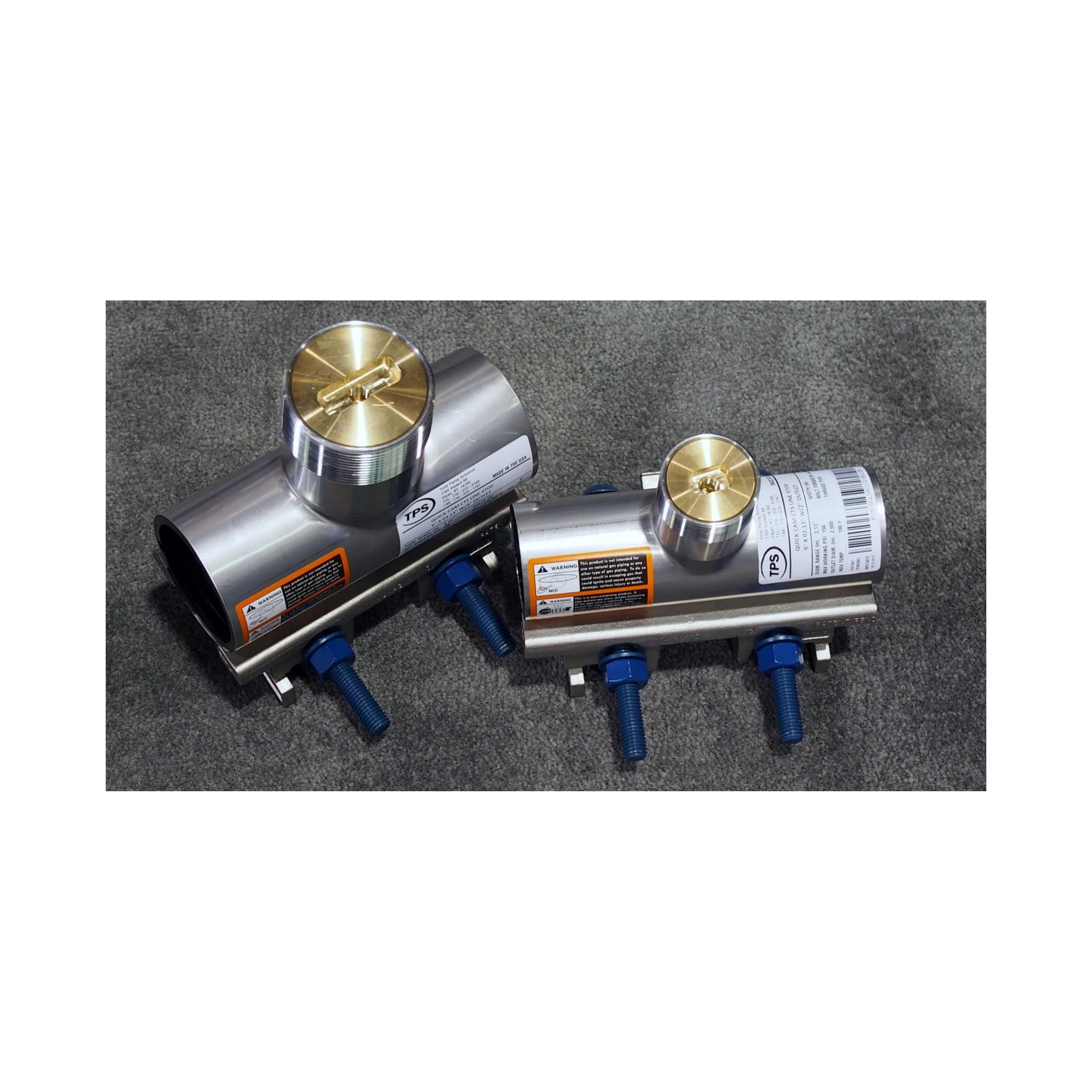

The Quick-Cam line stop fitting seals 360 degrees around the pipe so the line can be stopped under pressure for repairs or valve work.
Application: Line stops on CTS, steel, cast iron, ductile iron, PVC, HDPE (SDR 17 or thicker) and asbestos cement pipe.

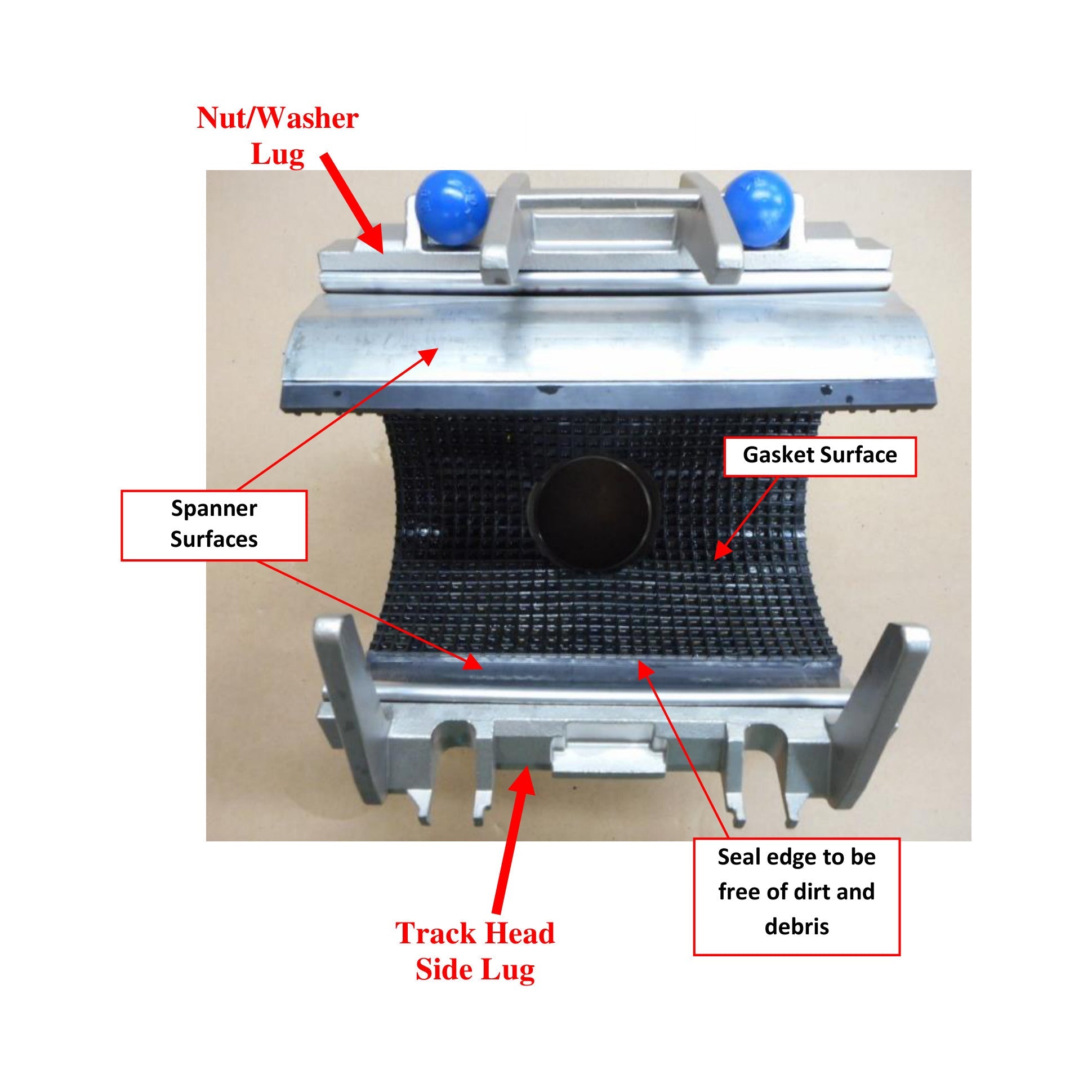

Included: fitting with gasket, lugs, bolts and nuts.
Also needed: line stop machine and completion plug equipment.
Covered for 12 months from the date of purchase under Dresser’s published warranty terms.
Up to 150 PSI working pressure on water and sewer.

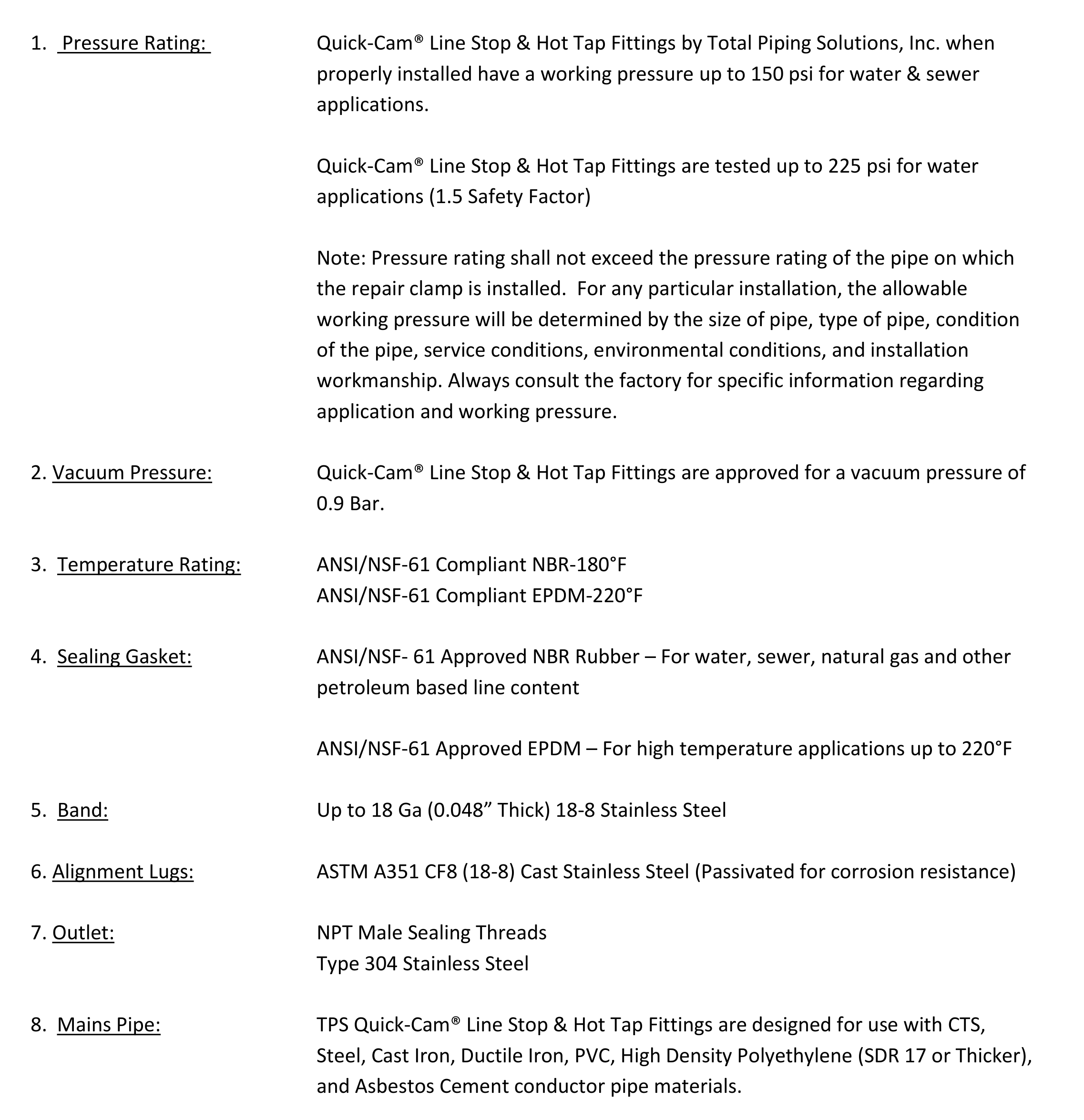

Source: TPS Quick-Cam Line Stop and Hot Tap Technical Specification (2018). The rating on the product label is the actual rating of each part.
| Band | Up to 18 gauge 18-8 stainless steel |
| Lugs | ASTM A351 CF8 18-8 stainless steel |
| Gasket | NBR 180°F or EPDM 220°F, NSF-61 |
Source: TPS Quick-Cam Line Stop and Hot Tap Technical Specification (2018).
