JCM 422 Carbon Steel Tapping Sleeve for PVC and Steel Pipe - Flanged Outlet
Fusion Epoxy Carbon Steel · 3 to 12 in flanged outlets · 4.50-13.20 in pipe OD
175 PSI Working Pressure
Fusion Epoxy Carbon Steel
Buna-N Gasket
-40°F to +212°F Gasket
3 to 12 in Flanged Outlets
MSS-SP60 Tapping Valve Recess
AWWA C223 and MSS-SP124
NSF/ANSI 61 and 372
4.50-13.20 in Pipe OD
29-216 lb Weight

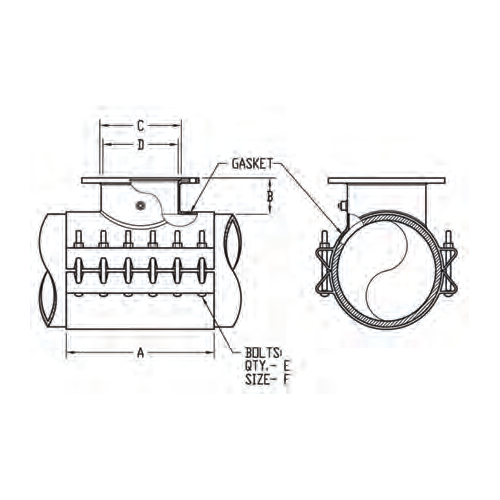

Description
The JCM 422 carbon steel tapping sleeve is built for tapping and branching IPS PVC, steel, HDPE and C900 PVC. Its extra-wide body reinforces PVC pipe, spreads the load and keeps the sleeve stable during the tap, and a broad, heavy gasket with a hydromechanical lip seals on PVC through its normal expansion and contraction.
It is furnished fusion epoxy coated with electro-coated bolts (stainless bolts optional). JCM does not recommend it for cast iron, ductile iron or A/C pipe; use the JCM 412 there.
Typical application: Branching: line branches, valves, internal line access.
Key Features
- Flanged outlet recessed for the tapping valve per MSS-SP60
- Full sleeve reinforces the pipe; lighter than cast sleeves
- Furnished with a 3/4 in NPT test plug
- Rated 175 PSI on 4-12 in outlets
- Meets MSS-SP124 and ANSI/AWWA C223 as applicable; ANSI/NSF 61 and 372 certified
What Ships and What It Needs to Run
Included: the sleeve halves with the gasket, bolts and nuts, and the 3/4 in test plug.
Tapping valve and tapping machine, ordered separately. A flanged tapping valve bolts to the outlet; size-on-size taps need a 1/2 in undersized shell cutter.
Genuine JCM Industries equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Warranty
Covered for 12 months from the date of purchase against defects in materials and workmanship. Keep the dated invoice as proof of purchase.
Working Pressure
175 PSI on 4-12 in outlets. JCM's service rating; higher ratings are available for specific applications and sizes.
Materials Specifications
| Body |
Carbon steel, ASTM A36, A516 Gr 70 or equal, extra wide |
| Outlet |
AWWA C207 Class D flange, ANSI 150 lb drilling, recessed per MSS-SP60 |
| Bolts |
Electrocoated (Powercron 590-534) high-strength low-alloy oval-neck track bolts per ASTM A242, nuts per A563; 304 or 316 stainless optional |
| Gasket |
NBR (Buna-N) per ASTM D2000, pressure-activated hydromechanical design bonded into a cavity; -40°F to +212°F |
| Finish |
Fusion epoxy per ANSI/AWWA C213, 12 mils minimum (standard) |
From the JCM 422 material specification.
Pipe Applications
IPS PVC, steel, IPS HDPE and C900 PVC (not cast iron, ductile iron or A/C).
Sizes and Outlets
| Nominal |
Sleeve OD range |
Outlets |
| 4 in IPS PVC or Steel |
4.50 in |
3, 4 in |
| 4 in C900 PVC |
4.80 in |
3, 4 in |
| 5 in IPS PVC or Steel |
5.56 in |
3, 4 in |
| 6 in IPS PVC or Steel |
6.63 in |
3, 4, 6 in |
| 6 in C900 PVC |
6.90 in |
3, 4, 6 in |
| 8 in IPS PVC or Steel |
8.63 in |
3, 4, 6, 8 in |
| 8 in C900 PVC |
9.05 in |
3, 4, 6, 8 in |
| 10 in IPS PVC or Steel |
10.75 in |
3, 4, 6, 8, 10 in |
| 10 in C900 PVC |
11.10 in |
3, 4, 6, 8, 10 in |
| 12 in IPS PVC or Steel |
12.75 in |
3, 4, 6, 8, 10, 12 in |
| 12 in C900 PVC |
13.20 in |
3, 4, 6, 8, 10, 12 in |
From the JCM price list.
Before You OrderConfirm the pipe OD, outlet size and outlet type before ordering.
For outlets 14 in and larger, the tapping valve make must be specified for the alignment recess.
For a submittal or an odd OD, email sales@watermainsupply.com with the pipe OD, pipe type and line content.
