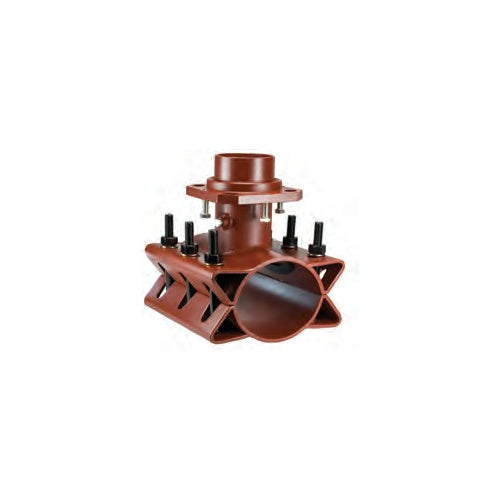

JCM 419 Fabricated Steel Tapping Sleeve - product photo

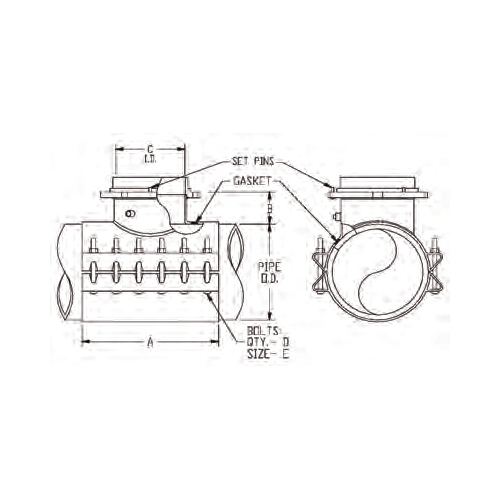

JCM 419 Fabricated Steel Tapping Sleeve - parts callout drawing
JCM 419 Fabricated Steel Tapping Sleeve - product photo
JCM 419 Fabricated Steel Tapping Sleeve - parts callout drawing

JCM 419 Fabricated Steel Tapping Sleeve - MJ Outlet

Nominal Size - OD Range: 6 in - 6.83-7.16 in OD
Outlet Size: 3 in
Finish - Bolts - Part No.: Shop Coat - Alloy Bolts - 419-0690X3

Product variant with selected options does not exist!
$938.77
SKU: 419-0690X3
Weight : 76.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
JCM Industries · Tapping Sleeve
JCM 419 Fabricated Carbon Steel Tapping Sleeve - Mechanical Joint Outlet
Carbon Steel · 3 to 12 in mj outlets · 6.83-32.22 in pipe OD
250 PSI Working Pressure
Carbon Steel
Buna-N Gasket
-40°F to +212°F Gasket
3 to 12 in MJ Outlets
AWWA C111 MJ Outlet
AWWA C223 and MSS-SP124
NSF/ANSI 61 and 372
6.83-32.22 in Pipe OD
76-312 lb Weight
Description

The JCM 419 fabricated carbon steel tapping sleeve makes larger taps on all types of pipe with a built-in range that fits more than one pipe class, so the right sleeve is on hand more often. The heavy steel sleeve reinforces the pipe directly, eliminating flexing opposite the tap, and weighs less than a cast iron sleeve.

A large-section gasket in a retaining cavity makes a positive initial seal that increases with line pressure. The mechanical joint outlet takes an MJ tapping valve, and load-bearing set pins on the gland hold it in line. Choose shop coat with alloy bolts, or fusion epoxy with e-coat or stainless bolts.

Typical application: Branching: line branches, valves, internal line access.

Key Features

  • MJ outlet to AWWA C111 dimensions with load-bearing set pins
  • Full sleeve reinforces the pipe; lighter than cast sleeves
  • Furnished with a 3/4 in NPT test plug
  • Rated 250 PSI working (300 PSI test) on 4-12 in pipe
  • Meets MSS-SP124 and ANSI/AWWA C223 as applicable; ANSI/NSF 61 and 372 certified
What Ships and What It Needs to Run

Included: the sleeve halves with the gasket, bolts and nuts, and the 3/4 in test plug.

Tapping valve and tapping machine, ordered separately. An MJ tapping valve connects to the outlet; size-on-size taps need a 1/2 in undersized shell cutter.

Genuine JCM Industries equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Warranty

Covered for 12 months from the date of purchase against defects in materials and workmanship. Keep the dated invoice as proof of purchase.

Working Pressure

250 PSI working (300 PSI test) on 4-12 in pipe; 200 PSI (250 PSI test) on 14-24 in pipe and 12 x 12 in with stainless bolts. JCM's service rating; higher ratings are available for specific applications and sizes.

Materials Specifications
Body Carbon steel, ASTM A36, A516 Gr 70 or equal
Outlet Mechanical joint outlet to AWWA C111/ANSI A21.11 dimensions, with load-bearing set pins on the gland
Bolts Electrocoated high-strength low-alloy oval-neck track bolts per ASTM A242, nuts per A563; 304 or 316 stainless optional
Gasket NBR (Buna-N) per ASTM D2000, pressure-activated hydromechanical design bonded into a cavity; -40°F to +212°F
Finish Shop-coat primer standard; fusion epoxy optional

From the JCM 419 material specification.

Pipe Applications

Cast iron, ductile iron, PVC, PE, steel, A/C and other pipe within the listed ranges.

Sizes and Outlets

40 OD ranges from 6.83 to 32.22 in. Open the table for every range and outlet.

All 40 sizes
Nominal Sleeve OD range Outlets
6 in 6.83-7.16 in 3, 4, 6 in
6 in 7.05-7.40 in 3, 4, 6 in
6 in 7.40-7.73 in 3, 4, 6 in
8 in 8.98-9.37 in 3, 4, 6, 8 in
8 in 9.27-9.69 in 3, 4, 6, 8 in
10 in 9.83-10.25 in 3, 4, 6, 8 in
10 in 10.64-10.86 in 3, 4, 6, 8, 10 in
10 in 11.03-11.47 in 3, 4, 6, 8, 10 in
10 in 11.36-11.80 in 3, 4, 6, 8, 10 in
10 in 11.76-12.24 in 3, 4, 6, 8, 10 in
12 in 12.62-12.88 in 3, 4, 6, 8, 10, 12 in
12 in 13.13-13.60 in 3, 4, 6, 8, 10, 12 in
12 in 13.60-14.09 in 3, 4, 6, 8, 10, 12 in
12 in 14.08-14.56 in 3, 4, 6, 8, 10, 12 in
14 in 14.59-15.08 in 3, 4, 6, 8, 10, 12 in
14 in 15.23-15.80 in 3, 4, 6, 8, 10, 12 in
14 in 15.73-16.22 in 3, 4, 6, 8, 10, 12 in
14 in 16.30-16.73 in 3, 4, 6, 8, 10, 12 in
16 in 16.74-17.26 in 3, 4, 6, 8, 10, 12 in
16 in 17.33-17.87 in 3, 4, 6, 8, 10, 12 in
16 in 17.88-18.43 in 3, 4, 6, 8, 10, 12 in
16 in 18.62-19.19 in 3, 4, 6, 8, 10, 12 in
18 in 18.87-19.45 in 3, 4, 6, 8, 10, 12 in
18 in 19.41-20.01 in 3, 4, 6, 8, 10, 12 in
18 in 20.00-20.60 in 3, 4, 6, 8, 10, 12 in
18 in 20.29-20.94 in 3, 4, 6, 8, 10, 12 in
18 in 20.93-21.57 in 3, 4, 6, 8, 10, 12 in
20 in 21.51-22.15 in 3, 4, 6, 8, 10, 12 in
20 in 22.16-22.81 in 3, 4, 6, 8, 10, 12 in
20 in 22.78-23.45 in 3, 4, 6, 8, 10, 12 in
20 in 23.46-24.16 in 3, 4, 6, 8, 10, 12 in
20 in 24.15-24.85 in 3, 4, 6, 8, 10, 12 in
20 in 24.82-25.52 in 3, 4, 6, 8, 10, 12 in
24 in 25.71-26.41 in 3, 4, 6, 8, 10, 12 in
24 in 26.55-27.25 in 3, 4, 6, 8, 10, 12 in
24 in 27.26-27.96 in 3, 4, 6, 8, 10, 12 in
24 in 28.14-28.84 in 3, 4, 6, 8, 10, 12 in
30 in 29.78-30.48 in 3, 4, 6, 8, 10, 12 in
30 in 30.48-31.18 in 3, 4, 6, 8, 10, 12 in
30 in 31.52-32.22 in 3, 4, 6, 8, 10, 12 in

From the JCM price list.

Before You OrderConfirm the pipe OD, outlet size and outlet type before ordering.
Dimensional submittal drawings are available on request.
For a submittal or an odd OD, email sales@watermainsupply.com with the pipe OD, pipe type and line content.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
