JCM 429 Carbon Steel Tapping Sleeve for PVC and Steel Pipe - Mechanical Joint Outlet
Fusion Epoxy Carbon Steel · 3 to 12 in mj outlets · 4.50-13.20 in pipe OD
250 PSI Working Pressure
Fusion Epoxy Carbon Steel
Buna-N Gasket
-40°F to +212°F Gasket
3 to 12 in MJ Outlets
AWWA C111 MJ Outlet
AWWA C223 and MSS-SP124
NSF/ANSI 61 and 372
4.50-13.20 in Pipe OD
29-216 lb Weight
Description
The JCM 429 carbon steel tapping sleeve is built for tapping and branching IPS PVC, steel, HDPE and C900 PVC. Its extra-wide body reinforces PVC pipe, spreads the load and keeps the sleeve stable during the tap, and a broad, heavy gasket with a hydromechanical lip seals on PVC through its normal expansion and contraction.
It is furnished fusion epoxy coated with electro-coated bolts (stainless bolts optional). JCM does not recommend it for cast iron, ductile iron or A/C pipe; use the JCM 419 there.
Typical application: Branching: line branches, valves, internal line access.
Key Features
- MJ outlet to AWWA C111 dimensions with load-bearing set pins
- Full sleeve reinforces the pipe; lighter than cast sleeves
- Furnished with a 3/4 in NPT test plug
- Rated 250 PSI working (300 PSI test) on 4-12 in pipe
- Meets MSS-SP124 and ANSI/AWWA C223 as applicable; ANSI/NSF 61 and 372 certified
What Ships and What It Needs to Run
Included: the sleeve halves with the gasket, bolts and nuts, and the 3/4 in test plug.
Tapping valve and tapping machine, ordered separately. An MJ tapping valve connects to the outlet; size-on-size taps need a 1/2 in undersized shell cutter.
Genuine JCM Industries equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Warranty
Covered for 12 months from the date of purchase against defects in materials and workmanship. Keep the dated invoice as proof of purchase.
Working Pressure
250 PSI working (300 PSI test) on 4-12 in pipe; 200 PSI (250 PSI test) on 12 x 12 in with stainless bolts. JCM's service rating; higher ratings are available for specific applications and sizes.
Materials Specifications
| Body |
Carbon steel, extra wide |
| Outlet |
Mechanical joint outlet to AWWA C111/ANSI A21.11 dimensions |
| Bolts |
Electrocoated low-alloy bolts standard; stainless optional |
| Gasket |
NBR (Buna-N) per ASTM D2000, pressure-activated hydromechanical design bonded into a cavity; -40°F to +212°F |
| Finish |
Fusion epoxy (standard) |
From the JCM 429 material specification.
Pipe Applications
IPS PVC, steel, IPS HDPE and C900 PVC (not cast iron, ductile iron or A/C).
Sizes and Outlets
| Nominal |
Sleeve OD range |
Outlets |
| 4 in IPS PVC or Steel |
4.50 in |
3, 4 in |
| 4 in C900 PVC |
4.80 in |
3, 4 in |
| 5 in IPS PVC or Steel |
5.56 in |
3, 4 in |
| 6 in IPS PVC or Steel |
6.63 in |
3, 4, 6 in |
| 6 in C900 PVC |
6.90 in |
3, 4, 6 in |
| 8 in IPS PVC or Steel |
8.63 in |
3, 4, 6, 8 in |
| 8 in C900 PVC |
9.05 in |
3, 4, 6, 8 in |
| 10 in IPS PVC or Steel |
10.75 in |
3, 4, 6, 8, 10 in |
| 10 in C900 PVC |
11.10 in |
3, 4, 6, 8, 10 in |
| 12 in IPS PVC or Steel |
12.75 in |
3, 4, 6, 8, 10, 12 in |
| 12 in C900 PVC |
13.20 in |
3, 4, 6, 8, 10, 12 in |
From the JCM price list.
Before You OrderConfirm the pipe OD, outlet size and outlet type before ordering.

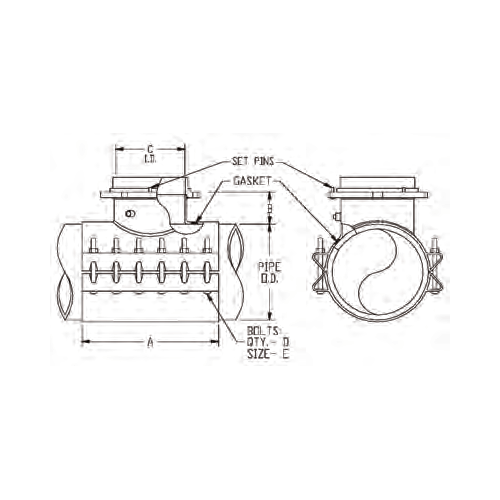

Dimensional submittal drawings are available on request.
For a submittal or an odd OD, email sales@watermainsupply.com with the pipe OD, pipe type and line content.
