JCM 432 All Stainless Steel Tapping Sleeve - Flanged Outlet
All 304 Stainless · 2 to 12 in flanged outlets · 4.40-26.60 in pipe OD
175 PSI Working Pressure
All 304 Stainless
Full-Circle SBR Gasket
-40°F to +150°F Gasket
2 to 12 in Flanged Outlets
MSS-SP60 Tapping Valve Recess
AWWA C223 and MSS-SP124
4.40-26.60 in Pipe OD
40-175 lb Weight
Description
The JCM 432 stainless steel tapping sleeve uses replaceable, self-aligning bolts that can be torqued to 125 ft-lb for high gasket pressure, and a full circumferential gasket with a molded-in recessed bridge plate that seals the whole pipe, insurance against beam breaks on size-on-size taps.
All stainless construction joins the stainless flange, outlet and body as one unit of similar metals for the highest strength and corrosion resistance.
Typical application: Branching: line branches, valves, internal line access.
Key Features
- Flanged outlet recessed for the tapping valve per MSS-SP60
- Full sleeve reinforces the pipe; lighter than cast sleeves
- Rated 175 PSI working (262.5 PSI test) on 2-12 in outlets per AWWA C228
- Meets MSS-SP124 and ANSI/AWWA C223 as applicable
What Ships and What It Needs to Run
Included: the sleeve halves with the gasket, bolts and nuts.
Tapping valve and tapping machine, ordered separately. A flanged tapping valve bolts to the outlet; size-on-size taps need a 1/2 in undersized shell cutter.
Genuine JCM Industries equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Warranty
Covered for 12 months from the date of purchase against defects in materials and workmanship. Keep the dated invoice as proof of purchase.
Working Pressure
175 PSI working (262.5 PSI test) on 2-12 in outlets per AWWA C228; 150 PSI on pipe with a full circumferential break. JCM's service rating; higher ratings are available for specific applications and sizes.
Materials Specifications
| Body |
18-8 Type 304 stainless steel |
| Outlet |
Type 304 stainless flange per ANSI/AWWA C228, ANSI 150 lb drilling, recessed per MSS-SP60; Schedule 10 stainless branch |
| Bolts |
Type 304 stainless steel, replaceable and self-aligning, torque to 125 ft-lb |
| Gasket |
Full circumferential virgin SBR per ASTM D2000 M4AA 607, molded-in recessed bridge plate; -40°F to +150°F constant, 180°F intermittent; EPDM optional |
From the JCM 432 material specification.
Pipe Applications
Cast iron, ductile iron, PVC, steel, A/C and other pipe within the listed ranges; JCM does not recommend full circumferential gasket sleeves for HDPE.

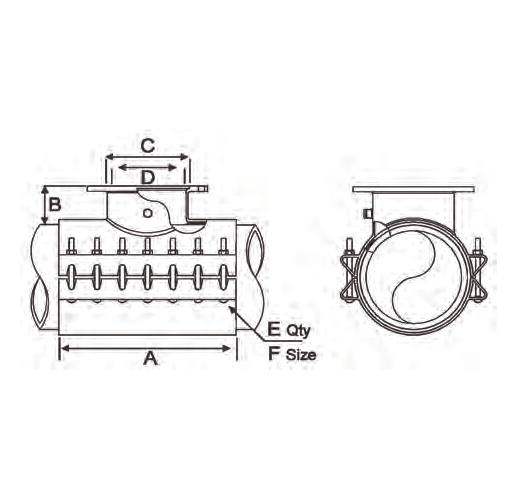

Sizes and Outlets
38 OD ranges from 4.40 to 26.60 in. Open the table for every range and outlet.
All 38 sizes
| Nominal |
Sleeve OD range |
Outlets |
| 4 in |
4.40-4.60 in |
2, 3, 4 in |
| 4 in |
4.50-4.80 in |
2, 3, 4 in |
| 4 in |
4.74-5.00 in |
2, 3, 4 in |
| 4 in |
5.10-5.30 in |
2, 3, 4 in |
| 6 in |
6.56-6.90 in |
2, 3, 4, 6 in |
| 6 in |
6.83-7.16 in |
2, 3, 4, 6 in |
| 6 in |
7.05-7.40 in |
2, 3, 4, 6 in |
| 6 in |
7.40-7.73 in |
2, 3, 4, 6 in |
| 8 in |
8.54-8.74 in |
2, 3, 4, 6, 8 in |
| 8 in |
8.60-9.05 in |
2, 3, 4, 6, 8 in |
| 8 in |
8.98-9.37 in |
2, 3, 4, 6, 8 in |
| 8 in |
9.27-9.69 in |
2, 3, 4, 6, 8 in |
| 10 in |
9.83-10.25 in |
2, 3, 4, 6, 8 in |
| 10 in |
10.64-10.86 in |
2, 3, 4, 6, 8, 10 in |
| 10 in |
10.75-11.15 in |
2, 3, 4, 6, 8 in |
| 10 in |
11.00-11.40 in |
2, 3, 4, 6, 8, 10 in |
| 10 in |
11.36-11.80 in |
2, 3, 4, 6, 8, 10 in |
| 10 in |
11.76-12.24 in |
2, 3, 4, 6, 8, 10 in |
| 12 in |
12.62-12.88 in |
2, 3, 4, 6, 8, 10, 12 in |
| 12 in |
12.75-13.20 in |
2, 3, 4, 6, 8, 10, 12 in |
| 12 in |
13.10-13.50 in |
2, 3, 4, 6, 8, 10, 12 in |
| 12 in |
13.70-14.09 in |
2, 3, 4, 6, 8, 10, 12 in |
| 12 in |
14.08-14.40 in |
2, 3, 4, 6, 8, 10, 12 in |
| 14 in |
15.20-15.60 in |
2, 3, 4, 6, 8, 10, 12 in |
| 14 in |
15.80-16.20 in |
2, 3, 4, 6, 8, 10, 12 in |
| 14 in |
16.38-16.78 in |
2, 3, 4, 6, 8, 10, 12 in |
| 16 in |
17.40-17.80 in |
2, 3, 4, 6, 8, 10, 12 in |
| 16 in |
17.75-18.15 in |
2, 3, 4, 6, 8, 10, 12 in |
| 16 in |
18.58-18.98 in |
2, 3, 4, 6, 8, 10, 12 in |
| 18 in |
19.30-19.70 in |
3, 4, 6, 8 in |
| 18 in |
19.80-20.20 in |
3, 4, 6, 8 in |
| 18 in |
21.20-21.40 in |
3, 4, 6, 8 in |
| 20 in |
21.40-21.80 in |
3, 4, 6, 8 in |
| 20 in |
21.90-22.30 in |
3, 4, 6, 8 in |
| 20 in |
22.30-22.70 in |
3, 4, 6, 8 in |
| 24 in |
23.45-23.85 in |
3, 4, 6, 8 in |
| 24 in |
25.60-26.00 in |
3, 4, 6, 8 in |
| 24 in |
26.20-26.60 in |
3, 4, 6, 8 in |
From the JCM price list.
Before You OrderConfirm the pipe OD, outlet size and outlet type before ordering.
For outlets 14 in and larger, the tapping valve make must be specified for the alignment recess.
For a submittal or an odd OD, email sales@watermainsupply.com with the pipe OD, pipe type and line content.
