JCM 462 Stainless Steel Tapping Sleeve - Carbon Steel Flanged Outlet
304 Stainless, Carbon Flange · 2 to 12 in flanged outlets · 4.40-26.60 in pipe OD
304 Stainless, Carbon Flange
Full-Circle SBR Gasket
-40°F to +150°F Gasket
2 to 12 in Flanged Outlets
MSS-SP60 Tapping Valve Recess
AWWA C223 and MSS-SP124
4.40-26.60 in Pipe OD
40-175 lb Weight

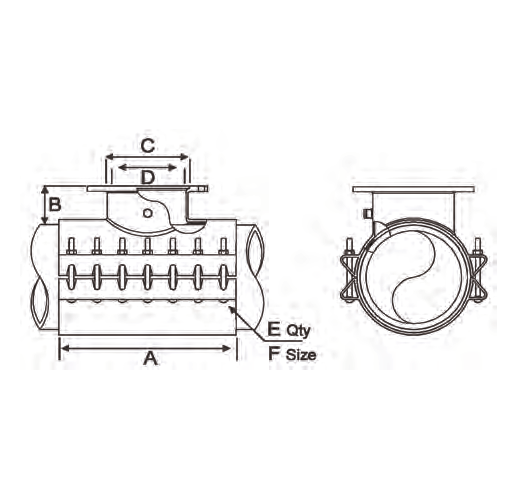

Description
The JCM 462 stainless steel tapping sleeve uses replaceable, self-aligning bolts that can be torqued to 125 ft-lb for high gasket pressure, and a full circumferential gasket with a molded-in recessed bridge plate that seals the whole pipe, insurance against beam breaks on size-on-size taps.
A stainless body and neck join a strong, economical coated carbon steel flange to AWWA C207 Class D with the tapping valve recess.
Typical application: Branching: line branches, valves, internal line access.
Key Features
- Flanged outlet recessed for the tapping valve per MSS-SP60
- Full sleeve reinforces the pipe; lighter than cast sleeves
- Meets MSS-SP124 and ANSI/AWWA C223 as applicable
What Ships and What It Needs to Run
Included: the sleeve halves with the gasket, bolts and nuts.
Tapping valve and tapping machine, ordered separately. A flanged tapping valve bolts to the outlet; size-on-size taps need a 1/2 in undersized shell cutter.
Genuine JCM Industries equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Warranty
Covered for 12 months from the date of purchase against defects in materials and workmanship. Keep the dated invoice as proof of purchase.
Working Pressure
Rated by application. Send the pipe OD, pipe type, outlet and working pressure and we will obtain JCM's rating.
Materials Specifications
| Body |
18-8 Type 304 stainless steel body and neck |
| Outlet |
Coated carbon steel flange per ANSI/AWWA C207 Class D, ANSI 150 lb drilling, recessed per MSS-SP60; Schedule 10 stainless branch |
| Bolts |
Type 304 stainless steel, replaceable and self-aligning, torque to 125 ft-lb |
| Gasket |
Full circumferential virgin SBR per ASTM D2000 M4AA 607, molded-in recessed bridge plate; -40°F to +150°F constant, 180°F intermittent; EPDM optional |
From the JCM 462 material specification.
Pipe Applications
Cast iron, ductile iron, PVC, steel, A/C and other pipe within the listed ranges; JCM does not recommend full circumferential gasket sleeves for HDPE.
Sizes and Outlets
38 OD ranges from 4.40 to 26.60 in. Open the table for every range and outlet.
All 38 sizes
| Nominal |
Sleeve OD range |
Outlets |
| 4 in |
4.40-4.60 in |
2, 3, 4 in |
| 4 in |
4.50-4.80 in |
2, 3, 4 in |
| 4 in |
4.74-5.00 in |
2, 3, 4 in |
| 4 in |
5.10-5.30 in |
2, 3, 4 in |
| 6 in |
6.56-6.90 in |
2, 3, 4, 6 in |
| 6 in |
6.83-7.16 in |
2, 3, 4, 6 in |
| 6 in |
7.05-7.40 in |
2, 3, 4, 6 in |
| 6 in |
7.40-7.73 in |
2, 3, 4, 6 in |
| 8 in |
8.54-8.74 in |
2, 3, 4, 6, 8 in |
| 8 in |
8.60-9.05 in |
2, 3, 4, 6, 8 in |
| 8 in |
8.98-9.37 in |
2, 3, 4, 6, 8 in |
| 8 in |
9.27-9.69 in |
2, 3, 4, 6, 8 in |
| 10 in |
9.83-10.25 in |
2, 3, 4, 6, 8 in |
| 10 in |
10.64-10.86 in |
2, 3, 4, 6, 8, 10 in |
| 10 in |
10.75-11.15 in |
2, 3, 4, 6, 8 in |
| 10 in |
11.00-11.40 in |
2, 3, 4, 6, 8, 10 in |
| 10 in |
11.36-11.80 in |
2, 3, 4, 6, 8, 10 in |
| 10 in |
11.76-12.24 in |
2, 3, 4, 6, 8, 10 in |
| 12 in |
12.62-12.88 in |
2, 3, 4, 6, 8, 10, 12 in |
| 12 in |
12.75-13.20 in |
2, 3, 4, 6, 8, 10, 12 in |
| 12 in |
13.10-13.50 in |
2, 3, 4, 6, 8, 10, 12 in |
| 12 in |
13.70-14.09 in |
2, 3, 4, 6, 8, 10, 12 in |
| 12 in |
14.08-14.40 in |
2, 3, 4, 6, 8, 10, 12 in |
| 14 in |
15.20-15.60 in |
2, 3, 4, 6, 8, 10, 12 in |
| 14 in |
15.80-16.20 in |
2, 3, 4, 6, 8, 10, 12 in |
| 14 in |
16.38-16.78 in |
2, 3, 4, 6, 8, 10, 12 in |
| 16 in |
17.40-17.80 in |
2, 3, 4, 6, 8, 10, 12 in |
| 16 in |
17.75-18.15 in |
2, 3, 4, 6, 8, 10, 12 in |
| 16 in |
18.58-18.98 in |
2, 3, 4, 6, 8, 10, 12 in |
| 18 in |
19.30-19.70 in |
3, 4, 6, 8 in |
| 18 in |
19.80-20.20 in |
3, 4, 6, 8 in |
| 18 in |
21.20-21.40 in |
3, 4, 6, 8 in |
| 20 in |
21.40-21.80 in |
3, 4, 6, 8 in |
| 20 in |
21.90-22.30 in |
3, 4, 6, 8 in |
| 20 in |
22.30-22.70 in |
3, 4, 6, 8 in |
| 24 in |
23.45-23.85 in |
3, 4, 6, 8 in |
| 24 in |
25.60-26.00 in |
3, 4, 6, 8 in |
| 24 in |
26.20-26.60 in |
3, 4, 6, 8 in |
From the JCM price list.
Before You OrderConfirm the pipe OD, outlet size and outlet type before ordering.
For outlets 14 in and larger, the tapping valve make must be specified for the alignment recess.
For a submittal or an odd OD, email sales@watermainsupply.com with the pipe OD, pipe type and line content.
