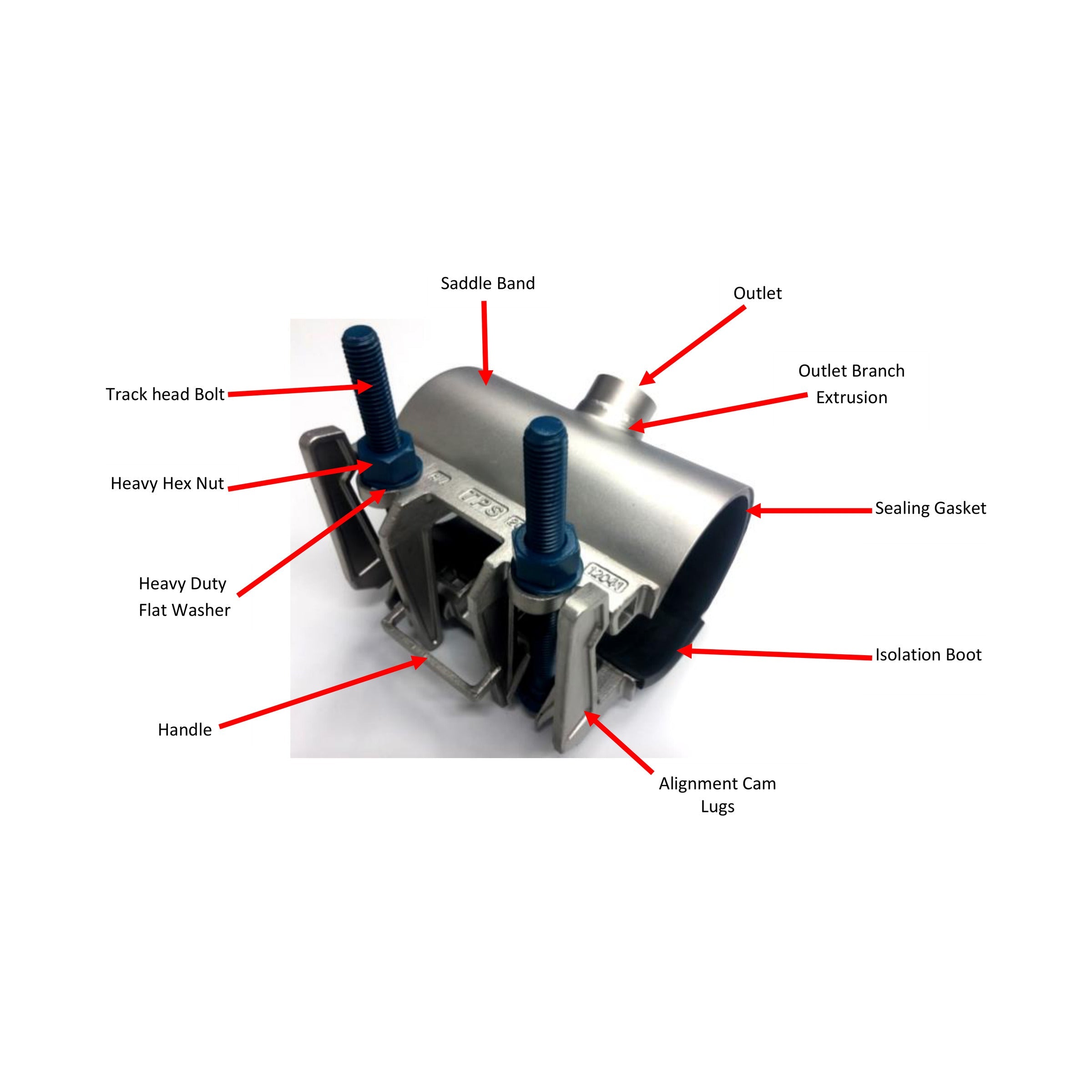

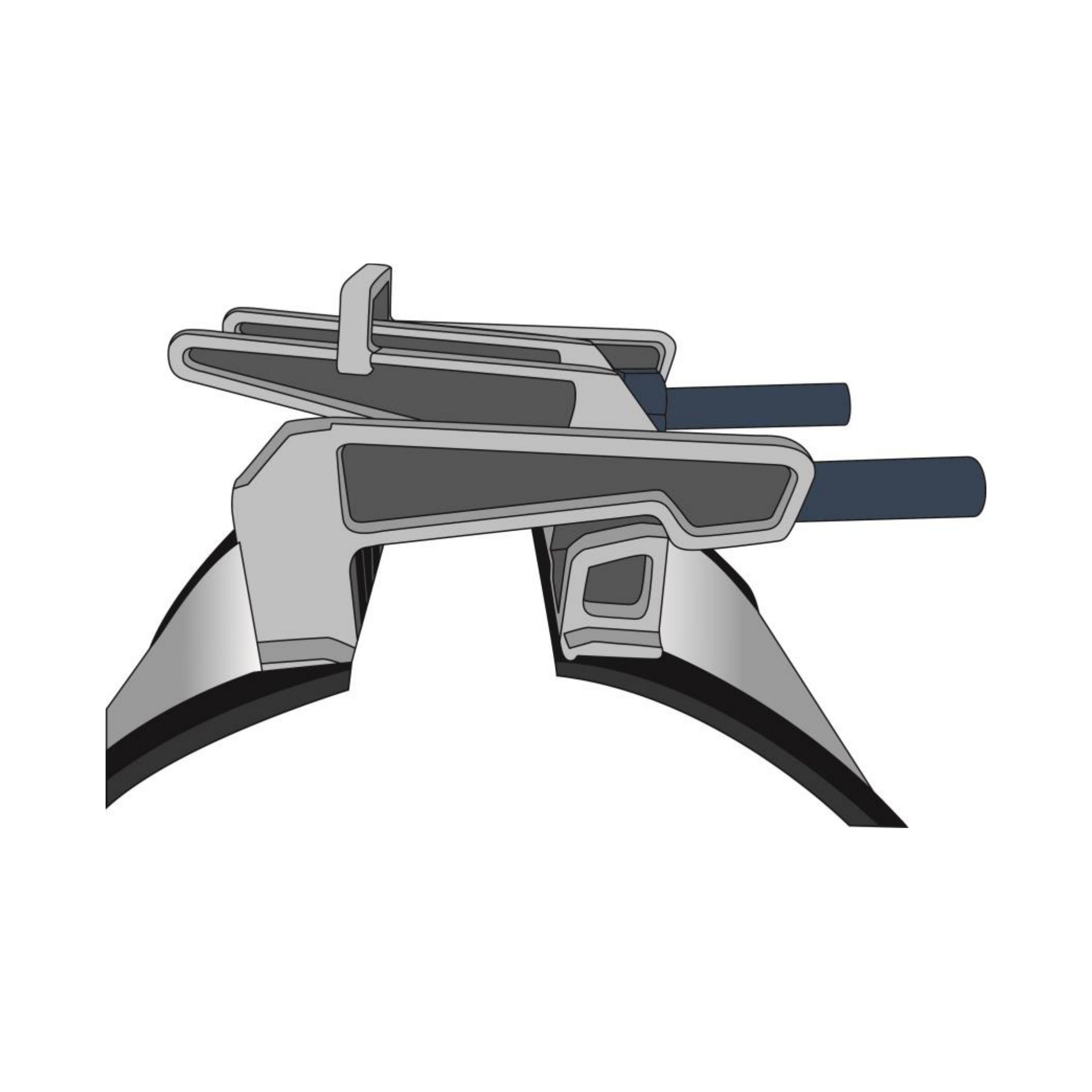

The T3 service saddle fits ductile iron, cast iron, PVC, asbestos cement, steel and HDPE with one part, cutting saddle inventory. Its patented cam lug system with built-in handle covers up to 0.9 in of OD on single panel saddles, and the spin-extruded branch resists valve installation torque. Dresser offers the 316 version for PRV and sewer service.
Application: Service taps on water mains.
Included: saddle with gasket, isolation boot, lugs, bolts and nuts.
Also needed: corporation stop or tapping valve.
Covered for 12 months from the date of purchase under Dresser’s published warranty terms.

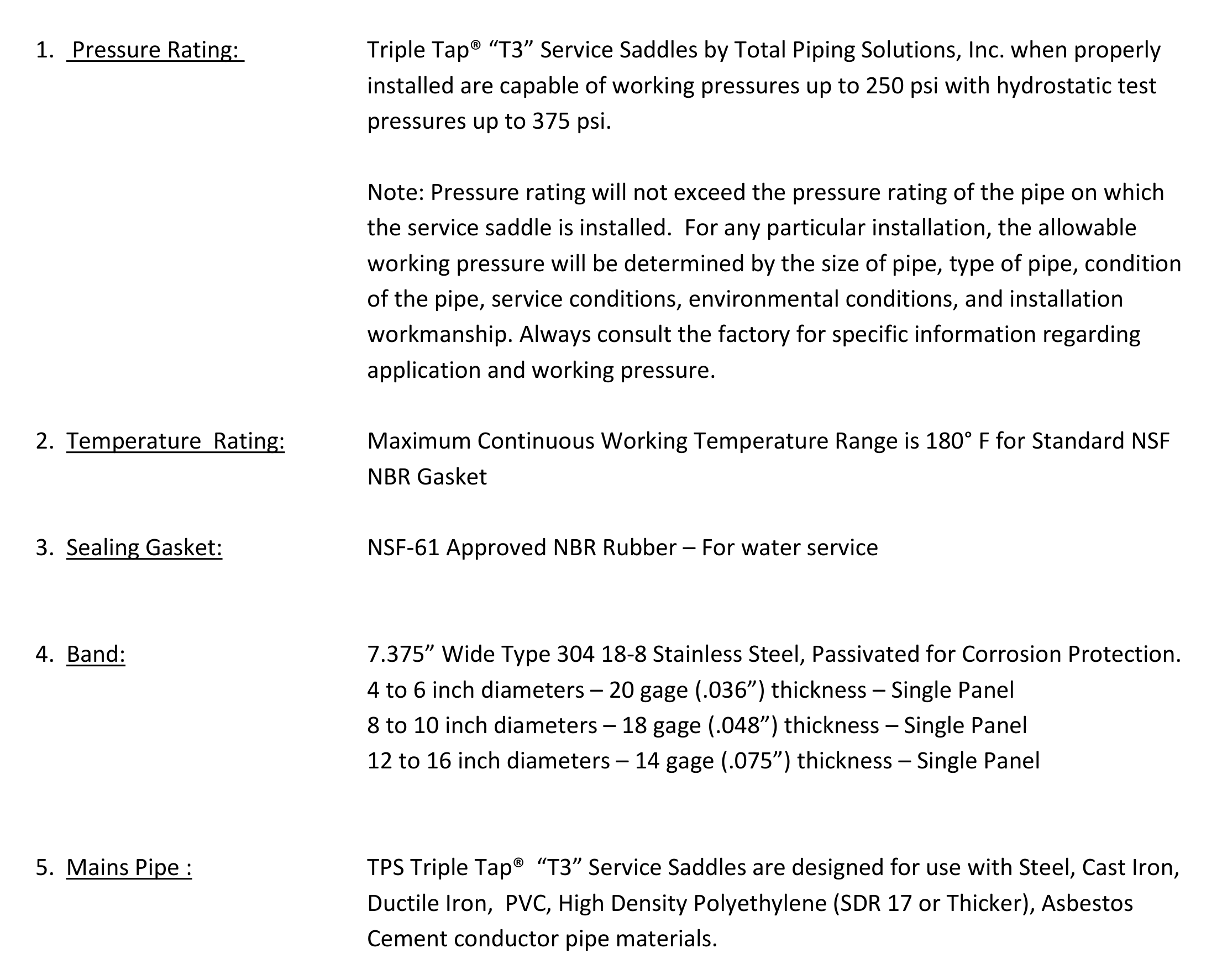

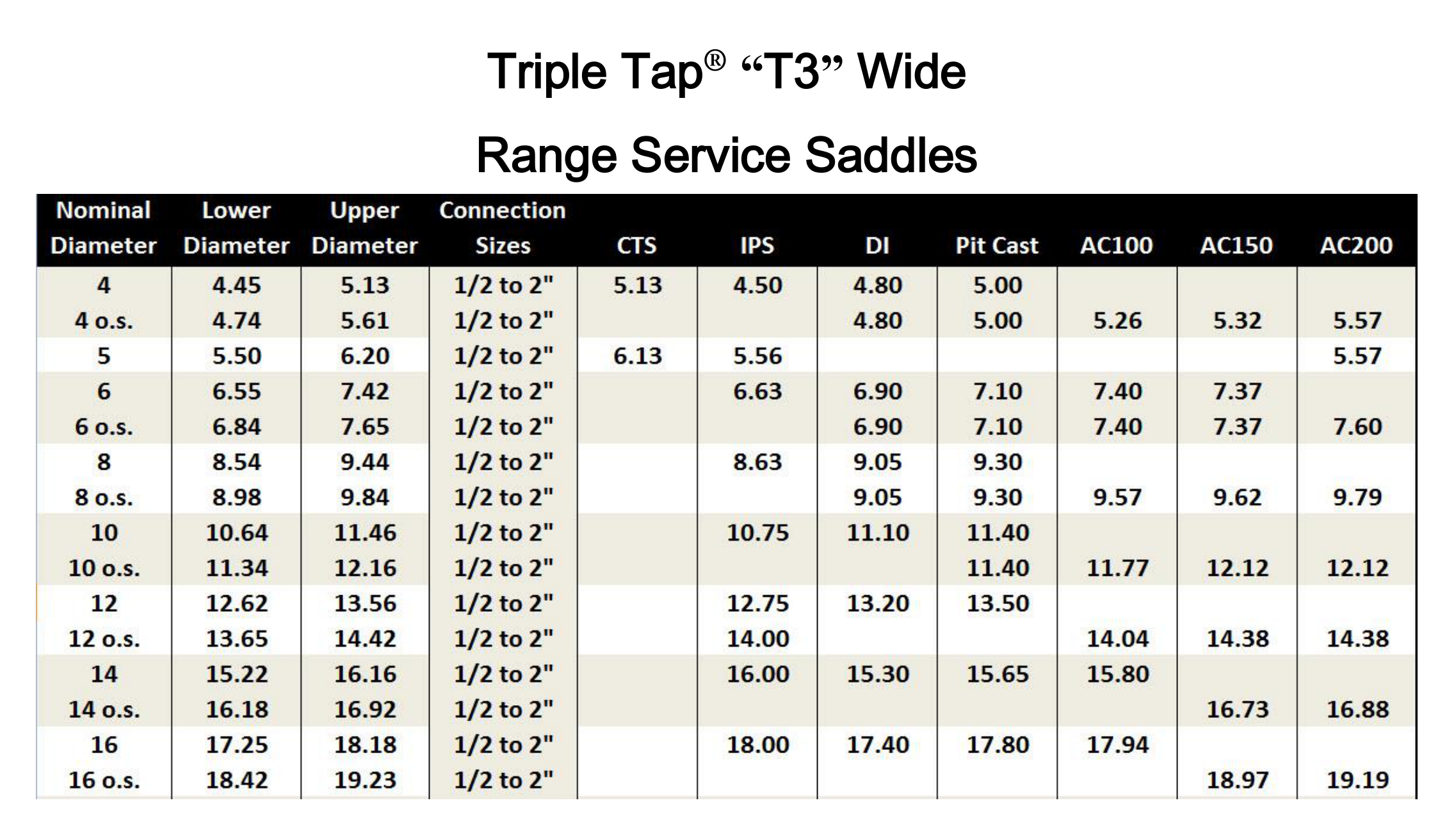

Working pressure depends on diameter and panel count.
| Panels | Nominal sizes | Working pressure |
|---|---|---|
| Single | 2 in to 16 in | 250 PSI |
| Double | 18 in to 24 in | 200 PSI |
| Double | 30 in to 36 in | 150 PSI |
| Triple | 42 in to 48 in | 125 PSI |
Source: TPS T3 Service Saddle Technical Specification and Brochure. The rating on the product label is the actual rating of each part.
| Band | Type 316 stainless steel |
| Outlet | Type 316 stainless steel |
| Gasket | NBR, NSF-61, water service; EPDM on request |

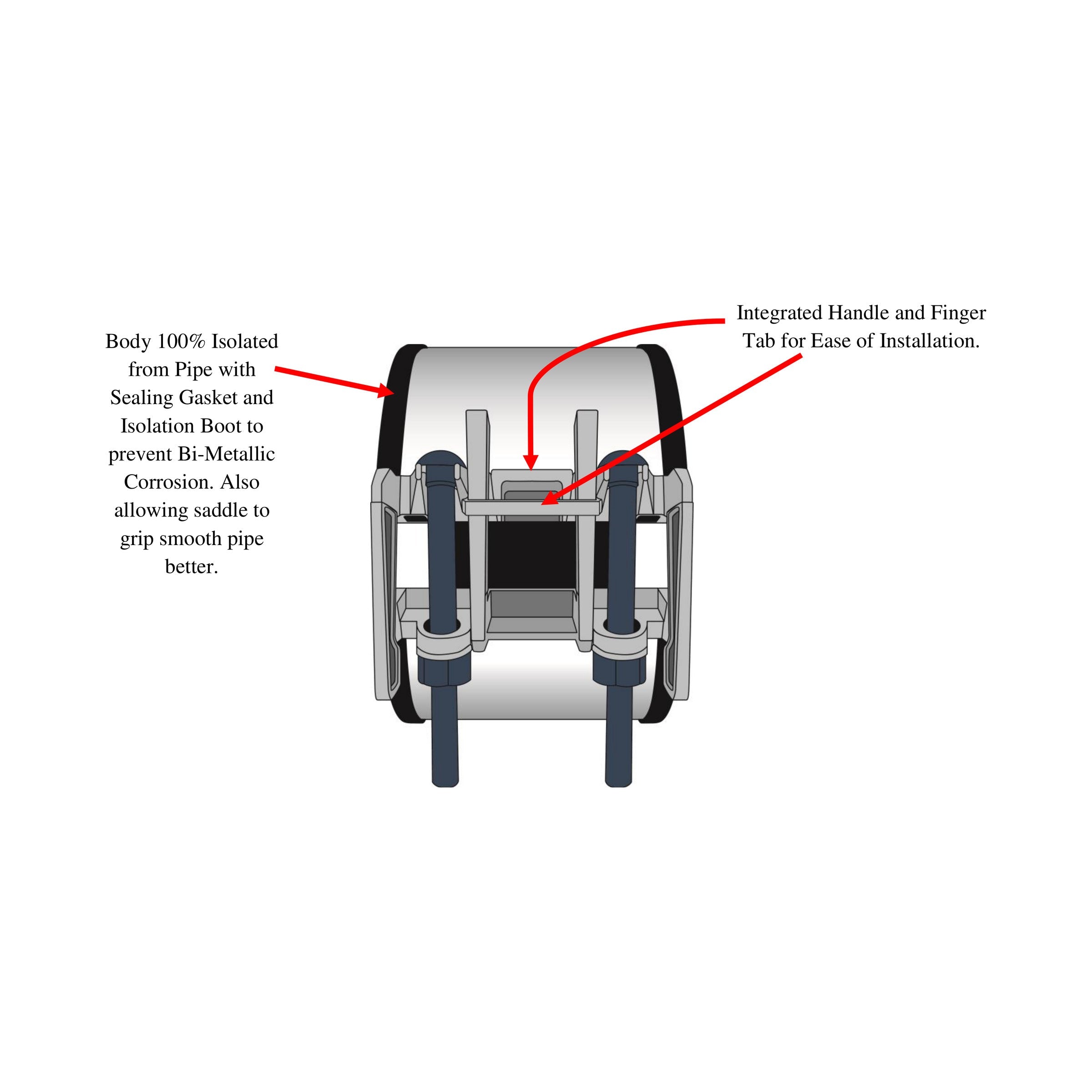

| Isolation boot | EPDM |
| Bolts and nuts | Type 304 stainless, 5/8 in rolled threads, fluoropolymer coated |
Source: TPS T3 Service Saddle Technical Specification and Brochure.
