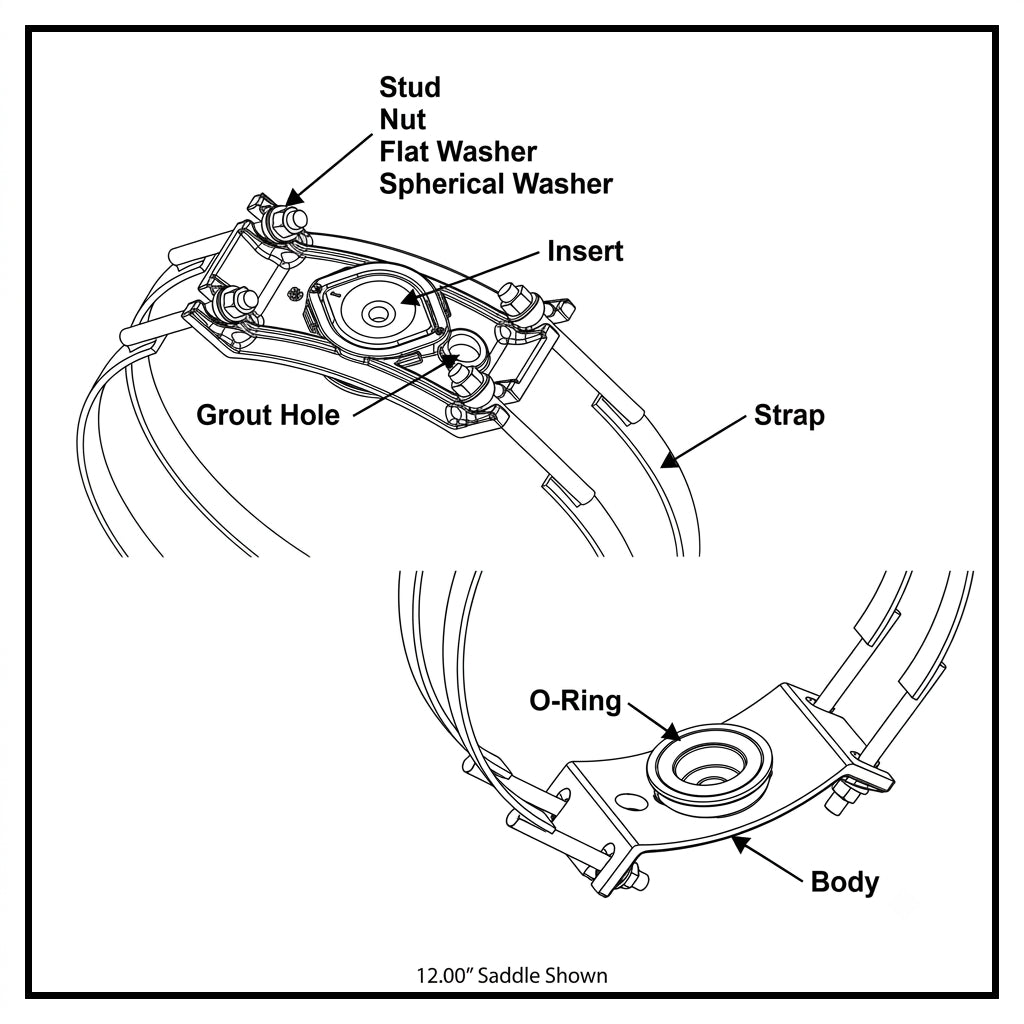

Smith-Blair Style 362 Service Saddle - Concrete Cylinder Pipe

All Smith-Blair products are Made to Order and Non-Returnable

Items typically shipped in 5 - 10 business days

Product Features:

• Ductile iron body with epoxy coating and epoxy coated straps
• Designed for concrete pressure pipe (sized steel or ductile iron OD)
• For tapping water mains under pressure
• Double O-ring seal for positive sealing
• Working pressure up to 150 PSI
• Available in 3/4" thru 2" NPT and CC taps
• Meets AWWA C800 standards

Materials:

• BODY Ductile Iron ASTM A536 with Epoxy Coating
• STRAPS Carbon Steel with Epoxy Coating
• GASKET Nitrile (Buna-N) NSF 61 approved
• BOLTS AND NUTS Alloy steel

Specifications:

• Nominal Sizes: 12" through 36"
• OD Range: 15.38" to 41.00" (concrete coating OD)
• Tap Sizes: 3/4", 1", 1-1/4", 1-1/2", 2" NPT and CC
• Working Pressure: 150 PSI
• Temperature Range: -20°F to 180°F

Standards & Approvals:

• Conforms to AWWA C800
• NSF 61 approved gasket material
• Ductile Iron body per ASTM A536
