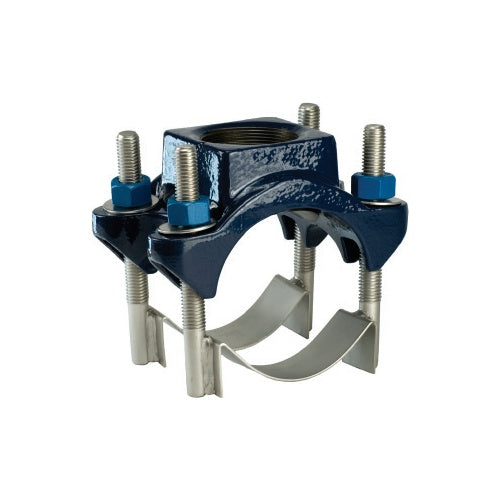

JCM 406 Coated Service Saddle - product photo
JCM 406 Coated Service Saddle - alternate view
JCM 406 Coated Service Saddle - product photo
JCM 406 Coated Service Saddle - alternate view

JCM 406 Coated Service Saddle - Double Stainless Steel Straps

Nominal Size - OD Range: 2 in - 2.35-2.63 in OD
Tap Size: 1/2 in NPT
Part No.: 406-0238X04IP

Product variant with selected options does not exist!
$130.32
SKU: 406-0238X04IP
Weight : 4.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
JCM Industries · Service Saddle
JCM 406 Coated Service Saddle - Double Stainless Straps
Ductile iron body · 304 stainless straps · fusion plastic coating · 2 to 24 in
250 PSI Working Pressure
Ductile Iron Body
NBR (Buna-N) Gasket
-40°F to +212°F Gasket
304 Stainless Straps
Fusion Plastic Coating
AWWA C800
1/2 to 2-1/2 in NPT and CC Taps
2.35-26.50 in Pipe OD
4-20 lb Weight
Description

The JCM 406 is a heavy-duty double strap service saddle for tapping branch connections from 1/2 through 2-1/2 in, supplied with two Type 304 stainless steel straps, with stainless bolts, nuts and washers. A service saddle avoids the problems of direct taps, such as leaking threads or split pipe, and reinforces the connection.

The wide-body wrap-around design and wide straps support the pipe and keep the saddle stable, and the broad pressure-activated gasket, set in a retaining cavity, seals tighter as line pressure rises. Its large sealed outlet area also repairs holes, pin holes and leaking 3/4 and 1 in direct taps.

A fusion-bonded blue plastic coating, 12 mils minimum with over 12,000 volts dielectric strength, adds corrosion resistance in hot and corrosive soils.

Typical application: Branch lines, air valves, service connections, monitors, vents or bleeders and flow sensors.

Key Features

  • Heavy threaded outlet, IP (NPT) or CC thread, reinforces the critical connection
  • Broad pressure-activated gasket bonded into a cavity for low and high pressure
  • Wide straps and closed canted ears for maximum strap bearing
  • Wide-body wrap-around design supports and reinforces the pipe
  • Meets or exceeds ANSI/AWWA C800 as applicable
What Ships and What It Needs to Run

Included: the saddle body with its bonded gasket and two Type 304 stainless steel straps, with stainless bolts, nuts and washers, with nuts and washers.

Corporation stop and tapping, at install. The corporation stop or service fitting threads into the outlet (IP = NPT, CC = AWWA corporation thread), and the main is tapped through it.

Genuine JCM Industries equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Warranty

Covered for 12 months from the date of purchase against defects in materials and workmanship. Keep the dated invoice as proof of purchase.

Working Pressure

250 PSI working pressure (hydrostatic). JCM rates its service saddles for 250 PSI working pressure when installed per its instructions; higher pressures are available from JCM on request. The contoured gasket makes a positive initial seal that increases as line pressure rises.

Materials Specifications
Body Ductile iron, ASTM A536
Straps Bands, bolts, nuts and washers 18-8 Type 304 stainless steel
Gasket NBR (Buna-N) per ASTM D2000, molded virgin rubber, pressure-activated hydromechanical design, bonded into a cavity; EPDM optional
Temperature -40°F to +212°F; for water, salt solutions, mild acids, bases and sewage
Finish Fusion-bonded high-density blue plastic coating, 12 mils minimum, dielectric strength over 12,000 volts

From the JCM service saddle material specifications.

Pipe Applications

All common pipe types within the listed OD ranges, including C900 PVC ODs on 14 in and larger.

Sizes and Outlet Taps

36 OD ranges from 2.35 to 26.50 in. Open the table for every range and tap.

All 36 sizes
Nominal Pipe OD range Outlet taps
2 in 2.35-2.63 in 1/2, 3/4, 1 in NPT; 3/4, 1 in CC
2-1/2 in 2.70-3.13 in 1/2, 3/4, 1 in NPT; 3/4, 1 in CC
3 in 3.25-3.50 in 1/2, 3/4, 1, 1-1/4, 1-1/2, 2 in NPT; 3/4, 1, 1-1/4, 1-1/2 in CC
3 to 4 in 3.80-4.13 in 1/2, 3/4, 1, 1-1/4, 1-1/2, 2 in NPT; 3/4, 1, 1-1/4, 1-1/2 in CC
4 in 4.25-4.50 in 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2 in NPT; 3/4, 1, 1-1/4, 1-1/2, 2 in CC
4 in 4.50-4.80 in 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2 in NPT; 3/4, 1, 1-1/4, 1-1/2, 2 in CC
4 in 4.74-5.45 in 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2 in NPT; 3/4, 1, 1-1/4, 1-1/2, 2 in CC
5 in 5.50-5.56 in 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2 in NPT; 3/4, 1, 1-1/4, 1-1/2, 2 in CC
6 in 6.50-6.63 in 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2 in NPT; 3/4, 1, 1-1/4, 1-1/2, 2 in CC
6 in 6.63-6.90 in 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2 in NPT; 3/4, 1, 1-1/4, 1-1/2, 2 in CC
6 in 6.84-7.60 in 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2 in NPT; 3/4, 1, 1-1/4, 1-1/2, 2 in CC
8 in 8.50-8.63 in 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2 in NPT; 3/4, 1, 1-1/4, 1-1/2, 2 in CC
8 in 8.63-9.05 in 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2 in NPT; 3/4, 1, 1-1/4, 1-1/2, 2 in CC
8 in 8.99-9.79 in 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2 in NPT; 3/4, 1, 1-1/4, 1-1/2, 2 in CC
10 in 10.60-10.75 in 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2 in NPT; 3/4, 1, 1-1/4, 1-1/2, 2 in CC
10 in 10.75-11.10 in 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2 in NPT; 3/4, 1, 1-1/4, 1-1/2, 2 in CC
10 in 11.00-12.25 in 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2 in NPT; 3/4, 1, 1-1/4, 1-1/2, 2 in CC
10 in 11.10-11.40 in 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2 in NPT; 3/4, 1, 1-1/4, 1-1/2, 2 in CC
12 in 12.60-12.75 in 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2 in NPT; 3/4, 1, 1-1/4, 1-1/2, 2 in CC
12 in 12.75-13.20 in 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2 in NPT; 3/4, 1, 1-1/4, 1-1/2, 2 in CC
12 in 12.75-13.50 in 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2 in NPT; 3/4, 1, 1-1/4, 1-1/2, 2 in CC
12 in 13.10-14.38 in 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2 in NPT; 3/4, 1, 1-1/4, 1-1/2, 2 in CC
12 to 14 in 14.00-15.20 in 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2 in NPT; 3/4, 1, 1-1/4, 1-1/2, 2 in CC
14 to 16 in 15.20-16.60 in 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2 in NPT; 3/4, 1, 1-1/4, 1-1/2, 2 in CC
14 in C900 15.30 in 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2 in NPT; 3/4, 1, 1-1/4, 1-1/2, 2 in CC
16 to 18 in 17.30-18.88 in 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2 in NPT; 3/4, 1, 1-1/4, 1-1/2, 2 in CC
16 in C900 17.40 in 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2 in NPT; 3/4, 1, 1-1/4, 1-1/2, 2 in CC
18 to 20 in 19.00-20.50 in 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2 in NPT; 3/4, 1, 1-1/4, 1-1/2, 2 in CC
18 in C900 19.50 in 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2 in NPT; 3/4, 1, 1-1/4, 1-1/2, 2 in CC
18 to 20 in 20.50-21.50 in 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2 in NPT; 3/4, 1, 1-1/4, 1-1/2, 2 in CC
20 in 21.35-22.60 in 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2 in NPT; 3/4, 1, 1-1/4, 1-1/2, 2 in CC
20 in C900 21.60 in 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2 in NPT; 3/4, 1, 1-1/4, 1-1/2, 2 in CC
20 in 22.50-23.70 in 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2 in NPT; 3/4, 1, 1-1/4, 1-1/2, 2 in CC
24 in 23.75-25.25 in 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2 in NPT; 3/4, 1, 1-1/4, 1-1/2, 2 in CC
24 in 25.50-26.50 in 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2 in NPT; 3/4, 1, 1-1/4, 1-1/2, 2 in CC
24 in C900 25.80 in 1/2, 3/4, 1, 1-1/4, 1-1/2, 2, 2-1/2 in NPT; 3/4, 1, 1-1/4, 1-1/2, 2 in CC

From the JCM price list. Small sizes do not take the larger outlets; the picker shows only what JCM builds. IP (NPT) = iron pipe thread; CC = AWWA corporation stop thread.

Before You OrderConfirm the pipe OD, outlet size and thread type (IP or CC) before ordering.
For a submittal or an odd OD, email sales@watermainsupply.com with the pipe OD, pipe type and line content.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
