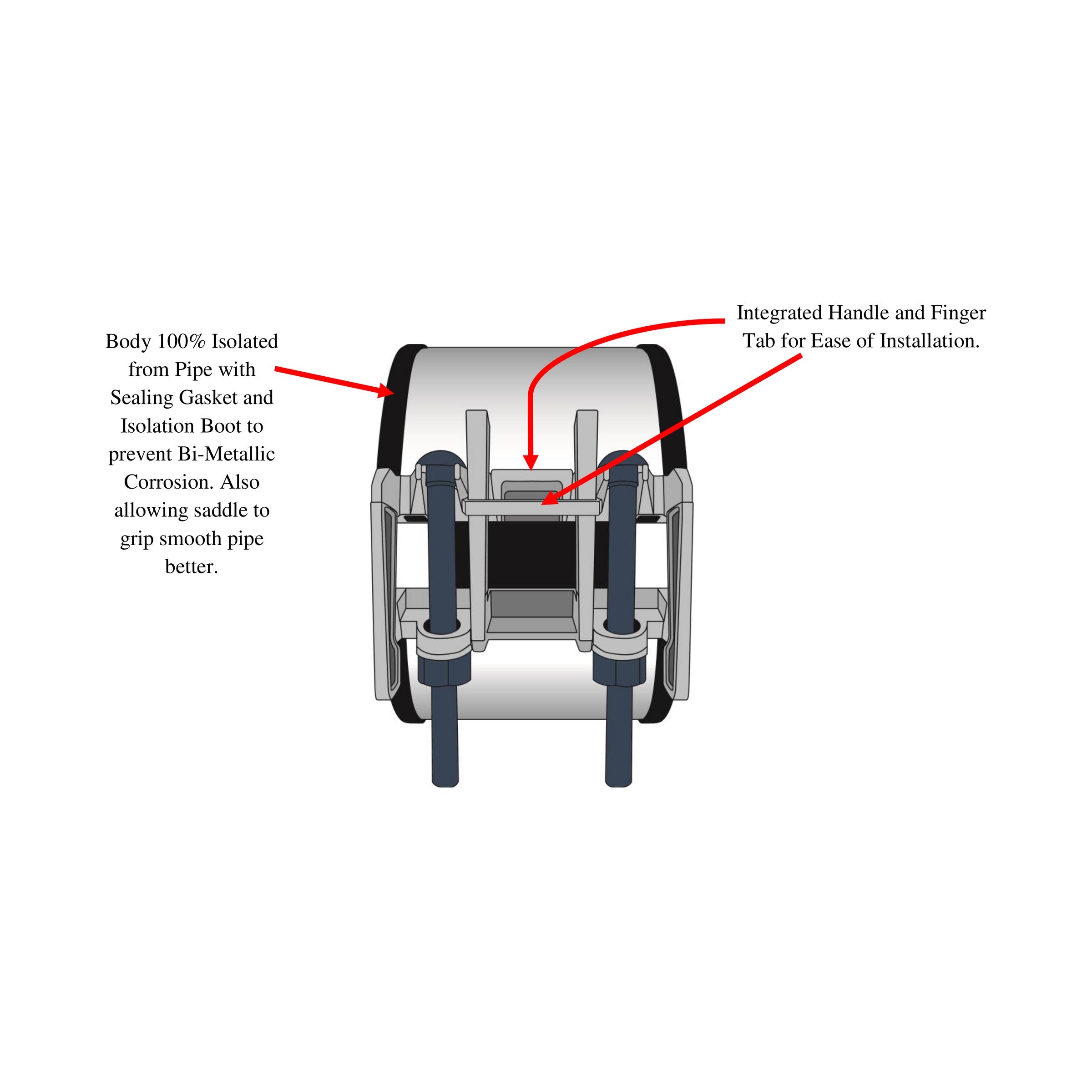

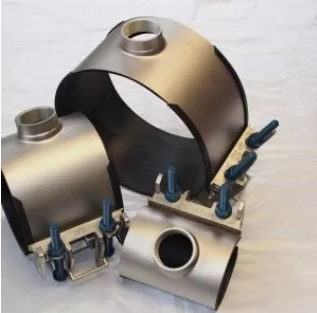

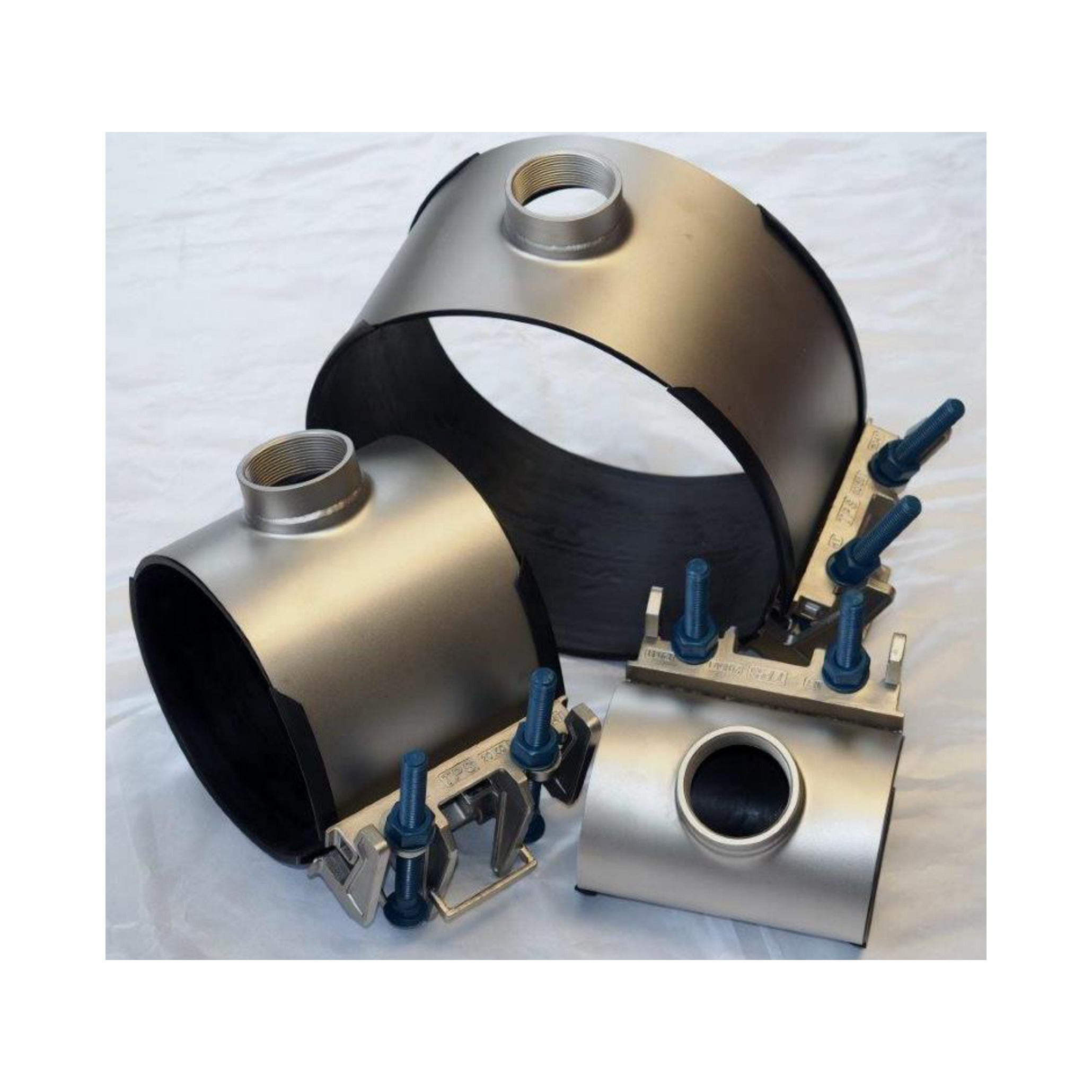

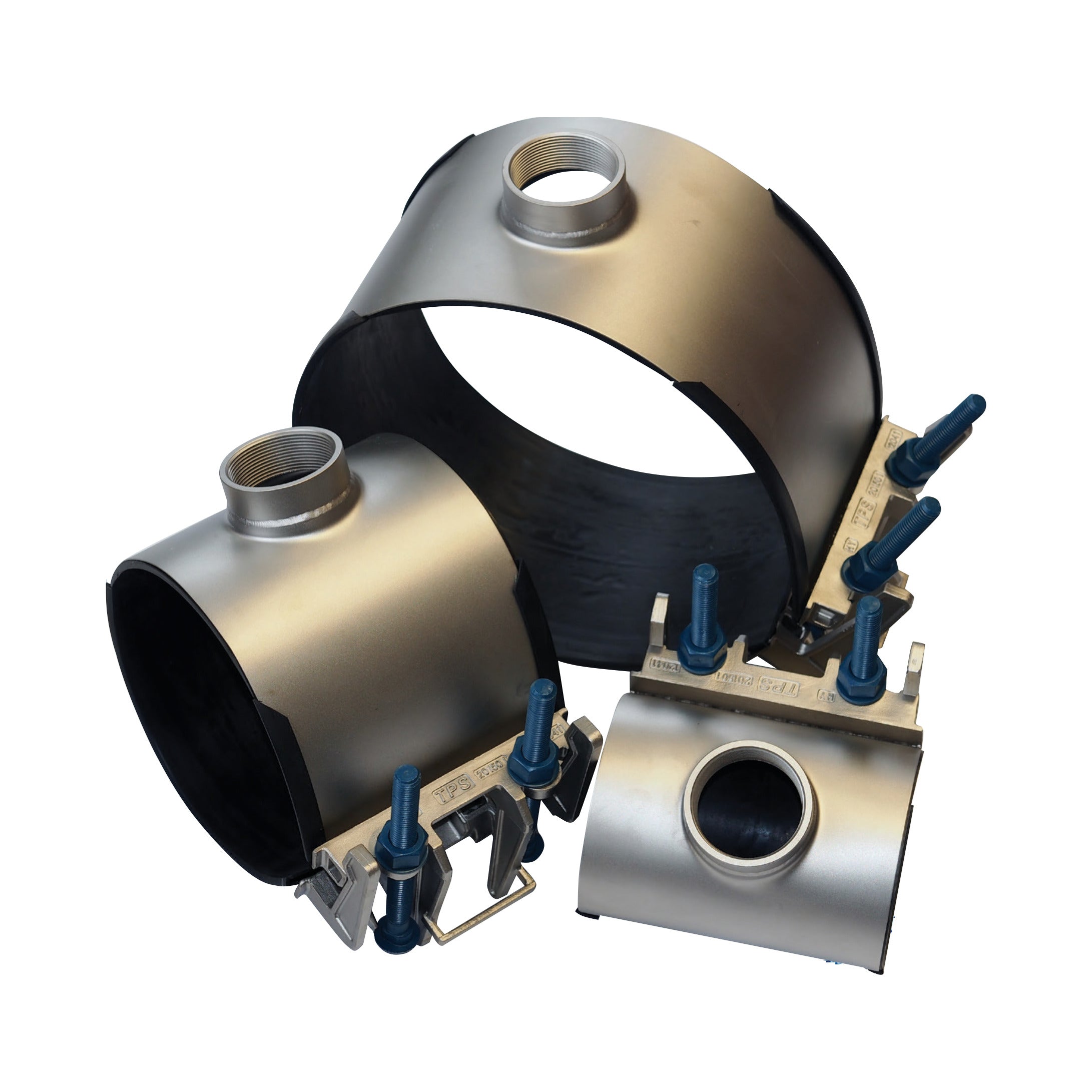

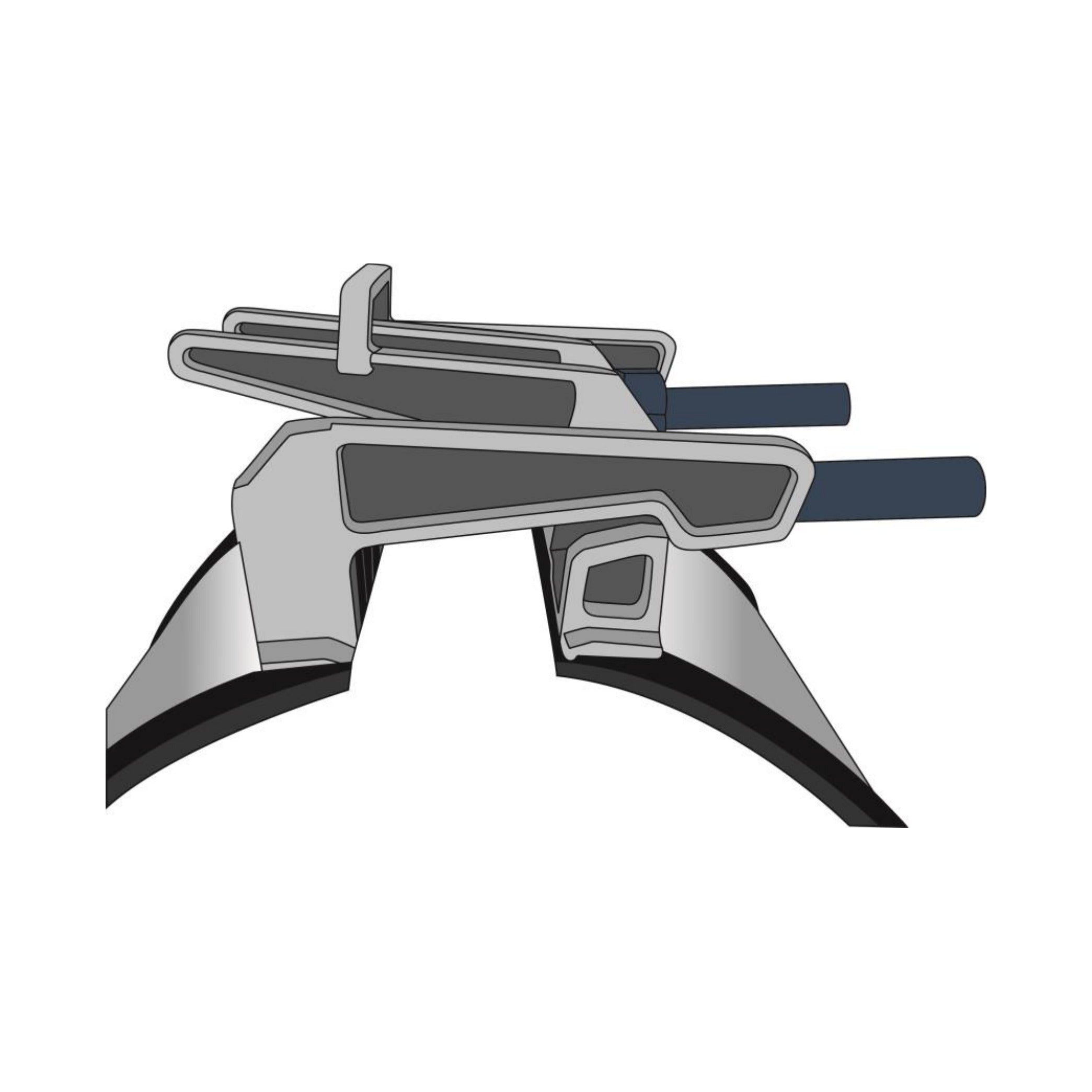

The T3 service saddle fits ductile iron, cast iron, PVC, asbestos cement, steel and HDPE with one part, cutting saddle inventory. Its patented cam lug system with built-in handle covers up to 0.9 in of OD on single panel saddles, and the spin-extruded branch resists valve installation torque. This version uses removable lugs for installation in tight spaces.
Application: Service taps on water mains.

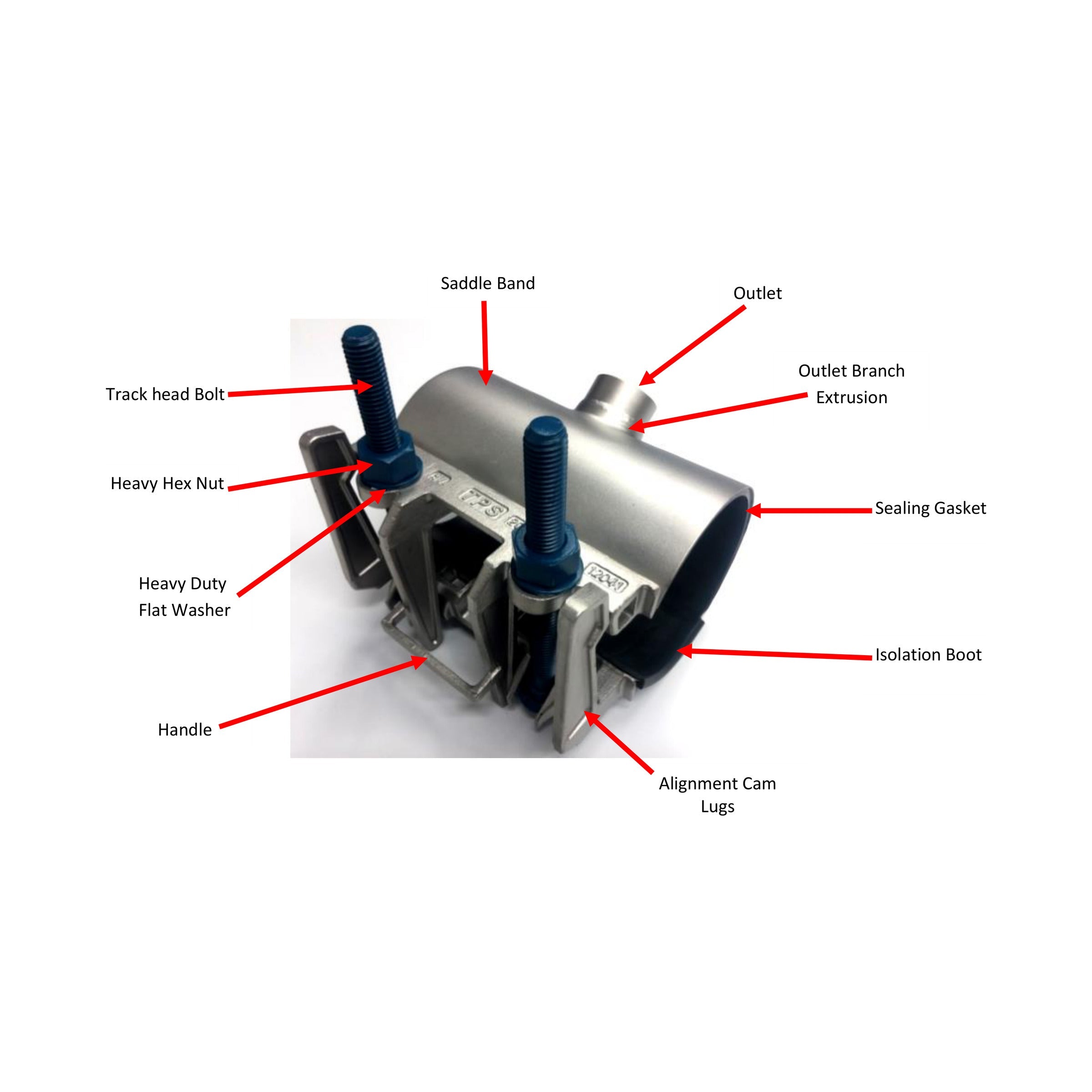

Included: saddle with gasket, isolation boot, lugs, bolts and nuts.
Also needed: corporation stop or tapping valve.
Covered for 12 months from the date of purchase under Dresser’s published warranty terms.

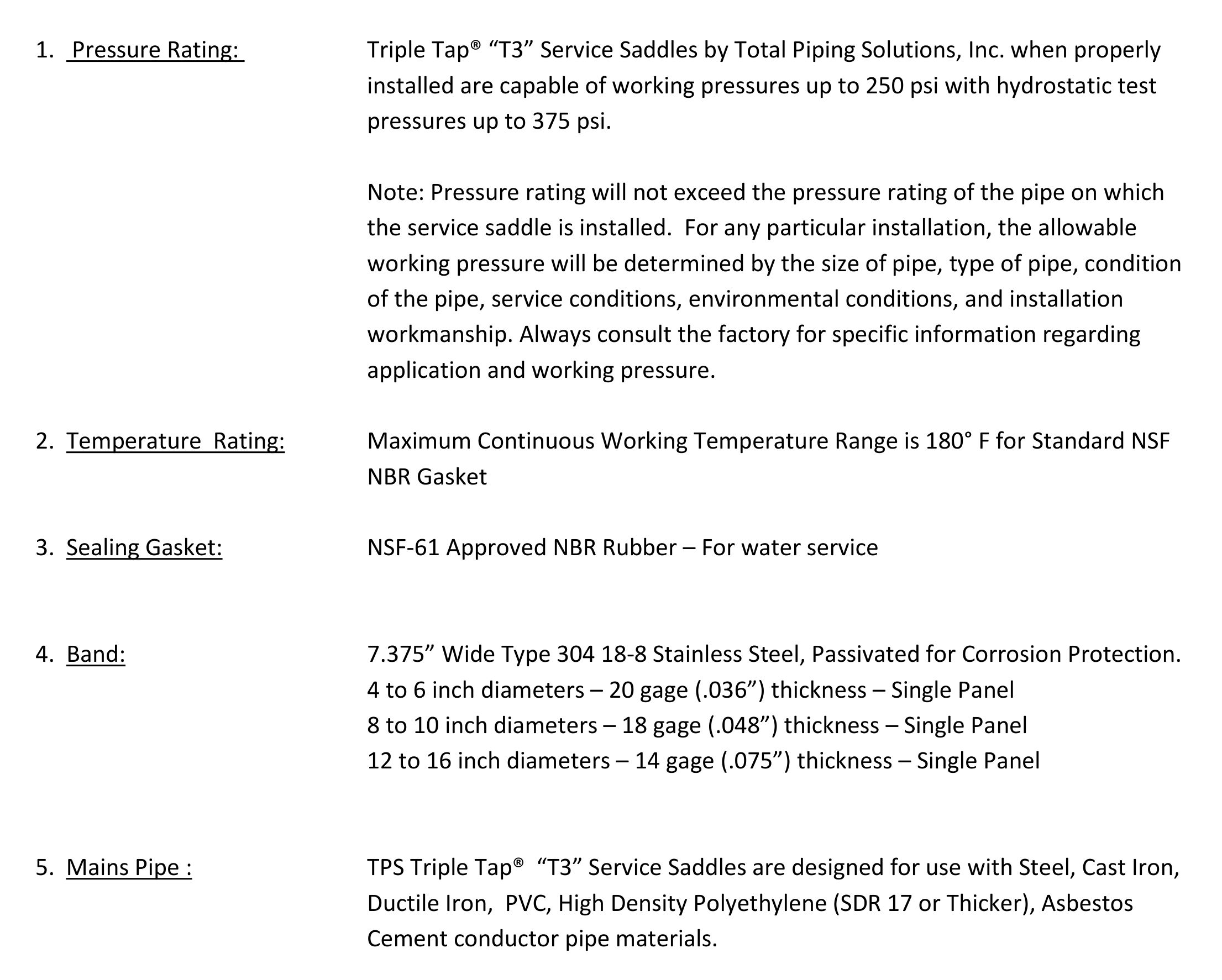

Working pressure depends on diameter and panel count.
| Panels | Nominal sizes | Working pressure |
|---|---|---|
| Single | 2 in to 16 in | 250 PSI |
| Double | 18 in to 24 in | 200 PSI |
| Double | 30 in to 36 in | 150 PSI |
| Triple | 42 in to 48 in | 125 PSI |
Source: TPS T3 Service Saddle Technical Specification and Brochure. The rating on the product label is the actual rating of each part.

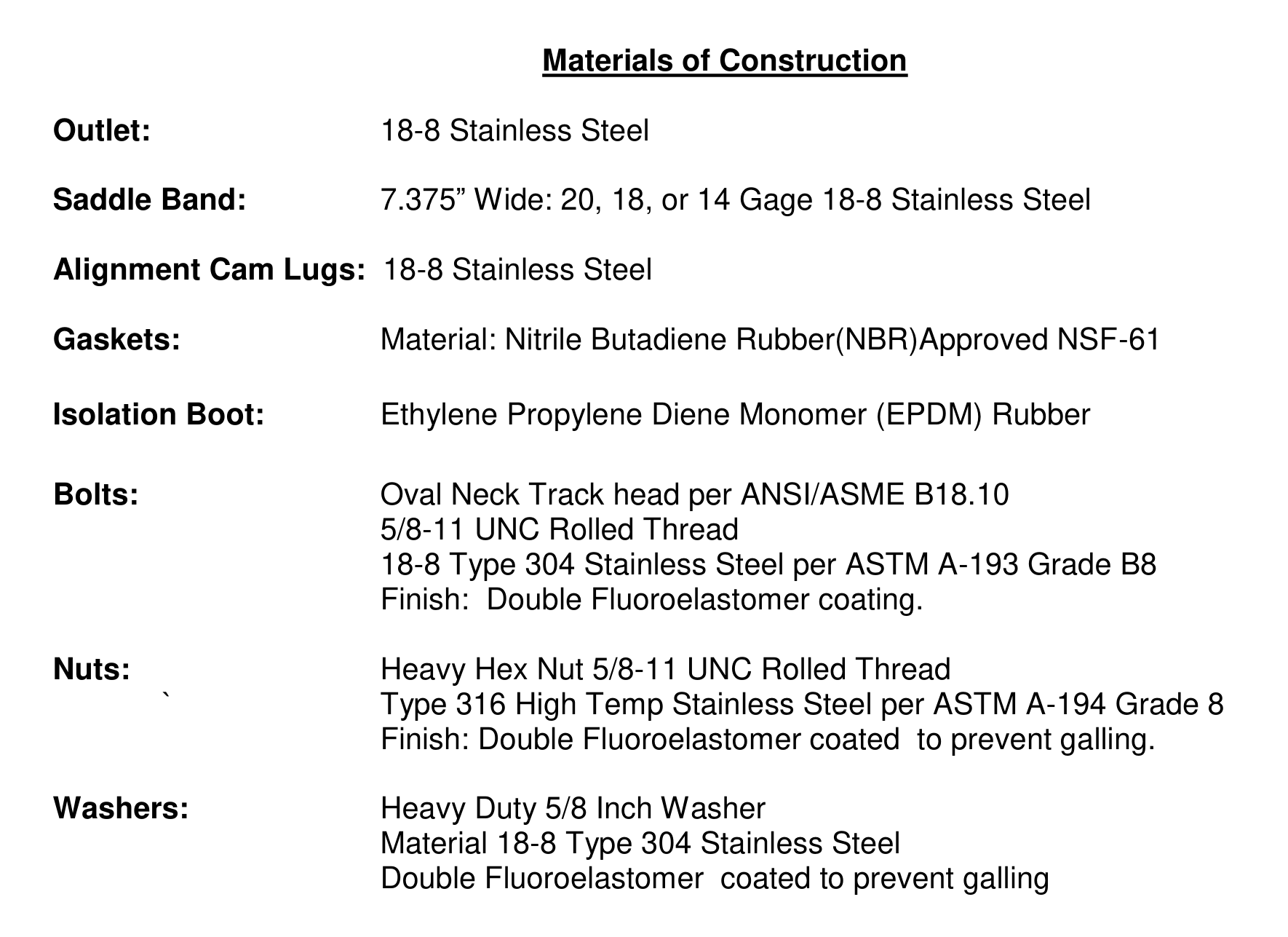

| Band | Type 304 18-8 stainless steel, passivated |
| Outlet | Type 304 18-8 stainless steel, passivated |
| Gasket | NBR, NSF-61, water service; EPDM on request |
| Isolation boot | EPDM |
| Bolts and nuts | Type 304 stainless, 5/8 in rolled threads, fluoropolymer coated |
Source: TPS T3 Service Saddle Technical Specification and Brochure.
Ductile iron, cast iron, PVC, asbestos cement, steel, CTS and IPS, and HDPE (DR 17 or thicker, buried service only).

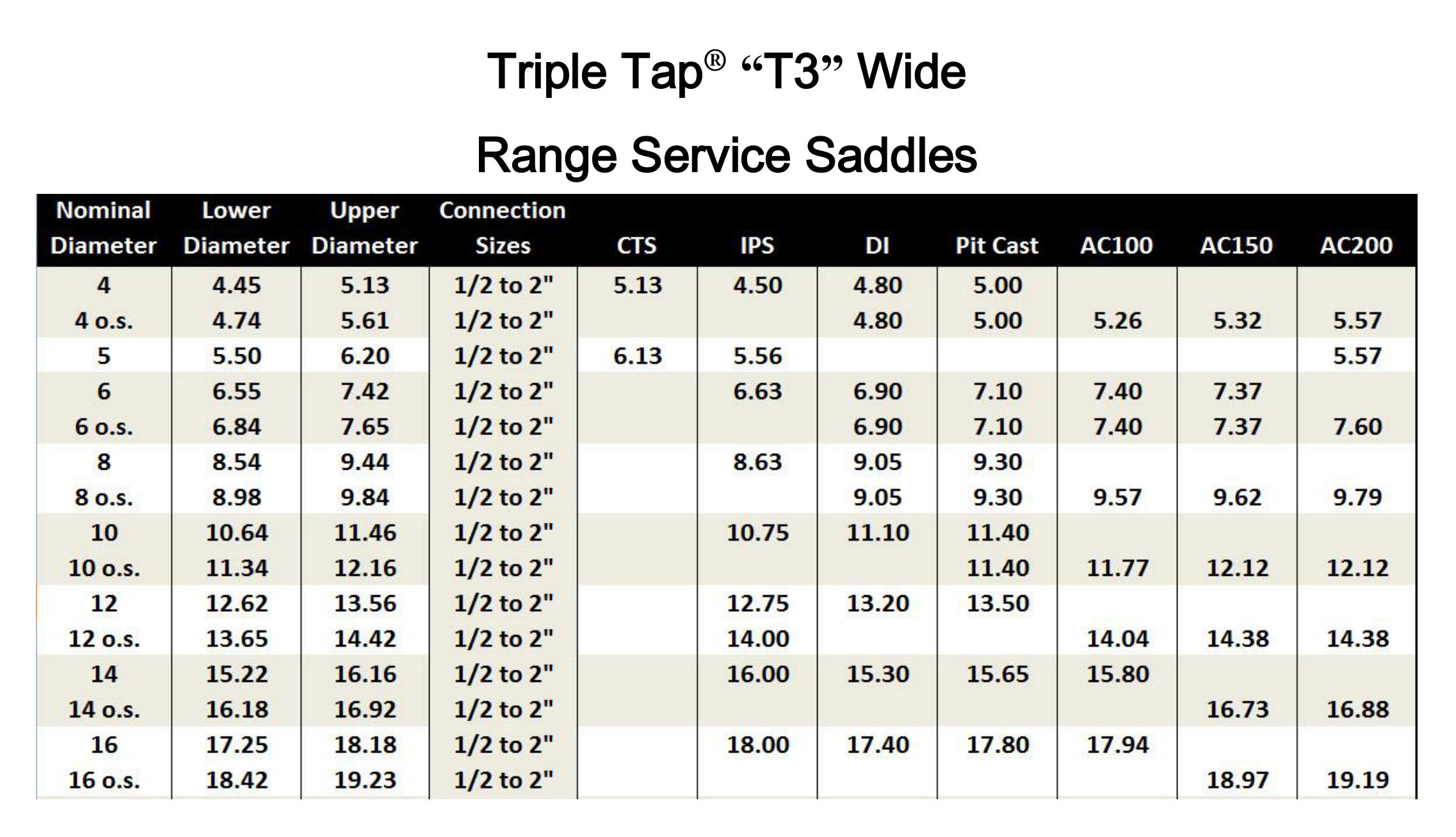

| Nominal Size - OD Range | Outlet Thread |
|---|---|
| 2 in - 2.10-2.40 in OD | CC Outlet, NPT Outlet |
| 3 in CTS - 3.10-3.30 in OD | CC Outlet, NPT Outlet |
| 3 in IPS - 3.30-3.60 in OD | CC Outlet, NPT Outlet |
| 3 in - 3.46-4.00 in OD | CC Outlet, NPT Outlet |
| 4 in CTS - 3.79-4.13 in OD | CC Outlet, NPT Outlet |
| 4 in - 4.45-5.13 in OD | CC Outlet, NPT Outlet |
| 4 in OS - 4.74-5.61 in OD | CC Outlet, NPT Outlet |
| 5 in - 5.50-6.20 in OD | CC Outlet, NPT Outlet |
| 6 in - 6.55-7.42 in OD | CC Outlet, NPT Outlet |
| 6 in OS - 6.84-7.65 in OD | CC Outlet, NPT Outlet |
| 8 in - 8.54-9.44 in OD | CC Outlet, NPT Outlet |
| 8 in OS - 8.98-9.84 in OD | CC Outlet, NPT Outlet |
| 10 in - 10.64-11.46 in OD | CC Outlet, NPT Outlet |
| 10 in OS - 11.34-12.16 in OD | CC Outlet, NPT Outlet |
| 12 in - 12.62-13.56 in OD | CC Outlet, NPT Outlet |
| 12 in OS - 13.65-14.42 in OD | CC Outlet, NPT Outlet |
| 14 in - 15.22-16.16 in OD | CC Outlet, NPT Outlet |
| 14 in OS - 16.18-16.92 in OD | CC Outlet, NPT Outlet |
| 16 in - 17.25-18.18 in OD | CC Outlet, NPT Outlet |
| 16 in OS - 18.42-19.23 in OD | CC Outlet, NPT Outlet |
Sizes as listed in Dresser’s 2026 price lists; the picker shows the part number for each build.
Source: Dresser TPS T3 Service Saddle Installation Instructions (INST 1002, Rev J).
Product videos are being added to this listing. For a walkthrough in the meantime, email sales@watermainsupply.com.
