Smith-Blair Style 372 All Stainless Steel Service Saddle - Double Stud, 4-16 in

Nominal Size - OD Range: 4 in - 4.50-4.80 in OD
Tap Size: 1/2 in CC
Part No.: 372-00048004-000

Product variant with selected options does not exist!
$174
SKU: 372-00048004-000
Weight : 5.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Smith-Blair · Service Saddle
Style 372 All Stainless Service Saddle
All 304 Stainless Steel, Double Stud, 7-1/2 in Wide Band — Designed for PVC, Fits Other Pipe Types
150 PSI Max Working Pressure
-20°F to +180°F Temperature
Nitrile (Buna-N) Gasket
304 Stainless Band, 7-1/2 in Wide
304 Stainless Double Studs, Coated Nuts
1/2 to 2 in CC and NPT Taps
NSF/ANSI 61 and 372
AWWA C230
4.50-17.46 in Pipe OD
5-12 lb Weight
Description

The Smith-Blair Style 372 is an all 304 stainless steel service saddle with two studs, designed for PVC pipe and suited to steel, ductile iron, cast iron, asbestos cement and other pipe types. Its 7-1/2 in wide band gives uniform sealing and pipe support without crushing action, and the outlet gasket is bonded into the band, with a hydro-mechanical lip that seals tighter as line pressure rises.

Each saddle covers both iron pipe size and ductile iron OD within the same nominal size, and a keeper bar helps pull the band around the pipe and close it during installation. It is used for new branch taps and to restore damaged or torn-out service connections, 4 to 16 in, with outlets from 1/2 to 2 in.

Application: new service taps and restoring damaged or torn-out service connections on PVC and other water mains, 4 to 16 in.

Key Features

  • Working pressure up to 150 PSI
  • All 304 stainless construction for corrosion resistance; wide band supports PVC without crushing
  • Outlet gasket bonded into the band, with a hydro-mechanical lip that seals tighter under pressure
  • One saddle covers iron pipe size and ductile iron OD in the same nominal size
  • Meets applicable portions of AWWA C230; certified to NSF/ANSI 61 and NSF/ANSI 372
What Ships and What It Needs to Run

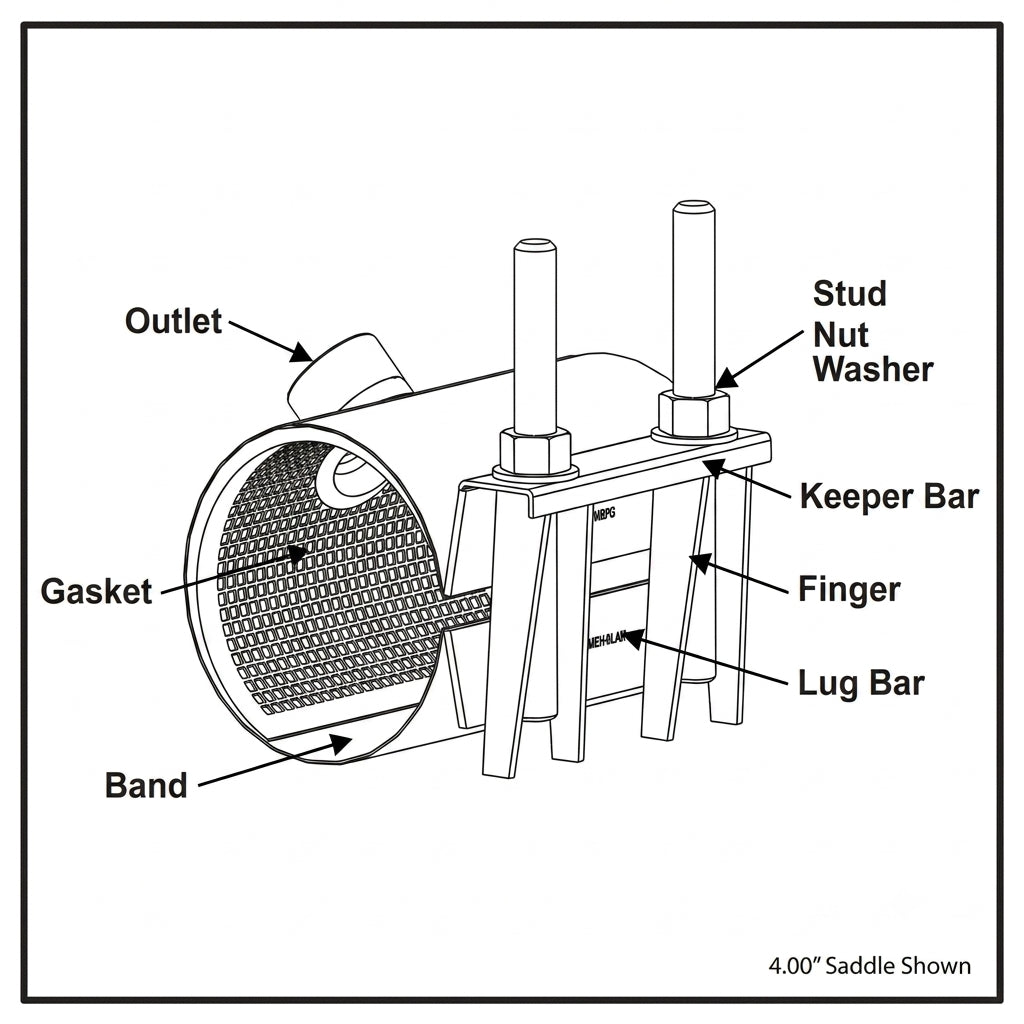

Included: the 304 stainless band with its bonded Nitrile outlet gasket, lug bar, fingers and keeper bar, two welded 304 stainless studs, fluoropolymer-coated nuts and washers.

On HDPE pipe: spring washers are required on HDPE DR17 or thicker; they are a separate option, not included.

Genuine Smith-Blair equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Smith-Blair Warranty

Smith-Blair warrants its products to be free of defects in materials and workmanship for one year from the date of shipment by Smith-Blair. Dated proof of purchase, such as a bill of sale, is required to establish eligibility. Smith-Blair will repair or, at its option, replace a defective product; the product is returned to the factory or warehouse Smith-Blair designates.

Working Pressure

Up to 150 PSI.. Smith-Blair notes the allowable pressure depends on size, application and the condition of the pipe.

Materials Specifications
Band Type 304 stainless steel per ASTM A240, 19 ga, 7.50 in wide
Fingers Type 304 stainless steel per ASTM A240, 10 ga
Lug bar Type 304 stainless steel per ASTM A240, 10 ga
Keeper bar Type 304 stainless steel per ASTM A240, 14 ga, solution annealed
Outlet Type 304 stainless steel per ASTM A276
Studs (2) Type 304 stainless steel per ASTM A276, epoxy-coated threads, 5/8-11 UNC x 7.00 in, welded to the lug bar
Nuts Type 304 stainless steel Gr. 8 per ASTM A194, fluoropolymer coated, heavy hex
Washers Type 304 stainless steel per ASTM A240, 5/8 in Type A plain
Gasket Nitrile (Buna-N) per ASTM D2000, bonded into a recess in the band; -20°F to +180°F

Materials subject to change by the manufacturer.

Pipe Applications

Carbon steel, stainless steel, ductile iron, cast iron, asbestos cement, PVC, copper and aluminum, plus HDPE DR17 or thicker with spring washers. For other pipe types Smith-Blair asks that its engineering group be consulted.

Sizes
Nominal size - pipe OD NPT taps CC taps
4 in - 4.50-4.80 in 3/4, 1, 1-1/4, 1-1/2, 2 in 1/2, 3/4, 1, 1-1/4, 1-1/2, 2 in
6 in - 6.63-6.90 in 3/4, 1, 1-1/4, 1-1/2, 2 in 1/2, 3/4, 1, 1-1/4, 1-1/2, 2 in
8 in - 8.63-9.05 in 3/4, 1, 1-1/4, 1-1/2, 2 in 1/2, 3/4, 1, 1-1/4, 1-1/2, 2 in
10 in - 10.75-11.10 in 3/4, 1, 1-1/4, 1-1/2, 2 in 1/2, 3/4, 1, 1-1/4, 1-1/2, 2 in
12 in - 12.75-13.20 in 3/4, 1, 1-1/4, 1-1/2, 2 in 1/2, 3/4, 1, 1-1/4, 1-1/2, 2 in
14 in - 15.20-15.30 in 3/4, 1, 1-1/4, 1-1/2, 2 in 1/2, 3/4, 1, 1-1/4, 1-1/2, 2 in
16 in - 17.32-17.46 in 3/4, 1, 1-1/4, 1-1/2, 2 in 1/2, 3/4, 1, 1-1/4, 1-1/2, 2 in

Choose the size and pipe OD in the first option and the tap in the second; the part number shows in the last option.

Installation Notes
  • Confirm the saddle OD range and tap match the pipe before starting; on HDPE (DR17 or thicker) fit the spring washers.
  • Clean the pipe where the outlet gasket will seat, removing scale, dirt or debris.
  • Wrap the band around the pipe with the outlet at the tap location; the keeper bar helps pull the band around the pipe and close it.
  • Tighten the two nuts evenly so the band draws down uniformly; follow the instructions packed with the saddle for torque.
  • Make up the service connection with a thread compound that meets the water supplier's requirements.

From the Smith-Blair Style 372 datasheet and specification sheet (Rev 02/14/23), in the Data Sheet tab; follow the instructions packed with the saddle for torque.

Before You OrderAll Smith-Blair products are Made to Order and Non-Returnable.
Items typically shipped in 5 - 10 business days.
Odd pipe ODs outside the catalog sizes, BSP and 5/8 in CC outlets, a 316 stainless band or hardware, spring washers for HDPE and other gaskets are built to order — email sales@watermainsupply.com with the pipe OD, pipe material and tap size.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
