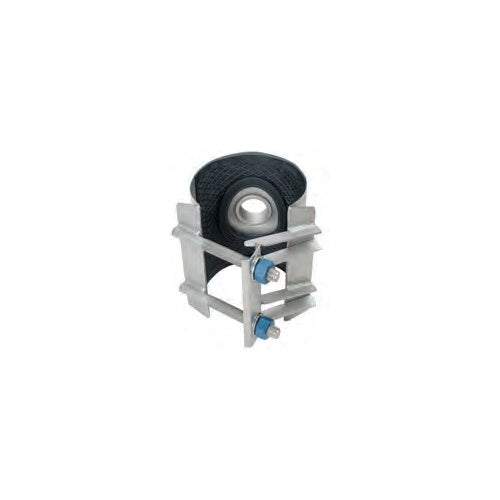

JCM 502 Stainless Steel Service Saddle - product photo
JCM 502 Stainless Steel Service Saddle - alternate view
JCM 502 Stainless Steel Service Saddle - product photo
JCM 502 Stainless Steel Service Saddle - alternate view

JCM 502 Stainless Steel Service Saddle - 200 PSI, 2 to 12 in

Nominal Size - OD Range: 2 in - 2.38 in OD
Tap Size: 3/4 in NPT
Part No.: 502-0238X06IP

Product variant with selected options does not exist!
$173.88
SKU: 502-0238X06IP
Weight : 2.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
JCM Industries · Service Saddle
JCM 502 Stainless Steel Service Saddle
All 304 stainless · 200 PSI · 2 to 12 in
200 PSI Working, 225 PSI Test
All 304 Stainless Steel
EPDM Gasket
8 in Wide Band
3/4 to 2 in NPT and CC Taps
AWWA C800
2.38-14.40 in Pipe OD
2-13 lb Weight
Description

The JCM 502 stainless steel service saddle is built around the pipe: heavy construction and a balanced bolt design give the pipe support, bolt torque and gasket compression a long-term saddle installation needs. JCM recommends it for IPS PVC, C900 PVC, ductile iron, cast iron, steel and other pipe; it is not for HDPE.

A full circumferential 304 stainless band supports the pipe at the tap and on the back side, the standard 8 in width gives maximum support at every size, and a raised outlet gasket with molded channels maximizes watertight contact. The 304 fabrication is passivated per ASTM A380.

Typical application: Service connections on IPS PVC, C900 PVC, ductile iron, cast iron and steel pipe.

Key Features

  • Rated 200 PSI working, 225 PSI test
  • Interlocking fabricated finger lugs, 5/8 in stainless studs and a structural lift bar
  • Nuts with anti-seize coating prevent galling
  • Heavyweight threaded stainless outlet, IP (NPT) or CC; meets ANSI/AWWA C800
  • EPDM gasket for chloramine and hot water service
What Ships and What It Needs to Run

Included: the stainless band and bolting assembly with lift bar, 5/8 in stainless studs and anti-seize nuts, the threaded stainless outlet and the EPDM gasket.

Corporation stop and tapping, at install. The corporation stop threads into the outlet and the main is tapped through it.

Genuine JCM Industries equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Warranty

Covered for 12 months from the date of purchase against defects in materials and workmanship. Keep the dated invoice as proof of purchase.

Working Pressure

200 PSI working pressure; 225 PSI test. JCM's published rating for the 502 service saddle.

Materials Specifications
Band 18-8 Type 304 stainless steel, ASTM A240
Outlet 18-8 Type 304 stainless threaded half coupling
Bolting assembly and lifter bar 18-8 Type 304 stainless, ASTM A240
Fasteners 18-8 Type 304 stainless
Gasket EPDM, maximum 300°F wet; suited to chloramine, hot water and dilute acids and alkalis; not for petroleum
Passivation Per ASTM A380

From the JCM 502 material specification. Not available in 316 stainless.

Pipe Applications

IPS PVC, C900 PVC, ductile iron, cast iron, steel and other pipe; not for HDPE.

Sizes and Outlet Taps

14 OD ranges.

All 14 sizes
Nominal Pipe OD Outlet taps
2 in 2.38 in 3/4, 1 in NPT; 3/4, 1 in CC
2-1/2 in 2.63-2.88 in 3/4, 1 in NPT; 3/4, 1 in CC
3 in 3.13-3.50 in 3/4, 1 in NPT; 3/4, 1 in CC
3 to 4 in 3.80-4.13 in 3/4, 1 in NPT; 3/4, 1 in CC
4 in 4.50-4.80 in 3/4, 1, 1-1/4, 1-1/2, 2 in NPT; 3/4, 1, 1-1/4, 1-1/2 in CC
4 in 4.80-5.20 in 3/4, 1, 1-1/4, 1-1/2, 2 in NPT; 3/4, 1, 1-1/4, 1-1/2, 2 in CC
6 in 6.63-6.90 in 3/4, 1, 1-1/4, 1-1/2, 2 in NPT; 3/4, 1, 1-1/4, 1-1/2, 2 in CC
6 in 6.90-7.30 in 3/4, 1, 1-1/4, 1-1/2, 2 in NPT; 3/4, 1, 1-1/4, 1-1/2, 2 in CC
8 in 8.63-9.05 in 3/4, 1, 1-1/4, 1-1/2, 2 in NPT; 3/4, 1, 1-1/4, 1-1/2, 2 in CC
8 in 9.05-9.45 in 3/4, 1, 1-1/4, 1-1/2, 2 in NPT; 3/4, 1, 1-1/4, 1-1/2, 2 in CC
10 in 10.75-11.10 in 3/4, 1, 1-1/4, 1-1/2, 2 in NPT; 3/4, 1, 1-1/4, 1-1/2, 2 in CC
10 in 11.70-12.10 in 3/4, 1, 1-1/4, 1-1/2, 2 in NPT; 3/4, 1, 1-1/4, 1-1/2, 2 in CC
12 in 12.75-13.20 in 3/4, 1, 1-1/4, 1-1/2, 2 in NPT; 3/4, 1, 1-1/4, 1-1/2, 2 in CC
12 in 14.00-14.40 in 3/4, 1, 1-1/4, 1-1/2, 2 in NPT; 3/4, 1, 1-1/4, 1-1/2, 2 in CC

From the JCM price list. IP (NPT) = iron pipe thread; CC = AWWA corporation stop thread.

Before You Order502 saddles are made to order and non-returnable (JCM). Confirm the pipe OD, outlet and thread.
For a submittal or an odd OD, email sales@watermainsupply.com with the pipe OD, pipe type and line content.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
