Smith-Blair Style 315 Service Saddle - Single Strap, 304 SS, 1-14 in
Smith-Blair Style 315 Service Saddle - Single Strap, 304 SS, 1-14 in
Smith-Blair Style 315 Service Saddle - Single Strap, 304 SS, 1-14 in
Smith-Blair Style 315 Service Saddle - Single Strap, 304 SS, 1-14 in

Smith-Blair Style 315 Ductile Iron Service Saddle - 304 SS Strap, 1-14 in

Nominal Size - OD Range: 1 in - 1.31-1.39 in OD
Tap Size: 5/8 in CC
Part No.: 315-00013905-000

Product variant with selected options does not exist!
$115.11
SKU: 315-00013905-000
Weight : 1.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Smith-Blair · Service Saddle
Style 315 Service Saddle
Single Strap, Ductile Iron Body, TaperSeal Gasket and Wraparound 304 Stainless Strap — 1-14 in
200 PSI Max Working Pressure
-20°F to +180°F Temperature
Nitrile (Buna-N) TaperSeal Gasket
Epoxy-Coated Ductile Iron Body
2 in Wide 304 Stainless Strap and Hardware
5/8 to 2 in CC and NPT Taps
NSF/ANSI 61 and 372
AWWA C800
1.31-14.32 in Pipe OD
1-8 lb Weight
Description

The Smith-Blair Style 315 is a single-strap ductile iron service saddle for tapping branch connections on new or existing water mains. A wide, wraparound body carries a TaperSeal Nitrile gasket fully cemented in its cavity, and a 2 in wide Type 304 stainless steel strap holds it to the pipe and adds corrosion resistance. On 1-3 in sizes the strap is welded to a stainless bale; on 4-14 in sizes it carries welded stainless studs.

The body is designed with PVC and other soft or brittle pipe in mind: the wide strap spreads the load so tightening does not damage the pipe, and a closed lug on one side acts as a hinge with the strap for easier installation. It also serves for air/vacuum valves, pitot tubes, drain valves and other service equipment.

Application: service taps and branch outlets of 5/8 to 2 in on 1-14 in water mains.

Key Features

  • Working pressure up to 200 PSI, depending on size and application
  • TaperSeal hydro-mechanical lip holds higher pressure with minimal nut torque
  • Wide 2 in strap spreads the load to protect PVC and other non-rigid pipe
  • Closed lug hinges with the strap; open ear slips on with no loose nuts
  • Meets applicable AWWA C800; certified to NSF/ANSI 61 and NSF/ANSI 372
What Ships and What It Needs to Run

Included: the epoxy-coated ductile iron body with the TaperSeal gasket cemented in place, the 304 stainless strap (with bale on 1-3 in, welded studs on 4-14 in), fluoropolymer-coated stainless nuts and stainless washers.

PVC-sized bodies: rows marked for C900 PVC in the Smith-Blair tables meet the Uni-Bell Handbook of PVC Pipe and AWWA M23 requirements when the body is ordered sized to the PVC pipe.

Genuine Smith-Blair equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Smith-Blair Warranty

Smith-Blair warrants its products to be free of defects in materials and workmanship for one year from the date of shipment by Smith-Blair. Dated proof of purchase, such as a bill of sale, is required to establish eligibility. Smith-Blair will repair or, at its option, replace a defective product; the product is returned to the factory or warehouse Smith-Blair designates.

Working Pressure

Up to 200 PSI. depending on size and application. Smith-Blair notes the allowable pressure depends on the type of pipe, pipe diameter, service conditions and installation workmanship.

Materials Specifications
Body Ductile iron 65-45-12 per ASTM A536; wraparound design, wide skirt and heavy tapping boss
Strap Type 304 stainless steel per ASTM A240, 14 GA x 2.00 in, single strap
Bale (1-3 in) Type 304 stainless steel per ASTM A276, 1/2-13 UNC rolled threads, flattened pipe-contact surface, welded to the strap
Nuts Type 304 stainless steel GR 8 per ASTM A194, heavy hex, fluoropolymer coated to prevent galling
Washers Type 304 stainless steel per ASTM A240, Type A plain
Studs (4-14 in) Type 304 stainless steel per ASTM A276, 5/8-11 UNC rolled threads welded to the strap; 6.00 in long on 4-6 in, 7.00 in on 8-14 in
Gasket Nitrile (Buna-N) per ASTM D2000, TaperSeal lip, cemented in the cavity; NSF/ANSI 61 and 372; resists water, oil, natural gas, acids, alkalies and most aliphatic hydrocarbons; -20°F to +180°F
Finish Flexi-Coat fusion-bonded epoxy (AWWA C213 application methods)
Welds GMAW by qualified welders, passivated to keep corrosion resistance

Materials subject to change by the manufacturer.

Pipe Applications

Steel, ductile iron (depending on size and application), cast iron, asbestos cement and PVC; the spec adds stainless steel and aluminum. On PVC, Smith-Blair limits use to steel-OD PVC of DR26 or thicker (4.50-12.75 in OD) and cast/ductile iron OD C900 PVC, Class 150 (DR18) or better.

Sizes
19 sizes from 1.31 to 14.32 in OD — open for the full list
Nominal size - pipe OD NPT taps CC taps
1 in - 1.31-1.39 in 3/4 in 5/8, 3/4 in
1-1/4 to 1-1/2 in - 1.61-1.92 in 3/4, 1 in 5/8, 3/4, 1 in
2 in - 2.13 in 3/4, 1 in 5/8, 3/4, 1 in
2 in - 2.35-2.56 in 3/4, 1, 1-1/4, 1-1/2 in 5/8, 3/4, 1, 1-1/4 in
2 in - 2.38 in 3/4, 1 in 5/8, 3/4, 1 in
2-1/4 to 2-1/2 in - 2.44-2.91 in 3/4, 1, 1-1/4, 1-1/2 in 5/8, 3/4, 1, 1-1/4 in
3 in - 2.97-3.54 in 3/4, 1, 1-1/4, 1-1/2 in 5/8, 3/4, 1, 1-1/4 in
3-4 in - 4.40-4.50 in 3/4, 1, 1-1/4, 1-1/2, 2 in 5/8, 3/4, 1, 1-1/4, 1-1/2 in
4 in - 4.40-4.80 in 3/4, 1, 1-1/4, 1-1/2, 2 in 5/8, 3/4, 1, 1-1/4, 1-1/2 in
4-5 in - 4.74-5.63 in 3/4, 1, 1-1/4, 1-1/2, 2 in 5/8, 3/4, 1, 1-1/4, 1-1/2 in
5-6 in - 5.94-6.70 in 3/4, 1, 1-1/4, 1-1/2, 2 in 5/8, 3/4, 1, 1-1/4, 1-1/2 in
5-6 in - 5.94-6.90 in 3/4, 1, 1-1/4, 1-1/2, 2 in 5/8, 3/4, 1, 1-1/4, 1-1/2 in
6 in - 6.84-7.60 in 3/4, 1, 1-1/4, 1-1/2, 2 in 5/8, 3/4, 1, 1-1/4, 1-1/2 in
6-8 in - 7.69-8.72 in 3/4, 1, 1-1/4, 1-1/2, 2 in 5/8, 3/4, 1, 1-1/4, 1-1/2 in
6-8 in - 7.69-9.05 in 3/4, 1, 1-1/4, 1-1/2, 2 in 5/8, 3/4, 1, 1-1/4, 1-1/2 in
8-10 in - 8.54-10.10 in 3/4, 1, 1-1/4, 1-1/2, 2 in 5/8, 3/4, 1, 1-1/4, 1-1/2 in
10-12 in - 10.64-12.12 in 3/4, 1, 1-1/4, 1-1/2, 2 in 5/8, 3/4, 1, 1-1/4, 1-1/2 in
12-14 in - 12.62-14.32 in 3/4, 1, 1-1/4, 1-1/2, 2 in 5/8, 3/4, 1, 1-1/4, 1-1/2 in
12 in - 12.75-13.20 in 3/4, 1, 1-1/4, 1-1/2, 2 in 5/8, 3/4, 1, 1-1/4, 1-1/2 in

Choose the size and pipe OD in the first option and the tap in the second; the part number shows in the last option.

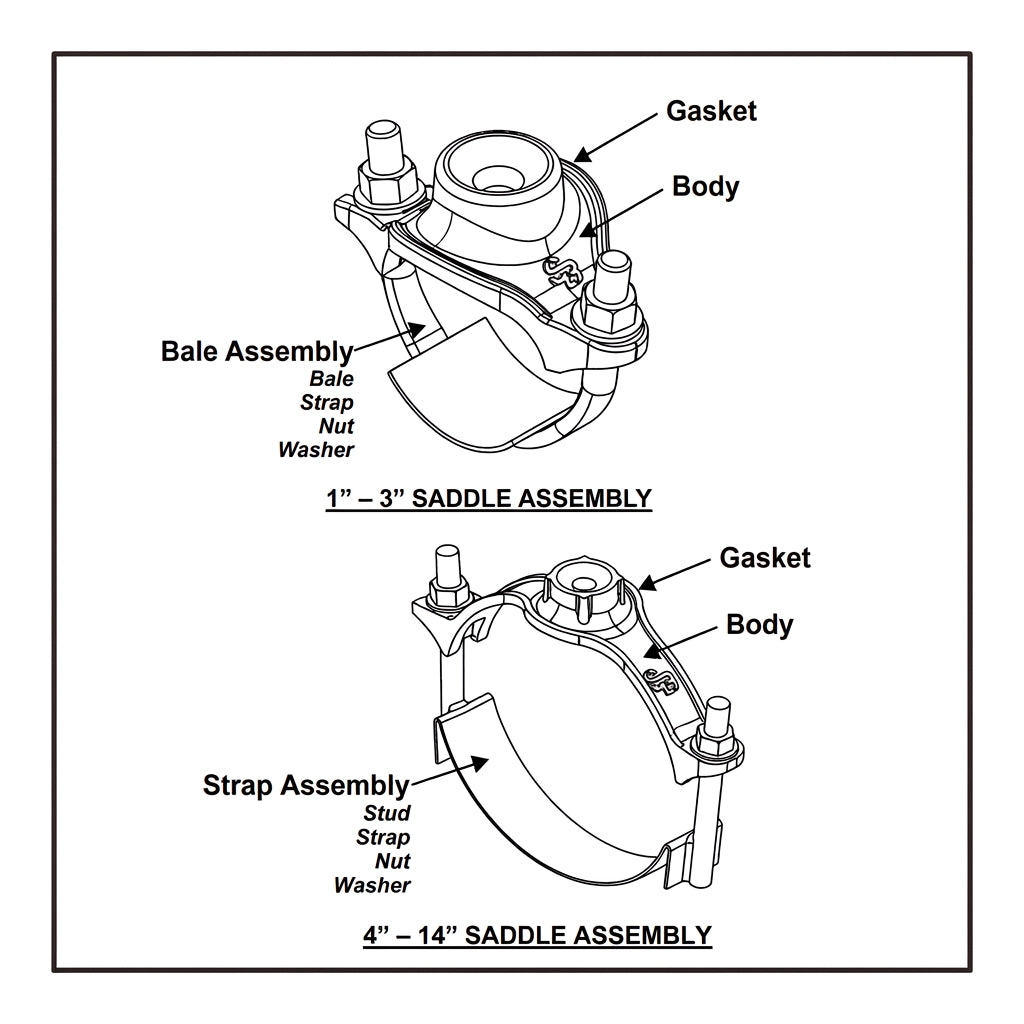

Strap and Hardware by Size
Nominal size Strap assembly Nut size
1-3 in 304 SS bale, 2 in wide strap welded to bale 1/2-13 UNC
4-6 in 2 in wide strap, welded 5/8 in studs 6.00 in long 5/8-11 UNC
8-14 in 2 in wide strap, welded 5/8 in studs 7.00 in long 5/8-11 UNC

From the Style 315 engineering spec (Rev 3/8/16). Not every pipe OD and tap combination is made: the picker shows the ones available.

Installation Notes
  • Confirm the saddle type, tap size and pipe OD range match the job, then clean the pipe where the gasket will seat, removing scale, dirt and debris.
  • Check the gasket is seated in the body; lubricate the pipe and gasket with a soap-and-water solution (anti-freeze may be required) that meets the water and pipe supplier's requirements.
  • Mount the body as close to the final tap position as possible and check its orientation before tightening: moving or rolling the body on the pipe can damage the gasket.
  • Tighten the nuts progressively and evenly to the torque in the instructions, keeping the stud lengths on both sides equal; do not over-torque. The saddle seals the tap and is not designed to give structural rigidity to connections or equipment, so support those separately.
  • Make the connection with a pipe-thread compound that both lubricates and seals (no tape products), without cross-threading or rocking the saddle body.
  • Plastic pipe: use on steel-OD PVC 4.50-12.75 in of DR26 or thicker, or cast/ductile iron OD C900 PVC Class 150 (DR18) or better; do not use on fiberglass-reinforced pipe, plastic irrigation pipe or other plastic pipe.

From Smith-Blair Installation Instructions TI-010 (Rev 08/26/21), in the Data Sheet tab.

Before You OrderAll Smith-Blair products are Made to Order and Non-Returnable.
Items typically shipped in 5 - 10 business days.
316 stainless strap or bale assemblies, Viton, EPDM or other gaskets, BSP threads, 1/2 in taps and anode connectors are built to order — email sales@watermainsupply.com with the pipe OD, pipe material and tap size.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
