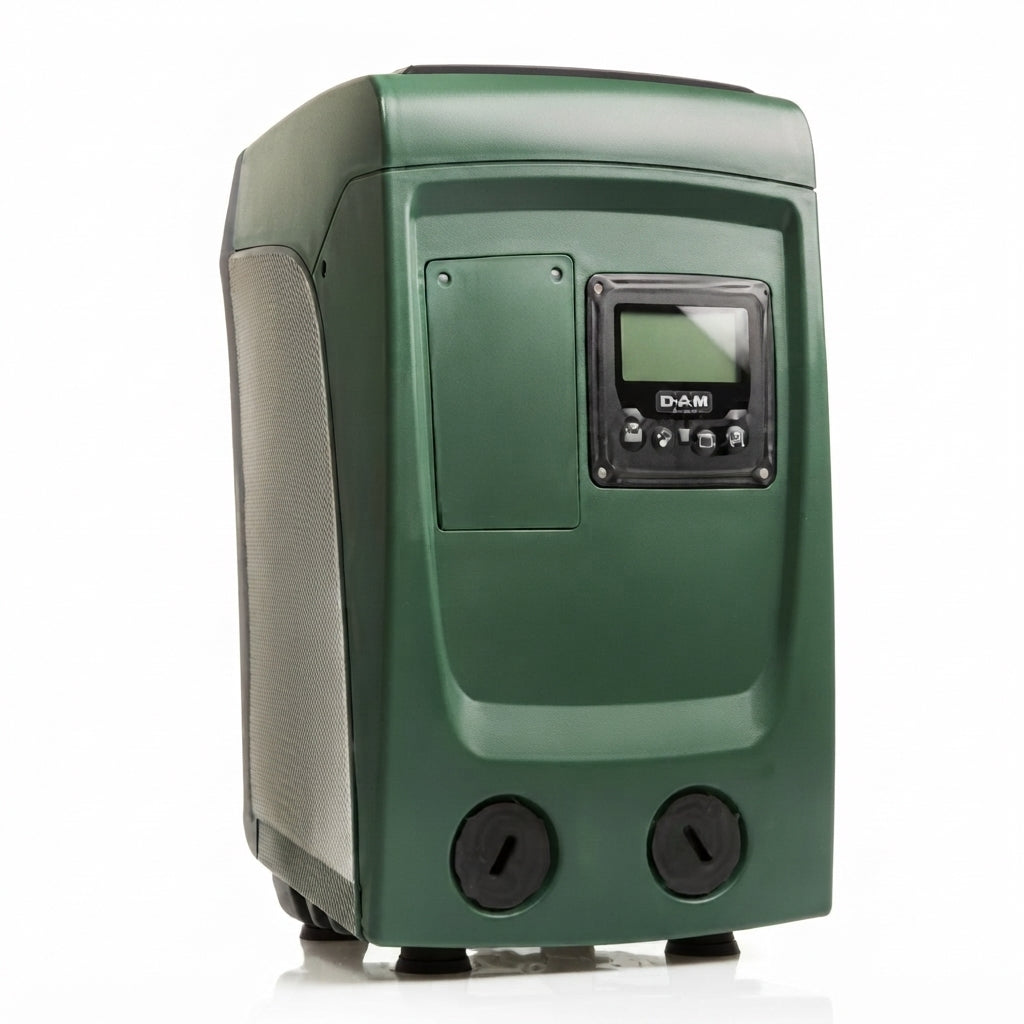

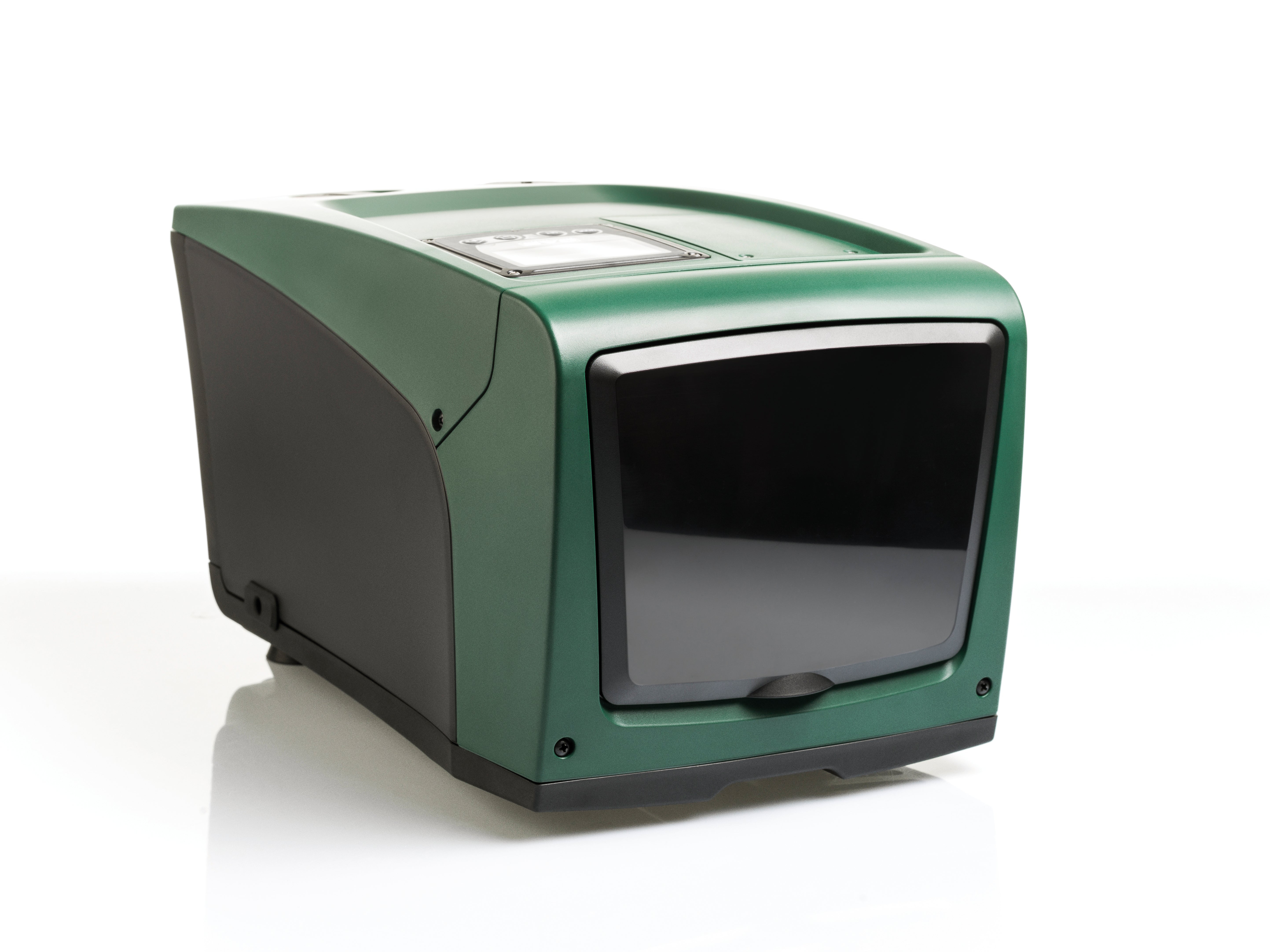

Compact automatic pressurisation system for a single residence. Holds steady house pressure, adjustable 15–80 psi, using VFD technology to save energy. Includes pump, smart electronics, pressure and flow sensors, LCD display, built-in expansion tank and check valve — no extra parts needed to install.
Compact automatic pressurisation system for a single residence. Holds steady house pressure, adjustable 15–80 psi, using VFD technology to save energy. Includes pump, smart electronics, pressure and flow sensors, LCD display, built-in expansion tank and check valve — no extra parts needed to install.
| Flow (GPM) | 2.6 | 5.3 | 7.9 | 10.6 | 13.2 | 15.8 | 18.5 | 21.1 |
|---|---|---|---|---|---|---|---|---|
| Head (ft) | 180 | 180 | 161 | 128 | 102 | 75 | 46 | 13 |
| Accessory | Code | Description |
|---|---|---|
| ESYWALL | 60161442 | Kit complete with brackets, screws, dowels and two anti-vibration feet. |
| ESYCOVER MINI | 60203667 | Allows outdoor installation, protecting from rain. Vertical installation only. |
| ESYTWIN MINI | 60218780 | Creates two groups of pumps; combined operation at 50% reduced size. |
| ESY I/O V2 | TBA | Expansion module for float switch, pressure switch, remote alarm and BMS. |
| 1" Stainless Steel Union | 60220601 | Kit pipe union 3 pcs MF 1" with O-ring NPT. |
| Position | Part | Code |
|---|---|---|
| Pos 8 | HMI Assembly (N.4,5) | SP00007063 |
| Pos 8 | HMI Assembly (N.6) | SP00007858 |
| Pos 9 | Charge Port Cap | SP00002183 |
| Pos 12 | Main Assembly DAB (N.5,6) | SP00007474 |
| Pos 14 | Self-Priming Shutter POM | SP00002189 |
| Pos 19 | Kit Flowmeter | SP00002195 |
| Pos 20 | Pressure Sensor 0-16 Bar | SP00002196 |
| Pos 21 | Complete NVR | SP00002197 |
| Pos 23 | Tank 100 cc | SP00002199 |
| Pos 27 | Kit O-Ring | SP00002239 |
