DAB · Submersible Pressure Pump

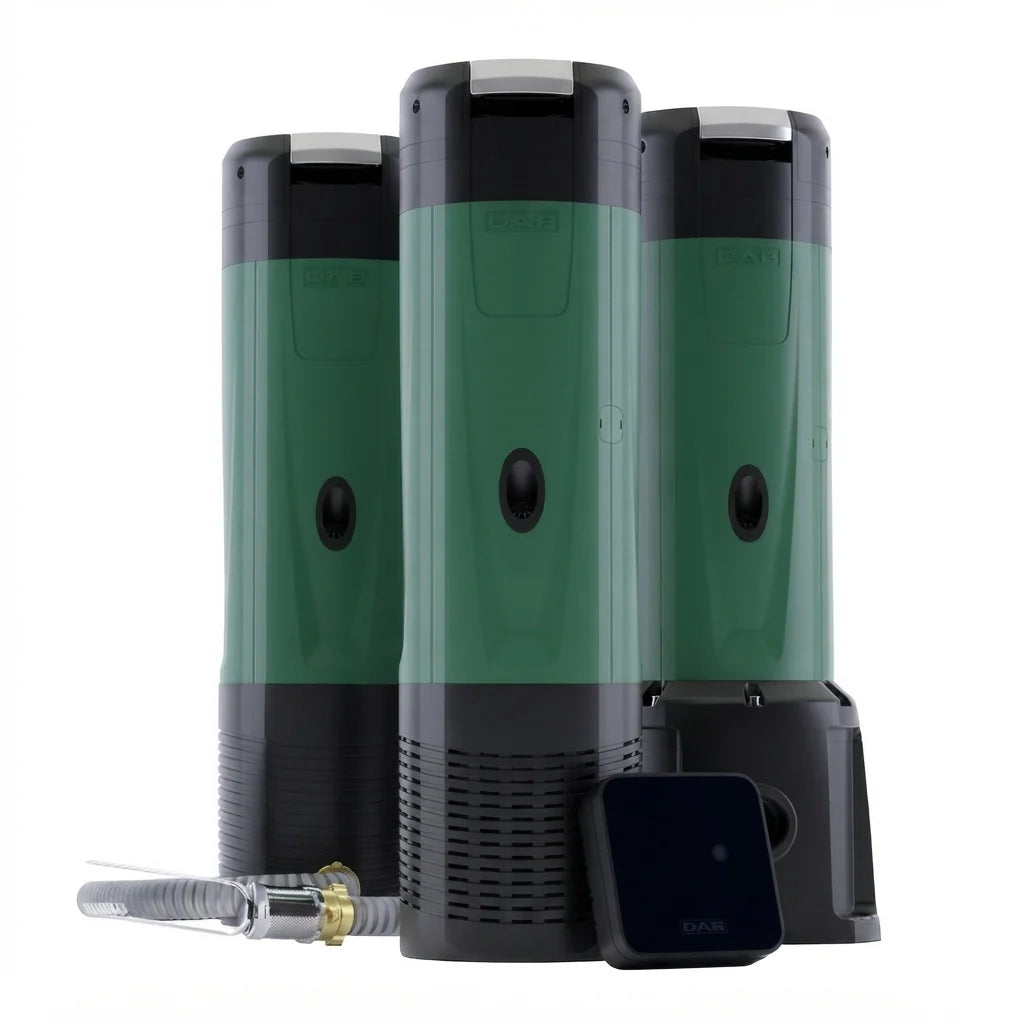

Esybox Diver X
A 7 in variable-speed submersible pressure pump with integrated tank, NFC pocket and DConnect Box 2 — constant pressure from wells, tanks or cisterns.
180 ft at 13.2 GPM
1.3 HP
220-240V 1Ph
35 psi Cut-In
IP68
NSF/ANSI 61 + 372, UL, CSA
Overview
The Esybox Diver X is a powerful 7 in pump that uses advanced electronics and a variable frequency drive to provide clean water from wells, tanks or cisterns to your home. It can be submerged, partially submerged, or used on the surface when paired with the DOC68 accessory (sold separately). It is perfect for pressurization, rainwater reuse, gardening and irrigation in residential buildings.
The built-in variable frequency drive adjusts operation to the system demand and saves energy. It features a non-return valve and a stainless steel handle for transport. The electronic system protects against dry running. Suction height adjusts up to 3.1 in from the bottom, and the NFC pocket lets you connect a float or level sensor without opening the pump.
The pump includes an expansion tank. With the included DConnect Box 2 and the DConnect app for Android or iOS you can control the pump directly from your smartphone. The whole pump is IP68 certified and can be used on the surface with flooded suction.
Genuine DAB equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Performance — Will It Do What You Need?
Find the flow you need across the top; the figure is the head in feet the pump adds at that flow.
| Q GPM |
0 |
2.6 |
5.3 |
7.9 |
10.6 |
13.2 |
15.8 |
18.5 |
21.1 |
23.8 |
26.4 |
29 |
| H ft |
180 |
180 |
180 |
180 |
180 |
180 |
174 |
144 |
112 |
85 |
56 |
25 |
Published by DAB at 1x220-240 V. Maximum flow 31.7 GPM at the end of the curve.
Models, Voltage & Phase
| Model |
HP |
Voltage & Phase |
Amps |
Part No. |
| ESYBOX DIVER X 55/120 |
1.3 |
220-240V 1Ph |
5.5 |
60202768 |
Where two voltages are shown, the first is the factory wiring setting. Voltage is changed on the motor terminal board, never at the pressure switch. All models are single phase unless the table states 3Ph.
Key Features
-
Variable frequency drive — constant pressure, energy saving.
-
Integrated expansion tank — no separate tank required.
-
DConnect Box 2 included — smartphone control via the DConnect app.
-
NFC pocket — float or level sensor without opening the pump.
-
Dry running protection — electronic.
-
IP68 — submerged, semi-submerged or surface with DOC68.
Specifications
| Specification |
Value |
| Flow rate maximum |
31.7 GPM |
| Head |
Up to 180 ft |
| Maximum immersion depth |
39 ft |
| Free passage |
0.1 in |
| Liquid temperature |
32 F to 122 F |
| Set cut-in |
35 psi (+/- 3) |
| Outlet connection |
1-1/4 in thread |
| Pump maximum diameter |
7.3 in |
| Protection class |
IP68 |
| Motor insulation class |
F |
| Power cable and plug |
49 ft |
| Installation |
Fixed, horizontal or vertical; submerged, semi-submerged or surface with DOC68 |
| Certification |
NSF61, 372, UL and CSA |
Applications
- Residential constant-pressure supply from wells, tanks and cisterns
- Rainwater reuse
- Garden irrigation
Before You Order220-240 V single phase. The DOC68 base is required for outdoor surface installation and is sold separately.
