Esybox Spare Parts
Genuine DAB service parts for the Esybox booster, versions N.1 to N.3, and the Esytwin twin dock.
Overview

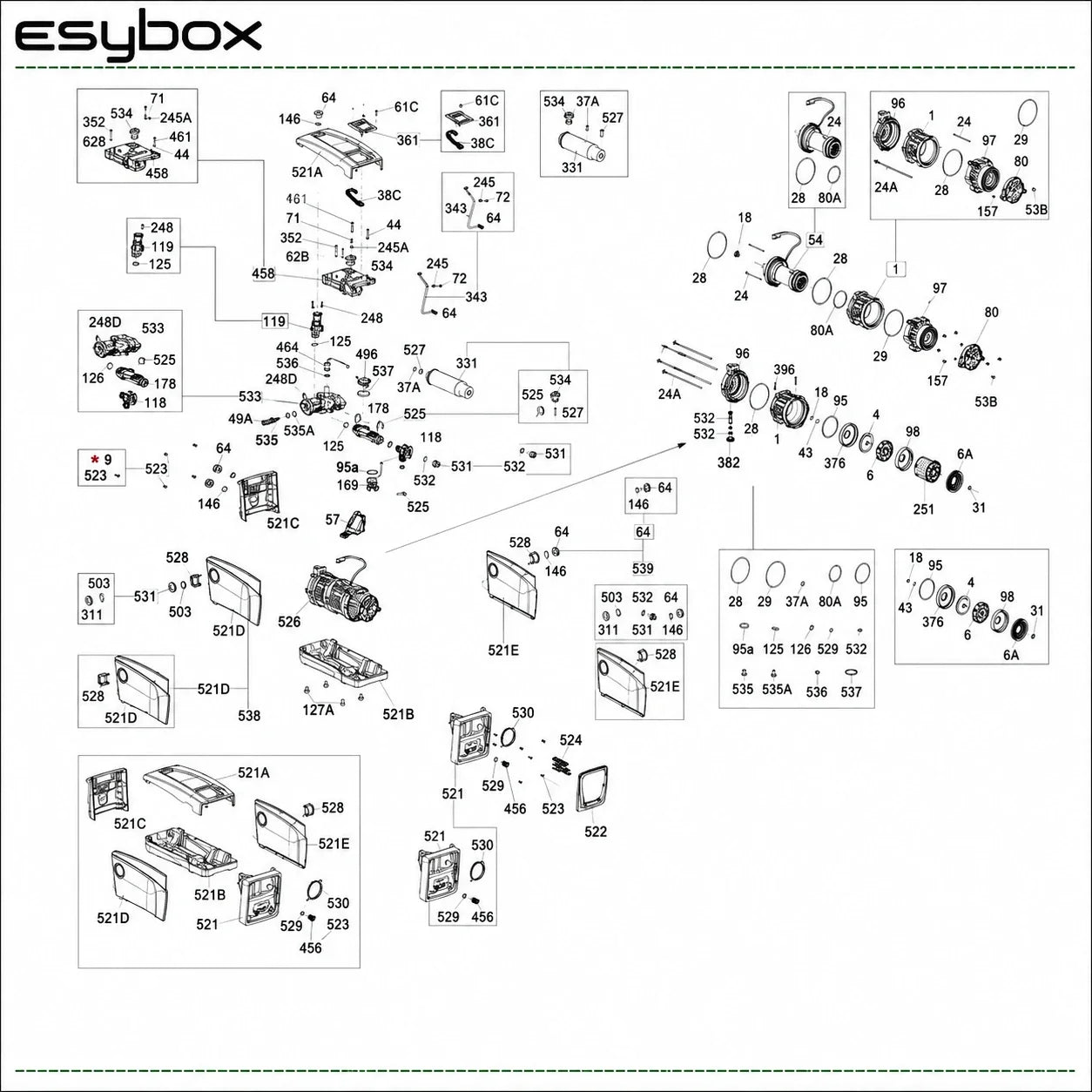

Genuine DAB spare parts for the DAB Esybox constant pressure booster (DAB code 60212311): the display, control board, complete hydraulic kit, pressure sensor, flowmeter cover, non-return valve, self-priming shutter, 2 L tank, feet and filling cap, plus the FCT fittings and O-ring kits for the Esytwin twin dock. Pick the part, then the version it fits. Position numbers match the DAB exploded parts diagram in the images.
Version N.3 is the Esybox V2. Its display, main board and hydraulic kit carry different codes from versions N.1 and N.2, so check the rating label before you order.
What Ships and What It Needs to Run
Included: the genuine DAB spare part for the code you select, as DAB supplies it under that code.
Your pump’s version: read the version number (N.) on the pump’s rating label; parts are matched to it.
Genuine DAB equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier. Watermain Supply is an Authorized Stocking DAB Distributor.
24-Month DAB Warranty
Covered for 24 months from the date of purchase under DAB’s published warranty terms.
Repair or Replace?
A new display or main board on an older Esybox can run to a real share of the price of a new pump. If the repair list is getting long, compare it with a new DAB Esybox, or step up to the Esytwin two-pump system.
Use code DAB10 at checkout for 10% off a DAB complete pump. It takes the place of the automatic 5% discount on that order.
Parts
15 parts listed: 10 for the Esybox, 5 for the Esytwin dock.

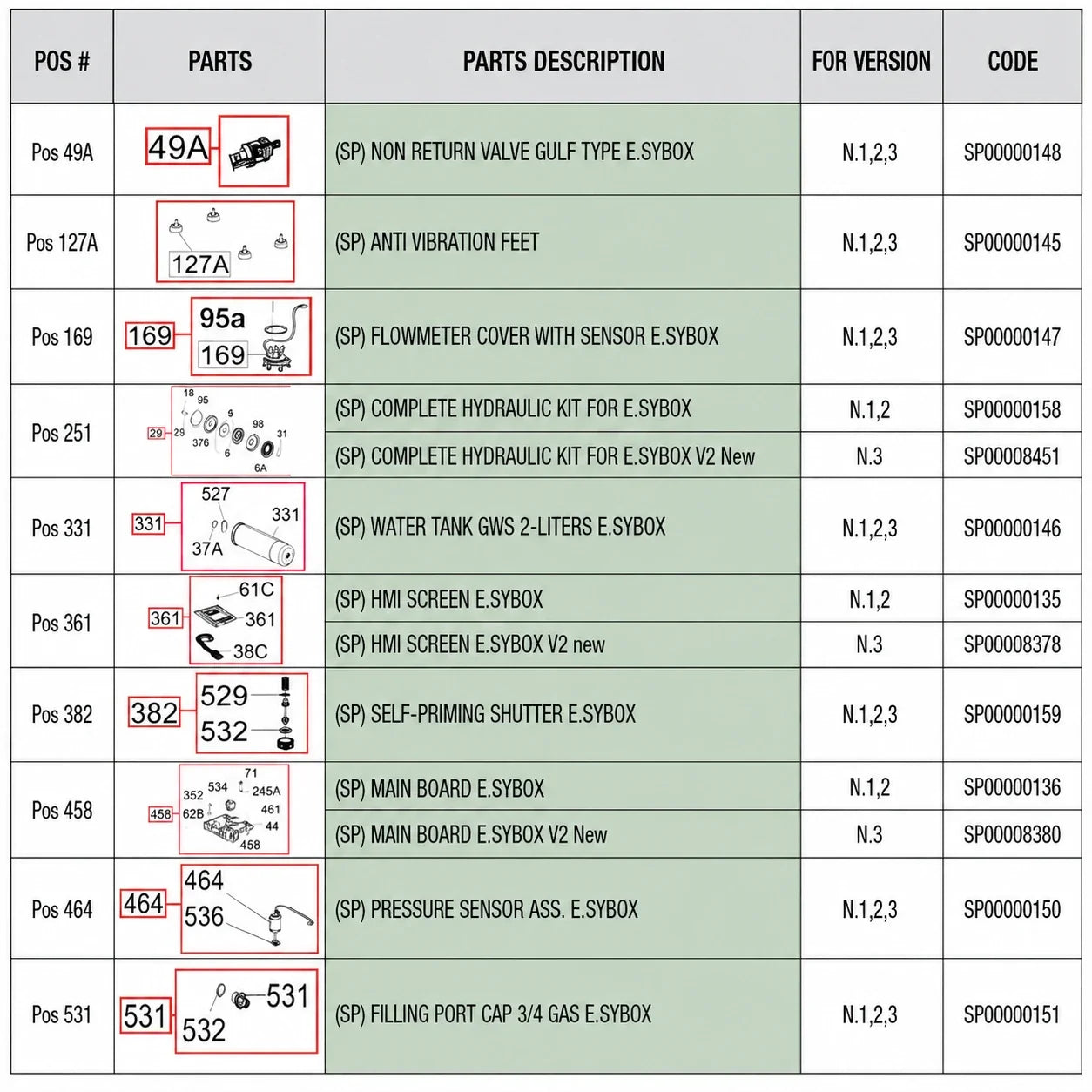

Show all parts, versions and DAB codes
| Part |
Fits |
DAB Code |
Diagram |

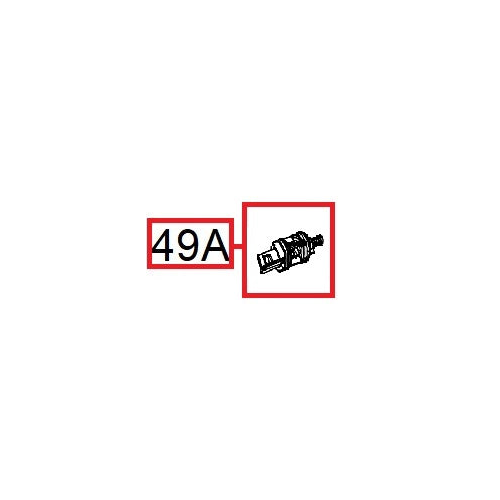

| Non-Return Valve (Gulf Type) |
All versions N.1 to N.3 |
SP00000148 |
Pos 49A |

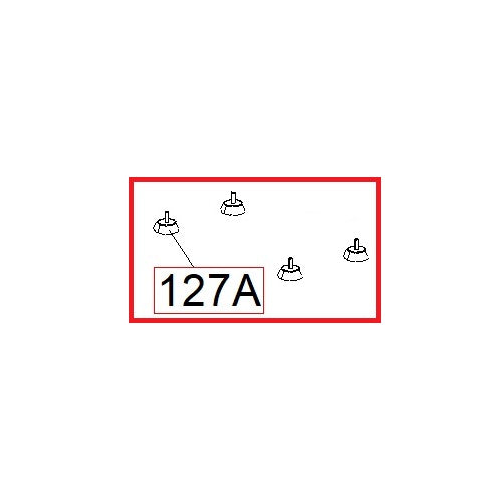

| Anti-Vibration Feet |
All versions N.1 to N.3 |
SP00000145 |
Pos 127A |

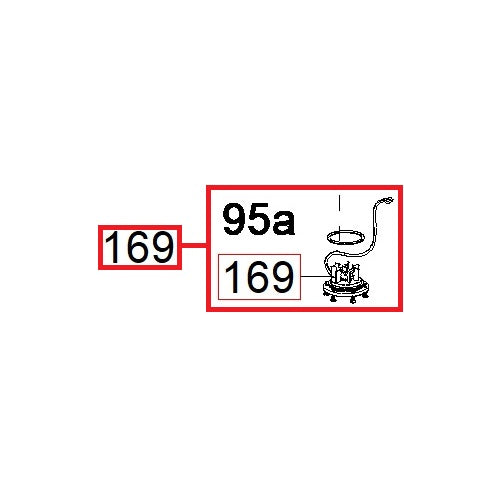

| Flowmeter Cover with Sensor |
All versions N.1 to N.3 |
SP00000147 |
Pos 169 |

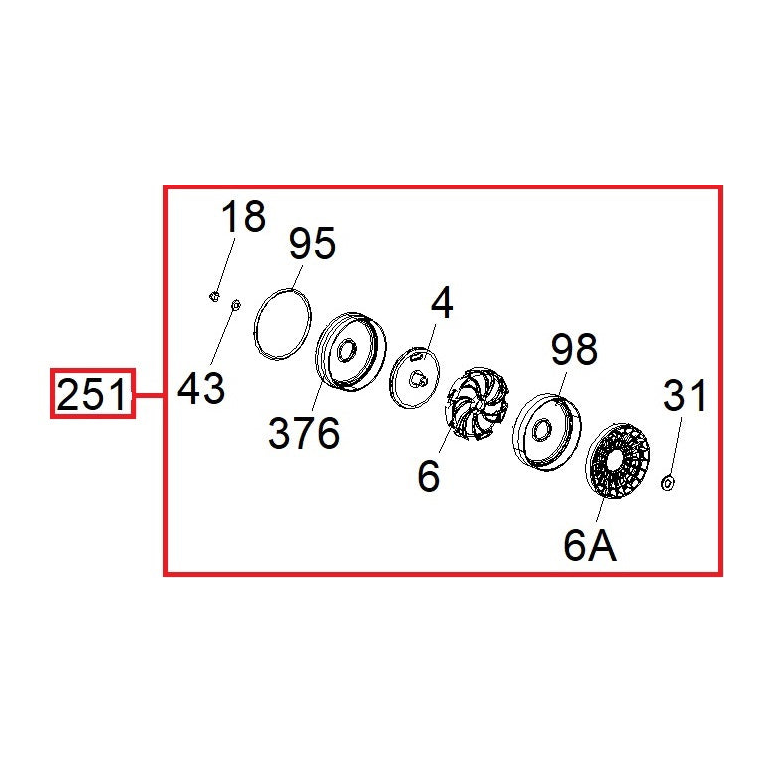

| Complete Hydraulic Kit |
Version N.1 and N.2 |
SP00000158 |
Pos 251 |

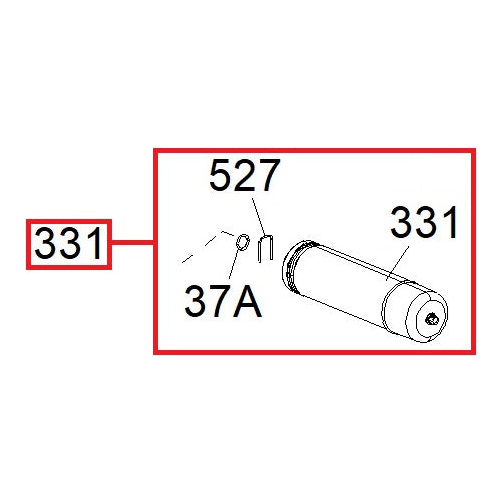

| Water Tank 2 L |
All versions N.1 to N.3 |
SP00000146 |
Pos 331 |

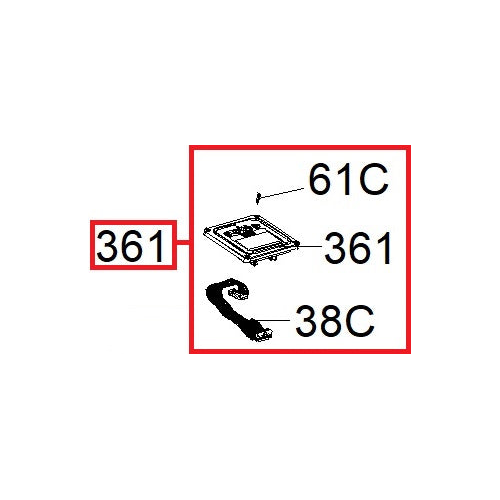

| HMI Display Screen |
Version N.1 and N.2 |
SP00000135 |
Pos 361 |

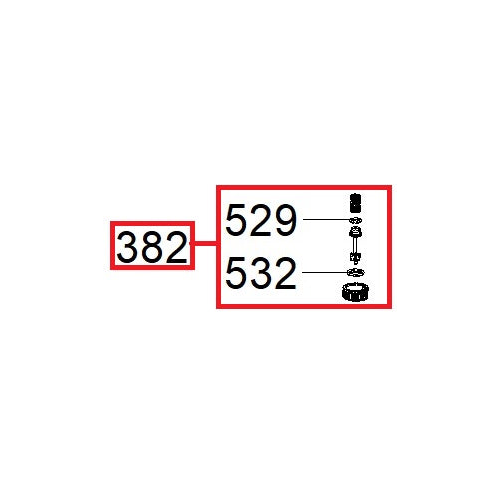

| Self-Priming Shutter |
All versions N.1 to N.3 |
SP00000159 |
Pos 382 |

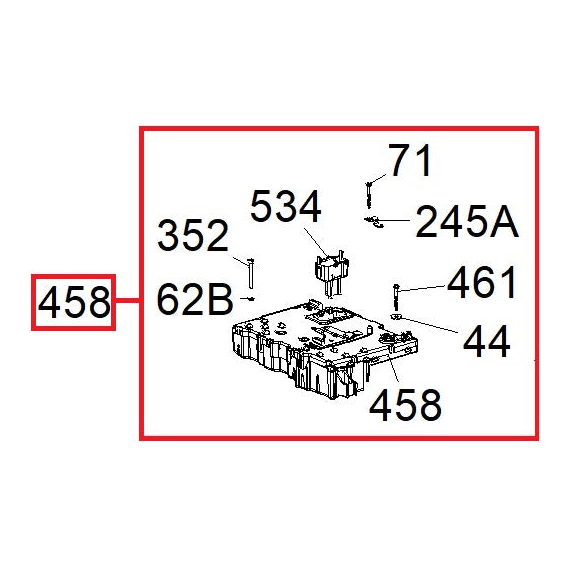

| Main Board |
Version N.1 and N.2 |
SP00000136 |
Pos 458 |

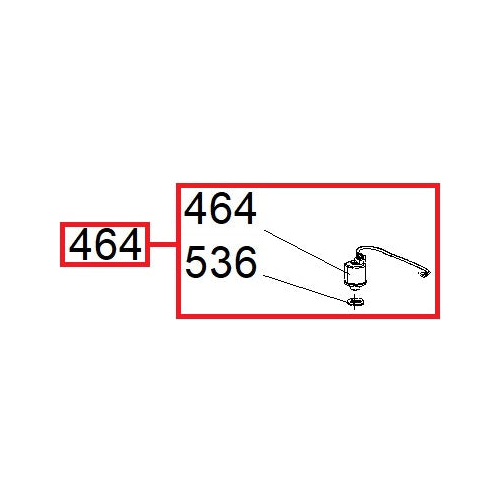

| Pressure Sensor Assembly |
All versions N.1 to N.3 |
SP00000150 |
Pos 464 |

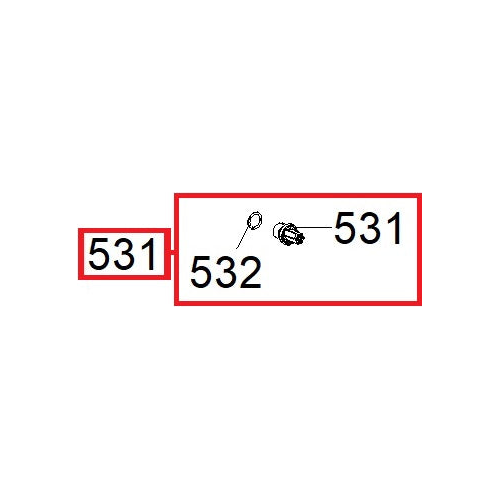

| Filling Port Cap 3/4 GAS |
All versions N.1 to N.3 |
SP00000151 |
Pos 531 |

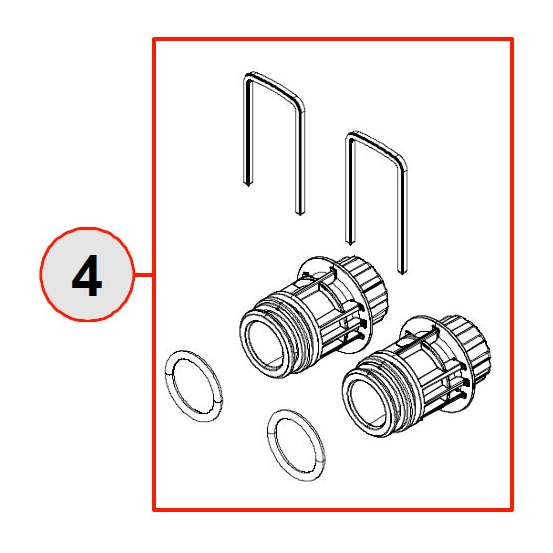

| FCT Connection Cap |
Esytwin Dock |
SP00001232 |
— |

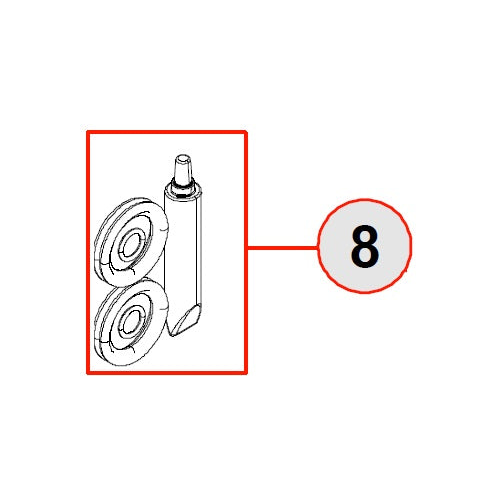

| FCT-Twin O-Ring Kit |
Esytwin Dock |
SP00001234 |
— |

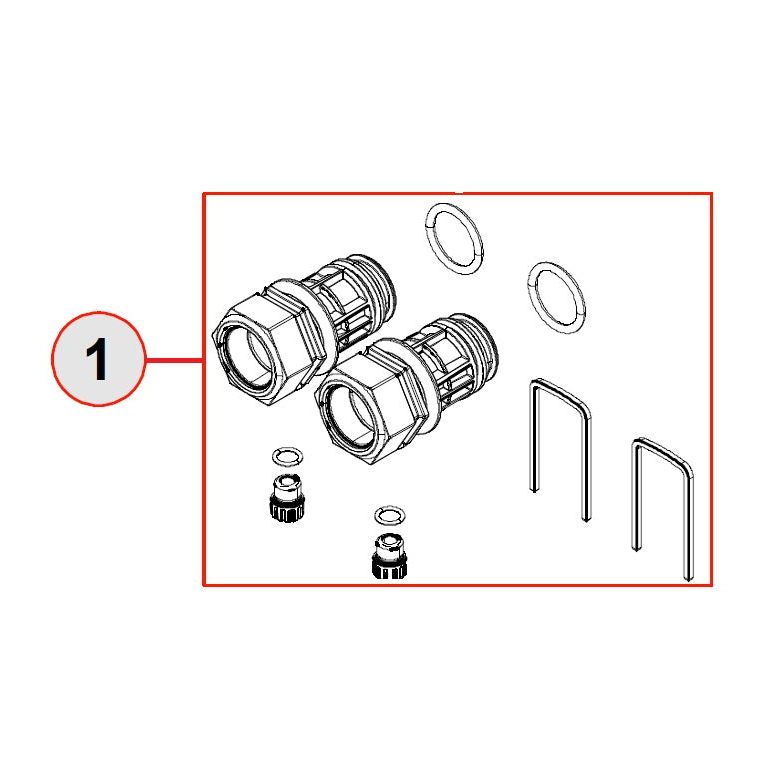

| External Fittings 1-1/4 in NPT |
Esytwin Dock |
SP00001235 |
— |

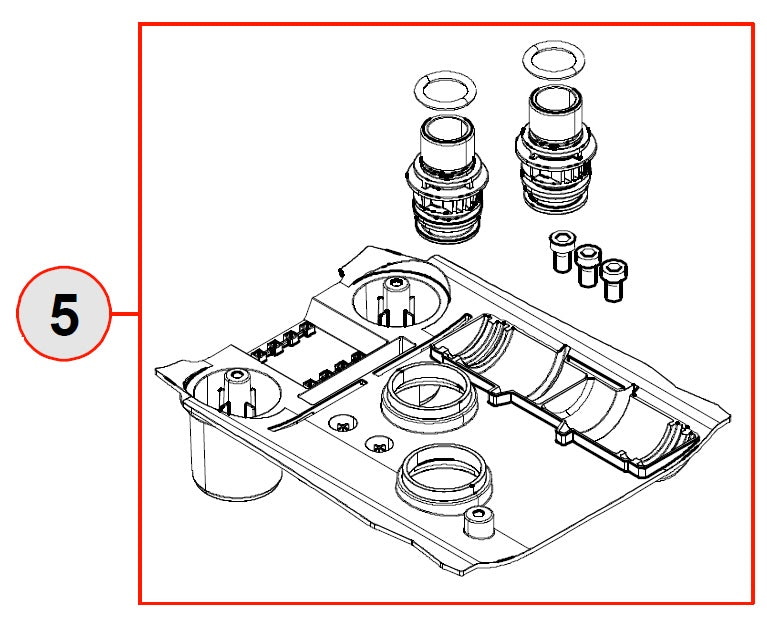

| FCT Internal Fitting 1 in NPT |
Esytwin Dock |
SP00001236 |
— |
| Twin O-Ring Kit |
Esytwin Dock |
SP00001240 |
— |
Version N.3 (V2) parts are ordered by code: complete hydraulic kit SP00008451, HMI display screen SP00008378, main board SP00008380. Email us for a price.
Before You OrderElectronic assemblies (display, main board) are version-specific and do not cross between versions. Parts not listed here can be sourced by DAB code and pump serial number: email sales@watermainsupply.com with the pump model, the DAB code and the version on the rating label.
