Esybox Mini3 Spare Parts
Genuine DAB service parts for the Esybox Mini3 booster, versions N.2 to N.6.
Overview
Genuine DAB spare parts for the DAB Esybox Mini3 constant pressure booster (DAB code 60212610): the display, control board, pressure sensor, flowmeter kit, non-return valve, self-priming shutter, 100 cc expansion tank, charge port cap and O-ring kit. Pick the part, then the version it fits. Position numbers match the DAB exploded parts diagram in the images.
The display and main board differ between versions N.4/N.5 and N.6, so check the rating label before you order.
What Ships and What It Needs to Run
Included: the genuine DAB spare part for the code you select, as DAB supplies it under that code.
Your pump’s version: read the version number (N.) on the pump’s rating label; parts are matched to it.
Genuine DAB equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier. Watermain Supply is an Authorized Stocking DAB Distributor.
24-Month DAB Warranty
Covered for 24 months from the date of purchase under DAB’s published warranty terms.
Repair or Replace?
A display or main board on an older Mini3 can run to a real share of the price of a new pump. If the repair list is getting long, compare it with a new DAB Esybox Mini3, or step up to the Esytwin Mini two-pump system.
Use code DAB10 at checkout for 10% off a DAB complete pump. It takes the place of the automatic 5% discount on that order.

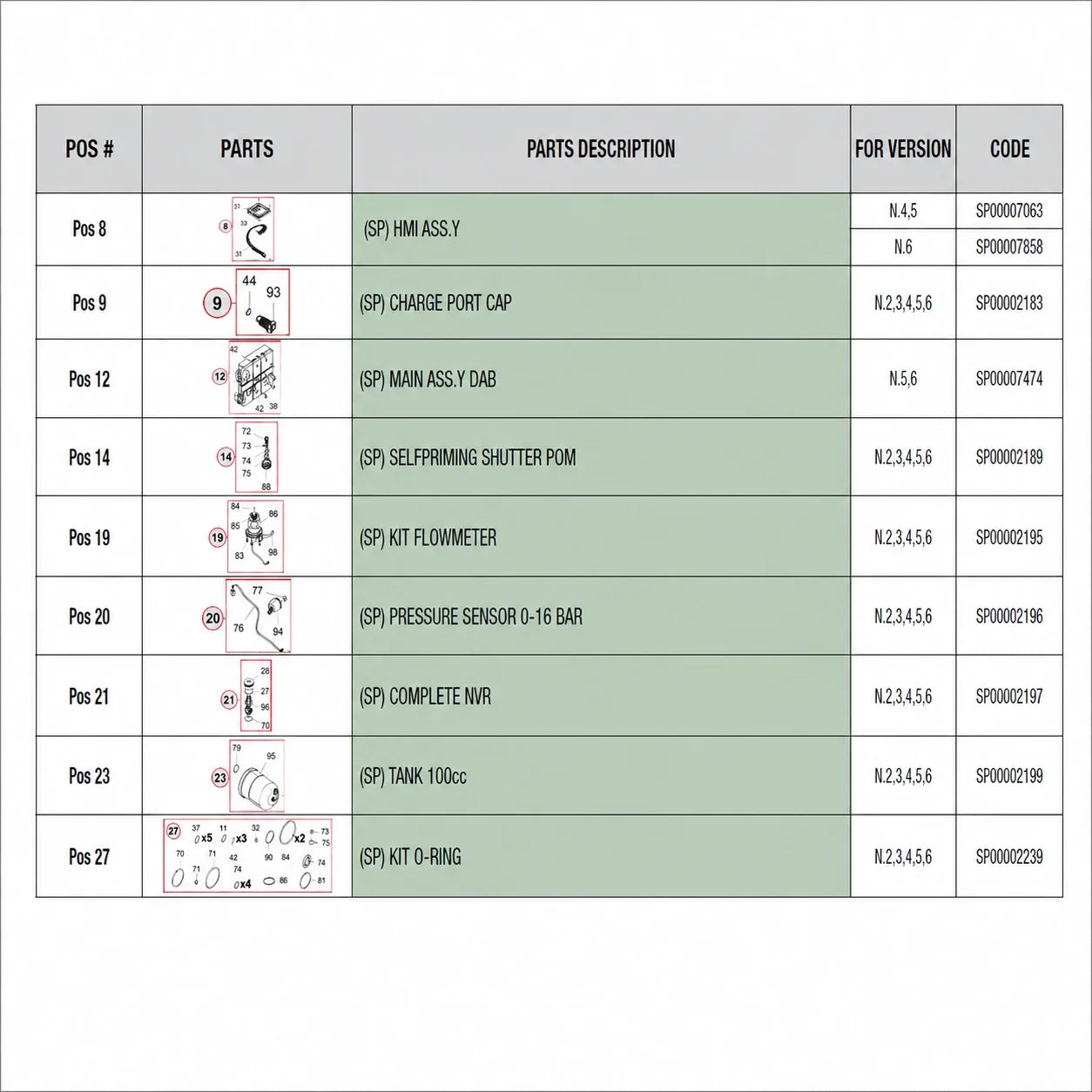

Parts
| Part |
Fits |
DAB Code |
Diagram |
| HMI Display Assembly |
Version N.4 and N.5 |
SP00007063 |
Pos 8 |

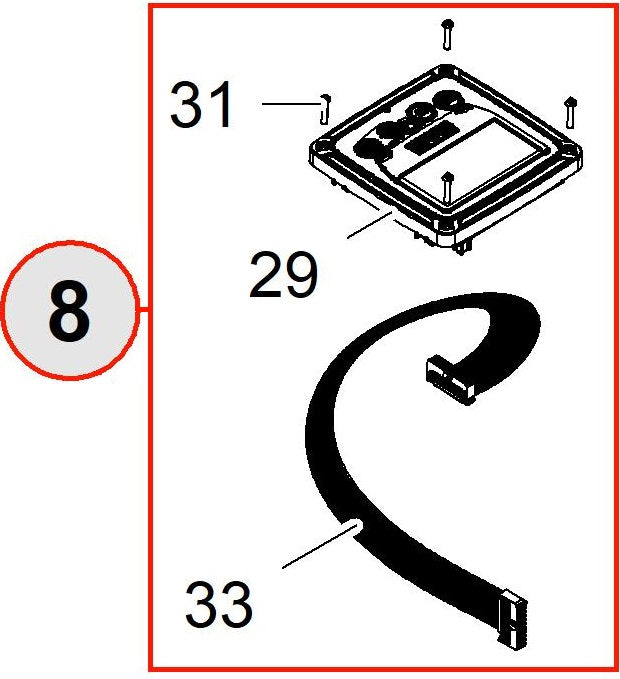

| HMI Display Assembly |
Version N.6 |
SP00007858 |
Pos 8 |

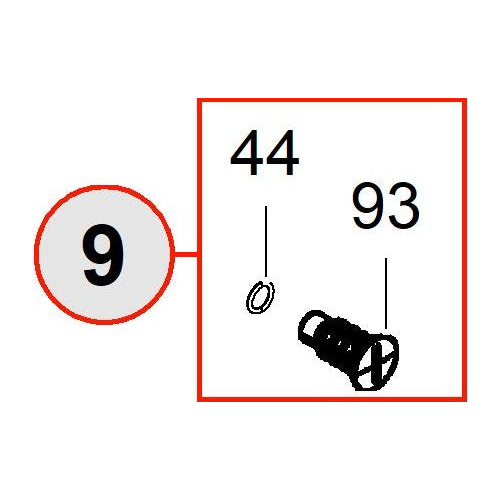

| Charge Port Cap |
Version N.2 to N.6 |
SP00002183 |
Pos 9 |

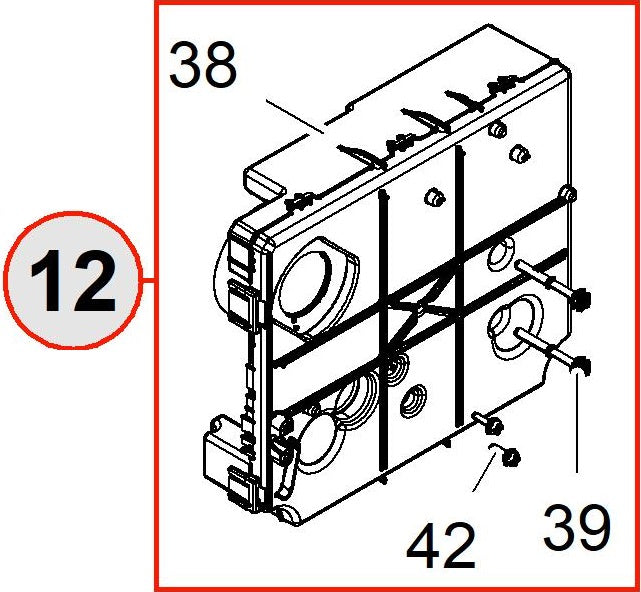

| Main Board Assembly |
Version N.5 and N.6 |
SP00007474 |
Pos 12 |

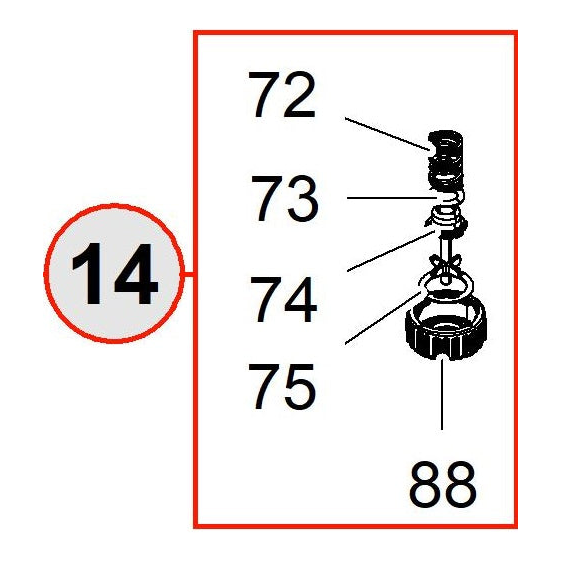

| Self-Priming Shutter (POM) |
Version N.2 to N.6 |
SP00002189 |
Pos 14 |

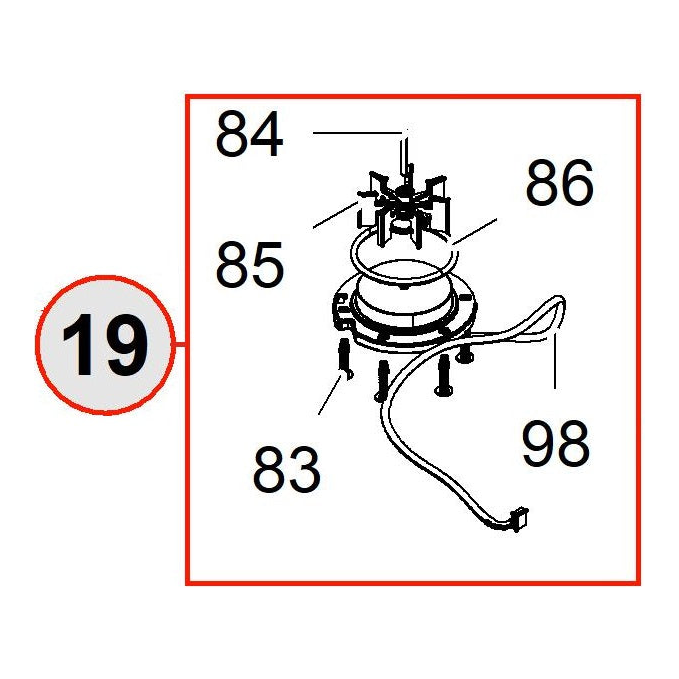

| Flowmeter Kit |
Version N.2 to N.6 |
SP00002195 |
Pos 19 |

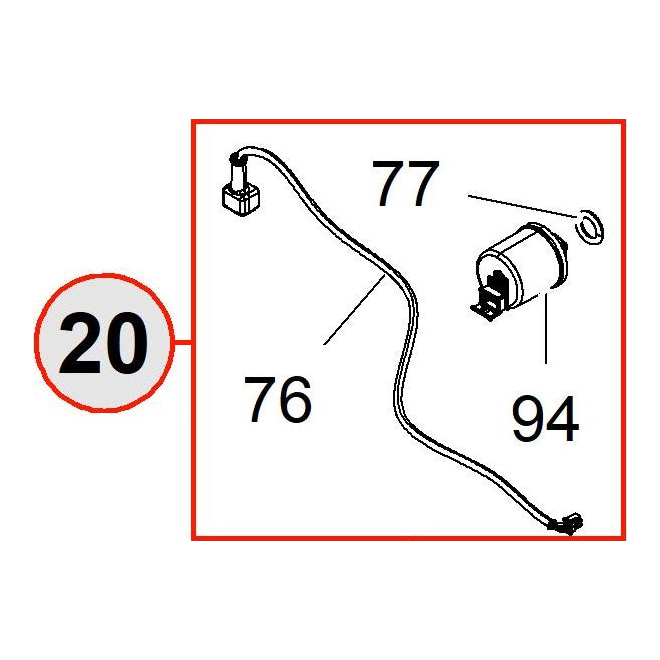

| Pressure Sensor 0-16 bar |
Version N.2 to N.6 |
SP00002196 |
Pos 20 |

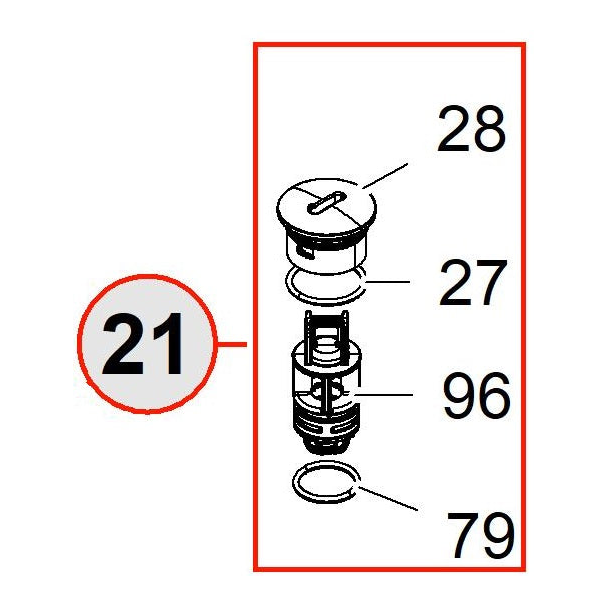

| Complete Non-Return Valve |
Version N.2 to N.6 |
SP00002197 |
Pos 21 |

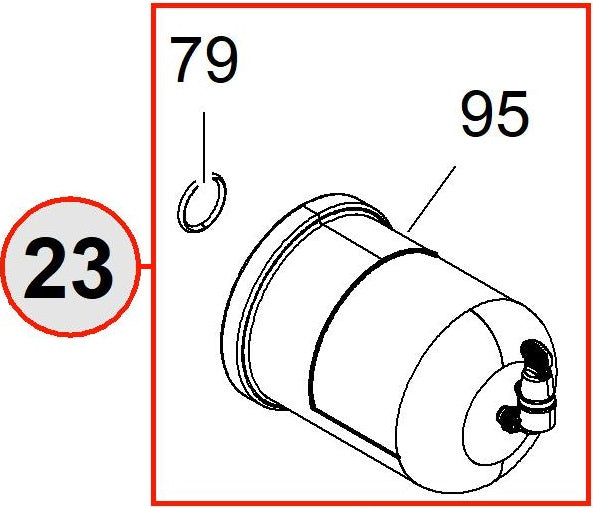

| Expansion Tank 100 cc |
Version N.2 to N.6 |
SP00002199 |
Pos 23 |

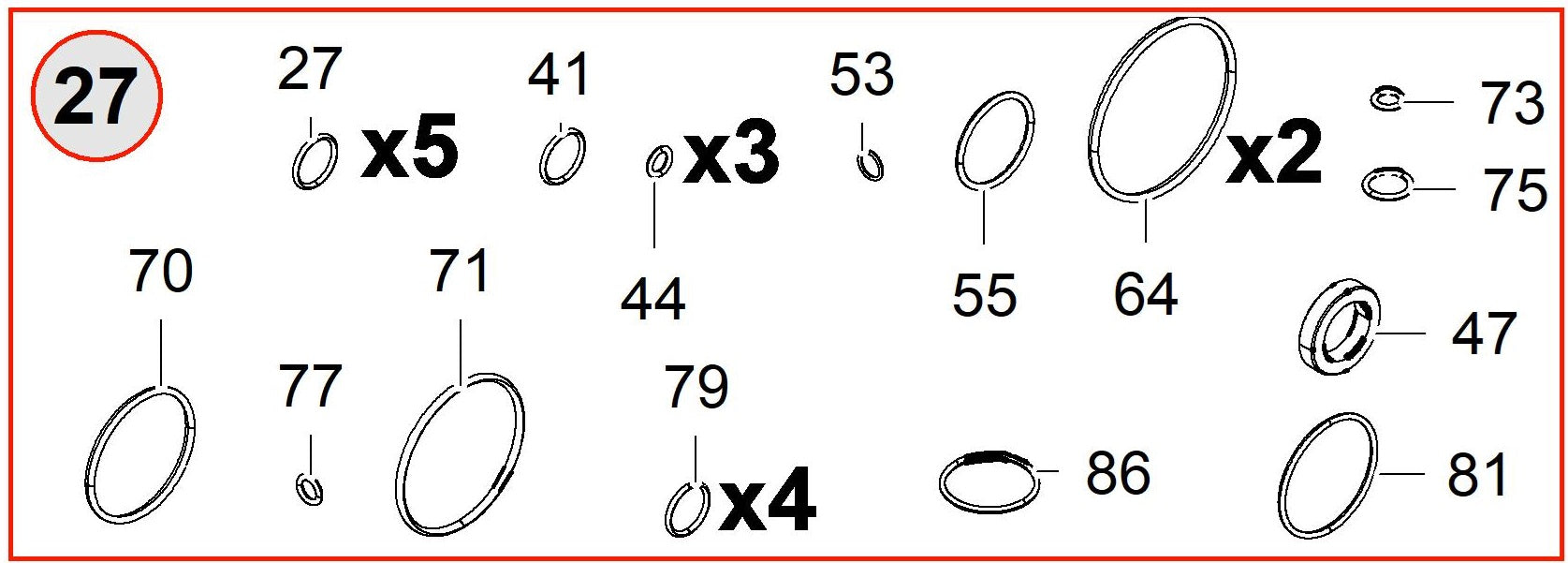

| O-Ring Kit |
Version N.2 to N.6 |
SP00002239 |
Pos 27 |
Before You OrderElectronic assemblies (display, main board) are version-specific and do not cross between versions. Parts not listed here can be sourced by DAB code and pump serial number: email sales@watermainsupply.com with the pump model, the DAB code and the version on the rating label.
