Franklin Electric DR Series Close-Coupled Centrifugal Pump - Booster & Transfer Service, 1/2-2 HP
Franklin Electric DR Series Close-Coupled Centrifugal Pump - Booster & Transfer Service, 1/2-2 HP

Franklin Electric DR Series Close-Coupled Centrifugal Pump - Booster & Transfer Service, 1/2-2 HP

Horse Power: 1/2 HP
Phase: Single-Phase
Construction: CP

Product variant with selected options does not exist!
$1,877.53
SKU: DR1S05-CP
Weight : 36.0 lb
Need it fast? Call for same-day shipping options: 281.664.8000
Description
Franklin Electric Centrifugal Pump

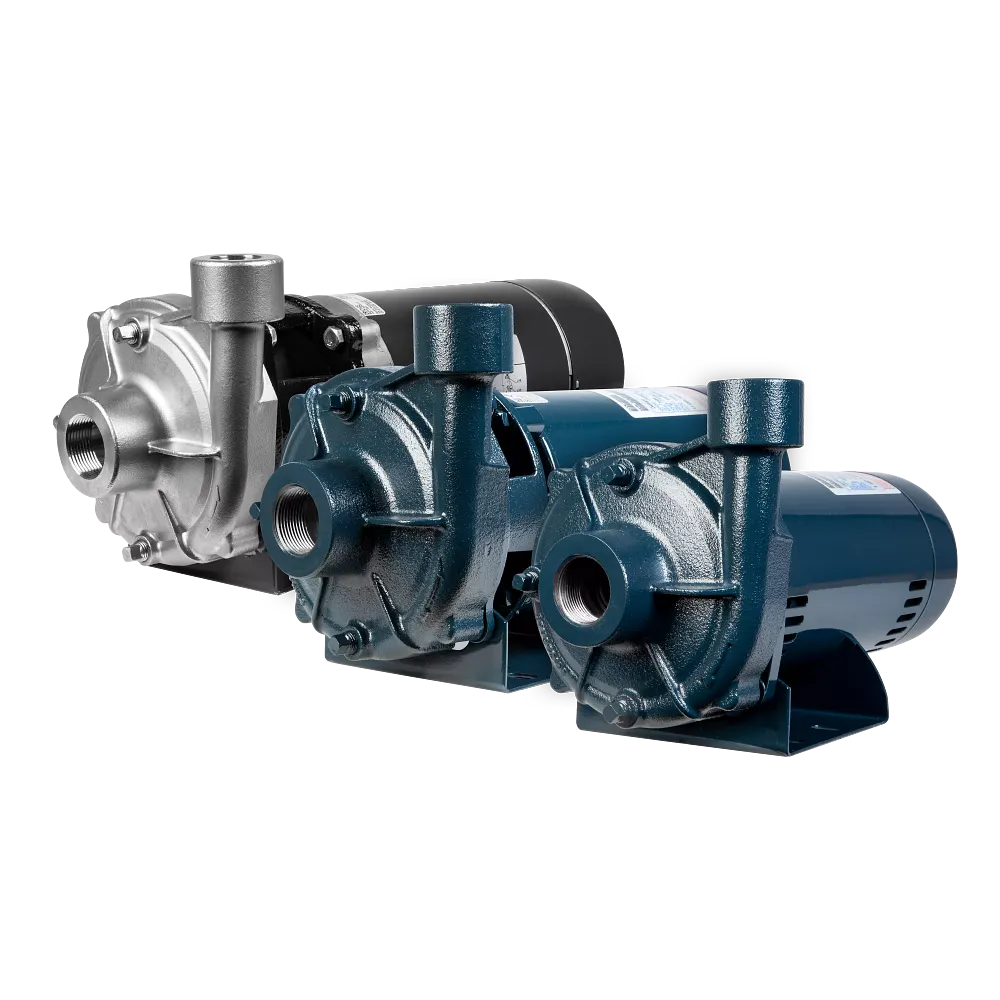

DR Series Centrifugal Pump
Close-Coupled

Close-coupled centrifugal pump for circulation, booster service, transfer, spraying and jockey pump duty. Back pull-out design.

1/2 – 2 HP
Single & Three-Phase
Back Pull-Out Design
Overview

Robust close-coupled centrifugal pump available in a variety of construction materials for water circulation, booster service, liquid transfer, spraying systems, jockey pump service and general purpose pumping.

Back pull-out design provides access to internal parts without disturbing the plumbing. Suitable for horizontal or vertical (motor end up) installation.

Key Advantages
Back pull-out design
Back pull-out design provides access to internal parts without disturbing the plumbing
Robust cast iron volute standard; stainless steel
Robust cast iron volute standard; stainless steel alternate available for DR1 Series
Volute discharge can be rotated in 90°
Volute discharge can be rotated in 90° increments with top vertical standard from the factory
Multiple 1/4" NPT drain/pressure ports enable winter
Multiple 1/4" NPT drain/pressure ports enable winterizing no matter the volute orientation
Enclosed impeller design
Enclosed impeller design for increased efficiencies; thermoplastic and stainless steel options
Multiple mechanical seal construction materials to a
Multiple mechanical seal construction materials to accommodate handling various fluids
Every pump unit factory wet tested to
Every pump unit factory wet tested to insure customer satisfaction
Suitable for horizontal or vertical
Suitable for horizontal or vertical (motor end up) installation
Pump end kits available
Pump end kits available for 56C & 56J motor construction
Rotation
right hand; clockwise when viewed from motor end.
Order Information
Item Model Horse Power Phase Construction
97110005 DR1S05-CP 1/2 HP Single-Phase CP
97110007 DR1S07-CP 3/4 HP Single-Phase CP
97110010 DR1S1-CP 1 HP Single-Phase CP
97110105 DR1S05-SP 1/2 HP Single-Phase SP
97110107 DR1S07-SP 3/4 HP Single-Phase SP
97110110 DR1S1-SP 1 HP Single-Phase SP
97113005 DR1S05-CP-T 1/2 HP Three-Phase CP
97113007 DR1S07-CP-T 3/4 HP Three-Phase CP
97113010 DR1S1-CP-T 1 HP Three-Phase CP
97113105 DR1S05-SP-T 1/2 HP Three-Phase SP
97113107 DR1S07-SP-T 3/4 HP Three-Phase SP
97113110 DR1S1-SP-T 1 HP Three-Phase SP
97130210 DR2S1-CS 1 HP Single-Phase CS
97130215 DR2S15-CS 1.5 HP Single-Phase CS
97130220 DR2S2-CS 2 HP Single-Phase CS
97133210 DR2S1-CS-T 1 HP Three-Phase CS
97133215 DR2S15-CS-T 1.5 HP Three-Phase CS
97133220 DR2S2-CS-T 2 HP Three-Phase CS
Ordering Notes

Construction codes are Franklin's model suffixes: the DR1 Series is offered as -CP and -SP, and the DR2 Series as -CS. Franklin's feature list states that a stainless steel volute alternate is available for the DR1 Series, so -CP and -SP are understood to denote cast iron versus stainless construction. Confirm the exact code meanings with Franklin before relying on them for specification.

Documentation & Spec Sheets
DR Series Catalog
Catalog — Franklin Electric published document (PDF).
Download PDF
DR Series Manual
Owner’s Manual — Franklin Electric published document (PDF).
Download PDF
Specification Source

Specifications, model numbers and Franklin item numbers on this page are taken from Franklin Electric published product data. Engineering-led pump sizing available — call 281.664.8000 or email sales@watermainsupply.com.

Ready to Order?
Confirm horsepower, phase, voltage and flow requirements before placing your order. Engineering-led pump sizing available.
