A.Y. McDonald · Self-Priming Sprinkler Pump
89000 E-Series Self-Priming Sprinkler Pump
Self-priming E-Series sprinkler pump, 1 to 2 HP, 1 1/2 in inlet and outlet, up to 84 GPM and 50 PSI.
46-50 PSI Max · 70-84 GPM Max
1-2 HP
230/115V or 230V 1Ph
Self-Priming
1 1/2 in Inlet and Outlet
304 Stainless Steel Shaft
Up to 25 ft Suction Lift
59-64 lb Ship Weight
What Ships and What It Needs to Run
Included: the pump with its E-Series motor, factory preset to 230V.
Suction and discharge piping, and the controls for your irrigation system: sized to your installation and ordered separately.
Overview
The 89000 E-Series is A.Y. McDonald’s self-priming sprinkler pump, in 1, 1 1/2 and 2 HP, with a 1 1/2 in inlet and outlet and flow up to 85 GPM. It switches easily between 115V and 230V and ships preset to 230V; the 2 HP is 230V only.
-
Self-priming for lawn sprinkler and irrigation systems.
-
304 stainless steel motor shaft with wrench flat, impeller insert, wear ring between impeller and diffuser, and pump-to-motor bolts.
-
All iron pump housing and seal plate.
Genuine A.Y. McDonald equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier. Watermain Supply is an Authorized Stocking A.Y. McDonald and Baker Water Systems Distributor.
12-Month A.Y. McDonald Warranty
Covered for 1 year from the date of installation, or 2 years from the date of manufacture, whichever comes first, under A.Y. McDonald’s published limited warranty terms, as set out in the A.Y. McDonald Pumps & Accessories Price List. Components made by other manufacturers, such as the motor, carry their original manufacturer’s warranty.
Models & Ratings (60 Hz)
| Model |
Part No. |
Power |
Voltage |
Amps |
Max pressure, 0 ft lift |
Max flow |
Inlet / outlet |
Ship weight |
| 89100 |
6156-134 |
1 HP |
230/115V 1Ph |
16.6 / 8.3 |
46 PSI |
71 GPM |
1 1/2 in |
59 lb |
| 89150 |
6156-135 |
1 1/2 HP |
230/115V 1Ph |
21 / 10.5 |
49 PSI |
70 GPM |
1 1/2 in |
63 lb |
| 89200 |
6156-136 |
2 HP |
230V 1Ph |
11.8 |
50 PSI |
84 GPM |
1 1/2 in |
64 lb |
Amps at 115V / 230V. Max pressure is the printed shut-off at 0 ft of lift; max flow is the end of the published curve, rounded down. Weights are shipping weights as printed. Source: Pumps by Baker catalog, rev 3/26, pp. 285-286.

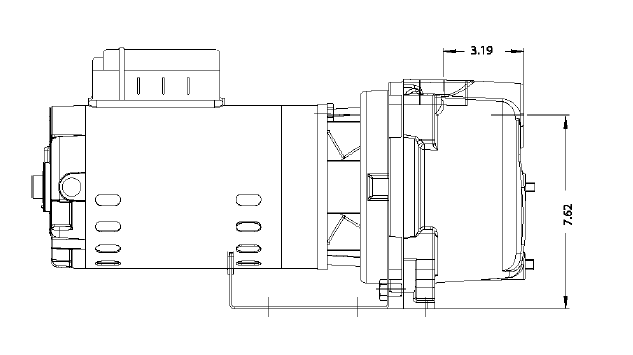

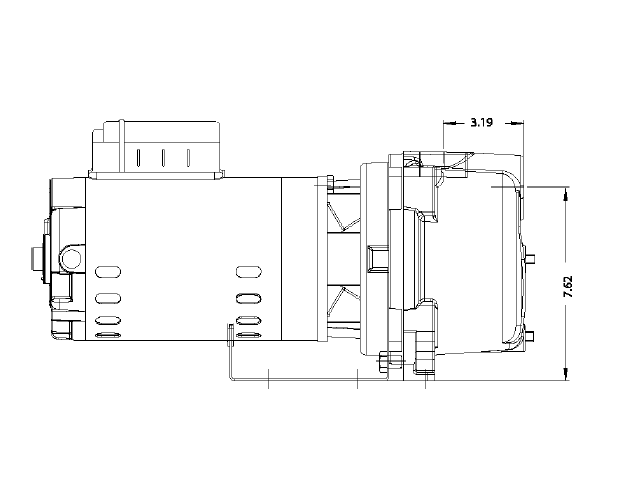

Specifications
| Inlet / outlet |
1 1/2 in |
| Motor |
E-Series motor, 115V / 230V, factory preset 230V (2 HP: 230V only), 304 stainless steel shaft with wrench flat |
| Priming |
Self-priming |
| Housing |
All iron pump housing and seal plate |
| App or remote connectivity |
None |
Performance — Will It Do What You Need?
Find your suction lift and read across to the discharge pressure your sprinklers need. Each figure is gallons per minute from A.Y. McDonald’s published table; the last column is the shut-off pressure at that lift.
| Model |
HP |
Suction lift, ft |
10 PSI |
20 PSI |
30 PSI |
40 PSI |
Max shut-off, PSI |
| 89100 |
1 |
0 |
63 |
54 |
41 |
24 |
46.2 |
| 5 |
61 |
51 |
38 |
19 |
44 |
| 10 |
56 |
46 |
32 |
|
41.9 |
| 15 |
51 |
44 |
28 |
|
39.7 |
| 20 |
43 |
40 |
23 |
|
38.3 |
| 25 |
35 |
34 |
18 |
|
34.8 |
| 89150 |
1 1/2 |
0 |
69 |
68 |
64 |
48 |
49.9 |
| 5 |
62 |
61 |
58 |
42 |
46.7 |
| 10 |
55 |
53 |
51 |
35 |
45 |
| 15 |
48 |
48 |
46 |
26 |
44.2 |
| 20 |
42 |
40 |
39 |
15 |
43.8 |
| 25 |
34 |
34 |
30 |
|
41.4 |
| 89200 |
2 |
0 |
83 |
83 |
73 |
54 |
50 |
| 5 |
73 |
73 |
69 |
49 |
48 |
| 10 |
57 |
57 |
56 |
39 |
48 |
| 15 |
50 |
50 |
50 |
34 |
43.8 |
| 20 |
42 |
42 |
42 |
22 |
45.1 |
| 25 |
34 |
34 |
34 |
|
39.4 |

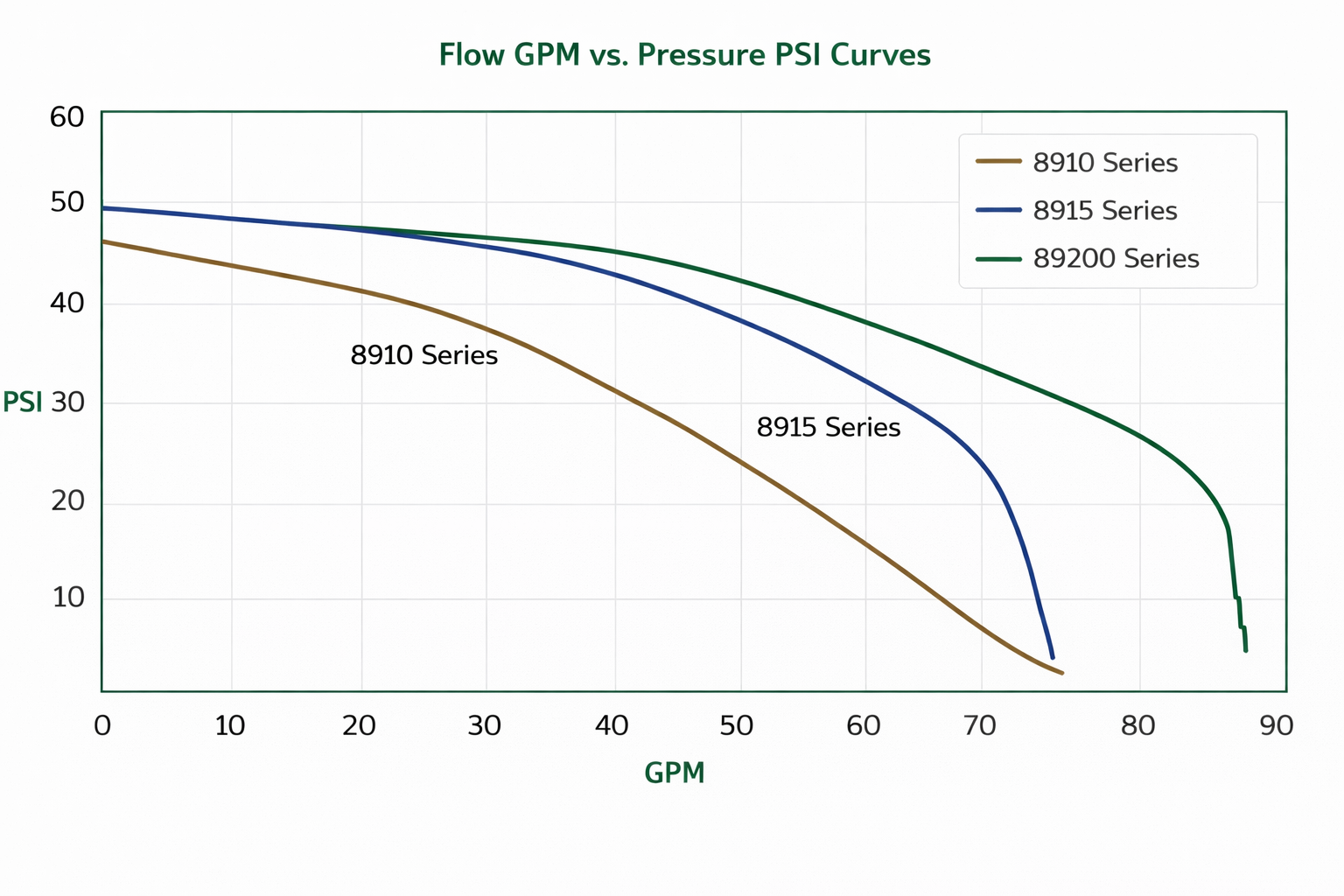

Pressure at flow, from the published curve
| Flow, GPM |
89100 (1 HP) |
89150 (1 1/2 HP) |
89200 (2 HP) |
| 0 |
46 PSI (107 ft) |
50 PSI (116 ft) |
50 PSI (116 ft) |
| 10 |
44 PSI (102 ft) |
49 PSI (113 ft) |
49 PSI (114 ft) |
| 20 |
41 PSI (96 ft) |
48 PSI (111 ft) |
48 PSI (111 ft) |
| 30 |
37 PSI (87 ft) |
46 PSI (107 ft) |
47 PSI (109 ft) |
| 40 |
31 PSI (71 ft) |
44 PSI (103 ft) |
45 PSI (106 ft) |
| 50 |
24 PSI (55 ft) |
39 PSI (91 ft) |
43 PSI (100 ft) |
| 60 |
13 PSI (32 ft) |
33 PSI (78 ft) |
38 PSI (88 ft) |
| 70 |
4 PSI (10 ft) |
6 PSI (15 ft) |
32 PSI (75 ft) |
| 80 |
|
|
25 PSI (59 ft) |
Reading it: zones needing 30 PSI with the water 10 ft below the pump get 32 GPM from the 1 HP, 51 GPM from the 1 1/2 HP and 56 GPM from the 2 HP. Lift costs flow at every pressure.
Zero flow is the shut-off point — a ceiling, not a working point. Curve figures are digitized from the published curve in the Pumps by Baker catalog, rev 3/26, p. 285, and rounded down; the GPM table is A.Y. McDonald’s printed performance, p. 286.
Before You Buy — The Limits That Decide the Fit
| Maximum pressure |
46 to 50 PSI at shut-off with no lift, falling as lift rises. |
| Suction lift |
Self-priming; published to 25 ft of lift. |
| Power |
Single phase: 1 and 1 1/2 HP switch between 115V and 230V (shipped at 230V); 2 HP is 230V only. |
| Pairing |
Single unit. |
