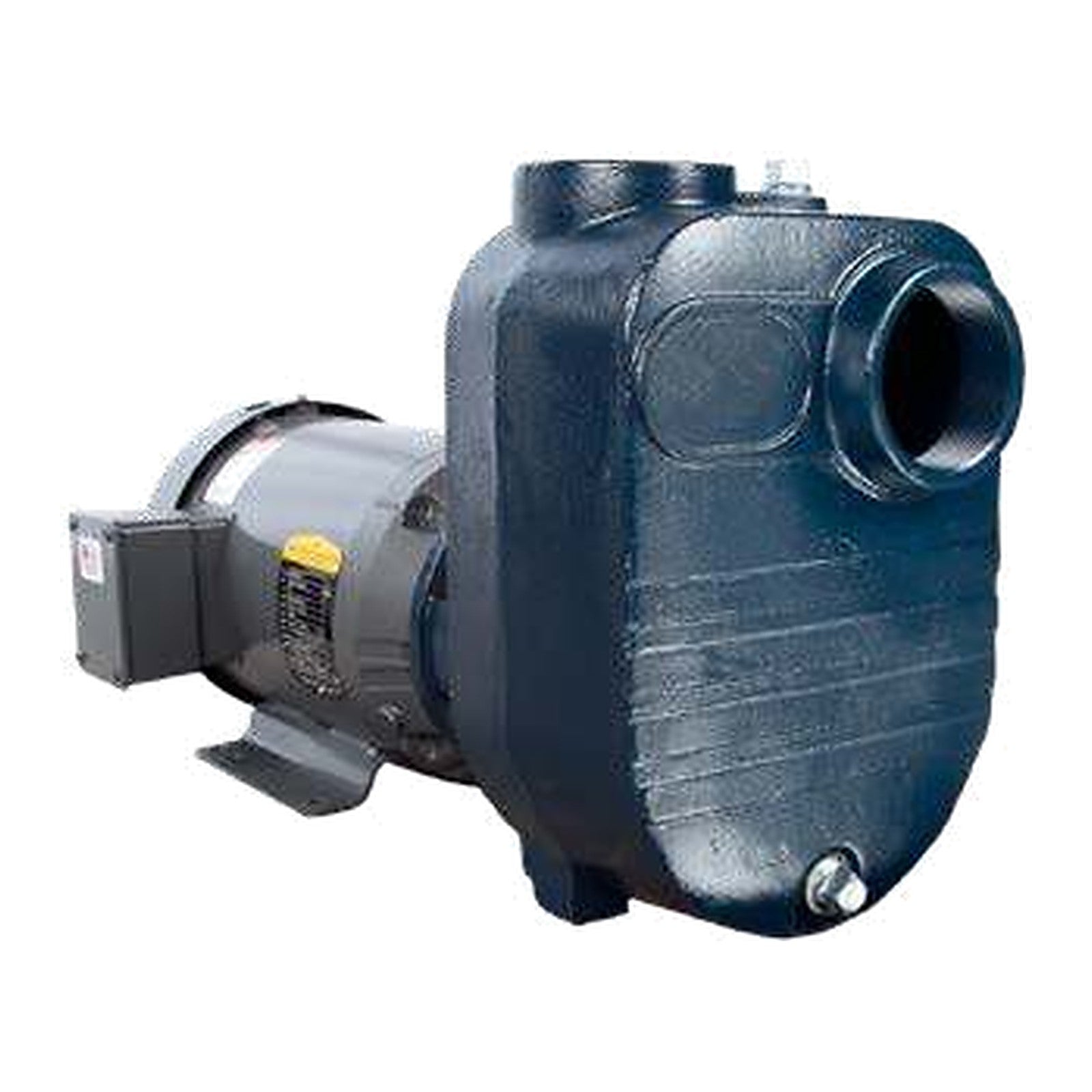

Franklin Electric · Self-Priming Centrifugal Pump
FBSEF Series
Self-priming cast iron centrifugal pump with TEFC motor, 1-1/2 to 7-1/2 HP, flows to 295 GPM.
66-90 ft (28-39 PSI) Max Head · 78-294 GPM Max
1-1/2-7-1/2 HP
115/230V or 230V 1Ph · 230/460V 3Ph
Self-Priming
1-1/4, 2 or 3 in NPT
Semi-Open Cast Iron Impeller
TEFC Motor, 3,600 RPM
75 PSI Max Working Pressure
212 °F Max Temperature
52-161 lb Weight
Overview
The FBSEF is the larger, totally-enclosed member of Franklin Electric’s self-priming family: a rugged cast iron volute with a large chamber for rapid priming, and a semi-open cast iron impeller for fertilizer, salt water, dirty water and other liquids. It covers capacities to 295 GPM and heads to 92 ft. For smaller duties with an ODP motor, see the FBSE.
- Cast iron volute with a large chamber for rapid self-priming
- Semi-open cast iron impeller, blind-hole tapped so liquid will not corrode the shaft
- Carbon/ceramic seal faces, FKM elastomers, 300-series stainless steel
- Totally-enclosed, fan-cooled (TEFC) motor
- NPT pipe connections
What Ships and What It Needs to Run
Included: the pump and TEFC motor, assembled.
Suction and discharge piping: sized to your installation and ordered separately.
Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Franklin Electric Warranty
Franklin Electric considers products for warranty for 12 months from the date of installation or 24 months from the date of manufacture, whichever occurs first (FBSE and FBSEF owner’s manual 106657101).
Single Unit
One pump per duty; the 7-1/2 HP FBSEF-750 is the largest in the family.
Specifications
| Pump type |
Close-coupled self-priming centrifugal |
| Horsepower |
1-1/2 to 7-1/2 HP |
| Speed |
3,600 RPM |
| Connections |
1-1/4 in NPT (1-1/2 HP); 2 in NPT (2-3 HP); 3 in NPT (5-7-1/2 HP) |
| Motor |
TEFC; 56J (1-1/2-3 HP), 184JM (5-7-1/2 HP) |
| Maximum working pressure |
75 PSI |
| Maximum temperature |
212 °F |
Performance — Will It Do What You Need?
Read your model at your flow; the value is the pressure the pump develops in PSI.
Pressure in PSI at flow
| Model |
0 GPM (Shut-off) |
50 GPM |
100 GPM |
150 GPM |
200 GPM |
250 GPM |
| FBSEF-150 |
28 |
19 |
— |
— |
— |
— |
| FBSEF-200 |
30 |
21 |
11 |
— |
— |
— |
| FBSEF-300 |
38 |
31 |
21 |
— |
— |
— |
| FBSEF-500 |
36 |
32 |
27 |
22 |
16 |
8 |
| FBSEF-750 |
39 |
35 |
32 |
27 |
23 |
16 |
Digitized from the published curve in Franklin Electric Mi4073, p. 5 (vector data), and rounded down; feet of head = PSI × 2.31. The shut-off column is read at the start of each curve (1.5-2 GPM). Curves end at 78, 125, 140, 250 and 294 GPM, matching Franklin’s printed “capacities to 295 gpm, heads to 92 feet”. — = not published by Franklin Electric for that combination.
Before You Buy — The Limits That Decide the Fit
| Liquid |
Fertilizer, salt water, dirty water and similar liquids |
| Suction |
Self-priming |
| Pressure |
75 PSI maximum working pressure |
| Temperature |
212 °F maximum |
| Power |
See the HP - Voltage selector |
| Connections |
1-1/4, 2 or 3 in NPT by model |
Materials of Construction
| Volute |
Cast iron ASTM A48 CL30 |
| Impeller |
Semi-open cast iron ASTM A48 CL30 |
| Motor adaptor |
Cast iron ASTM A48 CL30 |
| Mechanical seal |
Carbon/ceramic, FKM, 300 series stainless steel |
