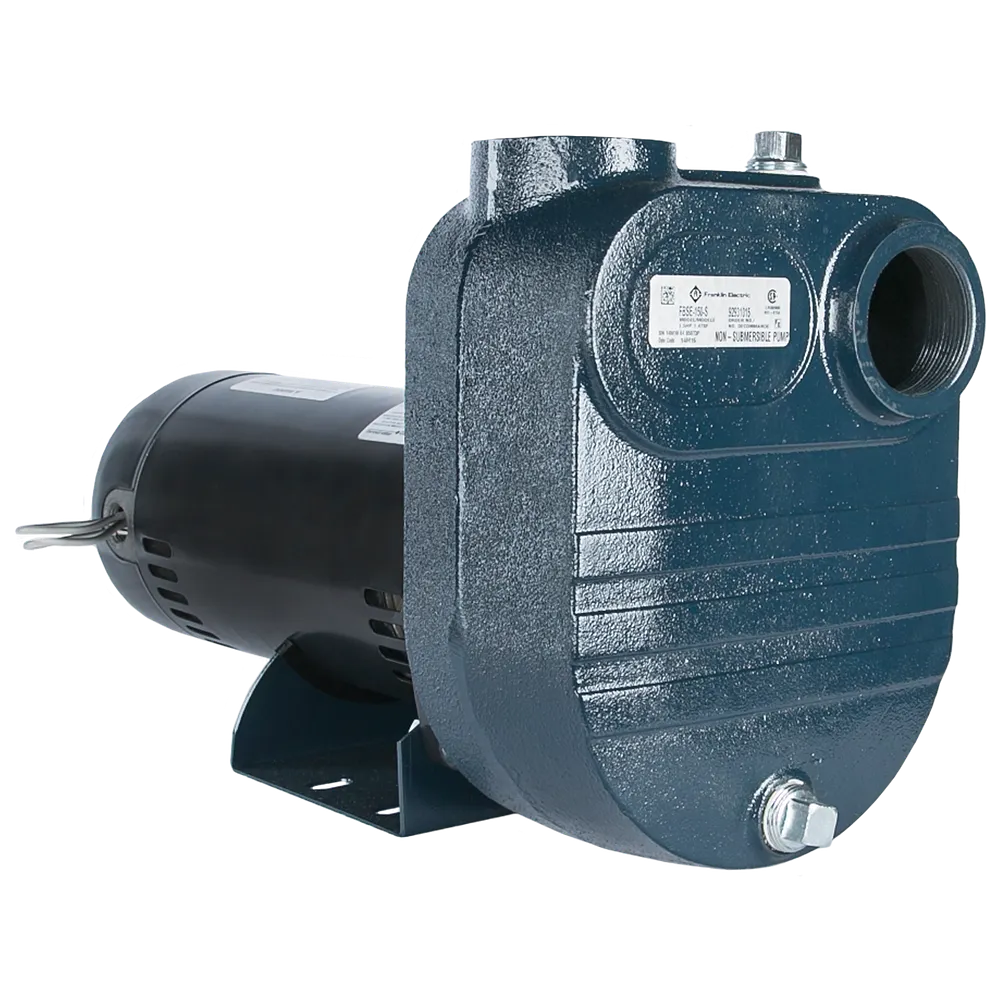

Franklin Electric FBSE self-priming effluent pump
Franklin Electric FBSE self-priming effluent pump, side view
Franklin Electric FBSE self-priming centrifugal pump

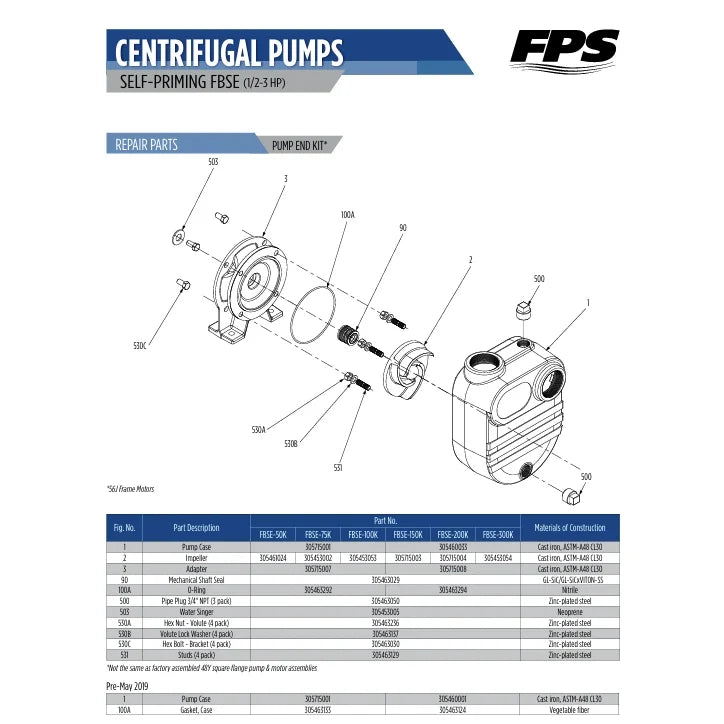

Franklin Electric FBSE pump end kit, less motor
Franklin Electric FBSE self-priming effluent pump
Franklin Electric FBSE self-priming effluent pump, side view
Franklin Electric FBSE self-priming centrifugal pump
Franklin Electric FBSE pump end kit, less motor

Franklin Electric FBSE Repair Parts

Part - Part No.: Pump Case Kit - FBSE-50S, FBSE-75S, FBSE-100S - 305461001

Product variant with selected options does not exist!
$951.73
Coupon 5% off applied automatically in your cart. No code needed.
SKU: 305461001
Weight : 18.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Franklin Electric · Genuine Repair Parts
FBSE Repair Parts
Genuine Franklin Electric replacement parts and service kits for FBSE self-priming effluent pumps, listed by factory order number.
Overview

Factory replacement parts and service kits for Franklin Electric FBSE self-priming effluent pumps. Every item below is listed under Franklin Electric’s own order number, with the pump models it fits as Franklin publishes them.

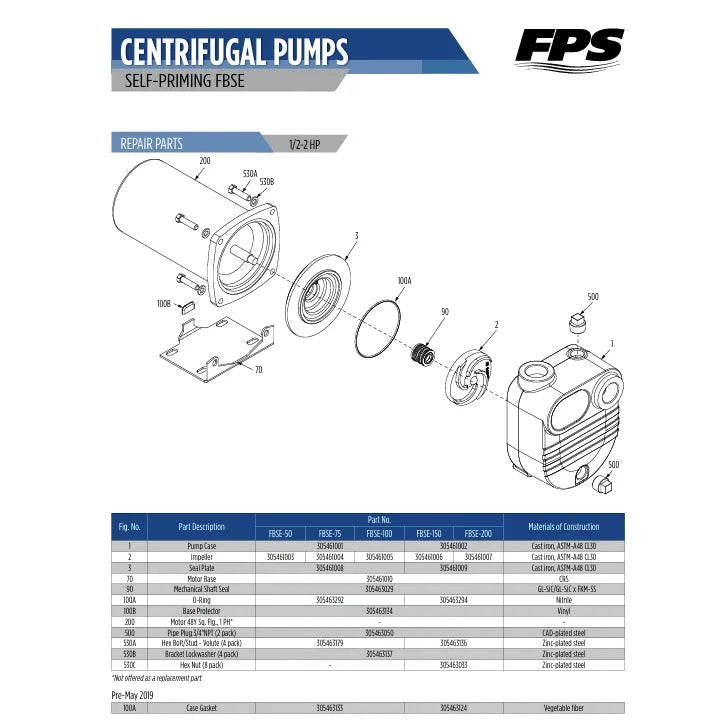

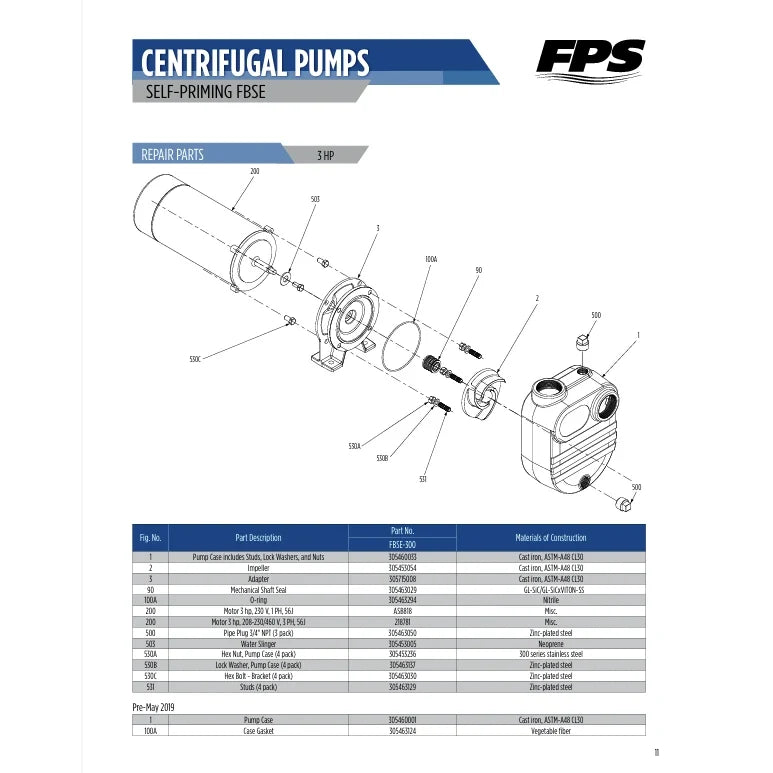

Match the part to the model on your pump nameplate. The complete pumps are here: FBSE pumps. The owner’s manual on the Data Sheet tab shows the exploded view and where each part sits.

What Ships and What It Needs to Run

Included: the part, kit or assembly selected above, identified by its Franklin part number in the last option.

Genuine Franklin Electric equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Parts and Fitment
Full list (18 items)
Order No. Part Fits
305461001 Pump Case Kit FBSE, 1/2, 3/4, 1 HP FBSE-50S, FBSE-75S, FBSE-100S
305461002 Pump Case Kit FBSE, 1.5, 2 HP FBSE-150S, FBSE-200S
305461003 Impeller Kit FBSE, 1/2HP FBSE-50S
305461004 Impeller Kit FBSE, 3/4HP FBSE-75S
305461005 Impeller Kit FBSE, 1 HP FBSE-100S
305461006 Impeller Kit FBSE, 1.5 HP FBSE-150S
305461007 Impeller Kit FBSE, 2 HP FBSE-200S
305461008 Seal Plate Kit FBSE, 1/2, 3/4, 1 HP FBSE-50S, FBSE-75S, FBSE-100S
305461009 Seal Plate Kit FBSE, 1.5, 2 HP FBSE-150S, FBSE-200S
305461010 Base Plate Kit All models
305463029 Mechanical Seal Kit All models
305463033 Hex Nut Kit (8-pack) All models
305463124 Gasket Kit, 1.5, 2 HP FBSE-150S, FBSE-200S
305463133 Gasket Kit, 1/2, 3/4, 1 HP FBSE-50S, FBSE-75S, FBSE-100S
305463134 Base Cushion Strip All models
305463136 Stud Kit for Volute, 1.5, 2 HP (4-Pack) FBSE-150S, FBSE-200S
305463137 Lockwasher Kit (4 Pack) All models
305463179 Stud Kit for Volute, 1/2, 3/4, 1 HP (4 Pack) FBSE-50S, FBSE-75S, FBSE-100S
Confirm Before OrderingOrder by the model number on the pump nameplate, not by horsepower alone — the same horsepower is built on more than one hydraulic. Send us the nameplate and we will confirm the part before it ships.
Before You OrderMatch the part to the pump model and serial on the nameplate; seals, impellers and diffusers change between model years. Send us the nameplate photo or the old part number and we will confirm the Franklin part number.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
