Description

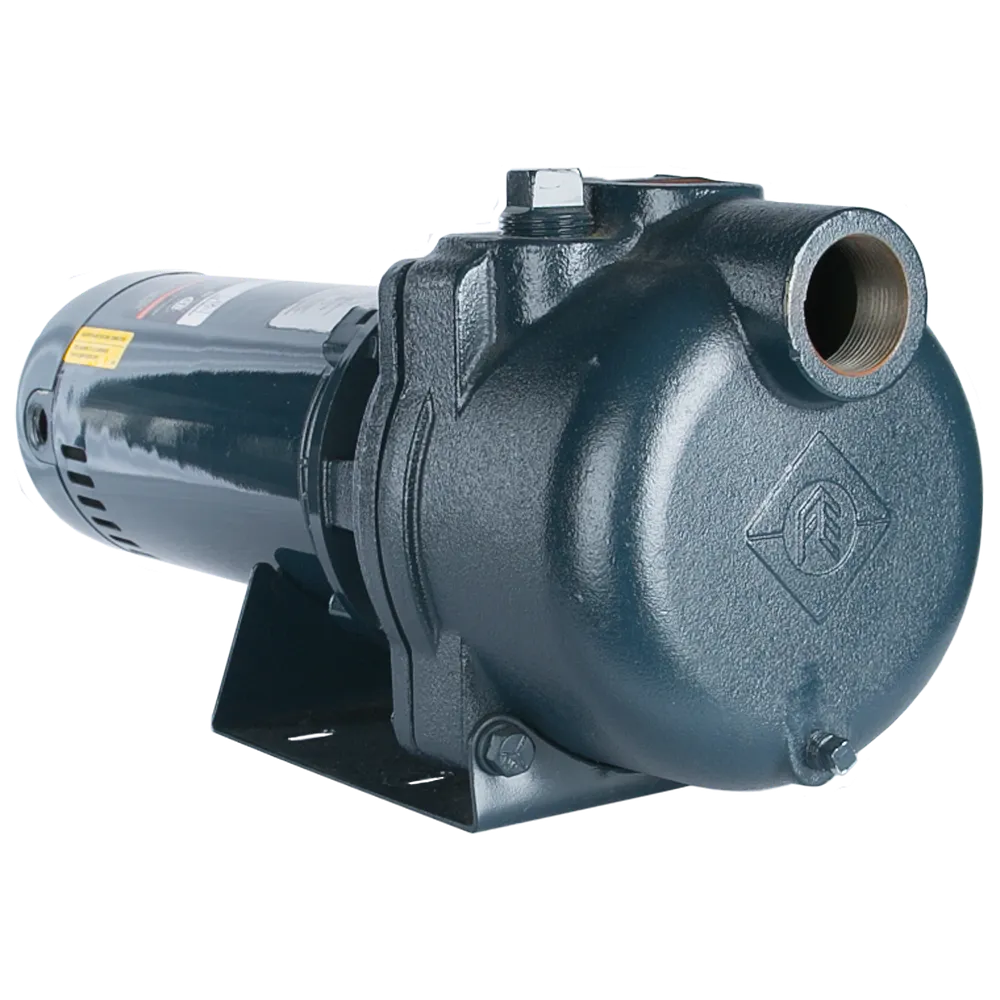

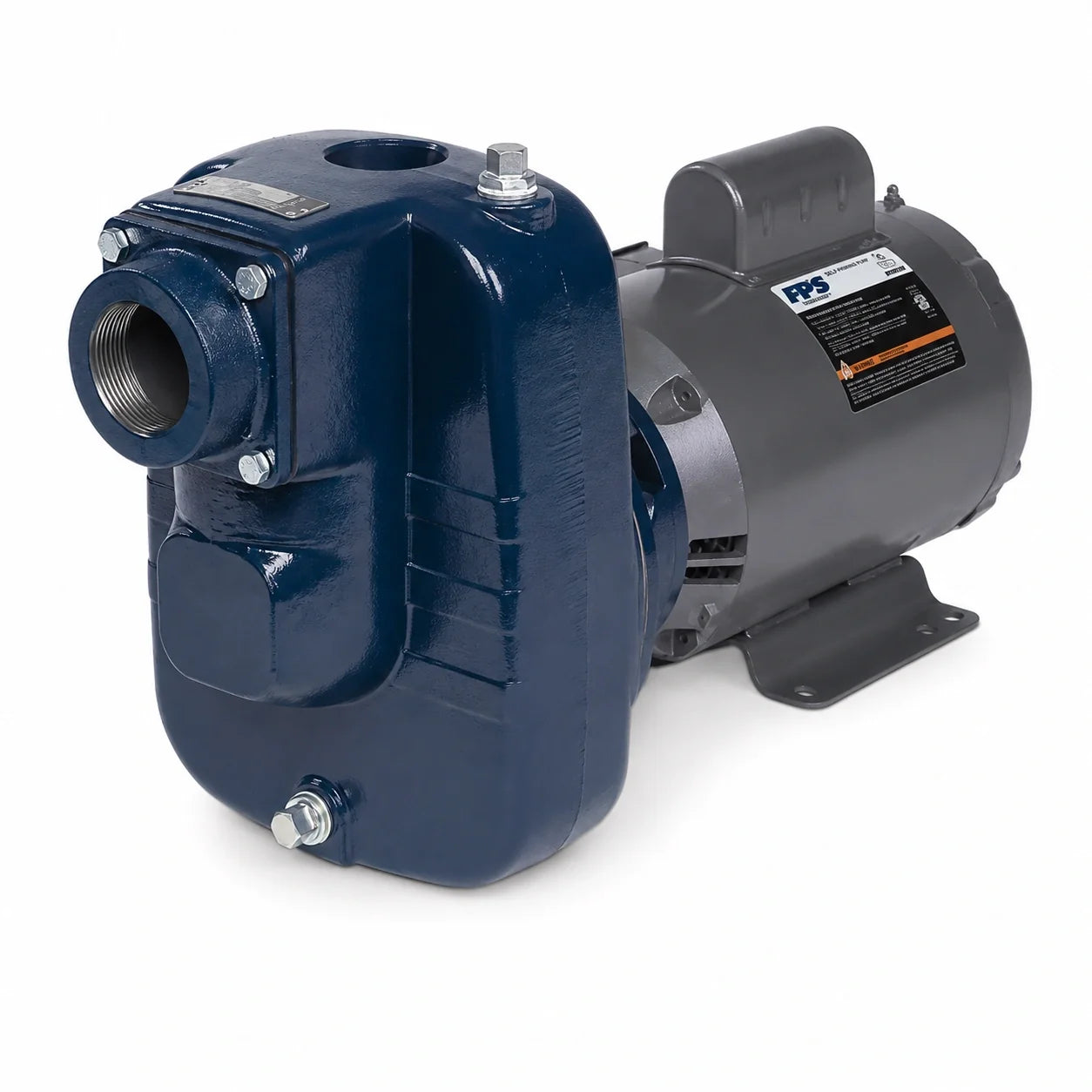

Franklin Electric Self-Priming Pump

Turf Boss Self-Priming Pump
Close-Coupled

Self-priming centrifugal pump for turf and agricultural irrigation, dewatering, car wash and transfer duty. Self-primes to 25 ft.

1 – 5 HP
Single & Three-Phase
120 °F Max Fluid Temp
Back Pull-Out Design
Overview

Self-priming centrifugal pump designed for timer-operated turf irrigation systems, agricultural and nursery irrigation, wellpoint dewatering, car wash systems, and water transfer.

Self-priming to a depth of 25 ft with a rugged cast iron case and back pull-out design. The 1-2 HP range delivers shut-off pressures up to 130 feet and flow rates to 70 gpm; the 3-5 HP range adds a built-in suction check valve and standard JM frame motors.

Key Advantages
Self-priming design
Self-priming design, with the ability to lift water from a depth of 25 feet.
Easily serviced through a back pull-out design
Easily serviced through a back pull-out design, which leaves the plumbing and both the pump's base and case undisturbed in their original location.
Rugged pump case constructed
Rugged pump case constructed with heavy-duty cast iron ensures optimum durability, quiet operation, and long life.
Hydraulic components molded
Hydraulic components molded with Modified PPO thermoplastic, when coupled with the floating stainless steel impeller eyeseal, ensures dependable and efficient operation.
Available with a 304 stainless steel impeller
Available with a 304 stainless steel impeller for maximum durability.
Industry proven indoor and outdoor 56-J motors
Industry proven indoor and outdoor 56-J motors.
Single-phase
1 and 1.5 hp motors are dual voltage, set to run with either 115 or 230 V incoming power (2 hp is 230 V only).
Mechanical shaft seal
Mechanical shaft seal allows positive protection against leaking.
Built-in drain plug
Built-in drain plug for easy winterizing and servicing.
Shut-off pressures up to 130 feet
Shut-off pressures up to 130 feet, and flow rates to 70 gpm.
Handles water temperatures up to 120 °F
Handles water temperatures up to 120 °F.
Integral 1" NPT priming plug
Integral 1" NPT priming plug.
1.5" NPT suction
1.5" NPT suction, 1.5" NPT discharge.
Materials of Construction
Volute
Built-in suction check valve facilitates priming and prevents back flow or…
Franklin published spec
Impeller
304 stainless steel, combining efficient operation with durable constructi…
Franklin published spec
Seal
Standard carbon/ceramic faces, FKM elastomers, 300 series stainless compon…
Franklin published spec
Diffuser
Cast iron diffuser is utilized in all models, improving pump efficiency
Franklin published spec
Motor
Standard JM Frame Motors
Franklin published spec
Order Information
Item Model Horse Power Phase Configuration
92980010 FTB1CI 1 HP Single-Phase Cast Iron Impeller, ODP
92981010 FTB1CI-SSI 1 HP Single-Phase Stainless Steel Impeller, ODP
92980015 FTB15CI 1.5 HP Single-Phase Cast Iron Impeller, ODP
92981015 FTB15CI-SSI 1.5 HP Single-Phase Stainless Steel Impeller, ODP
92980020 FTB2CI 2 HP Single-Phase Cast Iron Impeller, ODP
92981020 FTB2CI-SSI 2 HP Single-Phase Stainless Steel Impeller, ODP
92980030 FTB3CI 3 HP Single-Phase Stainless Steel Impeller, ODP
92980130 FTB3CI-E 3 HP Single-Phase Stainless Steel Impeller, TEFC
92980050 FTB5CI 5 HP Single-Phase Stainless Steel Impeller, ODP
92980150 FTB5CI-E 5 HP Single-Phase Stainless Steel Impeller, TEFC
92983010 FTB1CI-SSI-T 1 HP Three-Phase Stainless Steel Impeller, ODP
92983015 FTB15CI-SSI-T 1.5 HP Three-Phase Stainless Steel Impeller, ODP
92983020 FTB2CI-SSI-T 2 HP Three-Phase Stainless Steel Impeller, ODP
92980035 FTB3CI-T 3 HP Three-Phase Stainless Steel Impeller, ODP
92980135 FTB3CI-TE 3 HP Three-Phase Stainless Steel Impeller, TEFC
92980136 FTB3CI-T5E 3 HP Three-Phase Stainless Steel Impeller, TEFC, 575 V
92980055 FTB5CI-T 5 HP Three-Phase Stainless Steel Impeller, ODP
92980155 FTB5CI-TE 5 HP Three-Phase Stainless Steel Impeller, TEFC
92980156 FTB5CI-T5E 5 HP Three-Phase Stainless Steel Impeller, TEFC, 575 V
Ordering Notes

Franklin lists this as a single product with two hydraulic ranges. Models with the -SSI suffix in the 1-2 HP range are supplied with a 304 stainless steel impeller; base 1-2 HP models use a Modified PPO thermoplastic impeller. All 3-5 HP models use a 304 stainless steel impeller. The -E and -TE suffixes denote a Totally Enclosed Fan Cooled (TEFC) motor, and -T5E models are 575 VAC three-phase.

Documentation & Spec Sheets
Turf Boss 3-5 HP Catalog
Catalog — Franklin Electric published document (PDF).
Download PDF
Turf Boss Brochure
Brochure — Franklin Electric published document (PDF).
Download PDF
Turf Boss 3-5 HP Brochure
Brochure — Franklin Electric published document (PDF).
Download PDF
Turf Boss Sprinkler Pump Manual
Owner’s Manual — Franklin Electric published document (PDF).
Download PDF
Turf Boss Owner’s Manual
Owner’s Manual — Franklin Electric published document (PDF).
Download PDF
Specification Source

Specifications, model numbers and Franklin item numbers on this page are taken from Franklin Electric published product data. Engineering-led pump sizing available — call 281.664.8000 or email sales@watermainsupply.com.
