Typically ships in 7-10 business days

Product Features:

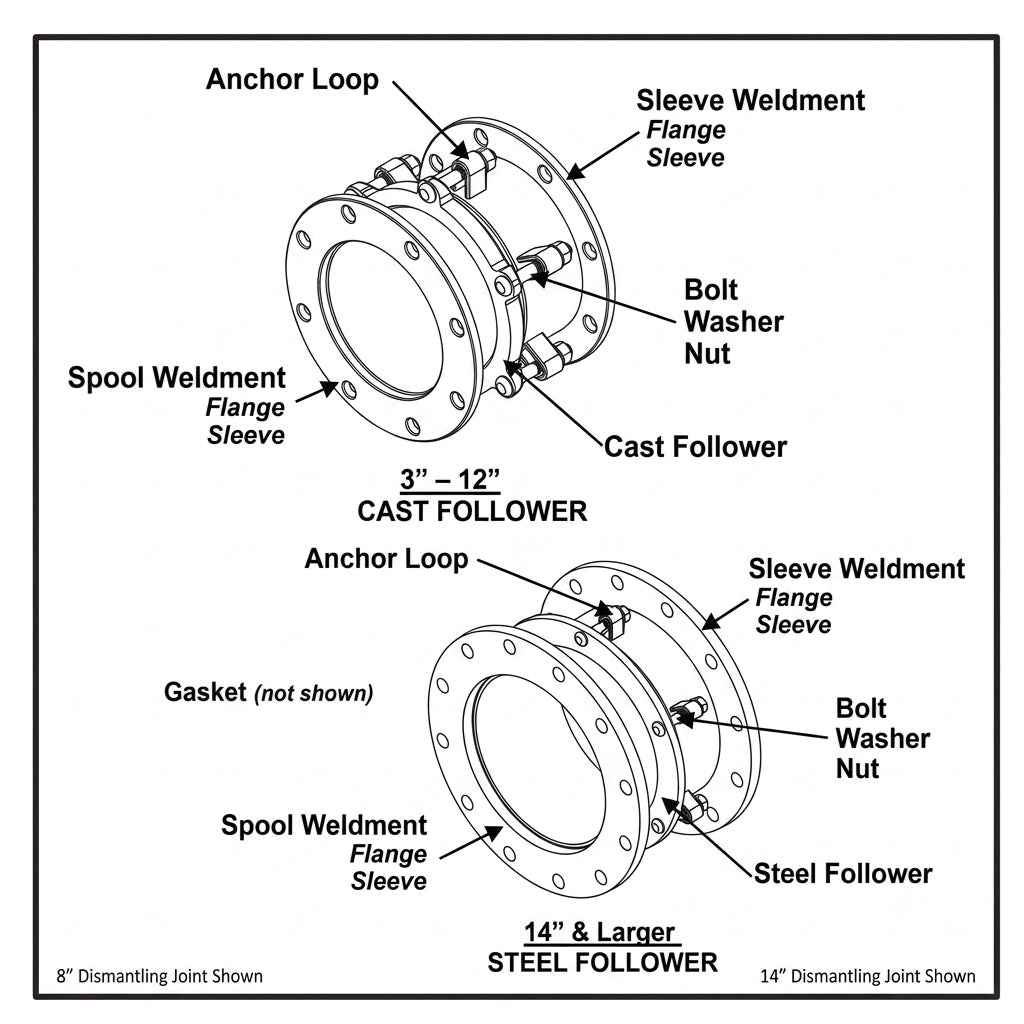

• Dismantling Joint which is non-restrained.
• Application For valve pump meter and other flanged fitting installations
• Meets Applicable AWWA C219 Standards
• No special tools required Made to order usually in only a few days
• A wide variety of types and sizes available
• Telescopes and adjusts to varying dimensionsAllows some deflection for misaligned assemblies
• Product makes it easy to install a flanged product in a new or existing setting
• Easy to install flange gaskets with this fitting no prying apart mated flanges necessary
• Joints are restrained when tie rods are used to secure the flanged fittings making other joint restraints unnecessary
• Ideal to use with flanged fittings like butterfly valves and pumps that require being pulled out of service for maintenance

Materials:

• FLANGED ADAPTER BODY ASTM A53 ASTM A283 Gr. C or Carbon Steel having a minimum yield of 30000 PSI
• FOLLOWER FLANGE Ductile Iron per ASTM A536 Steel section per ASTM A576GR1020HR or Carbon Steel having a minimum yield of 30000 PSI
• GASKET Nitrile (Buna-N)
• FLANGE Per AWWA C207
• SPIGOT ASTM A53 ASTM A512 or Carbon Steel having a minimum yield of 30000 PSI
• STUDS ASTM A325 or A307
• TIE RODS ASTM A 193 GR B7
• FINISH Flexi-Coat Fusion-Bonded epoxy per AWWA C213.
• Working Pressure Up to 150 PSI.
• Pipe Applications Steel Ductile Iron Cast Iron

Specifications:

• Nominal sizes: 3" through 48"
• Dismantling joint - allows removal of valves/fittings without cutting pipe
• Body: Fabricated Steel with Flexi-Coat Epoxy finish
• Working pressure: 150 PSI (3"–24"), per design above 24"
• Adjustable face-to-face length
• Meets applicable AWWA standards
