Smith-Blair · Restraint Sleeve
Style 477 Pipe-Lock Straight Sleeve
Fabricated Steel Sleeve Weldment
350 PSI Max Working Pressure
Epoxy-Coated Carbon Steel Sleeve
Flexi-Coat Fusion-Bonded Epoxy
For MJ Gaskets and Restraints
NSF/ANSI 61 and 372
8-210 lb Weight
Description

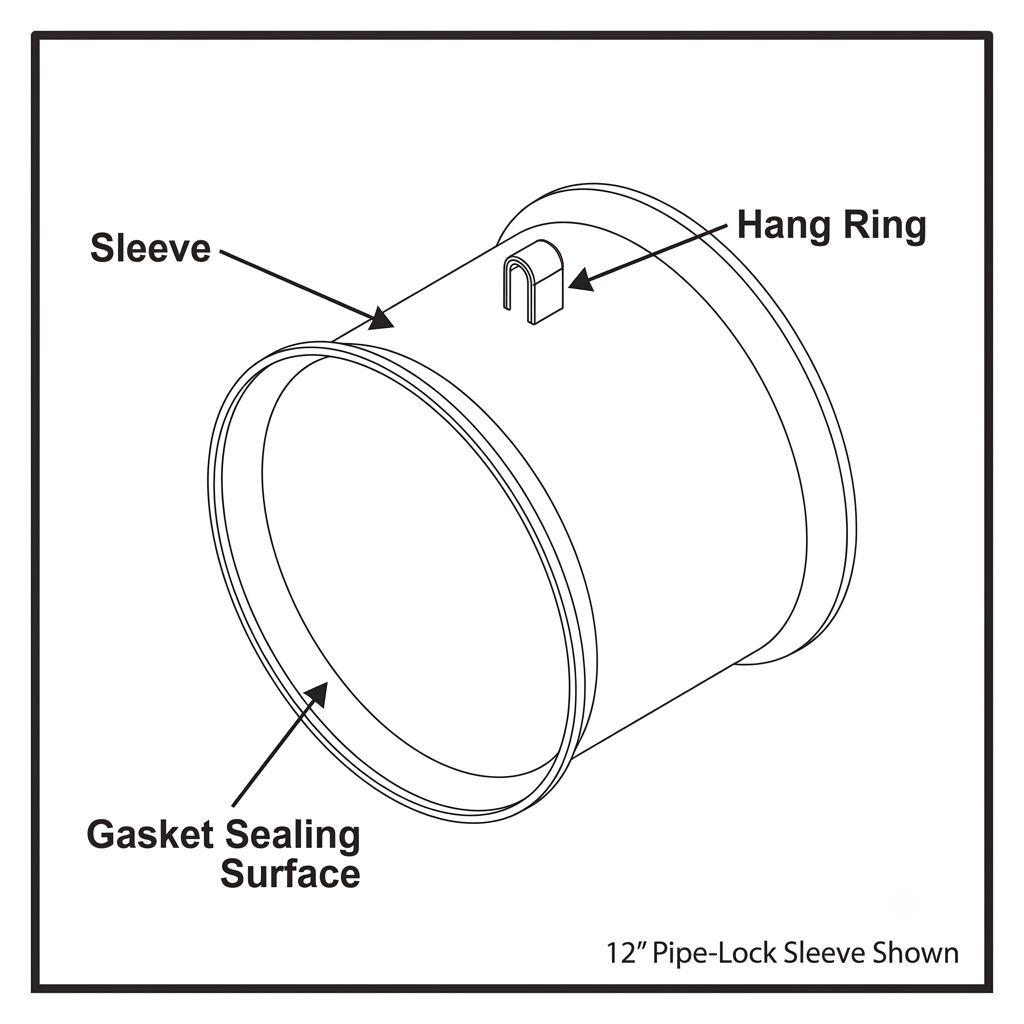

The Smith-Blair Style 477 is the fabricated steel sleeve of the Pipe-Lock system, built for use with MJ gaskets and restraints. Each end is a gasket sealing surface, so with an MJ gasket and a restraint gland on each side it joins and restrains plain-end pipe and replaces split or excessively damaged pipe.
The sleeve by itself does not couple, seal or restrain — the gaskets and restraints fitted to it do. On 3 to 8 in sizes, guide rings welded to the sleeve ends center the gland and spread its sealing force evenly over the gasket. Length — 7, 10 or 16 in, depending on size — is chosen in Option 2.
Application: connecting plain-end ductile iron and plain-end PVC pipe, 3 to 48 in; also steel pipe at 3 to 12 in.
Key Features
- Sleeve rated up to 350 PSI at 3 to 16 in
- Gasket sealing surface at each end for standard MJ gaskets and restraints
- Welded guide rings on 3 to 8 in center the gland and spread sealing force over the gasket
- Flexi-Coat fusion-bonded epoxy finish, meets AWWA C213
- Certified to NSF/ANSI 61 and NSF/ANSI 372
What Ships and What It Needs to Run
Included: the epoxy-coated steel sleeve only.
MJ gaskets, restraint glands and studs, ordered separately. For a complete restrained joint in one part number, Smith-Blair builds the 471 (ductile iron), 472 (PVC) and 473 (PVC to ductile iron) Pipe-Lock couplings on this sleeve.
Genuine Smith-Blair equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Smith-Blair Warranty
Smith-Blair warrants its products to be free of defects in materials and workmanship for one year from the date of shipment by Smith-Blair. Dated proof of purchase, such as a bill of sale, is required to establish eligibility. Smith-Blair will repair or, at its option, replace a defective product; the product is returned to the factory or warehouse Smith-Blair designates.
Working Pressure
Up to 350 PSI. Smith-Blair rates the sleeve by size, falling from 350 PSI at 3 to 16 in to 140 PSI at 48 in; the assembled joint's rating also depends on the restraints, gaskets and pipe used with it.
| Nominal size |
Sleeve working pressure |
| 3 to 16 in |
350 PSI |
| 18 to 24 in |
250 PSI |
| 30 and 36 in |
225 PSI |
| 42 in |
160 PSI |
| 48 in |
140 PSI |
Per the Smith-Blair 477 specification (Rev 5/1/24).
Materials Specifications
| Sleeve |
Carbon steel: ASTM A513 or A53 at 3-4 in, ASTM A283 Gr C at 6-48 in; 30,000 PSI minimum yield |
| Guide rings (3-8 in) |
Carbon steel, ASTM A283 Gr C or A36, welded to the sleeve ends |
| Welding |
GMAW process by qualified welders |
| Finish |
Flexi-Coat fusion-bonded epoxy, meets AWWA C213 |
Materials subject to change by the manufacturer.
Pipe Applications
Plain-end ductile iron and plain-end PVC pipe at ductile iron ODs, 3 to 48 in, and steel pipe at 3 to 12 in. PVC applications follow the restraint's limits (SDR 26 or heavier wall for the Cam-Lock 120).
Sizes
15 sizes — open for the full list
| Nominal size |
Sleeve thk x length |
| 3 in |
0.250 x 7 in |
| 4 in |
0.250 x 7 in |
| 6 in |
0.250 x 7, 0.250 x 10 in |
| 8 in |
0.250 x 7, 0.250 x 10 in |
| 10 in |
0.250 x 7, 0.250 x 10 in |
| 12 in |
0.250 x 7, 0.250 x 10 in |
| 14 in |
0.250 x 7, 0.250 x 10 in |
| 16 in |
0.250 x 7, 0.250 x 10 in |
| 18 in |
0.250 x 7, 0.250 x 10 in |
| 20 in |
0.250 x 7, 0.250 x 10 in |
| 24 in |
0.250 x 7, 0.250 x 10 in |
| 30 in |
0.250 x 10, 0.250 x 16 in |
| 36 in |
0.250 x 10, 0.250 x 16 in |
| 42 in |
0.250 x 10, 0.250 x 16 in |
| 48 in |
0.250 x 10, 0.250 x 16 in |
Choose the size in the first option; the part number shows in the last option.
Sleeve Dimensions
| Nominal size |
Max OD (A) |
Inside diameter (B) |
| 3 in |
5.50 in |
4.81 in |
| 4 in |
6.56 in |
5.05 in |
| 6 in |
8.75 in |
7.06 in |
| 8 in |
10.88 in |
9.25 in |
| 10 in |
12.88 in |
11.25 in |
| 12 in |
15.00 in |
13.31 in |
| 14 in |
17.31 in |
15.75 in |
| 16 in |
19.31 in |
17.59 in |
| 18 in |
21.38 in |
19.69 in |
| 20 in |
23.50 in |
21.78 in |
| 24 in |
27.63 in |
26.00 in |
| 30 in |
34.00 in |
32.19 in |
| 36 in |
40.11 in |
38.50 in |
| 42 in |
46.31 in |
44.69 in |
| 48 in |
52.61 in |
51.00 in |
From the Smith-Blair 477 specification drawing (Rev 5/1/24).
Installation Notes
- Inspect the shipment for transit damage and confirm the correct product before installing.
- Install the sleeve with its gaskets and restraints per the restraint manufacturer's instructions.
- Set the pipe gap at 1/2 to 3/4 in for a 7 in sleeve and 1/2 to 1-1/4 in for a 10 in sleeve.
- The sleeve alone does not restrain: the restraints fitted to each end hold the pipe.
From Smith-Blair Installation Instructions TI-055 (Rev 4/16/24), in the Data Sheet tab.
Before You OrderAll Smith-Blair products are Made to Order and Non-Returnable.
Items typically shipped in 5 - 10 business days.
304 or 316 stainless construction, pipe stops built into the sleeve, anode connectors and custom sleeve lengths and thicknesses are built to order — email sales@watermainsupply.com with the pipe size and material.
