Smith-Blair · Flanged Coupling Adapter Sleeve
Style 923 Flange-Lock FCA Sleeve, Flange x MJ
Fabricated Steel Adapter Body Only, Class D Flange x MJ End
150 PSI Max Working Pressure
Epoxy-Coated Carbon Steel Sleeve
ASTM A36 Steel End and MJ Flanges
NSF/ANSI 61 and 372
AWWA C207 Class D Flange
3.50-50.80 in Pipe OD
38-593 lb Weight
Description
The Smith-Blair Style 923 Flange-Lock is the fabricated steel adapter body of a Flange-Lock flanged coupling adapter, sold on its own: an AWWA C207 Class D flange on one end and a mechanical joint (MJ) flange on the other. Combined with a standard MJ restraint gland, MJ gasket and T-bolts, it makes a restrained flanged coupling adapter that joins plain-end PVC, steel or ductile iron pipe to flanged fittings, valves, meters and equipment.
Smith-Blair pairs it with the Cam-Lock 111 gland for ductile iron and steel pipe or the Cam-Lock 120 gland for PVC. The flange size equals the nominal size: a 6 in body has a 6 in flange. In 3 to 10 in, one body covers both pipe ODs of its size, for example 4.50-4.80 in. Choose the nominal size and OD in the first option; the part number follows.
Application: the flanged body for a restrained flange x MJ connection to plain-end pipe, used with an MJ restraint gland, MJ gasket and T-bolts.
Key Features
- Rated to 150 PSI working pressure with a 2:1 safety factor
- Pipe passes completely through the body for easier installation (not with raised-face flanges)
- Works with standard MJ restraint glands: Cam-Lock 111 or 120
- Use with the Multi-Seal gasket for more flexibility in 4 to 12 in; hanging rings on larger-OD sleeves
- Certified to NSF/ANSI 61 and NSF/ANSI 372; meets applicable portions of AWWA C111 and C219
What Ships and What It Needs to Run

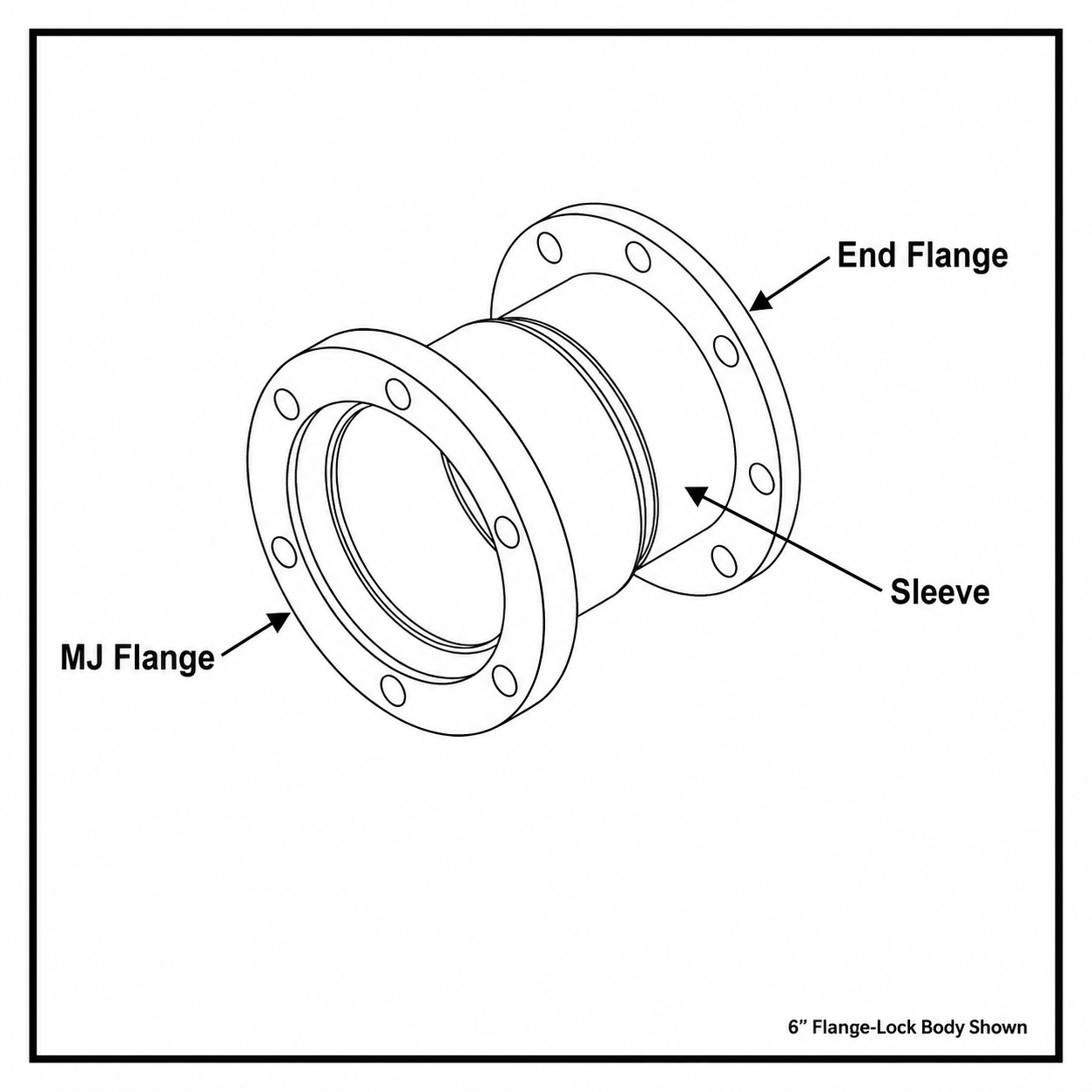

Included: the adapter body only — the epoxy-coated carbon steel sleeve with its Class D end flange and MJ flange welded on.
Needed to complete the joint, ordered separately: an MJ restraint gland (Cam-Lock 111 for ductile iron and steel, 120 for PVC), an MJ gasket, and T-bolts and nuts per AWWA C111, plus the gasket and bolts for the flange joint. By itself the body does not couple, seal or restrain; ask us to quote the gland and kit with it.
Genuine Smith-Blair equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Smith-Blair Warranty
Smith-Blair warrants its products to be free of defects in materials and workmanship for one year from the date of shipment by Smith-Blair. Dated proof of purchase, such as a bill of sale, is required to establish eligibility. Smith-Blair will repair or, at its option, replace a defective product; the product is returned to the factory or warehouse Smith-Blair designates.
Working Pressure
Up to 150 PSI with the standard Class D flange. The finished joint is rated no higher than the restraint gland and the pipe it is installed on; for any installation, allowable pressure also depends on service conditions and workmanship.
| Pipe and size |
Working pressure |
| Ductile iron 3 to 48 in, steel 3 to 12 in |
150 PSI |
| PVC, 3 to 30 in |
150 PSI, or the pipe rating if lower |
| PVC, 36 in |
125 PSI |
300 lb and other flanges are built to order for higher-pressure service.
Materials Specifications
| Sleeve |
Carbon steel: ASTM A513 or A53 on 3-4 in, ASTM A283 Gr C on 6 in and up; 30,000 PSI minimum yield |
| End flange |
Carbon steel ASTM A36 ring flange, AWWA C207 Class D, flat face, ANSI 150 lb drilling (fits ANSI 125 and 150 lb bolt patterns) |
| MJ flange |
Carbon steel, ASTM A36 |
| Welding |
Qualified welders, GMAW process |
| Finish |
Flexi-Coat fusion-bonded epoxy per AWWA C213 |
| Hanging rings |
On larger-OD sleeves, for ease of installation |
Materials subject to change by the manufacturer.
Pipe Applications
PVC, carbon steel and ductile iron pipe: ductile iron ODs 3 to 48 in and IPS ODs 3 to 12 in. The restraint gland sets the pipe type: black-wedge Cam-Lock 111 on ductile iron and steel, red-wedge Cam-Lock 120 on PVC in SDR 26 or heavier wall.
Sizes
15 sizes from 3.50 to 50.80 in OD — open for the full list
| Pipe size and OD |
|---|
| 3 in - 3.50-3.96 in OD |
| 4 in - 4.50-4.80 in OD |
| 6 in - 6.63-6.90 in OD |
| 8 in - 8.63-9.05 in OD |
| 10 in - 10.75-11.10 in OD |
| 12 in - 13.20 in OD |
| 14 in - 15.30 in OD |
| 16 in - 17.40 in OD |
| 18 in - 19.50 in OD |
| 20 in - 21.60 in OD |
| 24 in - 25.80 in OD |
| 30 in - 32.00 in OD |
| 36 in - 38.30 in OD |
| 42 in - 44.50 in OD |
| 48 in - 50.80 in OD |
Choose the size in the first option; the part number shows in the last option.
Installation Notes
- Inspect the shipment for transit damage and confirm the body is the correct type and size for the application.
- Install the restrained flanged coupling adapter per the restraint manufacturer's instructions and the applicable portions of the latest edition of AWWA C111.
- Restrain or anchor the pipe: the 923 body by itself does not restrain pipe movement, and Smith-Blair requires proper anchoring to prevent pull-out.
From Smith-Blair Installation Instructions TI-073 (Rev 10/22/20), in the Data Sheet tab.
Before You OrderAll Smith-Blair products are Made to Order and Non-Returnable.
Items typically shipped in 5 - 10 business days.
Other sleeve lengths, reducing styles, 300 lb, metric and other flanges, pipe stops and stainless construction are built to order — email sales@watermainsupply.com with the pipe OD, pipe material and flange.
