Smith-Blair · Restrained Flanged Coupling Adapter
Style 920 Flange-Lock Restrained FCA for PVC Pipe
Fabricated Steel FCA with Integral Cam-Lock Restraint, Flange x MJ
175 PSI Max Working Pressure
-20°F to +180°F Temperature
SBR MJ Gasket
Epoxy-Coated Carbon Steel Sleeve
Cam-Lock Ductile Iron Gland
NSF/ANSI 61 and 372
AWWA C207 Class D Flange
Restrained Joint, 5° Max Deflection
3.50-38.30 in Pipe OD
26-752 lb Weight
Description

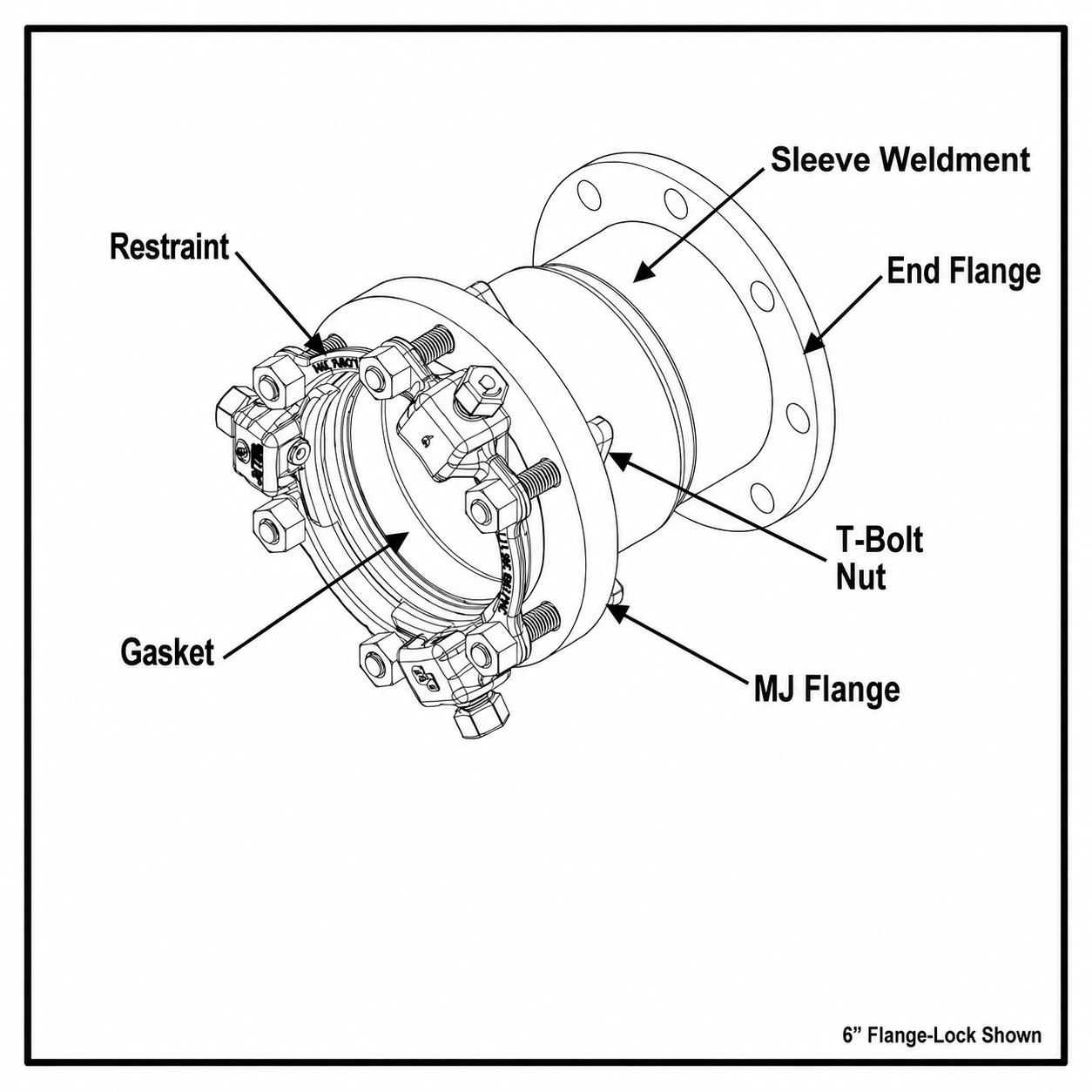

The Smith-Blair Style 920 Flange-Lock is a restrained flanged coupling adapter (restrained FCA) for PVC pipe: it connects and restrains plain-end PVC to flanged fittings, valves, meters and other flanged equipment. The fabricated steel flange adapter has an AWWA C207 Class D flange on one end and an MJ end on the other. A Cam-Lock follower gland with red single-tooth wedges, made for PVC, grips the pipe while a standard MJ gasket seals it.
The flange size equals the nominal size: a 6 in adapter has a 6 in flange. In 4 to 12 in, the wide-range builds (part numbers ending -100) use a Multi-Seal gasket and fit both PVC ODs of that size, for example 4.50-4.80 in; the other builds fit one OD. Choose the nominal size and OD in the first option; the part number follows.
Application: connecting and restraining plain-end PVC pipe to flanged fittings, valves, meters and equipment, 3 to 36 in.
Key Features
- Working pressure up to 175 PSI, rated to the working pressure of the pipe with a 2:1 safety factor
- Joins and restrains in one unit: Cam-Lock restraint integral to the follower gland, with red single-tooth wedges for PVC
- Wide-range Multi-Seal builds in 4 to 12 in fit both the IPS and ductile iron OD of the size
- Pipe passes completely through the adapter body for easier installation (not with raised-face flanges)
- Certified to NSF/ANSI 61 and NSF/ANSI 372; meets applicable portions of AWWA C219
What Ships and What It Needs to Run
Included: the epoxy-coated adapter body (carbon steel sleeve with Class D end flange and MJ flange), the Cam-Lock restraint gland with red wedges and breakaway nuts, an SBR MJ gasket (Multi-Seal on -100 builds), and the T-bolts and nuts for the MJ end.
Flange gasket and flange bolts, ordered separately. The Smith-Blair kit covers the MJ end (MJ gasket and T-bolts); the gasket and bolts for the flange joint are sized to your companion flange. Ask us to quote them with the adapter.
Genuine Smith-Blair equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Smith-Blair Warranty
Smith-Blair warrants its products to be free of defects in materials and workmanship for one year from the date of shipment by Smith-Blair. Dated proof of purchase, such as a bill of sale, is required to establish eligibility. Smith-Blair will repair or, at its option, replace a defective product; the product is returned to the factory or warehouse Smith-Blair designates.
Working Pressure
Up to 175 PSI with the standard AWWA C207 Class D flange, and never above the pressure rating of the PVC pipe. The rating steps down as diameter rises; for any installation it also depends on the pipe, service conditions and workmanship.
| Nominal size |
Working pressure |
| 3 to 12 in |
175 PSI |
| 14 to 30 in |
150 PSI |
| 36 in |
125 PSI |
Or the pressure rating of the PVC pipe, if lower. Higher-pressure flanges are built to order; ask us for the rating on your pipe.
Materials Specifications
| Sleeve |
Carbon steel: ASTM A513 or A53 on 3-4 in, ASTM A283 Gr C on 6 in and up; 30,000 PSI minimum yield |
| End flange |
Carbon steel ASTM A36 ring flange, AWWA C207 Class D, flat face, ANSI 150 lb drilling (fits ANSI 125 and 150 lb bolt patterns) |
| MJ flange |
Carbon steel, ASTM A36 |
| Body finish |
Flexi-Coat fusion-bonded epoxy per AWWA C213 |
| Restraint gland |
Cam-Lock, ductile iron 65-45-12 (ASTM A536), Flexi-Coat fusion-bonded epoxy per AWWA C213 |
| Wedges |
Single-tooth ductile iron 65-45-12 (ASTM A536), heat treated; E-coated epoxy, color-coded red |
| Actuating bolts |
Ductile iron 60-40-18 (ASTM A536), E-coated epoxy |
| Breakaway nuts |
Carbon steel |
| Gasket |
SBR per ASTM D2000, standard mechanical joint gasket per AWWA C111/A21.11, or Multi-Seal on wide-range builds; -20°F to +180°F |
| T-bolts and nuts |
High-strength low-alloy steel per AWWA C111/A21.11, 3/4-10 UNC rolled threads; heavy hex semi-finished nuts |
Materials subject to change by the manufacturer.
Pipe Applications
PVC pipe to AWWA C900/C905 at ductile iron ODs, 3 to 36 in, and to ASTM D2241 at IPS ODs, 3 to 12 in, in SDR 26 or heavier wall. The red wedges are for PVC only; for ductile iron or steel pipe, use the Style 911. Not for use on plain-end fittings.
Sizes
23 sizes from 3.50 to 38.30 in OD — open for the full list
| Pipe size and OD |
|---|
| 3 in - 3.50 in OD |
| 4 in - 4.50-4.80 in OD |
| 4 in - 4.50 in OD |
| 4 in - 4.80 in OD |
| 6 in - 6.63-6.90 in OD |
| 6 in - 6.63 in OD |
| 6 in - 6.90 in OD |
| 8 in - 8.63-9.05 in OD |
| 8 in - 8.63 in OD |
| 8 in - 9.05 in OD |
| 10 in - 10.75-11.10 in OD |
| 10 in - 10.75 in OD |
| 10 in - 11.10 in OD |
| 12 in - 12.75-13.20 in OD |
| 12 in - 12.75 in OD |
| 12 in - 13.20 in OD |
| 14 in - 15.30 in OD |
| 16 in - 17.40 in OD |
| 18 in - 19.50 in OD |
| 20 in - 21.60 in OD |
| 24 in - 25.80 in OD |
| 30 in - 32.00 in OD |
| 36 in - 38.30 in OD |
Choose the size in the first option; the part number shows in the last option.
Max Joint Deflection
| Nominal size |
Per gland |
| 3 in |
3° |
| 4 to 12 in |
5° |
| 14 and 16 in |
2° |
| 18 and 20 in |
1.5° |
| 24 to 36 in |
1° |
Per gland, reached at minimum pipe insertion. Make any deflection after the joint is assembled and before the T-bolts are tightened. Where Smith-Blair documents differ, the lower figure is shown.
Installation Notes
- Bolt the adapter body to the companion flange first.
- Wedges can shift in transit: before sliding the gland on, hand-tighten the torque-off nuts counterclockwise until the wedges seat firmly against the gland.
- Clean, inspect and lubricate the pipe end, MJ socket and gasket. Put the gland on the pipe with its lip toward the plain end, then the gasket with its taper toward the plain end.
- Insert the pipe at least 3 in past the MJ flange face and keep the joint straight. Make any deflection now, then tighten the AWWA C111 T-bolts evenly in an alternating pattern to the torque in the instructions.
- Set the wedges: hand-tighten the torque-off nuts clockwise until every wedge touches the pipe, then turn each 1/2 turn in an alternating pattern until all twist off. Do not remove the retaining washer under the torque-off nut.
- Flange-Lock 920 is limited to SDR 26 or heavier pipe wall. Use red wedges on PVC only, never black. Not for use on plain-end fittings. For removal and re-assembly, use the 5/8 in hex left after the nuts twist off.
From Smith-Blair Installation Instructions TI-072 (Rev 9/30/21), in the Data Sheet tab.
Before You OrderAll Smith-Blair products are Made to Order and Non-Returnable.
Items typically shipped in 5 - 10 business days.
Other sizes and ODs, longer sleeves, 300 lb and other flanges, 304 or 316 stainless hardware and other gasket materials are built to order — email sales@watermainsupply.com with the pipe OD, PVC class and flange.
