Smith-Blair Style 907 Restraint Plate - Carbon Steel, 3-Hole, 4-48 in

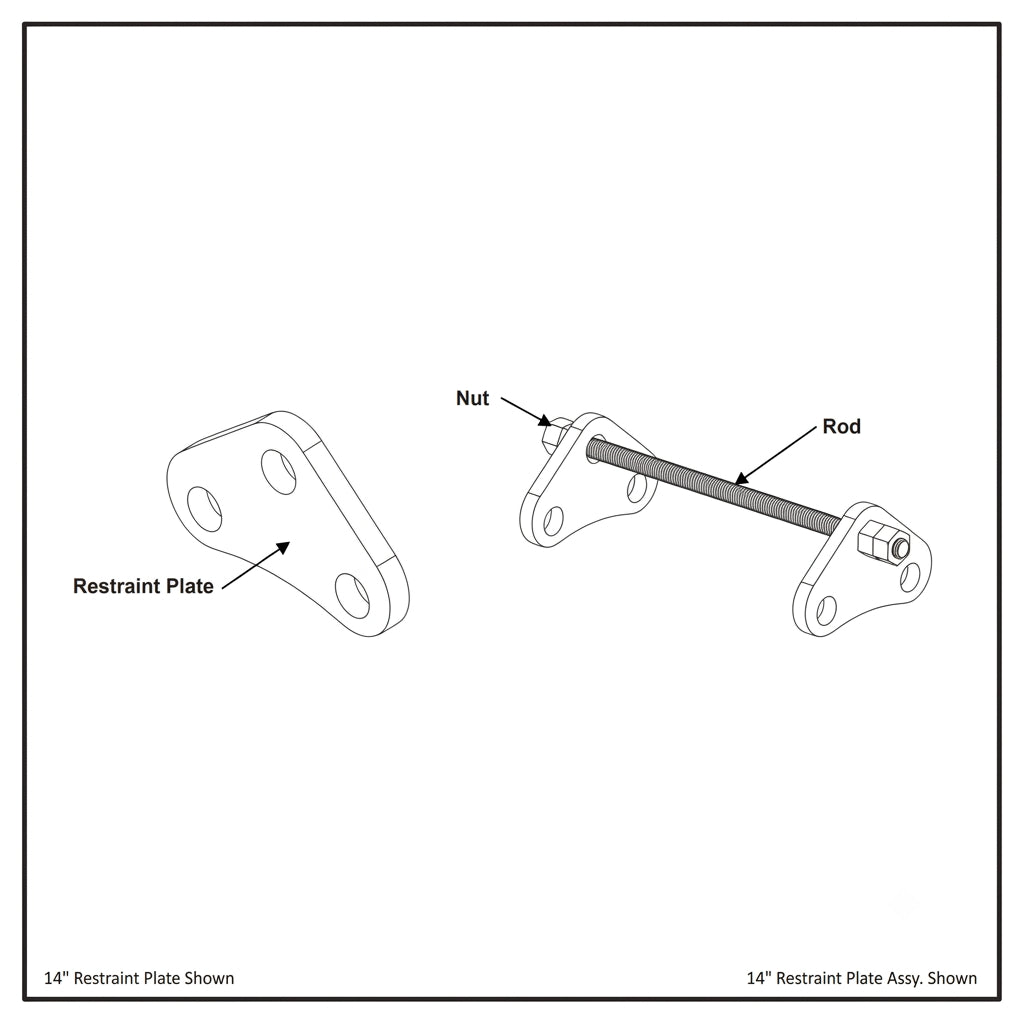

The Smith-Blair Style 907 is a three-hole triangular restraint plate (lug) that, with Style 101 tie rods and nuts, restrains flanged piping connections. It fits any style and size of bolted flange and is cut from ASTM A36 or A283 Grade C carbon steel, supplied with a Flexi-Coat fusion-bonded epoxy finish (-000) or bare (-001).

Each flange size carries a matched lug thickness, lug diameter and tie-rod size, and Smith-Blair publishes the number of tie rods to use at each maximum line pressure from 50 to 250 PSI (table below).

Application: restraining flanged piping connections, such as across dismantling joints and flange coupling adapters, 4 to 48 in flange sizes.

Key Features

• Three-hole triangular lug for flanged joint restraint
• Lug thickness and diameter matched to each flange size, 4 to 48 in
• Tie-rod quantity published for 50, 100, 150, 200 and 250 PSI
• Epoxy coated or bare finish
• Meets applicable portions of AWWA C219; Flexi-Coat epoxy meets AWWA C213

Sized for the line pressure. Smith-Blair rates the 907 assembly as designed for the application: choose the number of tie rods for your flange size and maximum working pressure, from 50 to 250 PSI, in the Recommended Tie Rods table below.

Materials subject to change by the manufacturer.

Any style and size of bolted flange on flanged piping connections, with 125 lb, 150 lb, Class D or Class E drilling. Check with us before pairing 907 plates with Style 912 flange coupling adapters, as Smith-Blair reviews that combination.

Choose the size in the first option; the part number shows in the last option.

PSI columns give the recommended tie-rod quantity at that maximum pressure. T = lug thickness; D = lug diameter. Check lug diameter for clearance over the flange hub.

• Pick the tie-rod quantity from the table for the flange size and the maximum pressure the line will see.
• Check the lug diameter for clearance over the flange hub: some threaded flanges have large-diameter hubs that can interfere with the lug.
• Space the tie rods symmetrically around the flange bolt circle.
• Use the tie-rod size listed for the flange: Style 101 sets, 5/8 to 1-1/2 in.
• Fit the extra nut supplied with each rod as a jam nut.
• For 907 plates used with Style 912 flange coupling adapters, check the application with us before ordering.

From the Smith-Blair Style 907 Datasheet (Form 907A, Rev 1 11/08/10) and the 907 Specification (Rev 10/20/20), in the Data Sheet tab.
