Smith-Blair · End Cap
Style 481 Steel Pipe End Cap
Fabricated Steel Sleeve and End Plate, Epoxy Coated — 2 in FIPT Outlet, Low-Alloy Bolts
150 PSI Max Working Pressure
-20°F to +180°F Temperature
Nitrile (Buna-N) Gasket
Epoxy-Coated Carbon Steel Sleeve and End Plate
Low-Alloy Steel Bolts and Nuts
NSF/ANSI 61 and 372
AWWA C219
2.38-22.06 in Pipe OD
10-180 lb Weight
Description

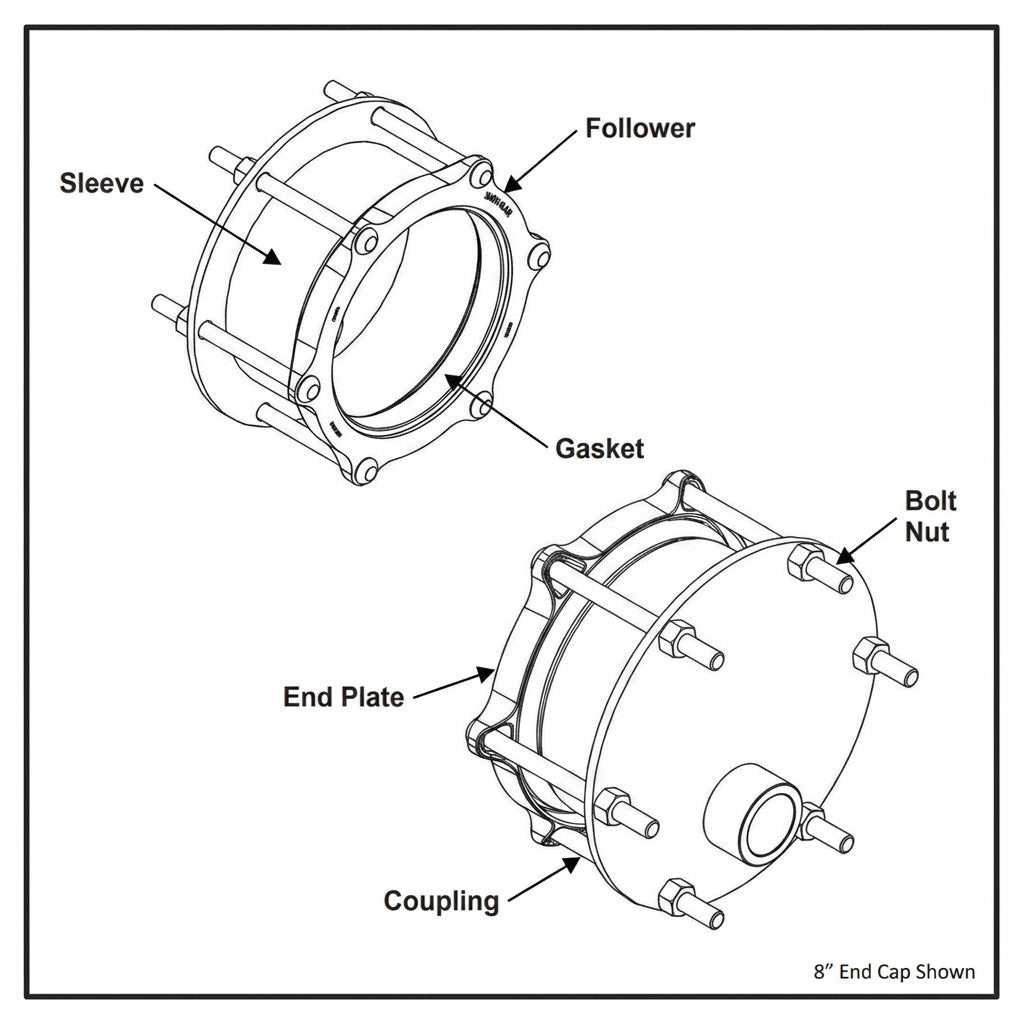

The Smith-Blair Style 481 seals the plain end of a pipe for line testing or as a dependable dead end. It works like one end of a steel coupling: a carbon steel sleeve closed by a welded end plate, with a follower and Nitrile gasket that seal around the pipe as the bolts are drawn up, so no special pipe-end preparation is needed.
Every cap carries a 2 in female NPT outlet, offset for use as a low-point drain or blow-off, and the whole assembly is finished in Flexi-Coat fusion-bonded epoxy. Stock sizes run 2 to 20 in across steel, ductile iron and other pipe ODs; larger and unlisted sizes are built to order.
Application: sealing plain pipe ends for line testing, dead ends and temporary closures, 2 to 20 in.
Key Features
- Working pressure 150 PSI, standard design; higher-pressure designs to order
- No special pipe-end preparation
- 2 in FNPT outlet, offset for draining or blow-off
- Fits carbon and stainless steel, ductile iron, asbestos cement, PVC and HDPE (with stiffeners)
- Meets applicable AWWA C219; certified to NSF/ANSI 61 and NSF/ANSI 372
What Ships and What It Needs to Run
Included: the epoxy-coated steel sleeve with welded end plate and 2 in FNPT outlet, follower, Nitrile gasket, and low-alloy steel bolts and nuts.
Thrust restraint: Thrust restraint is always required when the line is in use: the cap seals on the pipe but does not restrain it, so block or anchor it securely to keep it from moving off the pipe end.
On HDPE pipe: pipe stiffeners are required, ordered separately.
Genuine Smith-Blair equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Smith-Blair Warranty
Smith-Blair warrants its products to be free of defects in materials and workmanship for one year from the date of shipment by Smith-Blair. Dated proof of purchase, such as a bill of sale, is required to establish eligibility. Smith-Blair will repair or, at its option, replace a defective product; the product is returned to the factory or warehouse Smith-Blair designates.
Working Pressure
150 PSI, the standard design rating; higher working-pressure designs are available to order.. The allowable pressure depends on pipe type, diameter and service conditions, and on the cap being restrained.
Materials Specifications
| Sleeve |
Carbon steel per ASTM A513 or A53 (2-4 in); ASTM A283C (6-20 in) |
| End plate |
Carbon steel per ASTM A283C |
| Outlet |
Carbon steel 2 in FNPT coupling per ASTM A865, offset for low-point drain |
| Follower |
Ductile iron 65-45-12 per ASTM A536 (cast) or carbon steel C1020 per ASTM A576 (steel), integral bolt-head pocket |
| Gasket |
Nitrile (Buna-N) per ASTM D2000, marked with part number and size range; -20°F to +180°F |
| Bolts |
HSLA steel per AWWA C111/A21.11, 5/8-11 UNC oval-neck track head, rolled threads |
| Nuts |
HSLA steel per AWWA C111/A21.11, 5/8-11 UNC heavy hex |
| Finish |
Flexi-Coat fusion-bonded epoxy (meets AWWA C213) |
Materials subject to change by the manufacturer.
Pipe Applications
Carbon steel, stainless steel, ductile iron, asbestos cement, PVC and HDPE. Pipe stiffeners are required on HDPE; check thin-wall PVC with Smith-Blair.
Sizes
33 sizes from 2.38 to 22.06 in OD — open for the full list
| Nominal size - pipe OD |
|---|
| 2 in - 2.38 in |
| 2 in - 2.50 in |
| 3 in - 3.50 in |
| 3 in - 3.74 in |
| 3 in - 3.80 in |
| 3 in - 3.88 in |
| 3 in - 3.96 in |
| 4 in - 4.50 in |
| 4 in - 4.64 in |
| 4 in - 4.80 in |
| 6 in - 6.63 in |
| 6 in - 6.90 in |
| 8 in - 7.65 in |
| 8 in - 8.63 in |
| 8 in - 9.05 in |
| 10 in - 10.75 in |
| 10 in - 11.10 in |
| 10 in - 11.40 in |
| 10 in - 11.66 in |
| 12 in - 12.75 in |
| 12 in - 13.20 in |
| 12 in - 13.50 in |
| 12 in - 13.92 in |
| 14 in - 14.00 in |
| 14 in - 15.30 in |
| 14 in - 15.65 in |
| 16 in - 16.00 in |
| 16 in - 17.40 in |
| 16 in - 17.80 in |
| 18 in - 19.50 in |
| 18 in - 19.92 in |
| 20 in - 21.60 in |
| 20 in - 22.06 in |
Choose the size and pipe OD; the part number shows in the last option.
Installation Notes
- Thrust restraint is always required when the line is in use: the cap seals on the pipe but does not restrain it, so block or anchor it securely to keep it from moving off the pipe end.
- Clean the pipe end, slide the follower onto the pipe, lubricate the pipe and gasket with a soap-and-water solution that meets the water and pipe supplier's requirements, and slide the gasket on with its beveled edge facing the pipe end.
- Push the cap over the pipe end to a stab depth of at least 3 in, then slide the gasket against the sleeve followed by the follower.
- Install the bolts, hand-tighten the nuts, then tighten gradually, alternating opposite sides so the follower stays parallel, to the torque in the instructions; recheck torque after the line is pressurized.
- Pipe stiffeners are required on polyethylene (PE) pipe.
From Smith-Blair Installation Instructions TI-017 (Rev 08/26/21) and the Style 481 specification sheet (Rev 8/15/18), in the Data Sheet tab.
Before You OrderAll Smith-Blair products are Made to Order and Non-Returnable.
Items typically shipped in 5 - 10 business days.
Larger and unlisted sizes, special outlet sizes, other sleeve lengths, 304 or 316 stainless hardware, higher-pressure designs, anchor studs, an insulating boot and a 2 in MNPT test plug are built to order — email sales@watermainsupply.com with the pipe OD and material.
