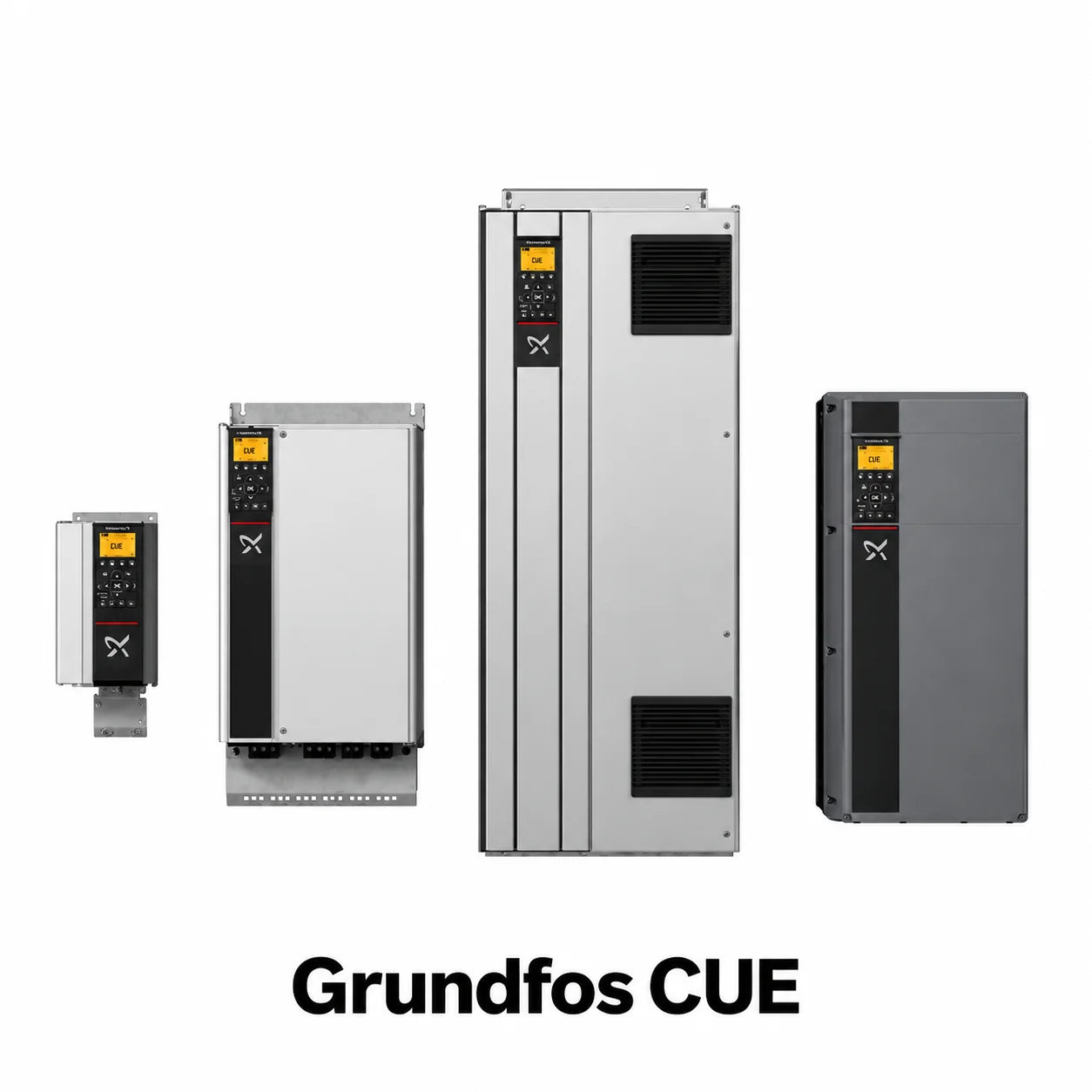

Grundfos CUE variable frequency drive

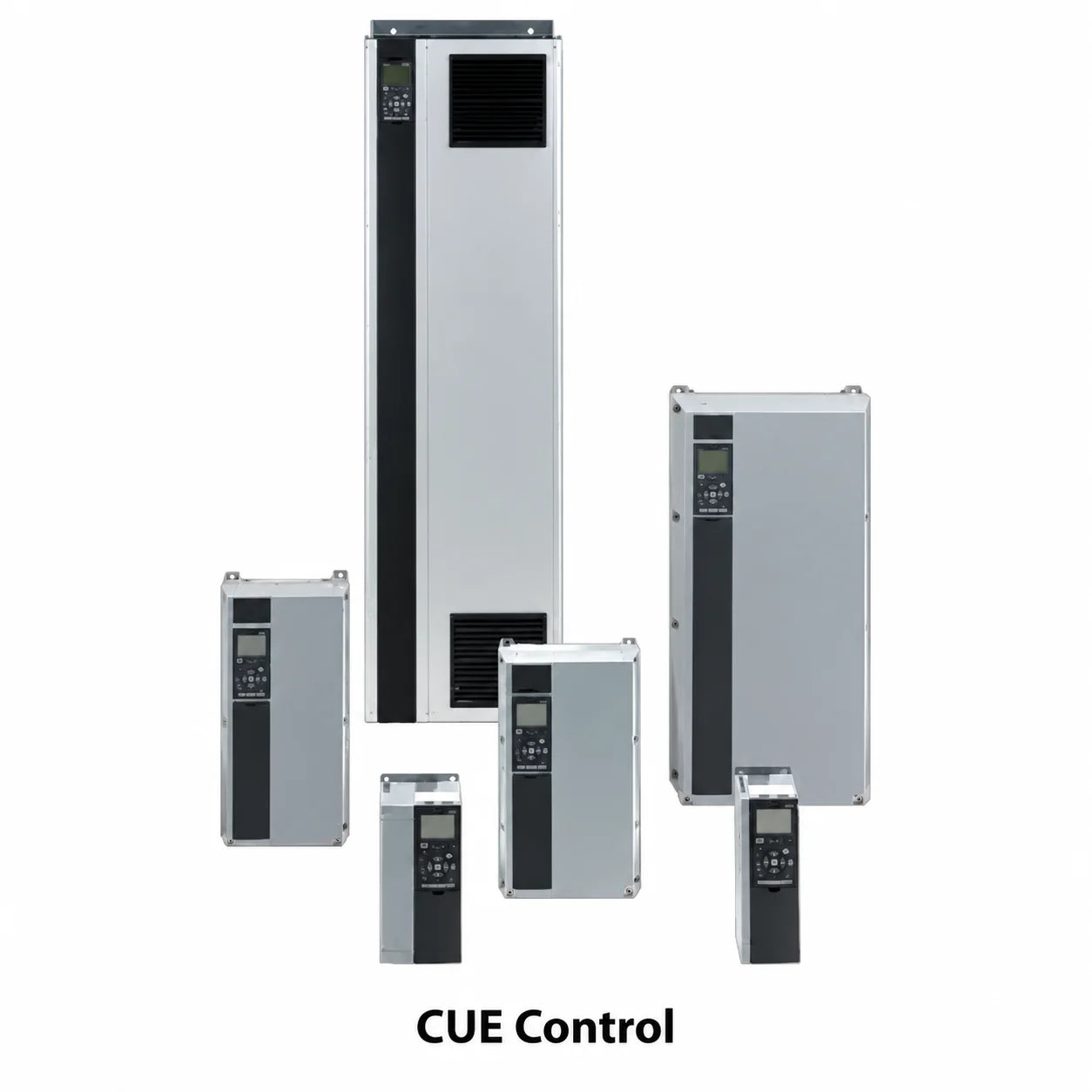

Grundfos CUE variable frequency drive control panel
Grundfos CUE variable frequency drive
Grundfos CUE variable frequency drive control panel

Grundfos CUE Variable Frequency Drive

Supply: 200-240V 1Ph
Output Current: 6.6 A
Enclosure - Part No.: NEMA 1 (Kit Required) - 99616601

Product variant with selected options does not exist!
$2,068.92
SKU: 99616601
Weight : 14.6 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
GRUNDFOS · VARIABLE FREQUENCY DRIVE
CUE
Wall-mounted E-pump frequency converter for Grundfos pumps. 200-240V 1Ph and 3Ph, 380-500V, 525-600V and 525-690V 3Ph, 1.6 to 890 A output, NEMA 1 or NEMA 12.
200-240V to 525-690V
1.6 to 890 A
NEMA 1 or NEMA 12
Transducer sold separately
Overview

The Grundfos CUE is a comprehensive series of wall-mounted frequency converters with E-pump functionality and user interface. Main applications: industry, building services, municipal water supply and irrigation. This listing covers 1.6 to 890 A output on five supplies: 200-240 V 1-phase and 3-phase, 380-500 V, 525-600 V and 525-690 V 3-phase.

Control modes: constant pressure with or without stop function, constant differential pressure, proportional pressure, constant level with or without stop function, constant temperature, dry-run protection, duty/standby and mechanical bearing supervision. Multiple input / output and network connection options. The CUE is engineered specifically for Grundfos pumps.

What Ships and What It Needs to Run

Included: one Grundfos CUE drive in the supply, output current and enclosure you select.

Required, ordered separately: the pressure transducer (0-120 PSI, 92506685) for constant-pressure control (Grundfos sells it separately for the CUE), and the Grundfos CUE IP21 NEMA 1 Enclosure Kit for any IP20 drive marked "Kit Required" that must meet NEMA 1. Submersible pumps: Grundfos pairs each drive with a sine-wave output filter (Grundfos CUE Sine-Wave Output Filter); SPE permanent-magnet pumps need the IPM-ready Grundfos TCI Sine-Wave Output Filter.

Works with: Grundfos pumps only. Size by the motor's full-load current, not horsepower alone.

Genuine Grundfos equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Warranty

24 months from date of installation, but not more than 30 months from date of manufacture. In Grundfos's words, products are “warranted to the original user only to be free of defects in material and workmanship”; the full terms are in the installation and operating instructions on the Data Sheet tab.

Models, Voltage & Phase

150 builds in 5 supply groups. Open a group for the output current, SP motor HP, enclosure, frame, IP21 kit, sine-wave filter and part number of each build.

200-240V 1Ph · 14 builds · 6.6 to 30.8 A output
Output current SP motor HP Enclosure Frame IP21 kit Sine-wave filter Part No.
6.6 -- NEMA 1 (Kit Required) A3 96801224 96754973 99616601
7.5 -- NEMA 1 B1 -- 96754973 99616602
10.6 -- NEMA 1 B1 -- 96754976 99616613
12.5 -- NEMA 1 B1 -- 96754976 99616614
16.7 -- NEMA 1 B1 -- 96754976 99616615
24.2 -- NEMA 1 B1 -- 96754977 99616616
30.8 7-1/2 NEMA 1 B2 -- 96754978 99616617
6.6 -- NEMA 12 A5 -- 96754973 99616625
7.5 -- NEMA 12 B1 -- 96754973 99616626
10.6 -- NEMA 12 B1 -- 96754976 99616627
12.5 -- NEMA 12 B1 -- 96754976 99616628
16.7 -- NEMA 12 B1 -- 96754976 99616629
24.2 -- NEMA 12 B1 -- 96754977 99616630
30.8 7-1/2 NEMA 12 B2 -- 96754978 99616631
200-240V 3Ph · 30 builds · 4.6 to 170 A output
Output current SP motor HP Enclosure Frame IP21 kit Sine-wave filter Part No.
4.6 -- NEMA 1 (Kit Required) A2 96801223 96754973 99616636
6.6 -- NEMA 1 (Kit Required) A2 96801223 96754973 99616637
7.5 -- NEMA 1 (Kit Required) A2 96801223 96754973 99616638
10.6 -- NEMA 1 (Kit Required) A2 96801223 96754976 99616639
12.5 -- NEMA 1 (Kit Required) A3 96801224 96754976 99616640
16.7 -- NEMA 1 (Kit Required) A3 96801224 96754976 99616641
24.2 -- NEMA 1 (Kit Required) B3 96801225 96754977 99616642
30.8 7-1/2 NEMA 1 (Kit Required) B3 96801225 96754978 99616643
46.2 10 NEMA 1 (Kit Required) B3 96801225 96755019 99616644
59.4 15 NEMA 1 (Kit Required) B4 96801226 96755021 99616645
74.8 20 NEMA 1 (Kit Required) B4 96801226 96755032 99616646
88 25 NEMA 1 (Kit Required) C3 96801227 97774436 99616647
115 30 NEMA 1 (Kit Required) C3 96801227 97774436 99616648
143 -- NEMA 1 (Kit Required) C4 96801228 97775142 99616649
170 -- NEMA 1 (Kit Required) C4 96801228 97775142 99616650
4.6 -- NEMA 12 A4 -- -- 99660285
6.6 -- NEMA 12 A4 -- 96754973 99660287
7.5 -- NEMA 12 A4 -- 96754973 99660289
10.6 -- NEMA 12 A4 -- 96754976 99660290
12.5 -- NEMA 12 A5 -- 96754976 99616696
16.7 -- NEMA 12 A5 -- 96754976 99616697
24.2 -- NEMA 12 B1 -- 96754977 99616698
30.8 7-1/2 NEMA 12 B1 -- 96754978 99616699
46.2 10 NEMA 12 B1 -- 96755019 99616700
59.4 15 NEMA 12 B2 -- 96755021 99616701
74.8 20 NEMA 12 C1 -- 96755032 99616702
88 25 NEMA 12 C1 -- 97774436 99616703
115 30 NEMA 12 C1 -- 97774436 99616704
143 -- NEMA 12 C2 -- 97775142 99616705
170 -- NEMA 12 C2 -- 97775142 99616706
380-500V 3Ph · 60 builds · 1.6 to 890 A output
Output current SP motor HP Enclosure Frame IP21 kit Sine-wave filter Part No.
1.6 -- NEMA 1 (Kit Required) A2 96801223 96754941 99616707
2.1 -- NEMA 1 (Kit Required) A2 96801223 96754941 99616708
2.7 -- NEMA 1 (Kit Required) A2 96801223 96754972 99616709
3.4 -- NEMA 1 (Kit Required) A2 96801223 96754972 99616710
4.8 -- NEMA 1 (Kit Required) A2 96801223 96754973 99616711
6.3 -- NEMA 1 (Kit Required) A2 96801223 96754973 99616712
8.2 -- NEMA 1 (Kit Required) A2 96801223 96754974 99616713
11 -- NEMA 1 (Kit Required) A3 96801224 96754976 99616714
14.5 7-1/2 NEMA 1 (Kit Required) A3 96801224 96754976 99616715
21 10 NEMA 1 (Kit Required) B3 96801225 96754977 99616716
27 15 NEMA 1 (Kit Required) B3 96801225 96754978 99616717
34 20 NEMA 1 (Kit Required) B3 96801225 96754978 99616718
40 30 NEMA 1 (Kit Required) B4 96801226 96755019 99616719
52 40 NEMA 1 (Kit Required) B4 96801226 96755021 99616720
65 50 NEMA 1 (Kit Required) B4 96801226 96755032 99616721
80 60 NEMA 1 (Kit Required) C3 96801227 97774436 99616722
105 75 NEMA 1 (Kit Required) C3 96801227 97774436 99616723
130 100 NEMA 1 (Kit Required) C4 96801228 97775142 99616724
160 125 NEMA 1 (Kit Required) C4 96801228 97775142 99616725
190 150 NEMA 1 D1h -- 97775146 99616726
240 200 NEMA 1 D1h -- 97775146 99616727
302 250 NEMA 1 D1h -- 97775148 99616728
361 -- NEMA 1 D2h -- 97775148 99616729
443 -- NEMA 1 D2h -- 97775149 99616730
535 -- NEMA 1 D2h -- 93303174 99929257
590 -- NEMA 1 E1h -- 93303174 93021201
678 -- NEMA 1 E1h -- 93303175 93021202
730 -- NEMA 1 E1h -- 93303176 (call factory) 93021203
780 -- NEMA 1 E2h -- 93303176 (call factory) 93021204
890 -- NEMA 1 E2h -- 93303176 (call factory) 93021205
1.6 -- NEMA 12 A4 -- 96754941 99660291
2.1 -- NEMA 12 A4 -- 96754941 99660292
2.7 -- NEMA 12 A4 -- 96754972 99660293
3.4 -- NEMA 12 A4 -- 96754972 99660294
4.8 -- NEMA 12 A4 -- 96754973 99660295
6.3 -- NEMA 12 A4 -- 96754973 99660296
8.2 -- NEMA 12 A5 -- 96754974 99660297
11 -- NEMA 12 A5 -- 96754976 99616805
14.5 7-1/2 NEMA 12 A5 -- 96754976 99616806
21 10 NEMA 12 B1 -- 96754977 99616807
27 15 NEMA 12 B1 -- 96754978 99616808
34 20 NEMA 12 B1 -- 96754978 99616809
40 30 NEMA 12 B2 -- 96755019 99616810
52 40 NEMA 12 B2 -- 96755021 99616811
65 50 NEMA 12 C1 -- 96755032 99616812
80 60 NEMA 12 C1 -- 97774436 99616813
105 75 NEMA 12 C1 -- 97774436 99616814
130 100 NEMA 12 C2 -- 97775142 99616815
160 125 NEMA 12 C2 -- 97775142 99616816
190 150 NEMA 12 D1h -- 97775146 99616817
240 200 NEMA 12 D1h -- 97775146 99616818
302 250 NEMA 12 D1h -- 97775148 99616819
361 -- NEMA 12 D2h -- 97775148 99616820
443 -- NEMA 12 D2h -- 97775149 99616821
535 -- NEMA 12 D2h -- 93303174 99929262
590 -- NEMA 12 E1h -- 93303174 93021211
678 -- NEMA 12 E1h -- 93303175 93021212
730 -- NEMA 12 E1h -- 97775149 (2 required) 93021213
780 -- NEMA 12 E2h -- 97775149 (2 required) 93021214
890 -- NEMA 12 E2h -- 93303174 (2 required) 93021215
525-600V 3Ph · 36 builds · 1.7 to 131 A output
Output current SP motor HP Enclosure Frame IP21 kit Sine-wave filter Part No.
1.7 -- NEMA 1 (Kit Required) A3 96801224 97775161 99616827
2.4 -- NEMA 1 (Kit Required) A3 96801224 97775161 99616828
2.7 -- NEMA 1 (Kit Required) A3 96801224 97775161 99616829
3.9 -- NEMA 1 (Kit Required) A3 96801224 97775161 99616830
4.9 -- NEMA 1 (Kit Required) A3 96801224 97775161 99616831
6.1 -- NEMA 1 (Kit Required) A3 96801224 97775161 99616832
9 -- NEMA 1 (Kit Required) A3 96801224 97775161 99616833
11 -- NEMA 1 (Kit Required) A3 96801224 97775161 99616834
18 -- NEMA 1 (Kit Required) B3 96801225 97775162 99616835
22 -- NEMA 1 (Kit Required) B3 96801225 97775162 99616836
27 -- NEMA 1 (Kit Required) B3 96801225 97775162 99616837
34 -- NEMA 1 (Kit Required) B4 96801226 97775163 99616838
41 -- NEMA 1 (Kit Required) B4 96801226 97775163 99616839
52 -- NEMA 1 (Kit Required) B4 96801226 97775164 99616840
62 -- NEMA 1 (Kit Required) C3 96801227 97775164 99616841
83 -- NEMA 1 (Kit Required) C3 96801227 97775165 99616842
100 -- NEMA 1 (Kit Required) C4 96801228 97775165 99616843
131 -- NEMA 1 (Kit Required) C4 96801228 97775166 99616844
1.7 -- NEMA 12 A5 -- 97775161 99616845
2.4 -- NEMA 12 A5 -- 97775161 99616846
2.7 -- NEMA 12 A5 -- 97775161 99616847
3.9 -- NEMA 12 A5 -- 97775161 99616848
4.9 -- NEMA 12 A5 -- 97775161 99616849
6.1 -- NEMA 12 A5 -- 97775161 99616850
9 -- NEMA 12 A5 -- 97775161 99616851
11 -- NEMA 12 A5 -- 97775161 99616852
18 -- NEMA 12 B1 -- 97775162 99616853
22 -- NEMA 12 B1 -- 97775162 99616854
27 -- NEMA 12 B1 -- 97775162 99616855
34 -- NEMA 12 B2 -- 97775163 99616856
41 -- NEMA 12 B2 -- 97775163 99616857
52 -- NEMA 12 C1 -- 97775164 99616858
62 -- NEMA 12 C1 -- 97775164 99616859
83 -- NEMA 12 C1 -- 97775165 99616860
100 -- NEMA 12 C2 -- 97775165 99616861
131 -- NEMA 12 C2 -- 97775166 99616862
525-690V 3Ph · 10 builds · 155 to 344 A output
Output current SP motor HP Enclosure Frame IP21 kit Sine-wave filter Part No.
155 -- NEMA 1 D1h -- 97775167 99616874
192 -- NEMA 1 D1h -- 97775167 99616875
242 -- NEMA 1 D2h -- 97775168 99616876
290 -- NEMA 1 D2h -- 97775168 99616877
344 -- NEMA 1 D2h -- 93303177 99929273
155 -- NEMA 12 D1h -- 97775167 99616905
192 -- NEMA 12 D1h -- 97775167 99616906
242 -- NEMA 12 D2h -- 97775168 99616907
290 -- NEMA 12 D2h -- 97775168 99616908
344 -- NEMA 12 D7h -- 93303177 99929275

HP is the Grundfos SP motor rating for that output current at that supply voltage, from the Grundfos Groundwater Guide; select by the motor's service-factor amps. A double dash under HP means Grundfos publishes no SP motor rating at that current. Drives marked Kit Required are IP20 and need the listed IP21 enclosure kit to meet NEMA 1. NEMA 12 drives have a backplate and disconnect switch. The 200-500V sine-wave filters 97774436 to 97775149 are IP23 and not UL Listed; the 890 A drives take two filters.

Matched Accessories

The pressure transducer (0-120 PSI, 1/2 in NPT, part 92506685) is sold separately and is listed under Grundfos SQ and SQE Pump Accessories. The IP21 enclosure kit and sine-wave output filter for each drive are shown in the table above and listed as separate products. MCB 114 sensor input module, MCO 101 multipump module, local control panel, mounting kits and connection kit are listed under CUE Drive Accessories.

Before You OrderSend the pump and motor nameplates, supply voltage, motor cable length, duty point and enclosure requirement for drive and filter selection. Order the enclosure kit, output filter and pressure transducer separately. CUE and CUE 100 are separate drive families.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
