TCI sine-wave output filter for variable frequency drives
TCI sine-wave output filter for variable frequency drives

Grundfos CUE Sine-Wave Output Filter

Drive Output Current - Part No.: Up to 2.1 A - 96754941

Product variant with selected options does not exist!
$1,006.22
SKU: 96754941
Weight : 7.28 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
GRUNDFOS · DRIVE OUTPUT FILTER

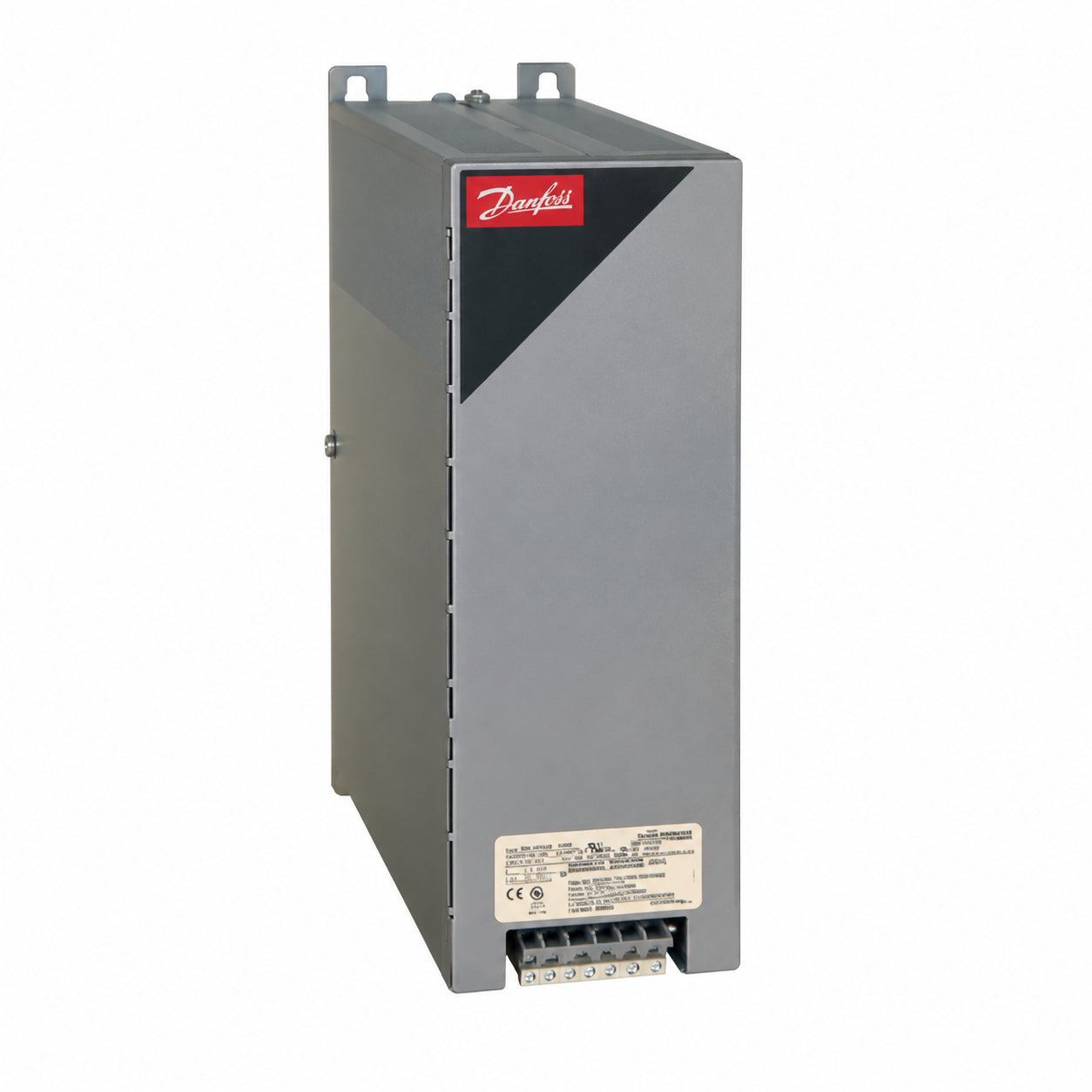

CUE Sine-Wave Filter
Output filter matched to each Grundfos CUE drive, 1.6 to 890 A drive output, 200-240V to 525-690V. Select by the drive's rated output current.
1.6 to 890 A Drives
IP20 or IP23
Matched to CUE frame
Genuine Grundfos
Overview

A sine-wave filter on the output of the variable-frequency drive smooths the pulse-width-modulated waveform delivered to the motor, which matters on long motor cables and on submersible installations. Grundfos publishes one filter pairing for each CUE drive; that pairing is reproduced below. The five 97774436 to 97775149 filters for 200-500V drives are IP23 and not UL Listed, per the Grundfos price book; enclosure ratings of the other filters are from the Grundfos product data.

What Ships and What It Needs to Run

Included: one sine-wave output filter at the current band you select.

Required: the matching Grundfos CUE Variable Frequency Drive; each filter is paired with the drive part numbers in the table below.

Note: the five filters from 115 A up are IP23 and not UL Listed, per the Grundfos price book.

Genuine Grundfos equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Warranty

24 months from date of installation, but not more than 30 months from date of manufacture. In Grundfos's words, products are “warranted to the original user only to be free of defects in material and workmanship”; the full terms are in the installation and operating instructions on the Data Sheet tab.

Models & Part Numbers
Drive output current Drive supply Enclosure Matched CUE drive part numbers Part No.
Up to 2.1 A 380-500V 3Ph IP20 99616707, 99616708, 99660291, 99660292 96754941
Up to 3.4 A 380-500V 3Ph IP20 99616709, 99616710, 99660293, 99660294 96754972
Up to 7.5 A 200-240V 1Ph, 200-240V 3Ph, 380-500V 3Ph IP20 99616601, 99616602, 99616625, 99616626, 99616636, 99616637, 99616638, 99616711, 99616712, 99660287, 99660289, 99660295, 99660296 96754973
Up to 8.2 A 380-500V 3Ph IP20 99616713, 99660297 96754974
Up to 16.7 A 200-240V 1Ph, 200-240V 3Ph, 380-500V 3Ph IP20 99616613, 99616614, 99616615, 99616627, 99616628, 99616629, 99616639, 99616640, 99616641, 99616696, 99616697, 99616714, 99616715, 99616805, 99616806, 99660290 96754976
Up to 24.2 A 200-240V 1Ph, 200-240V 3Ph, 380-500V 3Ph IP20 99616616, 99616630, 99616642, 99616698, 99616716, 99616807 96754977
Up to 34 A 200-240V 1Ph, 200-240V 3Ph, 380-500V 3Ph IP20 99616617, 99616631, 99616643, 99616699, 99616717, 99616718, 99616808, 99616809 96754978
Up to 46.2 A 200-240V 3Ph, 380-500V 3Ph IP20 99616644, 99616700, 99616719, 99616810 96755019
Up to 59.4 A 200-240V 3Ph, 380-500V 3Ph IP20 99616645, 99616701, 99616720, 99616811 96755021
Up to 74.8 A 200-240V 3Ph, 380-500V 3Ph IP20 99616646, 99616702, 99616721, 99616812 96755032
Up to 115 A 200-240V 3Ph, 380-500V 3Ph IP23, not UL Listed 99616647, 99616648, 99616703, 99616704, 99616722, 99616723, 99616813, 99616814 97774436
Up to 170 A 200-240V 3Ph, 380-500V 3Ph IP23, not UL Listed 99616649, 99616650, 99616705, 99616706, 99616724, 99616725, 99616815, 99616816 97775142
Up to 240 A 380-500V 3Ph IP23, not UL Listed 99616726, 99616727, 99616817, 99616818 97775146
Up to 361 A 380-500V 3Ph IP23, not UL Listed 99616728, 99616729, 99616819, 99616820 97775148
Up to 443 A 380-500V 3Ph IP23, not UL Listed 99616730, 99616821; two filters per drive: 93021213, 93021214 97775149
Up to 590 A 380-500V 3Ph IP23 93021201, 93021211, 99929257, 99929262; two filters per drive: 93021215 93303174
Up to 678 A 380-500V 3Ph IP23 93021202, 93021212 93303175
Up to 890 A 380-500V 3Ph IP23 93021203, 93021204, 93021205 93303176
Up to 11 A, 525-600V 525-600V 3Ph IP20 99616827, 99616828, 99616829, 99616830, 99616831, 99616832, 99616833, 99616834, 99616845, 99616846, 99616847, 99616848, 99616849, 99616850, 99616851, 99616852 97775161
Up to 27 A, 525-600V 525-600V 3Ph IP23 99616835, 99616836, 99616837, 99616853, 99616854, 99616855 97775162
Up to 41 A, 525-600V 525-600V 3Ph IP23 99616838, 99616839, 99616856, 99616857 97775163
Up to 62 A, 525-600V 525-600V 3Ph IP23 99616840, 99616841, 99616858, 99616859 97775164
Up to 100 A, 525-600V 525-600V 3Ph IP23 99616842, 99616843, 99616860, 99616861 97775165
Up to 131 A, 525-600V 525-600V 3Ph IP23 99616844, 99616862 97775166
Up to 192 A, 525-690V 525-690V 3Ph IP23 99616874, 99616875, 99616905, 99616906 97775167
Up to 290 A, 525-690V 525-690V 3Ph IP23 99616876, 99616877, 99616907, 99616908 97775168
Up to 344 A, 525-690V 525-690V 3Ph IP23 99929273, 99929275 93303177

The drive supply and matched part number columns show every CUE drive Grundfos pairs with each filter. The 730 to 890 A drives use two filters.

Before You OrderConfirm the drive part number against the pairing table. Where a project specification requires a UL Listed filter, the IP23 filters (see the Enclosure column) do not qualify. No pairing is published for the IP66 CUE drives.
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
