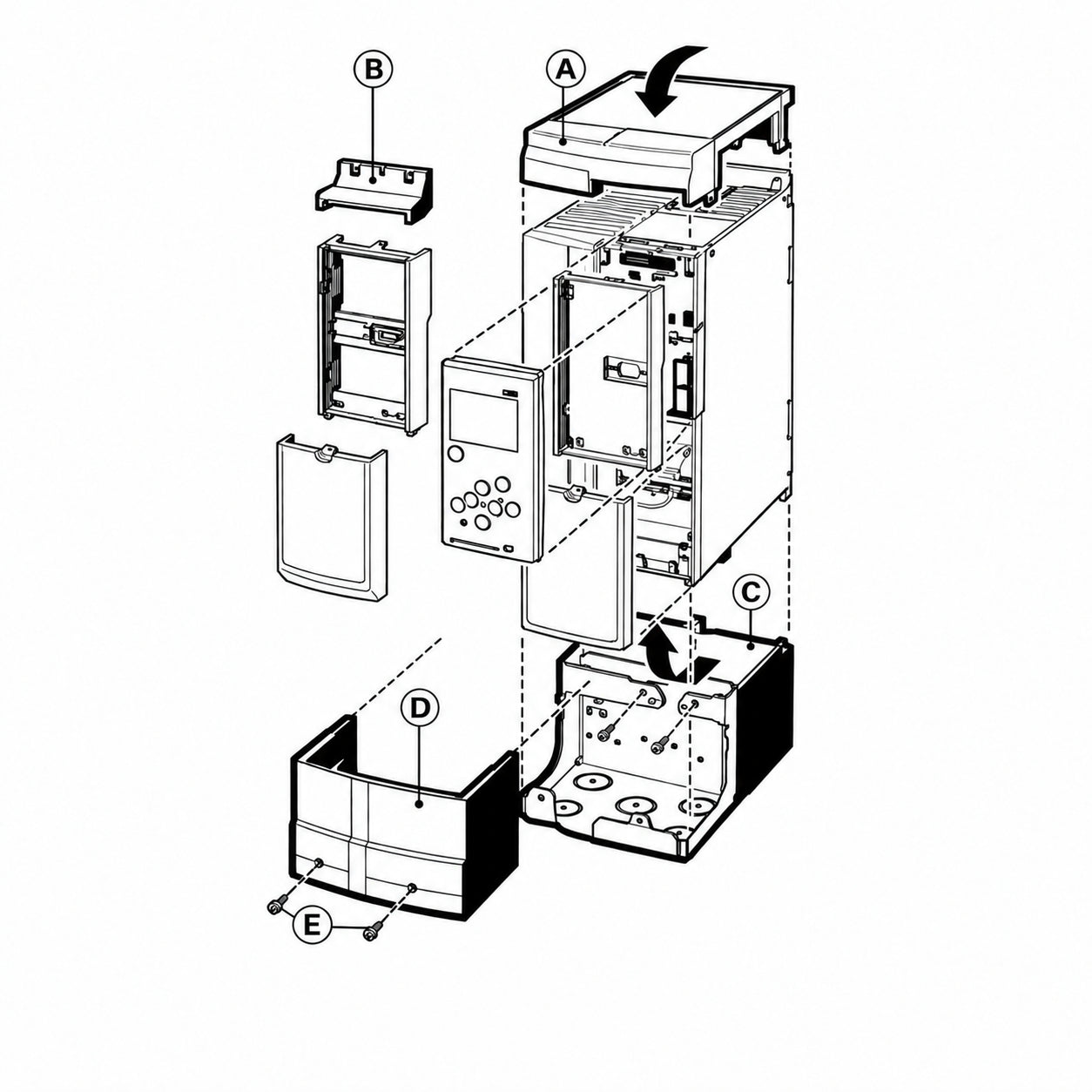

CUE IP21 Enclosure Kit
Enclosure kit that brings an IP20 Grundfos CUE frame A2 to C4 drive to NEMA 1.
Frames A2 to C4
IP20 to NEMA 1
Genuine Grundfos
One kit per drive
Overview
The IP20 versions of the Grundfos CUE drive require a CUE kit to meet NEMA 1 standards. One kit is ordered per drive, matched to the drive frame size. NEMA 12 and D-frame CUE drives do not use this kit.
What Ships and What It Needs to Run
Included: one IP21 / NEMA 1 enclosure kit for the frame size you select.
Required: an IP20 Grundfos CUE Variable Frequency Drive of that frame (A2 to C4). One kit per drive; NEMA 12 and D-frame drives do not use it.
Match: the frame printed on the drive or shown in the drive table.
Genuine Grundfos equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
Warranty
24 months from date of installation, but not more than 30 months from date of manufacture. In Grundfos's words, products are “warranted to the original user only to be free of defects in material and workmanship”; the full terms are in the installation and operating instructions on the Data Sheet tab.
Models & Part Numbers
| Frame |
Fits CUE drive part numbers |
Part No. |
| A2 |
99616636, 99616637, 99616638, 99616639, 99616707, 99616708, 99616709, 99616710, 99616711, 99616712, 99616713 |
96801223 |
| A3 |
99616601, 99616640, 99616641, 99616714, 99616715, 99616827, 99616828, 99616829, 99616830, 99616831, 99616832, 99616833, 99616834 |
96801224 |
| B3 |
99616642, 99616643, 99616644, 99616716, 99616717, 99616718, 99616835, 99616836, 99616837 |
96801225 |
| B4 |
99616645, 99616646, 99616719, 99616720, 99616721, 99616838, 99616839, 99616840 |
96801226 |
| C3 |
99616647, 99616648, 99616722, 99616723, 99616841, 99616842 |
96801227 |
| C4 |
99616649, 99616650, 99616724, 99616725, 99616843, 99616844 |
96801228 |
Before You OrderMatch the kit to the frame size printed on the drive or shown in the CUE drive table. The kit is a separate line item from the drive.
