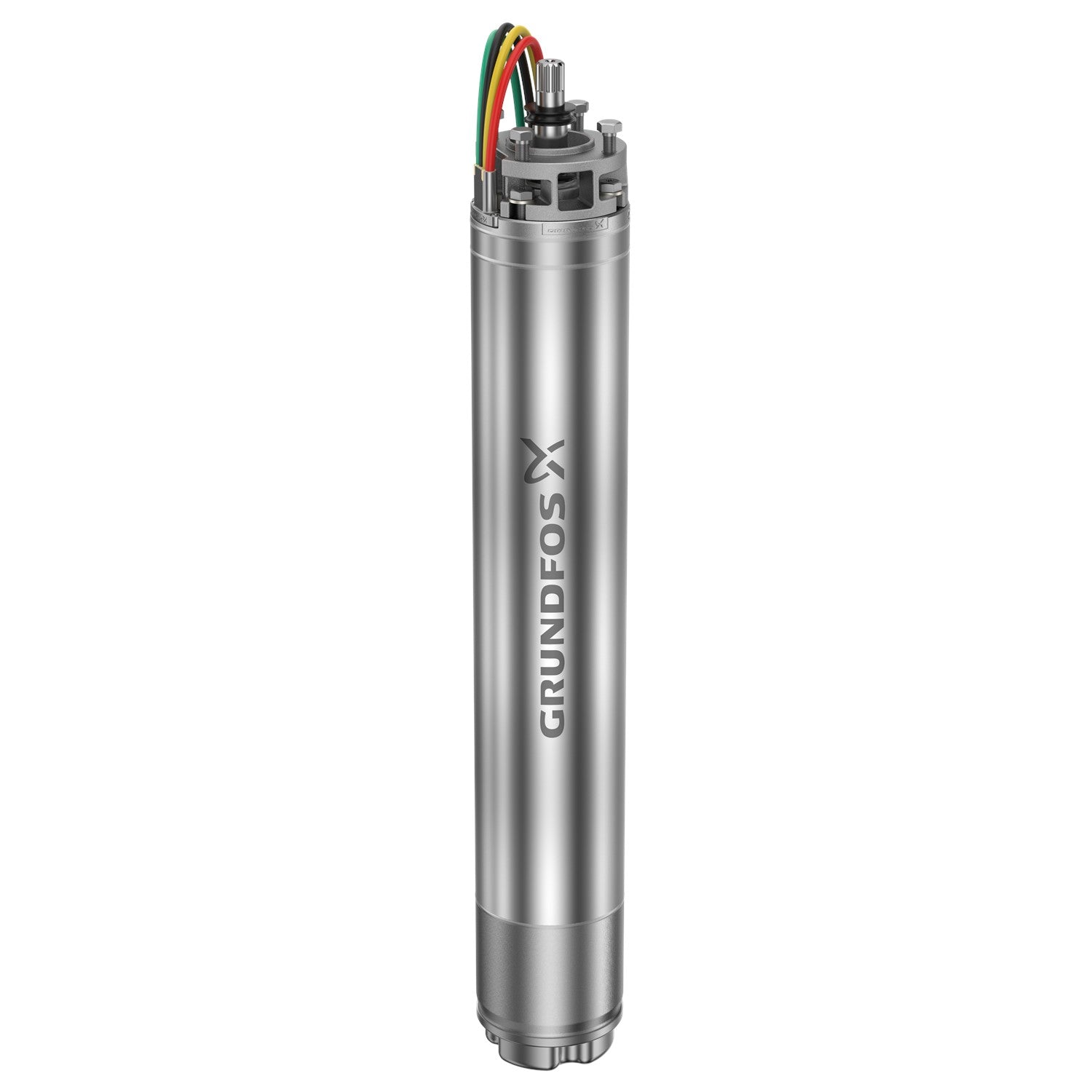

Grundfos MS6000C 6 in stainless steel submersible motor with lead connection

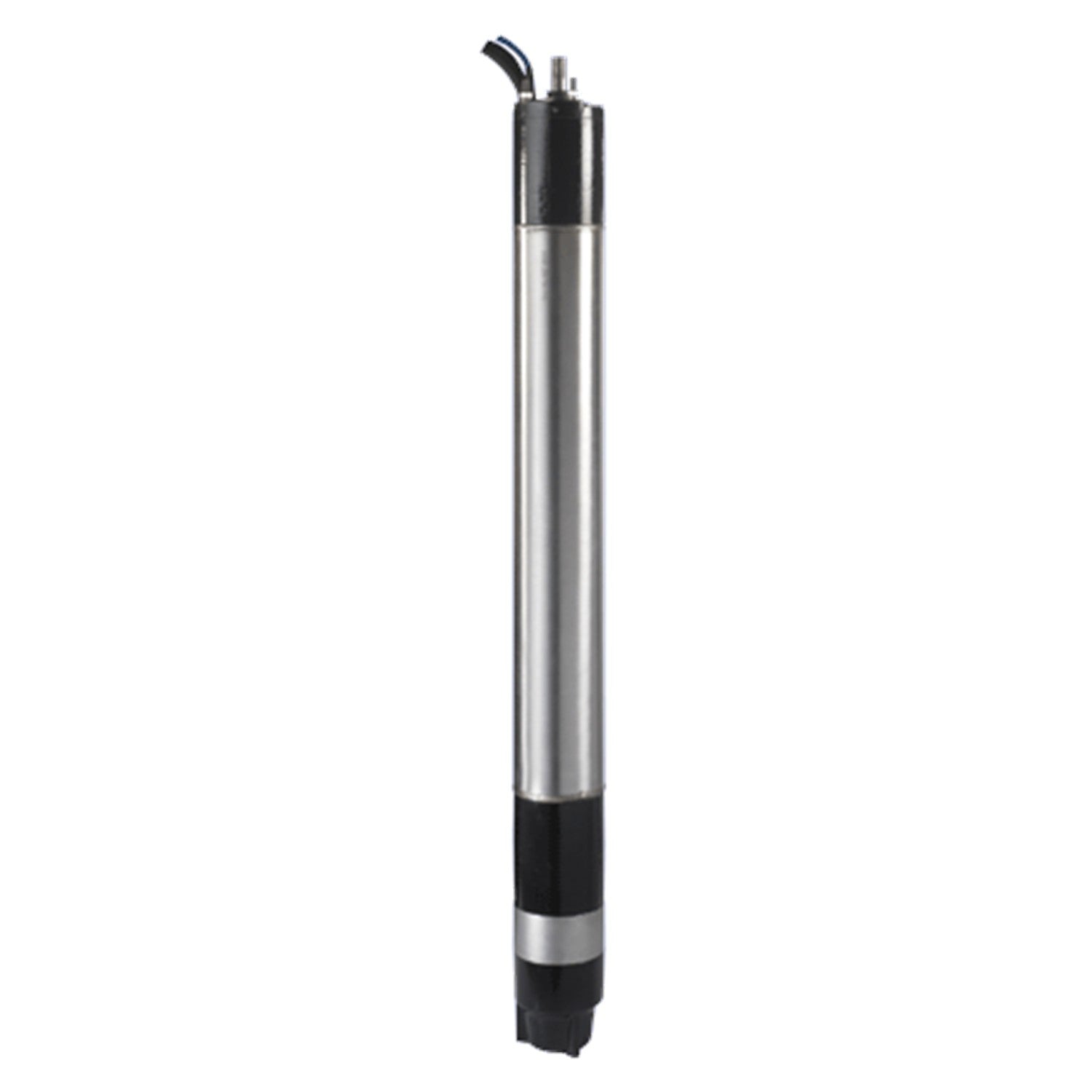

Grundfos MMS6 6 in rewindable submersible motor
Grundfos MS6000C 6 in stainless steel submersible motor with lead connection
Grundfos MMS6 6 in rewindable submersible motor

Grundfos MS6000C and MMS6 6 in Submersible Motor

HP: 5 HP
Voltage - Phase: 208-230V 1Ph 3-Wire
Type - Model: MS6000C T40 - 99445229

Product variant with selected options does not exist!
$2,759.47
SKU: 99445229
Weight : 98.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 · Same-day shipping available
Description
Grundfos · Submersible Motor
MS6000C and MMS6 6 in Motors
37 builds, 5 to 60 HP: standard T40, high-temperature T60 and single-phase MS6000C, and rewindable MMS6, for 6 in wells.
5-60 HP · 6 in Motor
208-230V 1Ph · 208-460V 3Ph
6,070 lb (MS6000C) · 6,180 lb (MMS6) Max Thrust
T40 Standard · T60 Hi-Temp to 140°F
SiC/SiC Shaft Seal
304 SS (MS6000C) · Cast Iron or 316 SS (MMS6)
6 in Motor, 26.4-56.6 in L
84-298 lb Ship Weight
What Ships and What It Needs to Run

Included: the motor. The Grundfos price list lists the MS6000C motor lead (96164249, 198 in / 16.5 ft, 8/3 with ground) as a separate part, on our Grundfos MS Submersible Motor Leads listing.

Pump end required, ordered separately. A 6 in pump end matched to the motor horsepower.

Deluxe control box required for single-phase builds, ordered separately. It includes the magnetic starter; the box for each HP is in the table under Control Box by Horsepower (Grundfos SA-SPM6 3-Wire Control Box).

Magnetic starter or drive required for three-phase builds, ordered separately. Rated for the motor, with three-leg ambient-compensated quick-trip overload protection (see Before You Buy).

Drop cable and splice kit: sized to your setting depth and ordered separately.

Overview

Grundfos 6 in submersible motors for 6 in and larger wells, 37 builds from 5 to 60 HP. The MS6000C (5 to 40 HP) is built for water supply duty: standard T40 builds for water to 104°F, high-temperature T60 builds for water to 140°F, and single-phase 3-wire builds to 15 HP. The MMS6 (50 and 60 HP) is Grundfos’s rewindable motor for heavy-duty and industrial wells, with cast-iron or 316 stainless steel end-bells.

  • MS6000C: AISI 304 stainless steel external surfaces and a hermetically enclosed stator
  • MS6000C: spring-loaded SiC/SiC shaft seal with a sand shield, for minimum exchange of motor and pumped liquids
  • T60 Hi-Temp: runs in water to 140°F (60°C) with 3.3 ft/s of flow past the motor
  • MMS6: easy to rewind; pure copper windings with a non-hygroscopic thermoplastic sheath, cooled by direct contact with the motor liquid
  • Pt100/Pt1000 temperature sensors available for both series, read by an MP 204 motor protector
Genuine Grundfos equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
24-Month Grundfos Warranty

Covered for 24 months from the date of installation, but not more than 30 months from the date of manufacture. In Grundfos’s words, products are “warranted to the original user only to be free of defects in material and workmanship”; the full terms, including the three-phase protection conditions under Before You Buy, are in the installation and operating instructions on the Data Sheet tab.

Specifications
Motor diameter 6 in nominal (MS6000C 5.49 in / 139.5 mm)
Horsepower 5-40 HP MS6000C; 50 and 60 HP MMS6 (P2 rating)
Speed 3420-3500 RPM at full load, 60 Hz
Maximum thrust 6,070 lb (MS6000C); 6,180 lb (MMS6)
Service factor 1.15
Shaft seal SiC/SiC (both series)
Windings Enamelled, insulation class F (MS6000C); rewindable PE2/PA wire (MMS6)
Enclosure IP68
Maximum ambient pressure 60 bar / 870 PSI
Maximum water temperature MS6000C T40 104°F (40°C); T60 140°F (60°C); MMS6 86°F (30°C), 9°F lower on the 50 HP; with the cooling flow under Before You Buy
Motor material MS6000C stainless steel EN 1.4301 (AISI 304); MMS6 316 SS (EN 1.4401) or cast-iron (EN 0.6025) end-bells
Staybolt 1/2-20 UNF (MS6000C)

Sources: Grundfos US price list, effective January 1, 2026 (thrust, horsepower, temperature versions); Grundfos SP data booklet, 60 Hz (cooling and temperature table, materials); Grundfos Product Center (dimensions, seal, windings, pressure). The price list rates the MMS6 builds T50 (50 HP) and T40 (60 HP); the booklet’s cooling table is quoted above.

Control Box by Horsepower

Single-phase MS6000C builds only. Each takes Grundfos’s XL Deluxe box, which includes the magnetic starter.

HP Deluxe control box
5 HP 99053535
7-1/2 HP 99053536
10 HP 99053537
15 HP 99053538

Grundfos US price list, pp. 46 and 48. All are on our Grundfos SA-SPM6 3-Wire Control Box listing.

Before You Buy — The Limits That Decide the Fit
Well size 6 in minimum casing or flow-sleeve diameter
Cooling At least 0.50 ft/s (9 GPM) past an MS6000C T40, 3.3 ft/s (30 GPM) past a T60 at 140°F, and 0.15 ft/s (13 GPM) past an MMS6. Where the well cannot give that flow, use a flow sleeve
Power Supply voltage and phase to match the motor nameplate; single-phase needs the Deluxe control box, three-phase a starter or drive
Three-phase protection The Grundfos warranty on three-phase submersible motors calls for true three-phase power (no phase converter), three-leg ambient-compensated extra quick-trip overload protectors, a checked and recorded current imbalance, and high-voltage surge arresters
Drinking water Drinking water service up to 86°F (30°C)
Not included Pump end, control box, starter or drive, drop cable and splice kit
Installation Notes
  • Check the motor liquid level before installation and top up as the instructions describe for MS6000 and MMS motors; use Grundfos liquid where frost protection is needed.
  • Set the pump at least 3 ft below the maximum drawdown level, never with the motor bottom below the top of the well screen or within 5 ft of the well bottom.
  • In a lake, pond, tank or wide well, make sure the water velocity past the motor meets the cooling minimum for the motor type.
  • Install a voltage-rated surge arrester on the supply side of the control box or starter, grounded per the NEC.
  • Check the nameplate voltage, phase and frequency against the supply, and measure insulation resistance of the cable and splice before startup.

From the Grundfos SP/SPE installation and operating instructions.

Applications

Water supply from 6 in wells; hot water to 140°F with the T60; heavy-duty industrial and dewatering wells with the MMS6 or an equipped MS6000C.

Accessories
Accessory Code Description
Motor lead, MS6000C, 198 in (Grundfos MS Submersible Motor Leads) 96164249 8/3 with ground
Bolt kit, MS6000C 6 in (Grundfos SP Motor Nut and Bolt Kits) 00UB9009 Pump-to-motor bolts
Bolt kit, MMS6 6 in 98525460 Pump-to-motor bolts
PT100 bolt kit, MS6000C with flange extension 98711938 Bolts with Pt100 sensor
Grundfos MP 204 Motor Protector 96079927 Motor protection and temperature readout
For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
