Grundfos SPE 6 in Submersible Pump End

HP: 10 HP
Model - Head: SPE160S100-2 - 83 ft at 160 GPM

Product variant with selected options does not exist!

Price
$2,482.09
Coupon 5% off applied automatically in your cart. No code needed.
SKU: 93145309
Weight : 32.0 lb
Loading locations...
Free Shipping $499 or more
Skip the chatbot. Talk to an expert.
1-888.510.4036 ¡ Same-day shipping available
Description

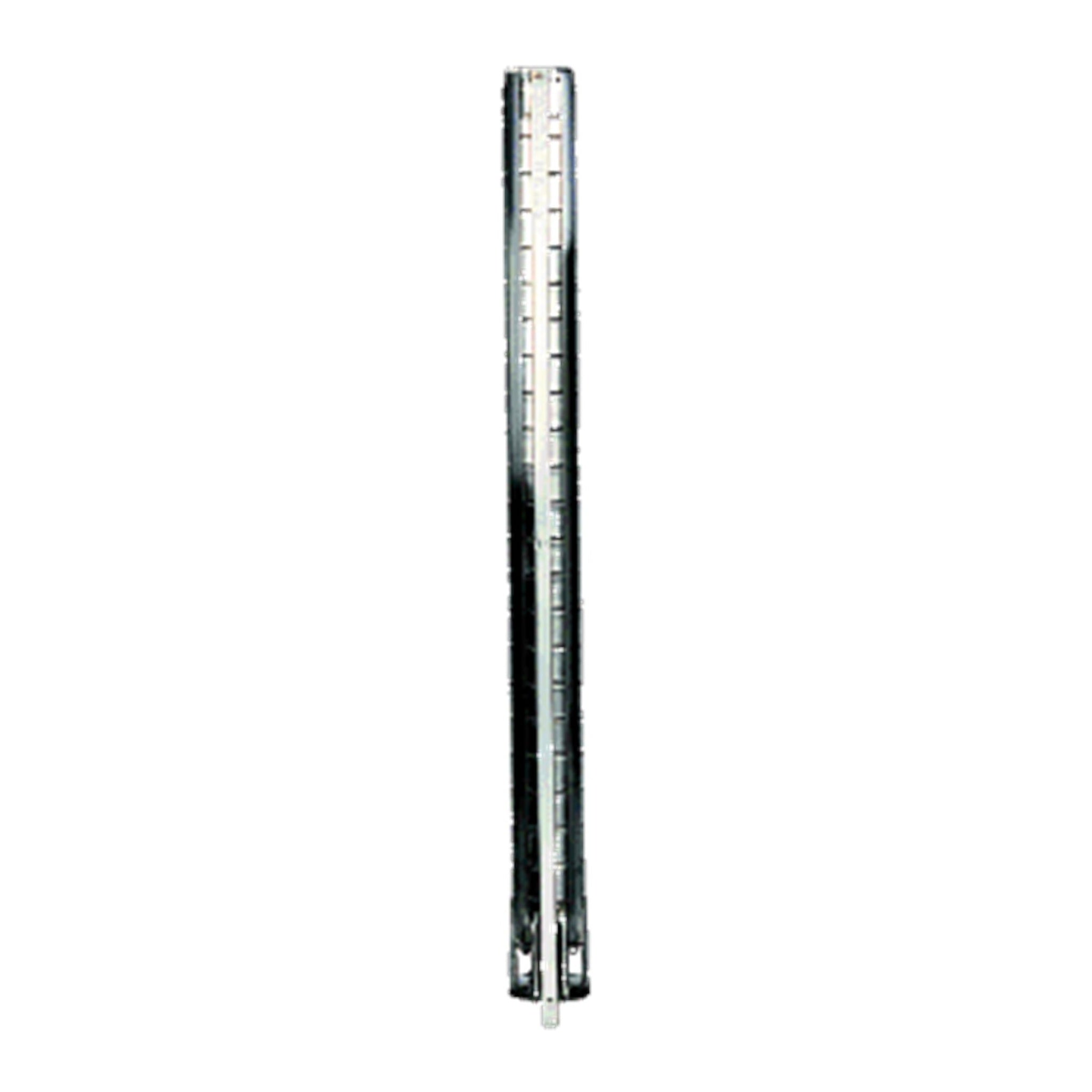

Grundfos ¡ Submersible Pump End
SPE 6 in Pump End
Replacement pump ends for Grundfos SPE variable speed submersibles, 160, 230, 240 and 300 GPM classes: 33 builds for the 10 to 50 HP permanent magnet motors.
44-1,086 ft Head at Rated Flow
160, 230, 240 and 300 GPM Rated Flow
10-50 HP PM Motor Fit
6 in Permanent Magnet Motor
3 in and 4 in NPT Discharge
Built-In Check Valve
AISI 304 Stainless Steel
cCSAus
5.5-5.9 in Dia x 15.5-109.3 in L
16.8-90.8 lb Weight
Overview

These are the Grundfos SPE replacement pump ends: the stainless steel hydraulic end of an SPE variable speed submersible, with its built-in check valve, sold without the motor. Pump and impellers are AISI 304 stainless steel. The SPE runs on a Grundfos 6 in permanent magnet motor driven by a Grundfos CUE drive; Grundfos rates the motors 4-pole, 3600 RPM, three-phase 460V, operating on 410V.

Use one to rebuild an SPE installation on a sound permanent magnet motor. The complete SPE 6 in pump, with its motor, is listed separately.

What Ships and What It Needs to Run

Included: the Grundfos SPE replacement pump end with its built-in check valve.

SPE permanent magnet motor required, ordered separately. The pump end mounts on the Grundfos 6 in permanent magnet motor of the horsepower in the selector; the SPE PM replacement motor part number for each build is in the Motor by Horsepower table under Models & Performance.

Drive and filter required, ordered separately. The permanent magnet motor starts and runs only from a drive with IPM motor control, the Grundfos CUE variable frequency drive, with a sine-wave output filter.

Genuine Grundfos equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
24-Month Grundfos Warranty

Covered for 24 months from the date of installation, but not more than 30 months from the date of manufacture. In Grundfos’s words, products are “warranted to the original user only to be free of defects in material and workmanship”; the full terms are in the installation and operating instructions on the Data Sheet tab. Grundfos’s 5-year system warranty applies when the complete SPE pump, CUE drive and sine-wave filter are bought together.

Specifications
Included Pump end with built-in check valve; PM motor, CUE drive and sine-wave filter ordered separately
Rated flow 160, 230, 240 and 300 GPM, by series
Motor Grundfos 6 in permanent magnet motor, 10 to 50 HP; Grundfos motor flange
Drive Grundfos CUE with IPM motor control, plus a sine-wave output filter
Discharge 3 in and 4 in NPT (female), by series
Minimum borehole 5.7-6.1 in by build (Grundfos Product Center)
Liquid temperature Up to 140°F (60°C) at the pump end; the motor sets the working limit
Approvals cCSAus and CULDWUS (Grundfos Product Center codes)
Curve tolerance ISO 9906
Models & Performance — Will It Do What You Need?

Each table reads like the curve: the head the pump end on its matching motor adds at shut-off, along its curve and at the rated flow of 160 GPM, 230 GPM, 240 GPM and 300 GPM, out to the end of the published curve. Pick a model whose head at your flow covers the pumping level, the pressure you need at the surface (2.31 ft per psi) and pipe friction.

SPE 160S ¡ rated 160 GPM at 3600 rpm ¡ 10 to 50 HP ¡ 11 models
Model HP 0 GPM (Shut-off) 44 GPM 110 GPM 160 GPM (Rated) 219.7 GPM (Max)
SPE160S100-2 10 100 103 91 83 36
SPE160S100-3 10 160 157 138 125 60
SPE160S100-5 10 271 264 233 209 108
SPE160S250-7 25 380 371 329 292 156
SPE160S250-10 25 547 531 472 419 228
SPE160S250-13 25 713 692 614 545 300
SPE160S400-15 40 819 798 710 624 348
SPE160S400-18 40 — — — 749 —
SPE160S400-21 40 1159 1119 995 876 493
SPE160S500-24 50 — — — 1001 —
SPE160S500-26 50 1432 1387 1233 1086 612
SPE 230S ¡ rated 230 GPM at 3600 rpm ¡ 10 to 50 HP ¡ 7 models
Model HP 230 GPM (Rated)
SPE230S100-2 10 —
SPE230S250-4 25 —
SPE230S250-6 25 —
SPE230S250-7 25 —
SPE230S400-10 40 —
SPE230S400-12 40 —
SPE230S500-15 50 —
SPE 240S ¡ rated 240 GPM at 3600 rpm ¡ 10 to 50 HP ¡ 7 models
Model HP 0 GPM (Shut-off) 65 GPM 163 GPM 240 GPM (Rated) 326 GPM (Max)
SPE240S100-3 10 175 171 151 132 71
SPE240S250-6 25 354 346 307 265 158
SPE240S400-8 40 473 463 412 353 215
SPE240S400-10 40 593 580 516 441 273
SPE240S400-12 40 712 696 620 530 330
SPE240S500-14 50 832 813 724 620 388
SPE240S500-16 50 951 930 829 710 445
SPE 300S ¡ rated 300 GPM at 3600 rpm ¡ 10 to 50 HP ¡ 8 models
Model HP 0 GPM (Shut-off) 85 GPM 212 GPM 300 GPM (Rated) 423 GPM (Max)
SPE300S100-1 10 64 64 50 44 18
SPE300S100-2 10 136 135 104 85 36
SPE300S250-4 25 281 273 216 169 76
SPE300S250-6 25 425 411 325 254 115
SPE300S400-8 40 570 549 438 338 165
SPE300S400-10 40 714 687 551 419 225
SPE300S500-12 50 859 826 663 505 277
SPE300S500-13 50 931 895 721 547 305

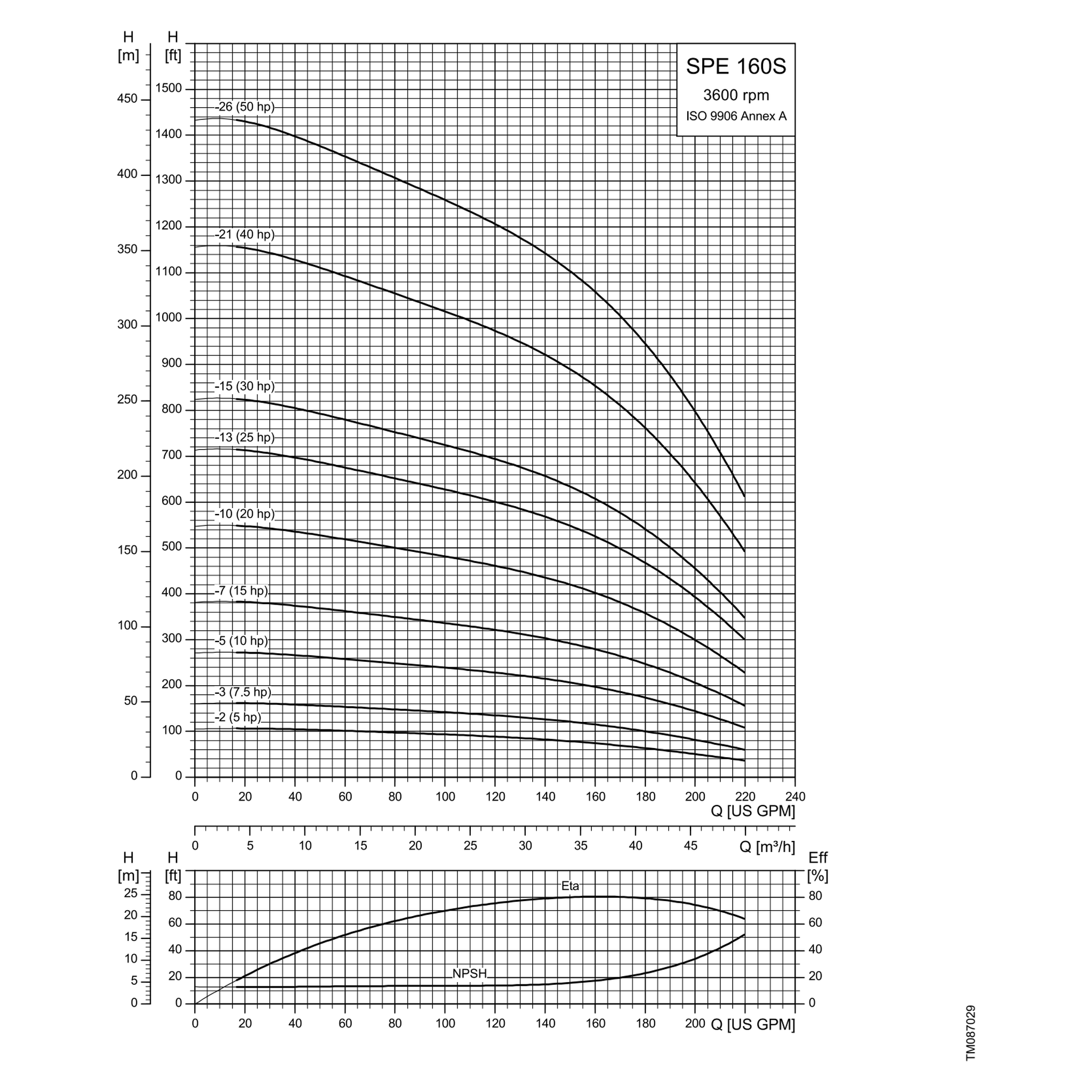

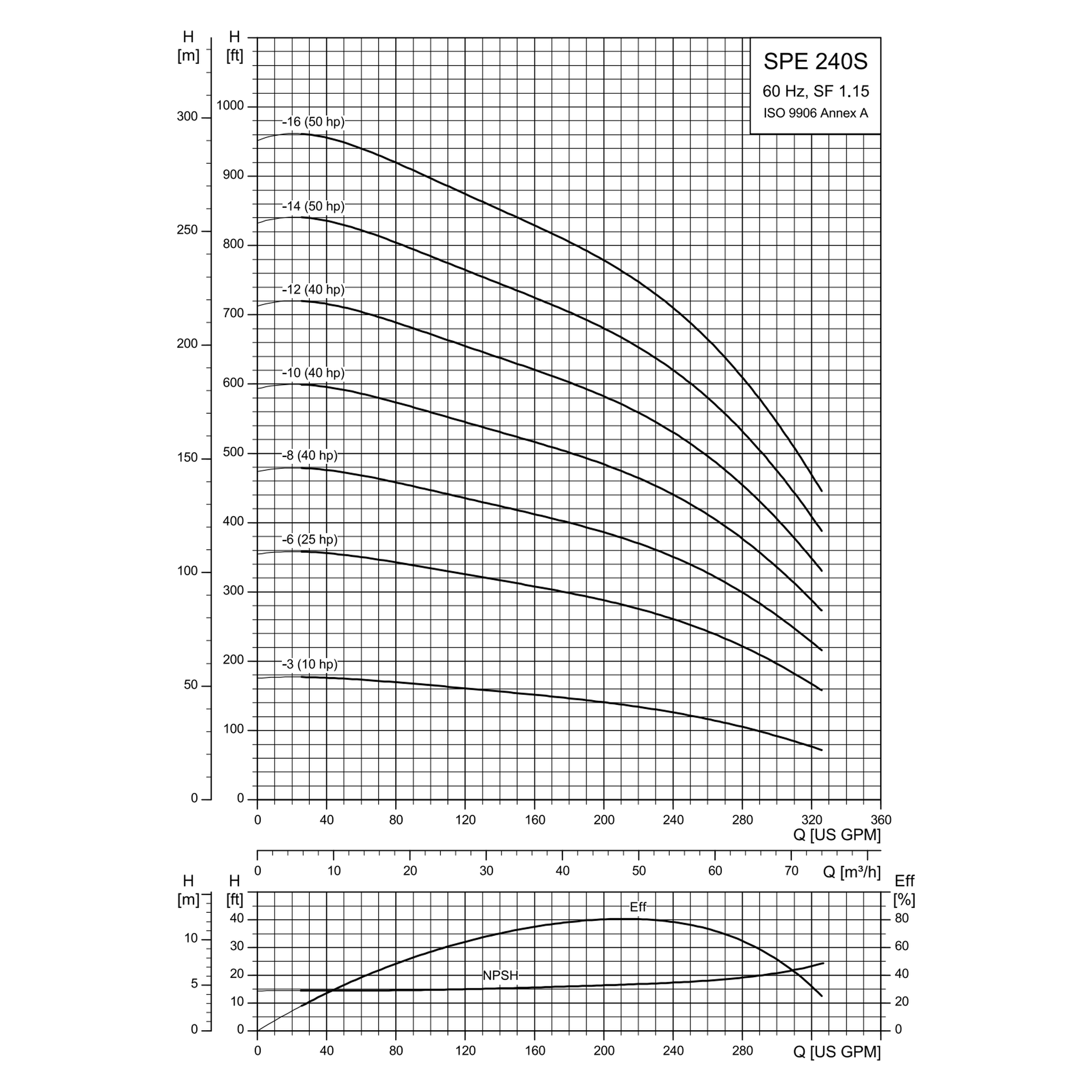

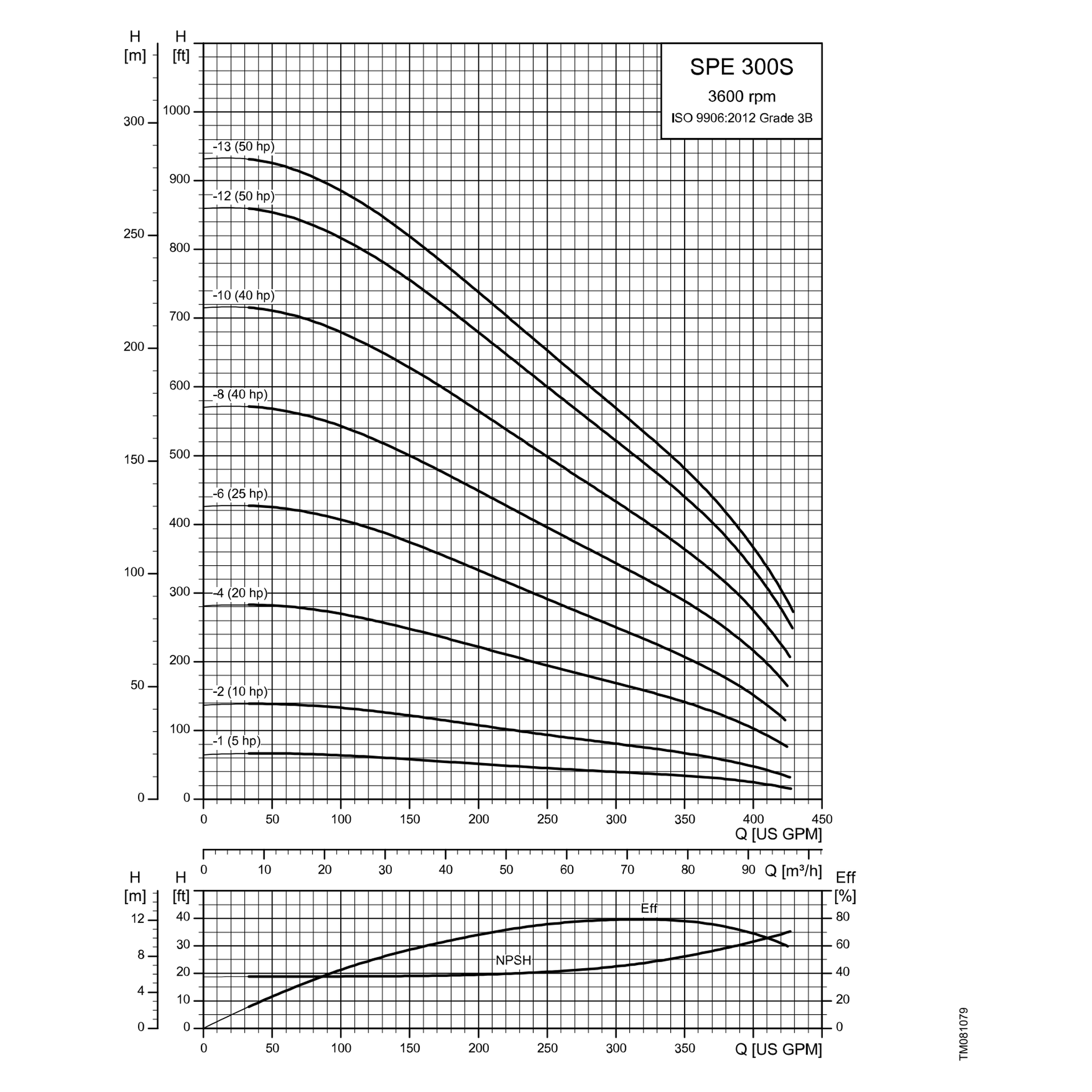

Total head in feet. The shut-off and flow columns are read from the Grundfos 60 Hz curves at 3600 rpm, digitized from the published vector curves in the Grundfos SPE data booklet, at the nearest published point and rounded down. The (Rated) column is the nominal head Grundfos prints for each model at its rated flow, verbatim; where two figures are shown, builds on different motors or voltages differ slightly. Grundfos's curve and printed table disagree here. SPE 160S: the published curve reads below the printed nominal head at 160 GPM by about 3% of shut-off head on the median model. Both are shown as published; we check your duty point against the curve before you order. No published curve for SPE160S400-18, SPE160S500-24, SPE230S100-2, SPE230S250-4, SPE230S250-6, SPE230S250-7, SPE230S400-10, SPE230S400-12, SPE230S500-15: rated figure only, full curve on request. 1 ft of head = 0.433 PSI. Full curves are in the product images and on the Data Sheet tab.

Motor by Horsepower

Motor HP Models Grundfos MS6000P PM motor
10 HP SPE160S100-2, SPE160S100-3, SPE160S100-5, SPE230S100-2, SPE240S100-3, SPE300S100-1, SPE300S100-2 99843438
25 HP SPE160S250-7, SPE160S250-10, SPE160S250-13, SPE230S250-4, SPE230S250-6, SPE240S250-6, SPE300S250-4, SPE300S250-6 99843439
25 HP SPE230S250-7 99843440
40 HP SPE160S400-15, SPE160S400-18, SPE160S400-21, SPE230S400-10, SPE230S400-12, SPE240S400-8, SPE240S400-10, SPE240S400-12, SPE300S400-8, SPE300S400-10 99843440
50 HP SPE160S500-24, SPE160S500-26, SPE230S500-15, SPE240S500-14, SPE240S500-16, SPE300S500-12, SPE300S500-13 99843441

Grundfos US price list, January 2026. The SPE PM motor runs only from a drive with IPM motor control and an IPM-ready sine-wave filter; both are sized on the complete-pump listing.

Before You Buy — The Limits That Decide the Fit
Motor A Grundfos 6 in permanent magnet motor of the horsepower in the selector (part numbers in the Motor by Horsepower table under Models & Performance)
Drive A Grundfos CUE drive with IPM motor control and a sine-wave output filter; the motor does not run across the line
Power Three-phase 460V supply to the drive
Well size At least the minimum borehole for the build (Specifications)
Duty point Choose the model from the Grundfos curve at your flow and total head. Send us the pumping level, pipe run and pressure and we will check it against the curve
Water temperature Up to 140°F (60°C) at the pump end; the motor sets the working limit
Materials of Construction
Pump Stainless steel, EN 1.4301 (AISI 304)
Impellers Stainless steel, EN 1.4301 (AISI 304)

Source: Grundfos Product Center.

For engineering-led sizing and selection support or a factory submittal, email sales@watermainsupply.com or call 1-888.510.4036.
