JCM Industries · Expansion Joint
JCM 801 Single End Expansion Joint
Fabricated steel · stainless slip pipe · up to 10 in movement · 3 in to 24 in
Up to 10 in Pipe Movement
Fabricated Steel Body
Stainless Steel Slip Pipe
Flax and Rubber Packing
Adjustable Packing Gland
ANSI/AWWA C221 as Applicable
Weld-On or Flanged Ends
3 in to 24 in
Description

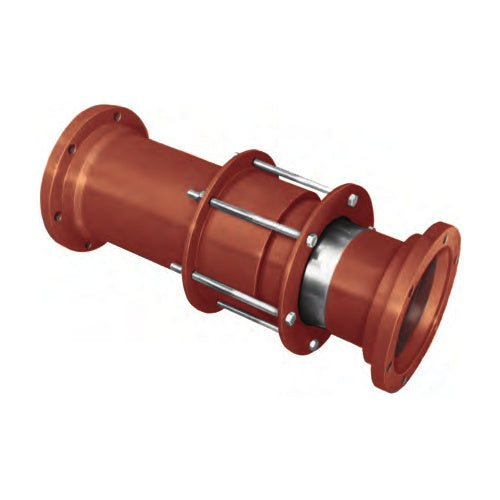

The JCM 801 single end expansion joint absorbs the axial expansion and contraction of a pipeline from changes in ambient and line temperature, with up to 10 in of concentrated pipe movement. A fabricated steel body houses an externally guided slip pipe that telescopes in and out of it, sealed by alternating rings of lubricated flax and rubber held by an adjustable packing gland.
The packing can be adjusted or replaced without taking the line out of service. JCM builds each expansion joint for its application: coatings, stainless steel fabrication, other end connections and more or less movement are available.
Typical application: Absorbing thermal expansion and contraction in exposed water, wastewater and process lines, such as bridge crossings, vaults and plant piping.
Key Features
- Up to 10 in of concentrated pipe movement
- Stainless steel slip pipe, externally guided
- Lubricated flax and rubber packing for water, salt solutions, mild acids, bases, natural gas and sewage
- Adjustable packing gland; repack without disrupting service
- Meets or exceeds ANSI/AWWA C221 for fabricated steel slip-type expansion joints, as applicable
What Ships and What It Needs to Run
Included: the fabricated steel body, stainless slip pipe, flax and rubber packing and adjustable packing gland, with weld-on or flanged ends, and limit rods on limit rod builds.
Pipe anchorage, provided at install. The expansion joint does not restrain the pipe; anchor the line so movement is directed into the joint.
Flange bolts and gaskets, ordered separately. Flanged builds bolt to the mating flanges.
Genuine JCM Industries equipment, factory-new in original packaging — sold and supported by Watermain Supply, an independent industrial supplier.
12-Month Warranty
Covered for 12 months from the date of purchase against defects in materials and workmanship. Keep the dated invoice as proof of purchase.
Working Pressure
Rated by application. JCM engineers each expansion joint for the line; send the pipe type and OD, line contents, minimum and maximum temperatures and maximum working pressure and we will obtain JCM's rating and submittal.
Materials Specifications
| Body |
Fabricated steel, shop coat primer; epoxy coating or stainless steel fabrication available |
| Slip pipe |
Stainless steel |
| Packing |
Alternating rings of lubricated flax and rubber |
| Packing gland |
Adjustable |
| Limit rods |
On limit rod builds |
From JCM Product Directory 8-25, pp. 110-111.
Pipe Applications
Steel pipe ODs as listed; other pipe types and ODs built to order. JCM does not recommend these joints for direct buried applications.
Sizes
| Nominal |
Pipe OD |
End connections |
| 3 in |
3.50 in |
Weld-on or flanged, with or without limit rods |
| 4 in |
4.50 in |
Weld-on or flanged, with or without limit rods |
| 6 in |
6.63 in |
Weld-on or flanged, with or without limit rods |
| 8 in |
8.63 in |
Weld-on or flanged, with or without limit rods |
| 10 in |
10.75 in |
Weld-on or flanged, with or without limit rods |
| 12 in |
12.75 in |
Weld-on or flanged, with or without limit rods |
| 14 in |
14.00 in |
Weld-on or flanged, with or without limit rods |
| 16 in |
16.00 in |
Weld-on or flanged, with or without limit rods |
| 18 in |
18.00 in |
Weld-on or flanged, with or without limit rods |
| 20 in |
20.00 in |
Weld-on or flanged, with or without limit rods |
| 22 in |
22.00 in |
Weld-on or flanged, with or without limit rods |
| 24 in |
24.00 in |
Weld-on or flanged, with or without limit rods |
Mechanical joint ends and other end connections are built to order; ask for a quote.
Before You OrderBuilt to order for your application: confirm the pipe type and OD, line contents, temperatures, working pressure and coating before ordering. Not recommended for direct burial.
Part numbers on this listing are Watermain Supply ordering codes; JCM assigns its own on the order.
For a submittal or an odd OD, email sales@watermainsupply.com with the pipe OD, pipe type and line content.
